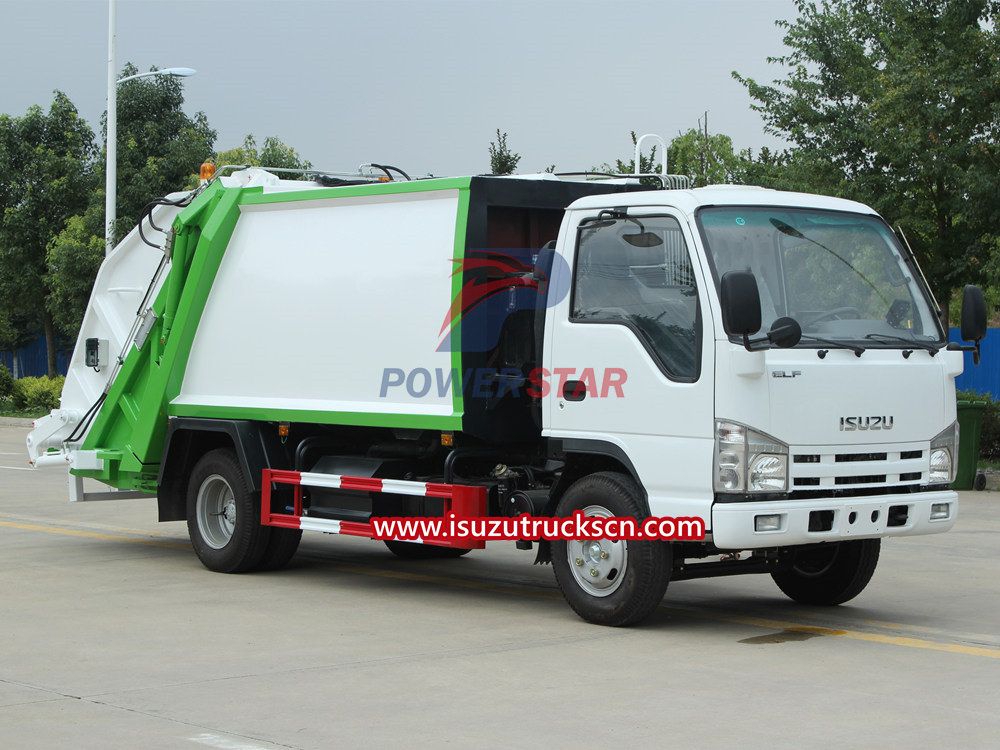

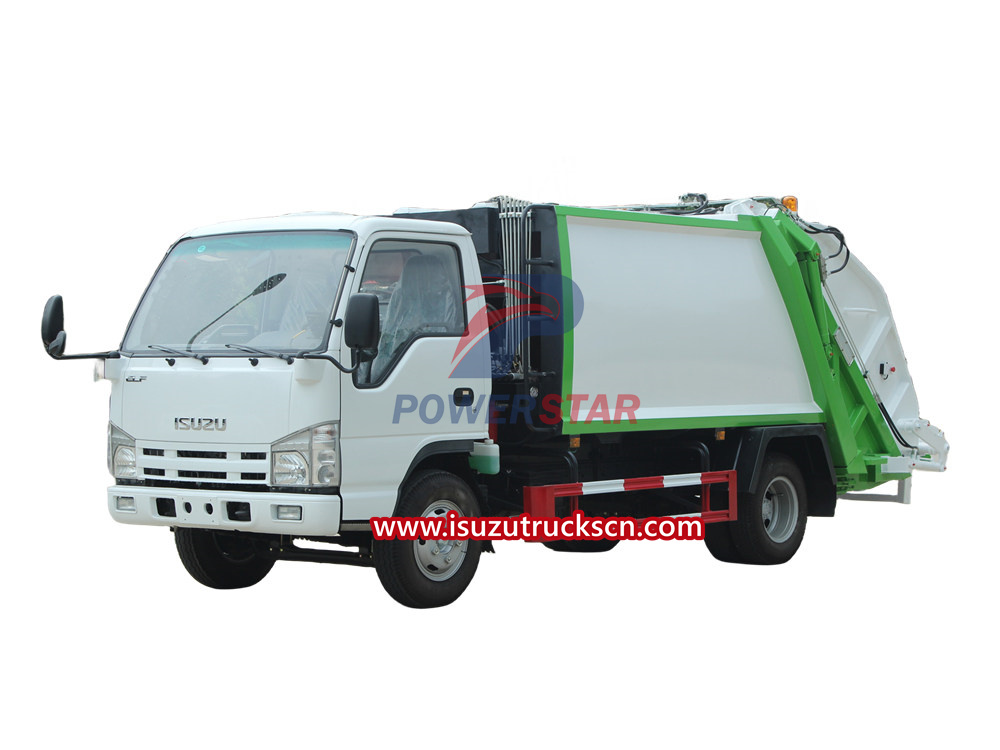

The garbage bin of the Isuzu compressed garbage truck is made of high-strength weather-resistant steel plates. The side plates use an integrated forming process, with an arc shape, solid structure, beautiful appearance, light weight, good stress resistance, and large loading capacity. The push shovel is composed of a rectangular tube frame and high-strength weather-resistant plate, with a streamlined pushing surface. It is not only lightweight in structure, but also can load materials smoothly and discharge materials cleanly and thoroughly.

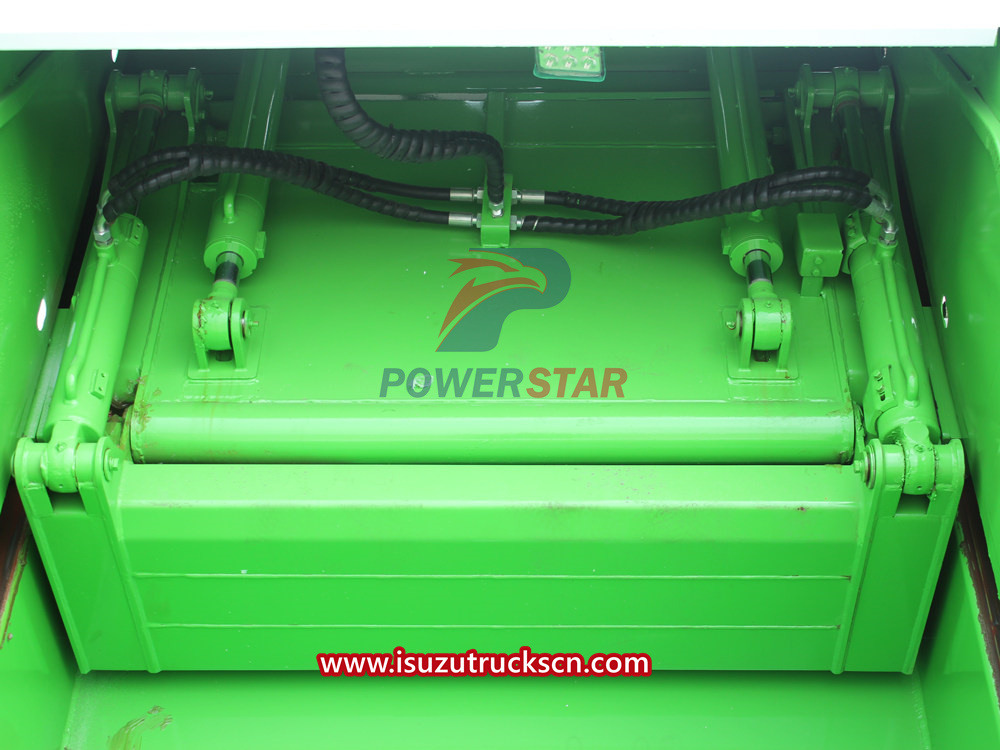

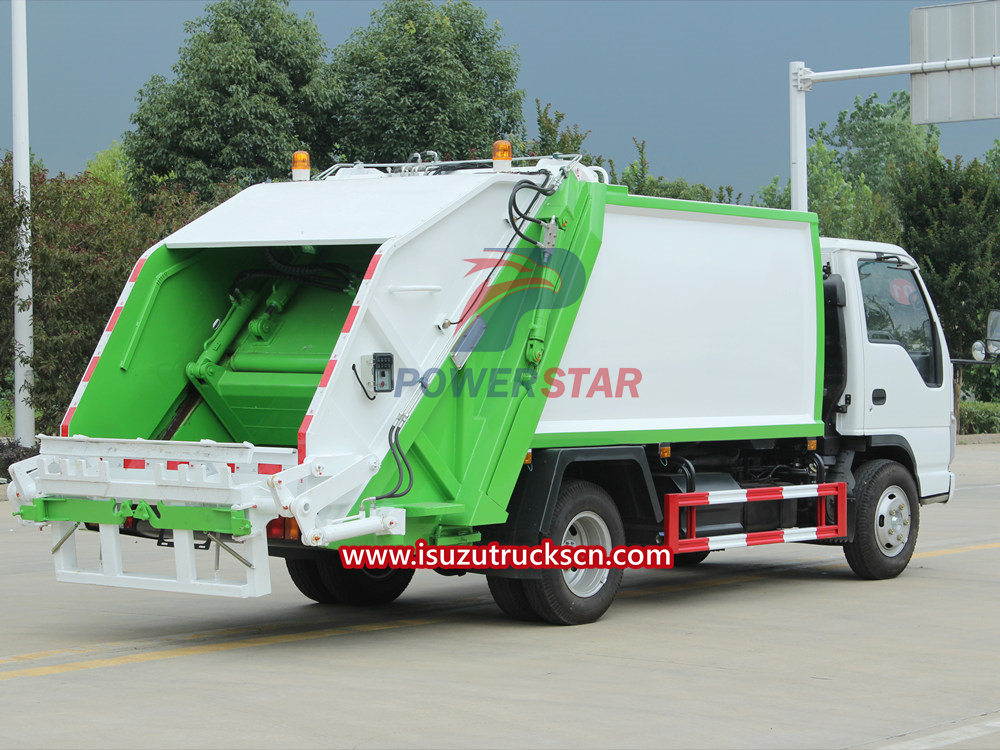

The filler is mainly composed of the filler assembly, sliding plate, scraper and other components. Each component adopts a beam plate or box structure with good stress. They are all made of high-strength weather-resistant steel plates, with a solid structure and light weight.
The garbage is in a closed state during the compression, filling and transportation process, eliminating the phenomenon of garbage dust flying and odor drifting during the transfer process.

The joint surface between the garbage bin and the filler is equipped with a special rubber sealing strip, and a hydraulic locking device is used to compress and seal for good sealing; the lower part is designed with a specially structured water tank for double protection, which effectively prevents sewage dripping and eliminates secondary pollution. .
The whole vehicle adopts electro-hydraulic control valves and PLC programmable control system, which comprehensively utilizes the advantages of electronic control and hydraulic control. Through electro-hydraulic joint control, it effectively solves the interface problem between the hydraulic system and the electrical system and improves the reliability of use.

When the Isuzu compressed garbage truck is operating, the engine power output is automatically controlled through the electronic throttle controller to ensure that the engine can automatically select acceleration and idle states under various operating conditions of the garbage truck, avoiding power loss and system heating, reducing fuel consumption, and being economical. Good sex.
It adopts imported electro-hydraulic multi-way valve and PLC programmable controller for integrated control, and uses a logic loop to ensure that each operation instruction is executed in sequence, which reduces the failure rate, avoids accidents caused by misoperation, and improves reliability.
An emergency stop button is set up to stop the garbage filling operation device in any state or position to ensure the safety of workers and equipment.

The lifting cylinder is equipped with an explosion-proof valve to prevent the loader from descending when the oil pipe suddenly bursts. It is also equipped with a safety brace to ensure the safety of personnel during maintenance.

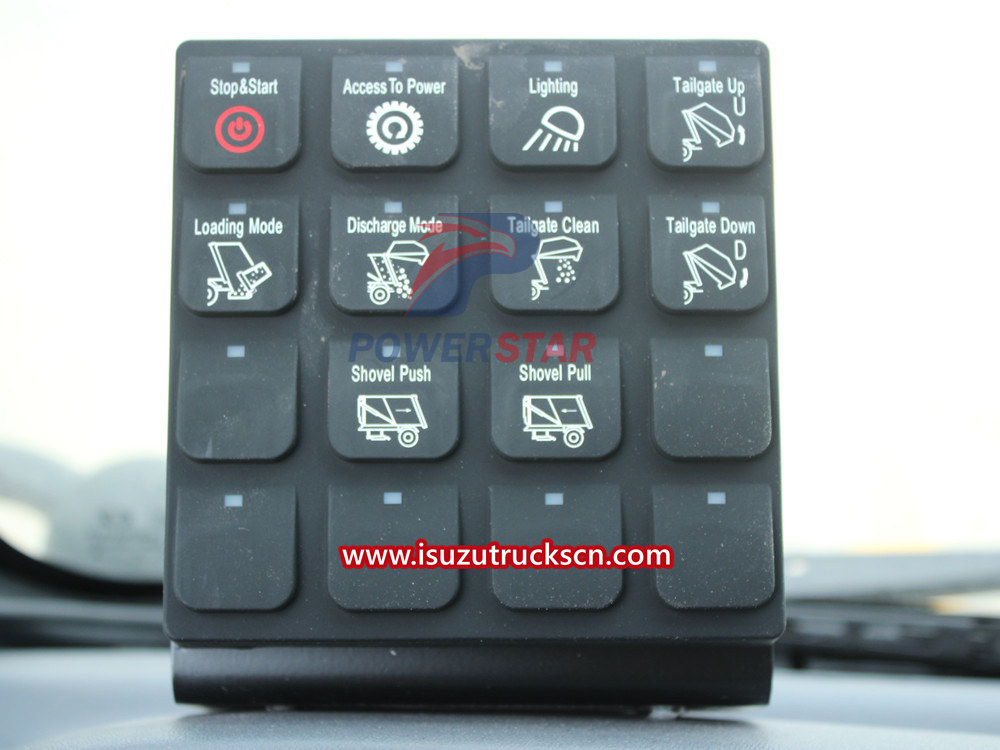

It has two operating modes: automatic and manual. The operation control boxes are installed in the cab and the rear of the vehicle respectively, making it very convenient to use and operate.
Different users can choose different tipping buckets according to different garbage collection methods, (bucket mechanism can turn standard garbage Tietong 300L, plastic trash can 240L, vehicle-mounted small garbage bucket 800L, sealed and covered garbage bucket 1400L, large garbage bucket 3350L)
