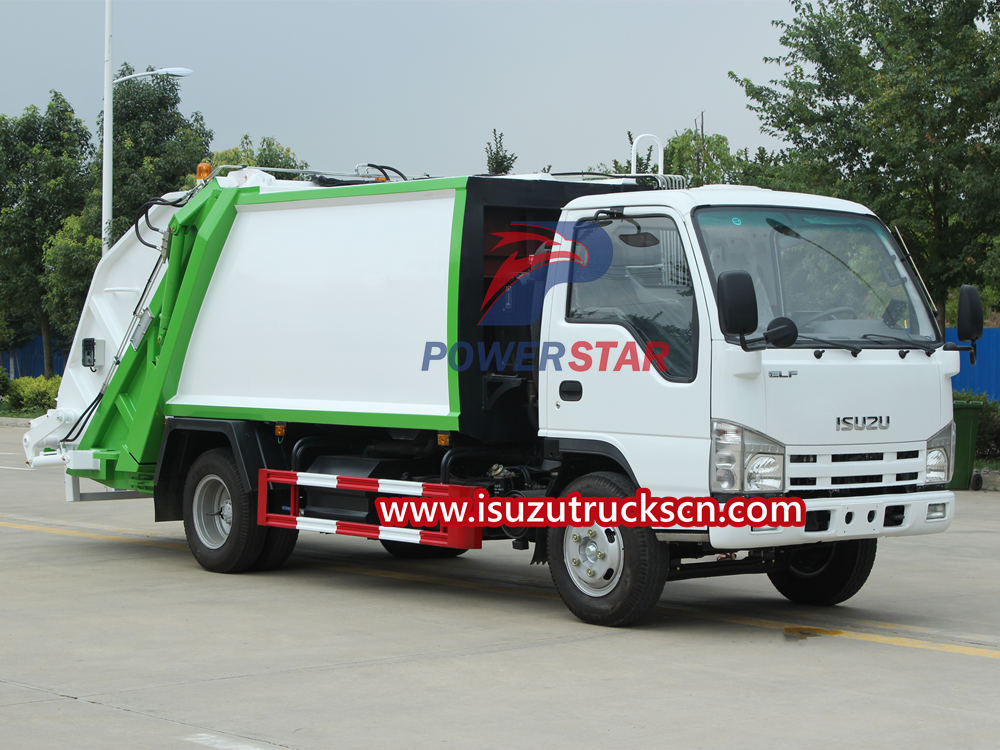

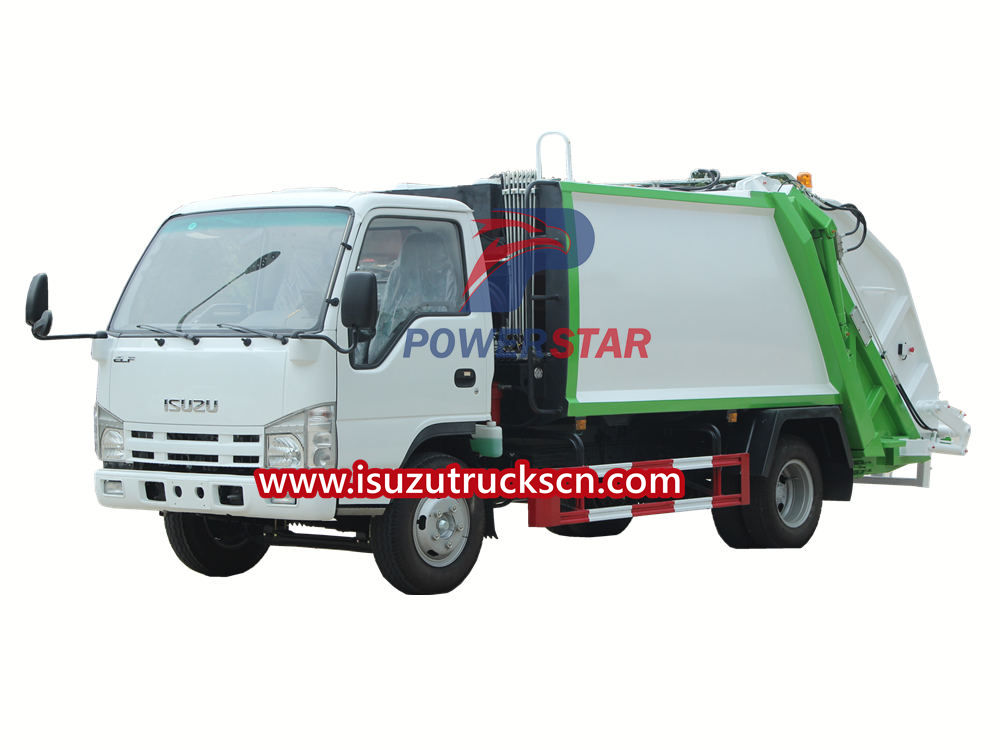

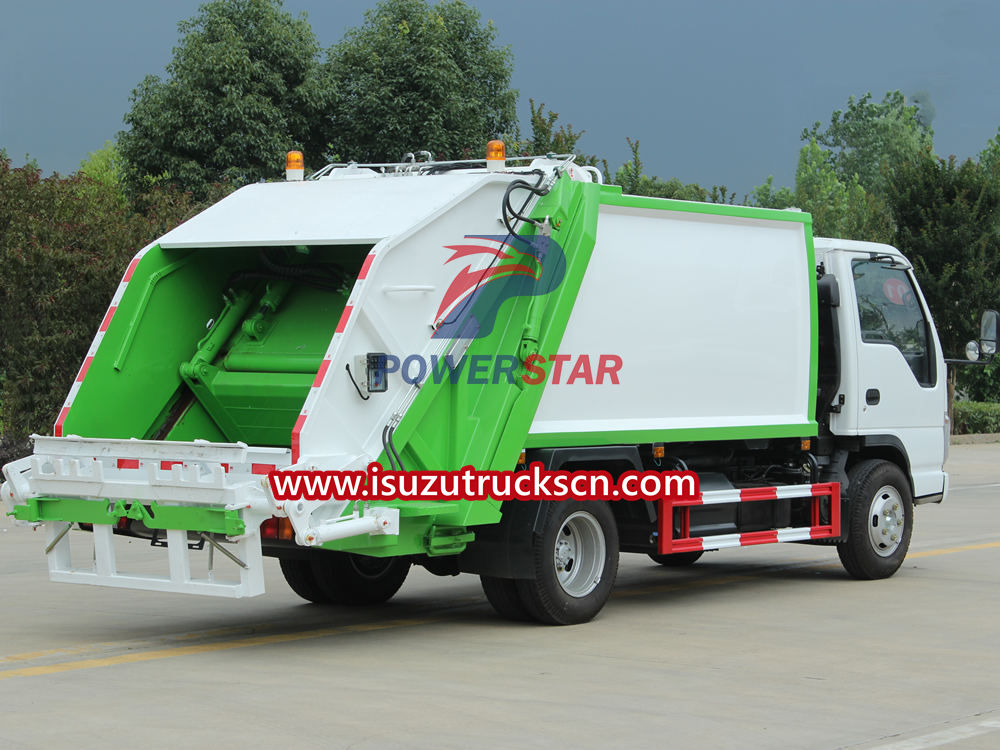

Isuzu 100P waste compactor truck is a special vehicle designed to compress and collect garbage. It plays an important role in urban cleaning and environmental protection work. They can help city management departments collect and process garbage more efficiently and reduce environmental pollution. and waste disposal costs.
The main function of Isuzu 100P waste compactor truck(QL104A6HAY) is to compress a large amount of garbage well and reduce the volume of garbage, thereby improving transportation efficiency and saving space. Isuzu 100P waste compactor truck is usually equipped with a compression device and a dustbin, which can effectively compress the waste into small pieces, making it easier to transport and handle.
2 seats, with air conditioner, USB connector radio
Vehicle Main Dimensions
Overall dimensions (L x W x H) mm: 6190*1880*2320 mm
Wheel base: 3360 (mm)
Overhang (front/rear): 1015/1525 (mm)
Approach angle: 24°
Departure angle: 16°
Weight in KGS
Curb Weight:4210 kg
Payload: 3-5tons
Max. driving speed(km/h)
90
Engine
Brand
ISUZU
Model
4KH1 , EURO 5
Emission
2771 ml
Type
4-stroke direct injection,4-cylinder in-linewith water cooling, turbo-charging and inter-cooling
Horse Power(HP)
98HP
Gearbox
ISUZU MSB, 5 Forwards gear & 1 reverse gear
Tire
7.00R16, 6 pcs+1 spare tire
Axle
Front axles 2~2.5t, rear axle 3~4.8t
Garbage box parameters
Volume
5 m3
Material
Carbon steel and high tensile steel
Standard equipment
1. Dustbin volume: 5m³

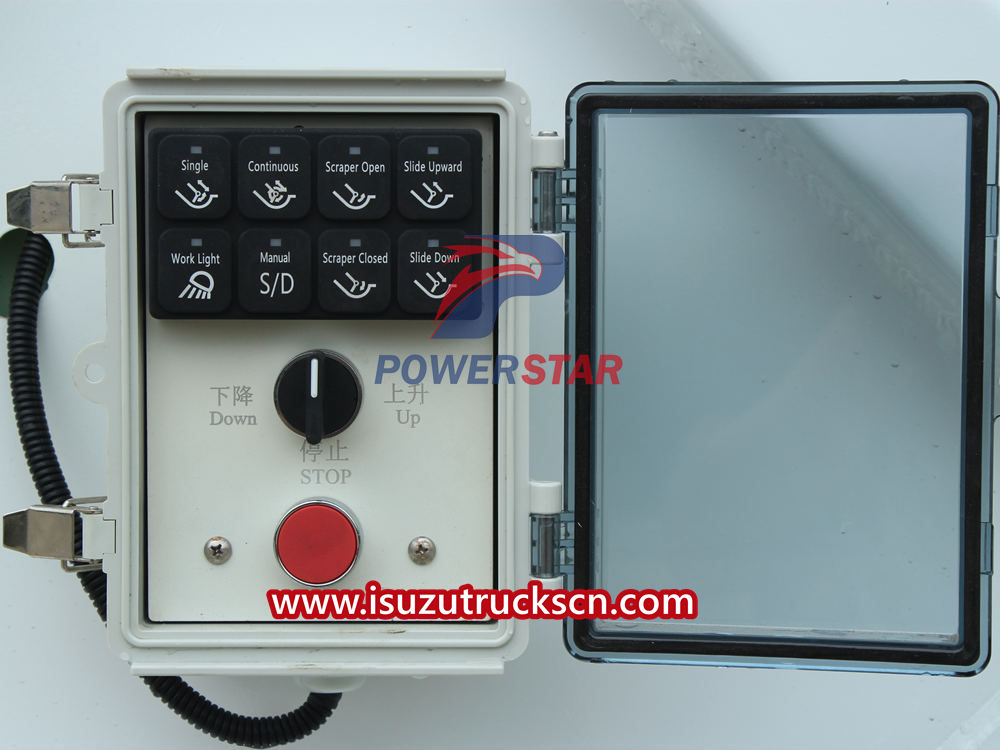

2. hydraulic control device
1.The hydraulic system of Isuzu 100P waste compactor truck(QL104A6HAY) is mainly composed of hydraulic pump, hydraulic cylinder, hydraulic pipeline, control valve and fuel tank. Here's how it works:
Hydraulic pump: Converts mechanical energy into hydraulic energy by sucking in hydraulic oil from the tank and inputting it into the hydraulic cylinder.

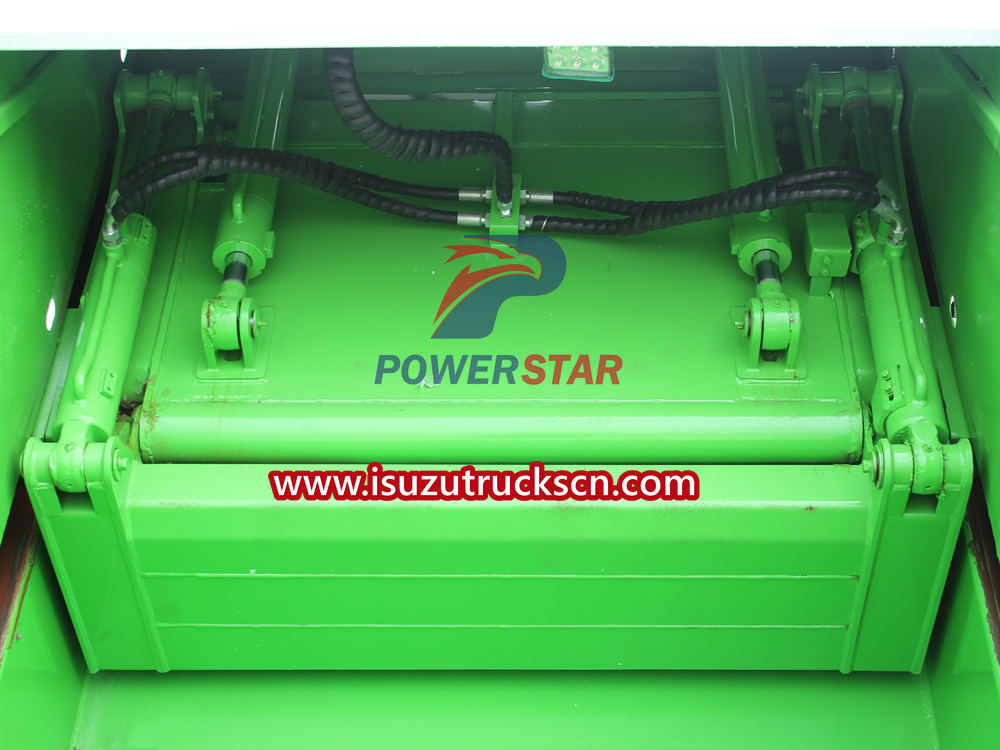

Hydraulic cylinder: Convert hydraulic energy into mechanical energy, and use the pressure of hydraulic oil to drive the piston to move along the track in the cylinder barrel, thereby compressing the garbage.
Hydraulic pipeline: transfers the hydraulic oil output from the hydraulic pump to the hydraulic cylinder, and transfers the compressed waste to the corresponding location.
Control valve: used to control the flow direction and flow rate of hydraulic oil in the hydraulic system to control the hydraulic cylinder.
Oil tank: stores hydraulic oil and keeps it under certain temperature and pressure conditions to ensure the normal operation of the hydraulic system.
Through the synergy of these components, the hydraulic system can effectively compress garbage, improve the working efficiency of garbage truck, and reduce energy consumption and environmental pollution. The hydraulic system also has the advantages of good stability, high transmission efficiency, and fast response speed, and is widely used in various construction machinery and equipment such as garbage truck.
2.The Isuzu 100P waste compactor truck(QL104A6HAY)is a vehicle specifically designed to compact and store large amounts of waste. Its main functions include:
1). Compactor garbage: By using a compression device to compress garbage well, reduce the volume of garbage and save space.
2). Storage of garbage: Store compressed garbage in the carriage to prevent garbage from overflowing and polluting the environment.
3). Transport garbage: Transport stored garbage to designated processing sites to improve transportation efficiency and save costs.
4). Reduce pollution: Because compressed garbage trucks can effectively store and transport garbage, they can reduce garbage spillage and reduce environmental pollution.
5). Automated operation: Some compressed garbage trucks are also equipped with automatic control systems, which can automatically compress, transport and unload garbage, improve work efficiency and save labor costs.
3.Isuzu 100P waste compactor truck is usually made of high-strength steel to ensure that it can withstand high pressure and large amounts of waste compaction during long-term use. In addition to steel, other components of garbage trucks such as hydraulic systems and control systems are usually made of durable materials to ensure the stability and reliability of the garbage truck. The appearance of the Isuzu 100P waste compactor truck may also be surface sprayed or galvanized to increase its anti-corrosion performance and aesthetics.
To sum up, the Isuzu 100P waste compactor truck is a special vehicle used to dispose of waste, and it has many advantages. The Isuzu 100P waste compactor truck can compress waste into a smaller volume, thereby saving space and improving waste transportation efficiency. Isuzu 100P waste compactor truck can reduce landfill costs and reduce environmental pollution and damage. The Isuzu 100P waste compactor truck can also reduce manual labor and time, improving work efficiency. Most importantly, compressed garbage trucks help improve the urban environment, reduce garbage accumulation and odor, and keep the city clean and beautiful.
