Powerstar China factory 3 Axles lowbed trailers for sale
Order(MOQ):

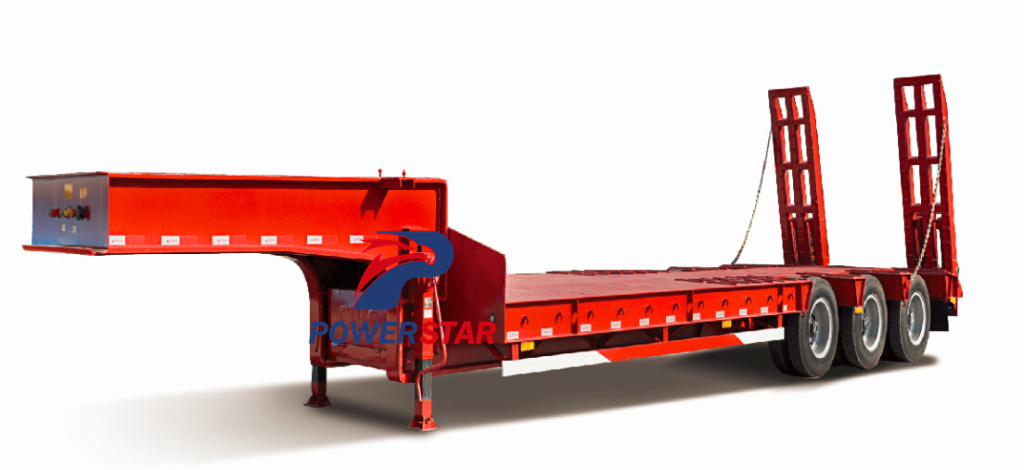

13 axle Lowbed semi trailer for construction equipment transport
Applications:

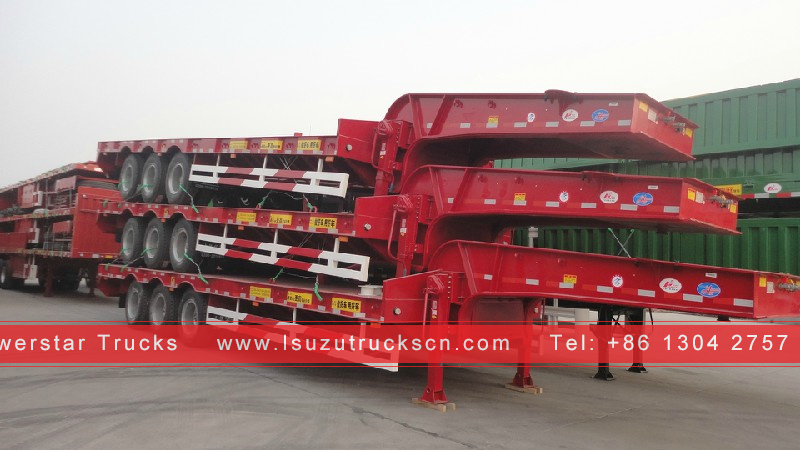

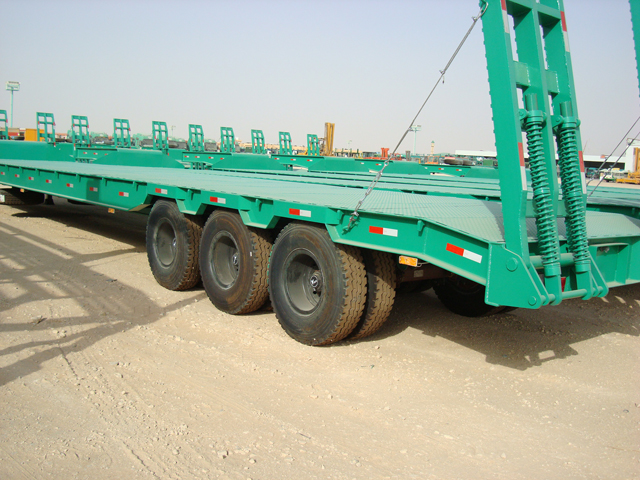

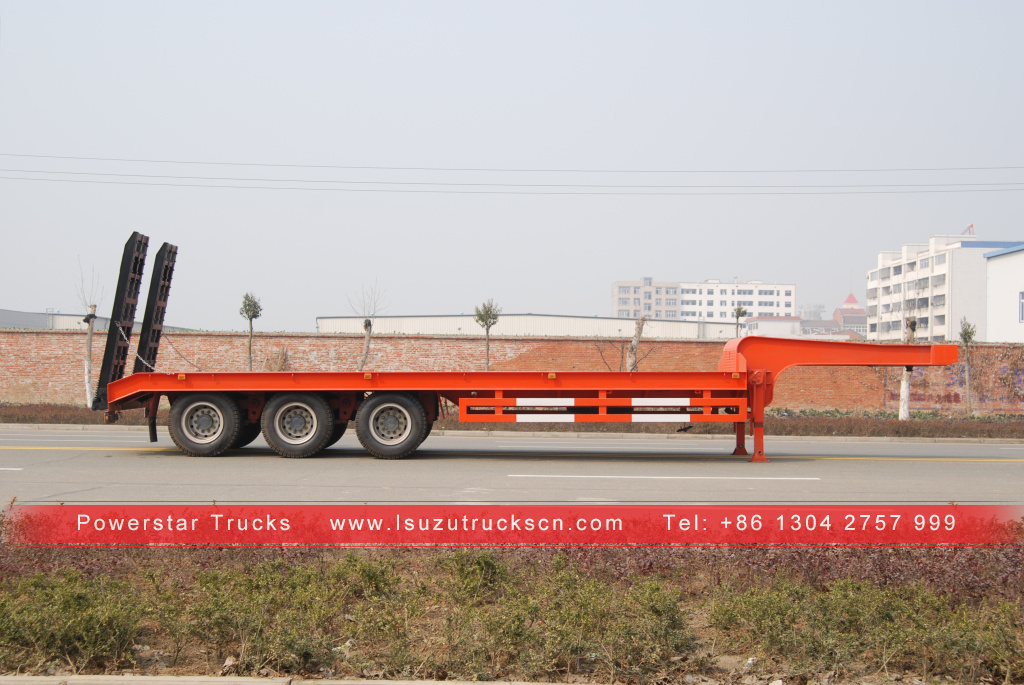

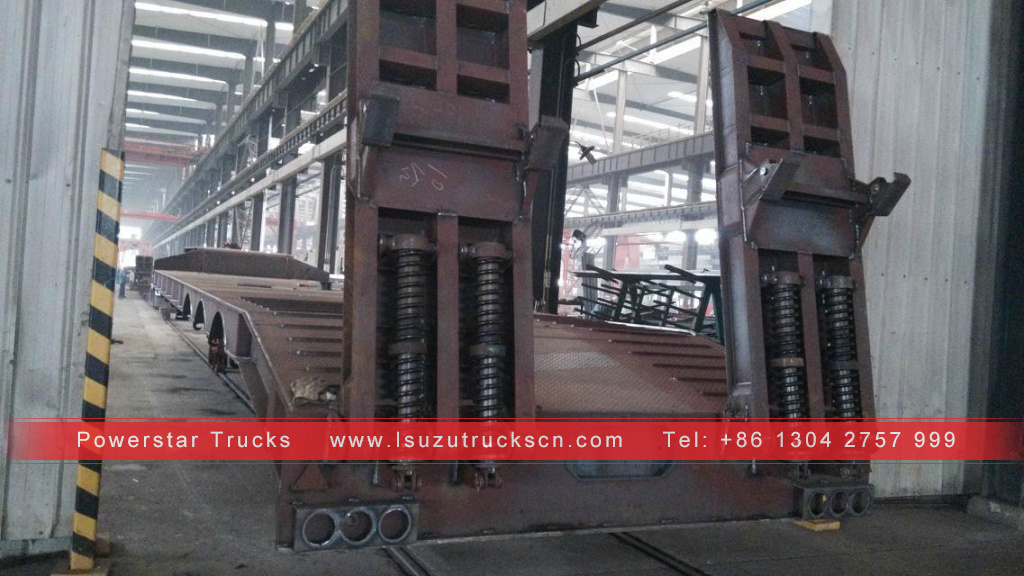

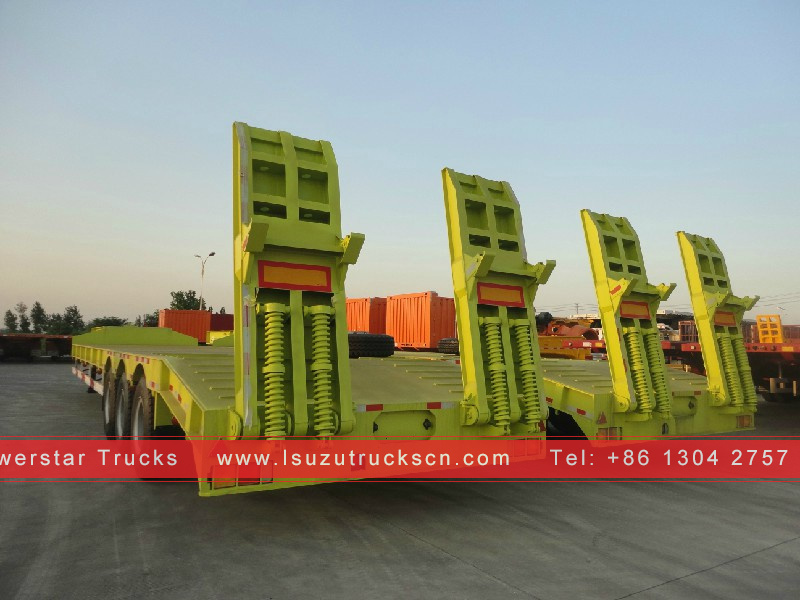

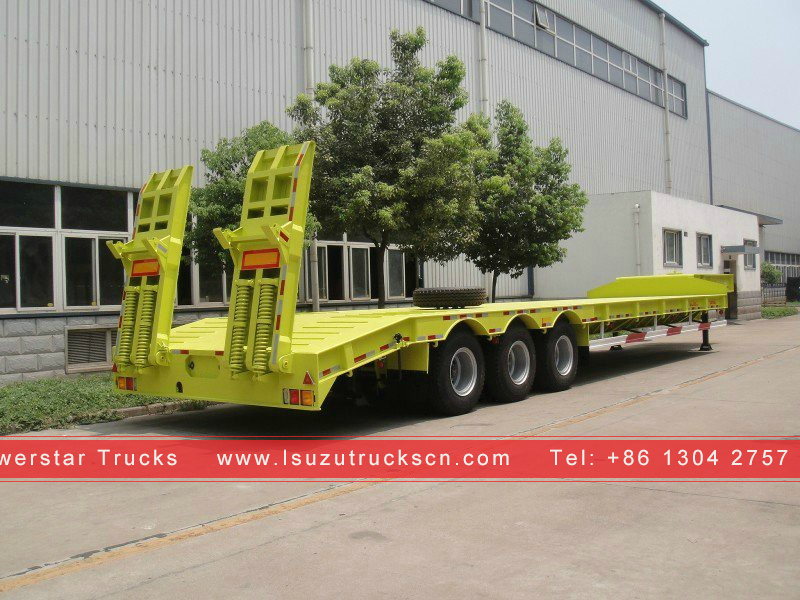

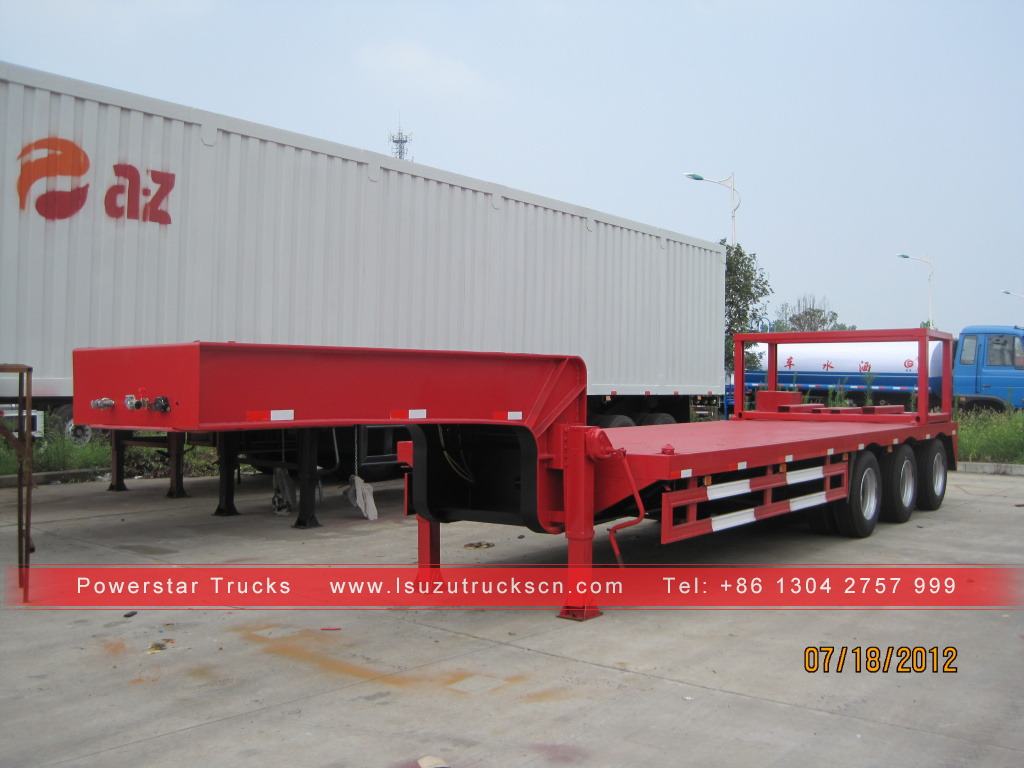

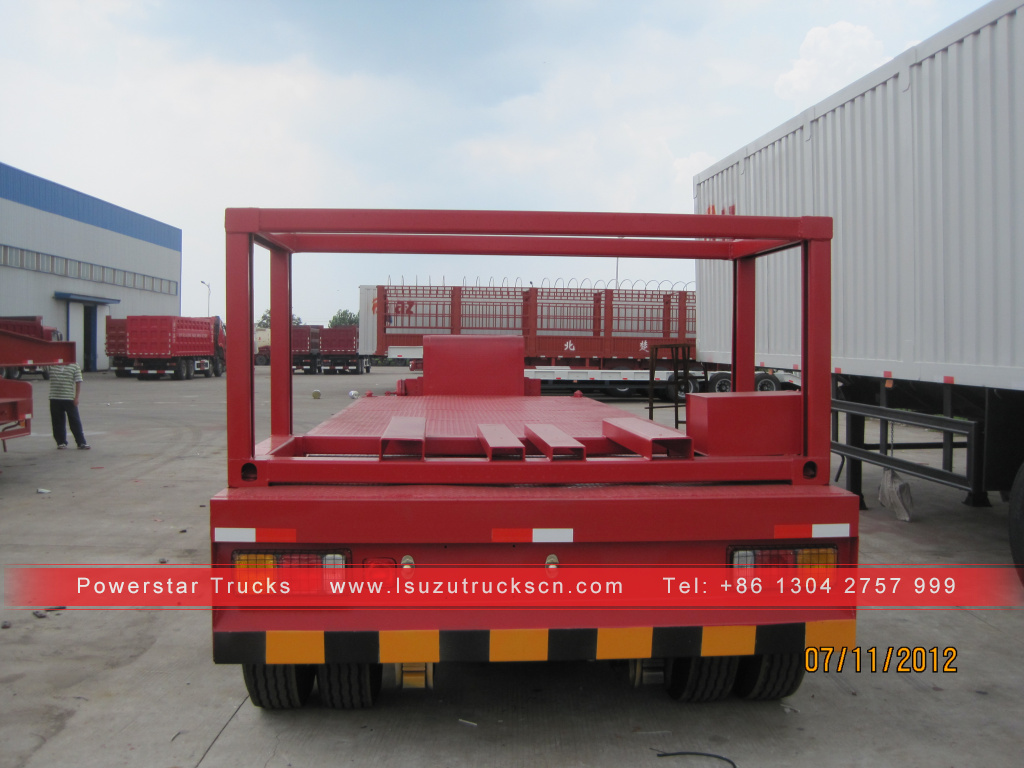

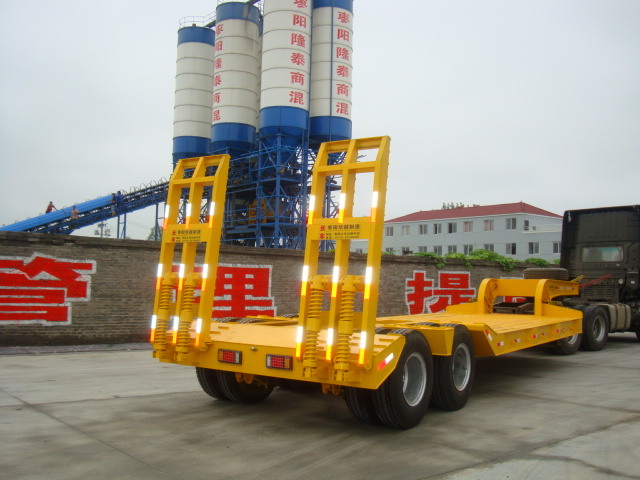

Tri axle Lowbed Semi Trailer (also called Heavy duty lowbed semi trailer,3 axle construction equipment transport 60ton lowbed semi trailer, Lowboy semi trailer, Lowbed truck semi trailer with tractor, Lowbed loaders) are widely used to carry excavator, cranes, as well as other heavy machines and equipment.
All our low bed trailers have been supplied to more than 45 countries, including Algeria, Congo, Nigeria, Myanmar, Dubai, Kenya, Brazil and so on.
Key Features:
---- 15 years manufacturer experience.

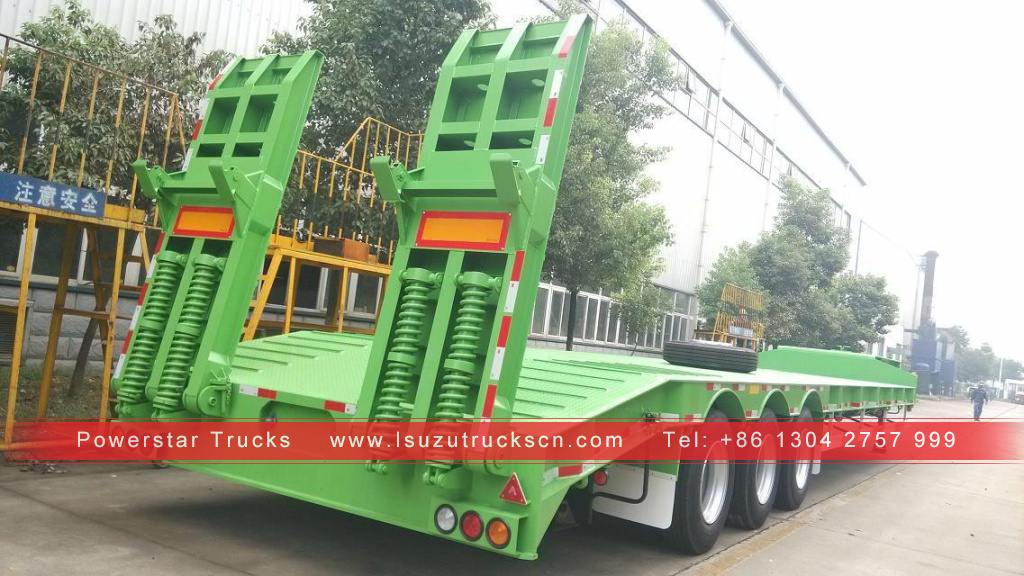

---- Hydraulic ramp option.
---- 5mm steel platform.
---- BPW or other famous brand 13 ton axles.
---- Heavy duty suspensions.
Specifications:
Type: |
3 Axles Lowbed Semi Trailer |
Model: |
PST9450GYY |
Dimension: |
|
Size: |
12,800*3000*3150mm |
Weight: |
|
Payload: |
60 Tons |
Tare weight: |
Approx. 10850kg |
G.V.W.R.: |
Approx. 70,000kg |
Frame & Structure: |
|

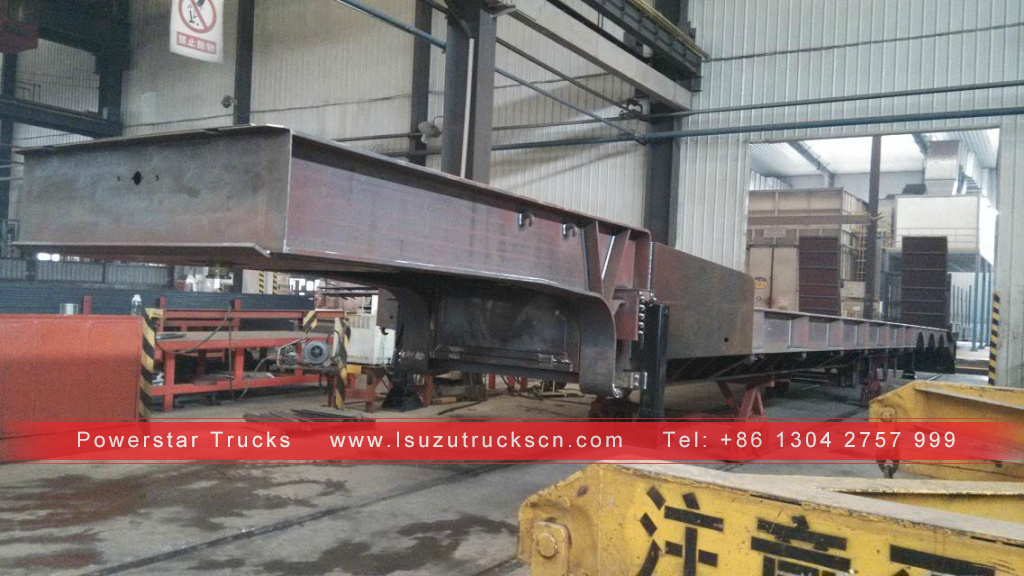

Main beam: |
Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm |
Side beam: |
14# channel steel |
Platform: |
2.5mm thick chequer plate with supporting channel |
Cross beam: |
80*40mm square tube |
Kingpin: |
JOST 2” or 3.5" SAE Kingpin, bolted in type |
Twist lock: |
No |
Welding standard: |
All welding are to be done by qualified welder per applicable national standard |
Painting: |
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um |
Running gear: |
|
Suspension: |
Germany type mechanical suspension, leaf spring 13mmx90mm, China |
Axle: |
FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China |
Brake system: |
Dual line pneumatic brake, SAE hose and connector |
Brake chamber: |
4 units T30/30 spring brake chambers, 2 units T30 brake chambers |
Air tank: |
40L, 2 pcs, China |
Emergency relay valve: |
Wabco relay valve |
Tire: |
Triangle brand, 12R22.5, 12 pcs. China |
Rim: |
9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China |
Landing gear: |
JOST C200 two speed telescopic manual landing gear |
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
