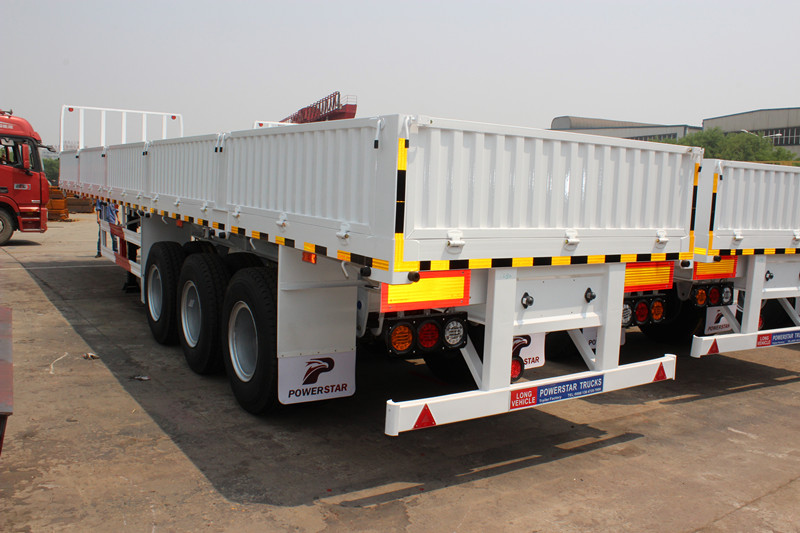

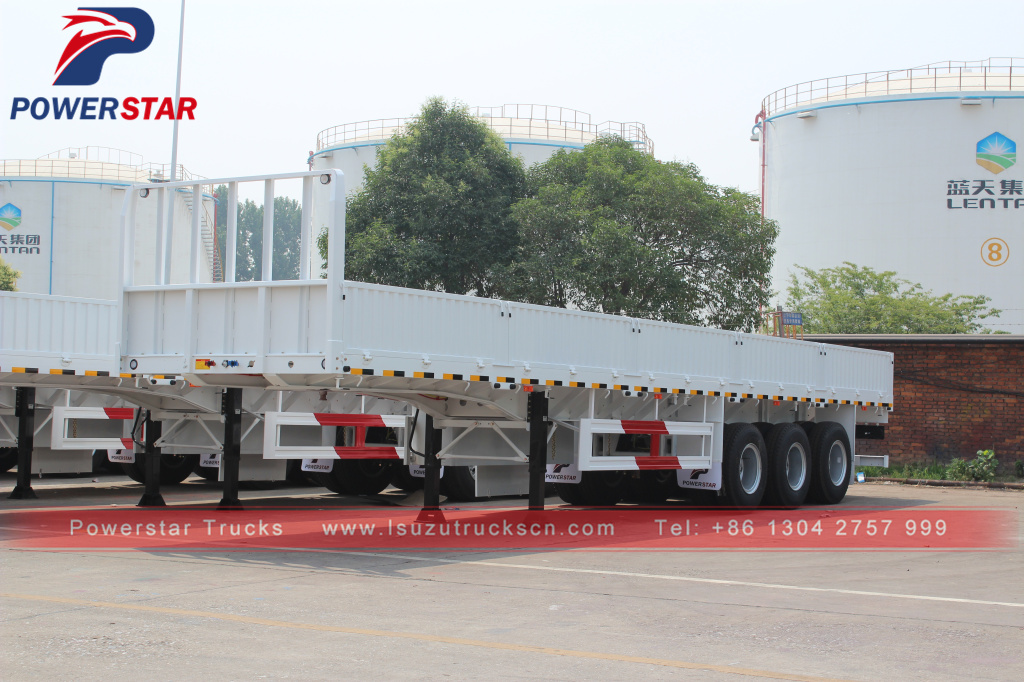

China best price dropside trailer Side wall semi trailer
Order(MOQ):

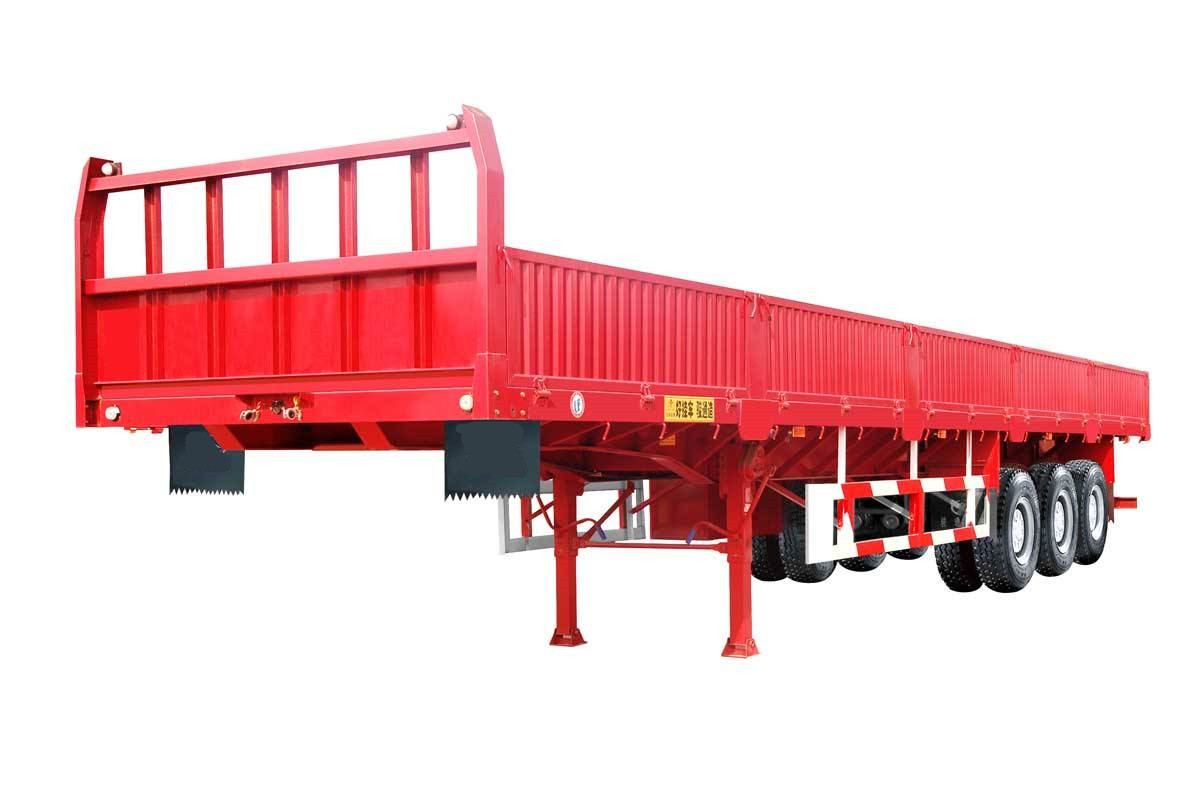

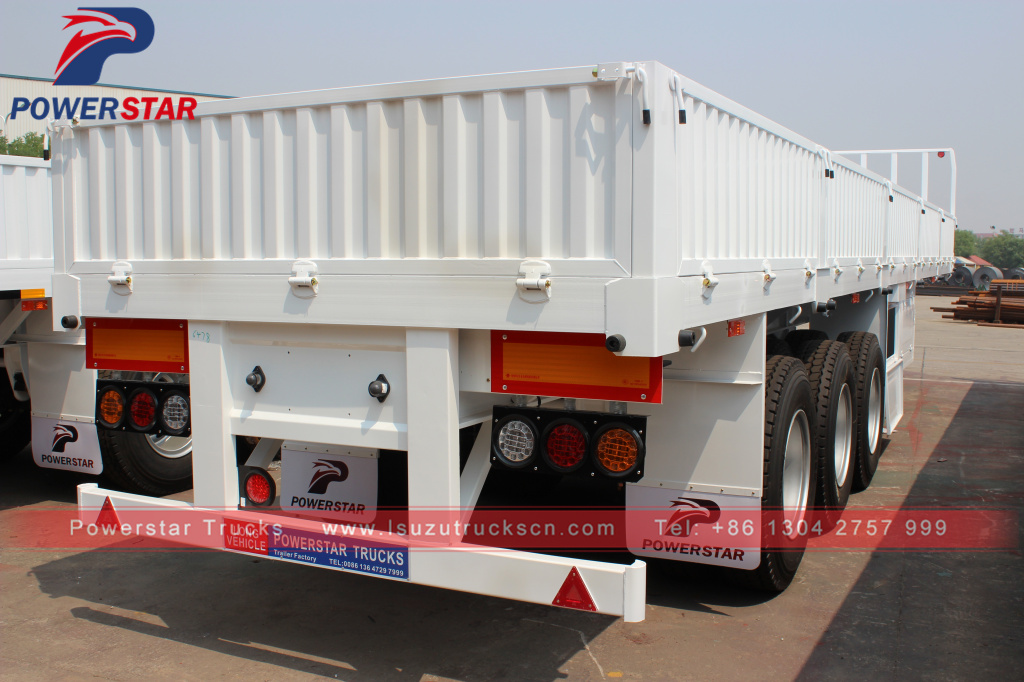

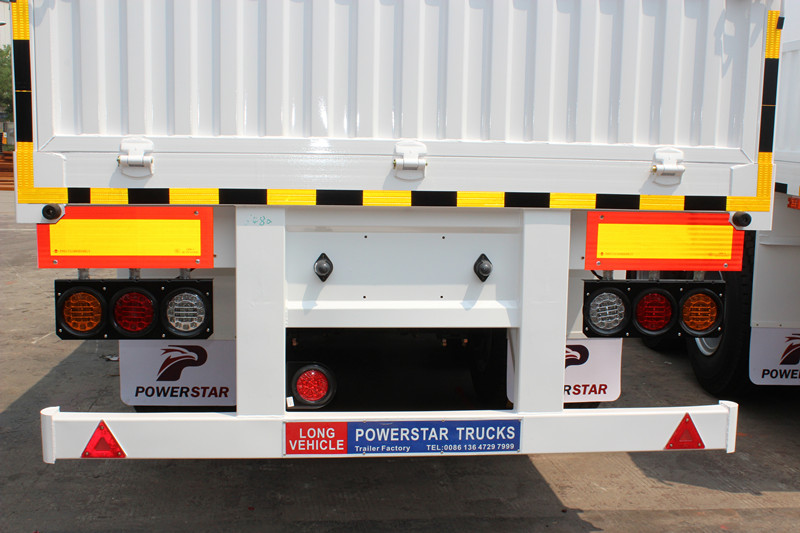

145Tons Side wall semi trailer Tri axles drop side semi trailer
Applications:

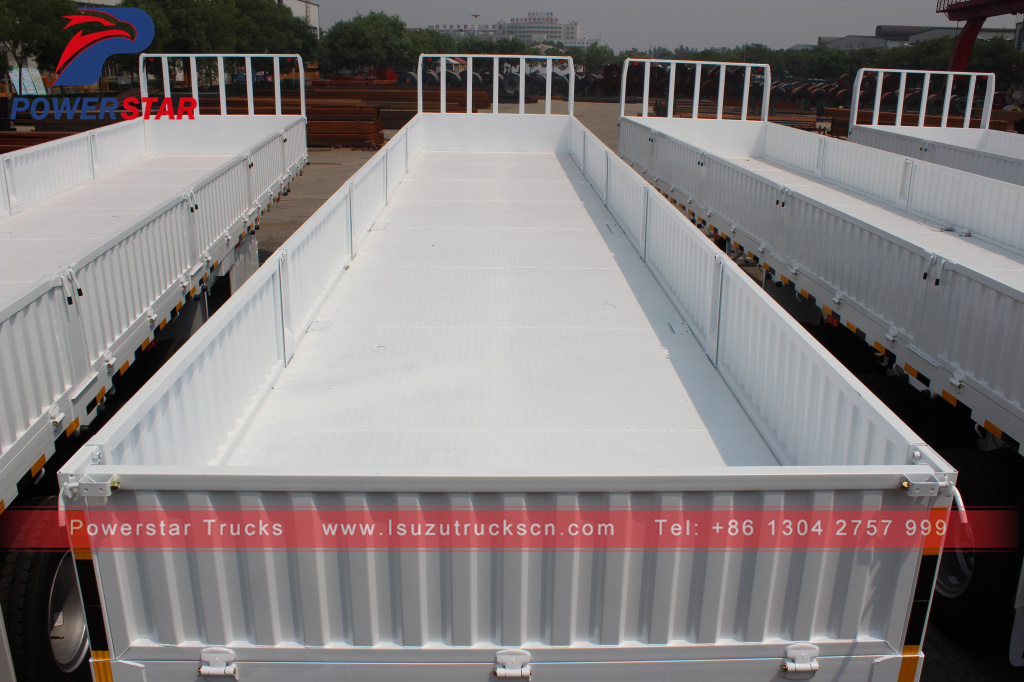

Side Wall Semi Trailer (also called Cargo truck trailer, 3 axles Cargo Semi trailer, Flatbed trailer with side board wall, 3 axle Side panel truck trailer, Open curtain side wall cargo semi trailer, Drop side semi trailer) is is used to carry a variety of cargo, such as timbers and agricultural goods.
Twist locks could also be installed onto the sidewall trailers to enable them to carry 20 foot and 40 foot containers.
Key Features:
---- 15 years Manufacturer experience.
---- Two years guarantee term.
---- Export to More than 70 Countries or Area.
---- 100% customer design.
---- Quickly delivery to Worldwide.
Specifications:
|
Type: |
3 Axles Side Wall Semi Trailer |
|
Model: |
PST9403SWT |
|

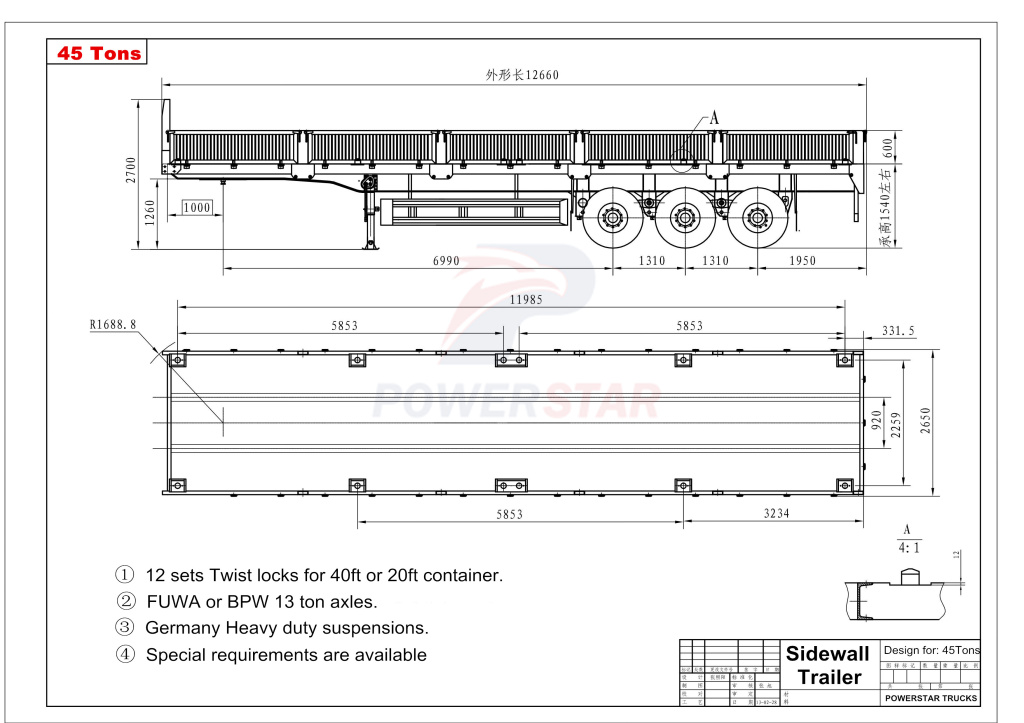

Dimension: |
|
|
Size: |
12,660*2650*2700mm |
|
Weight: |
|
|
Payload: |
45,000kg |
|
Tare weight: |
Approx. 7900kg |
|
G.V.W.R.: |
Approx. 53,000kg |
|
Frame & Structure: |
|
|
Main beam: |
Material Q345B. Fabricated “H” beam height 500mm,
Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness
14mm |
|
Side beam: |
14# channel steel |
|
Platform: |
2.5mm thick chequer plate with supporting channel |
|

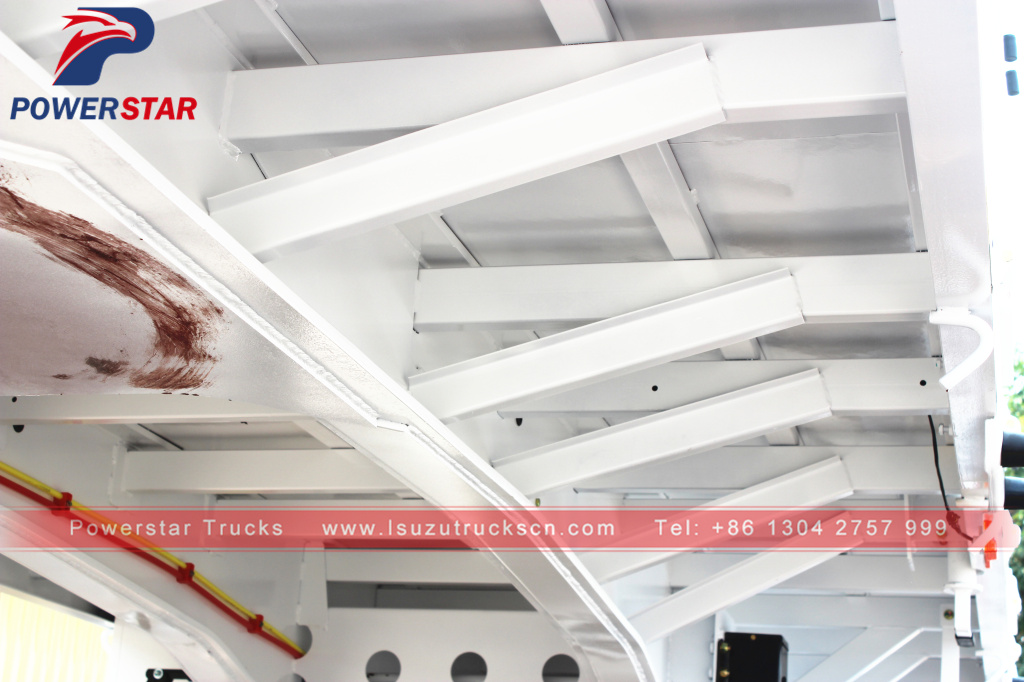

Cross beam: |
80*40mm square tube |
|
Kingpin: |
JOST 2” or 3.5" SAE Kingpin, bolted in type |
|

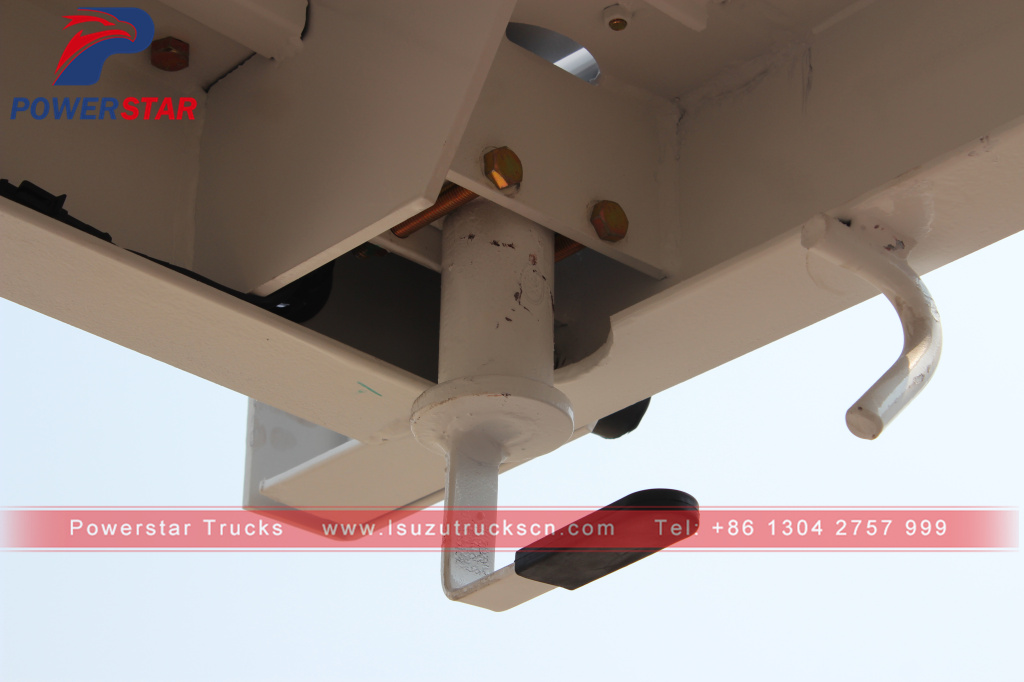

Twist lock: |
12 sets |
|
Welding standard: |
All welding are to be done by qualified welder per
applicable national standard |
|
Painting: |
Shot blast at Standard SA 2.5 prior to application of
primer, polyurethane top coat. Total DFT not less than 100um |
|
Running gear: |
|
|
Suspension: |
Germany type mechanical suspension, leaf spring 13mmx90mm,
China |
|

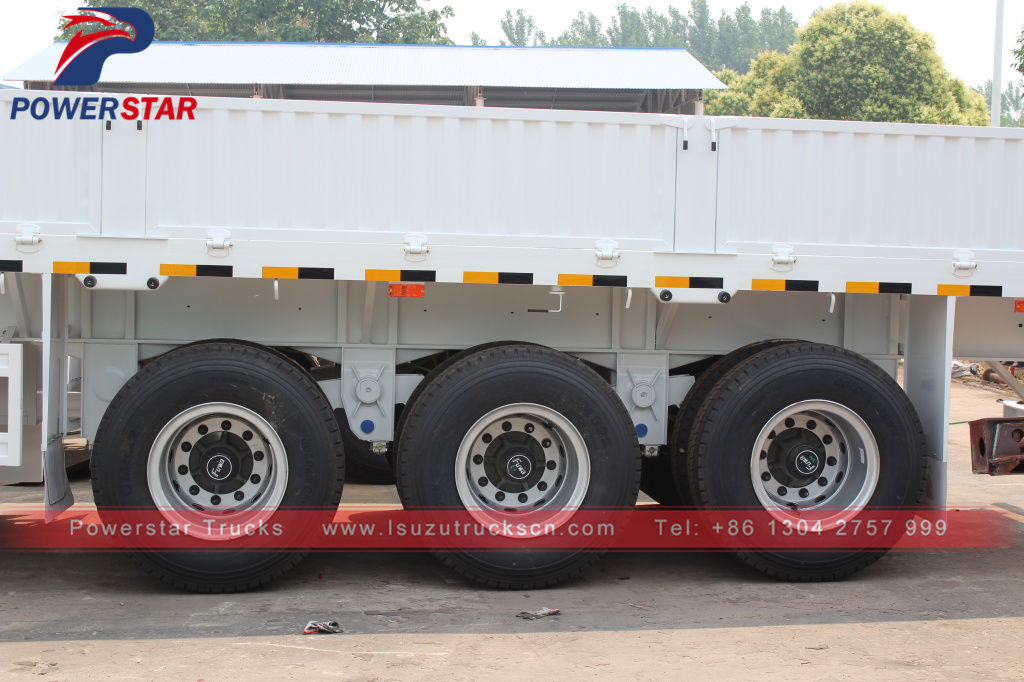

Axle: |
FUWA 150x150 square beam axle, 3pcs*13 ton capacity,
China |
|

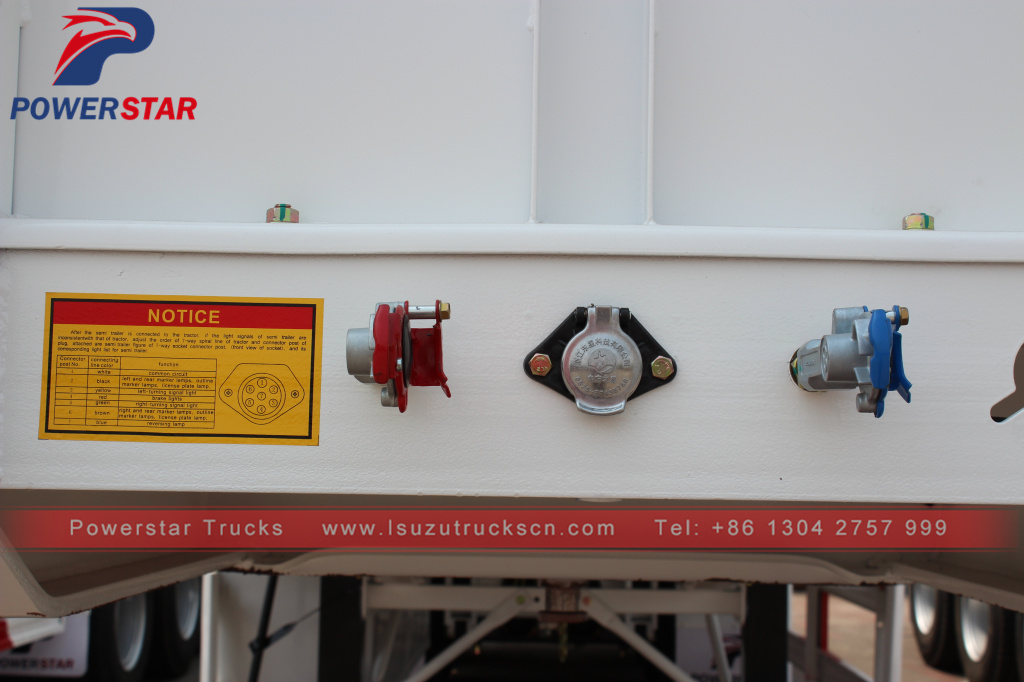

Brake system: |
Dual line pneumatic brake, SAE hose and connector |
|
Brake chamber: |
4 units T30/30 spring brake chambers, 2 units T30 brake
chambers |
|
Air tank: |
40L, 2 pcs, China |
|
Emergency relay valve: |
Wabco relay valve |
|

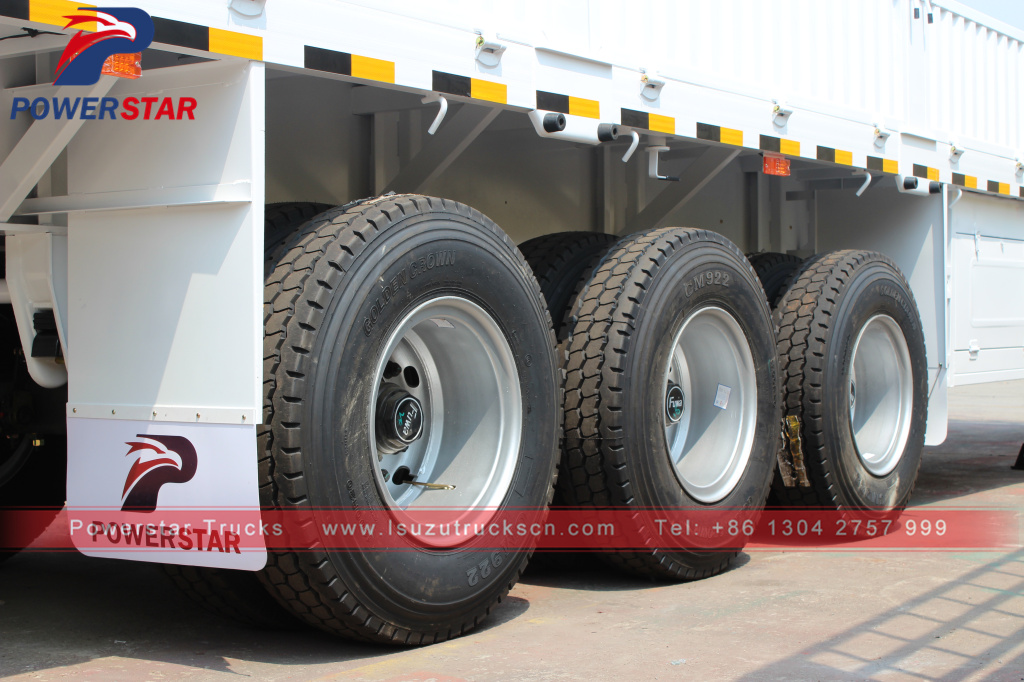

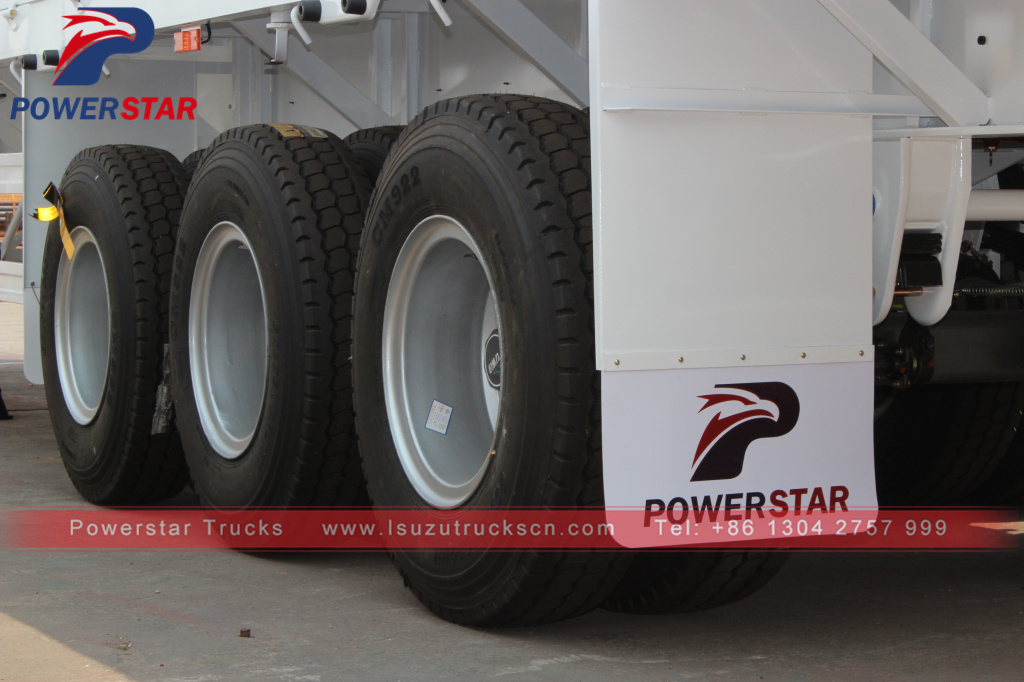

Tire: |
Triangle brand, 12R22.5, 12 pcs. China |
|
Rim: |
9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China |
|

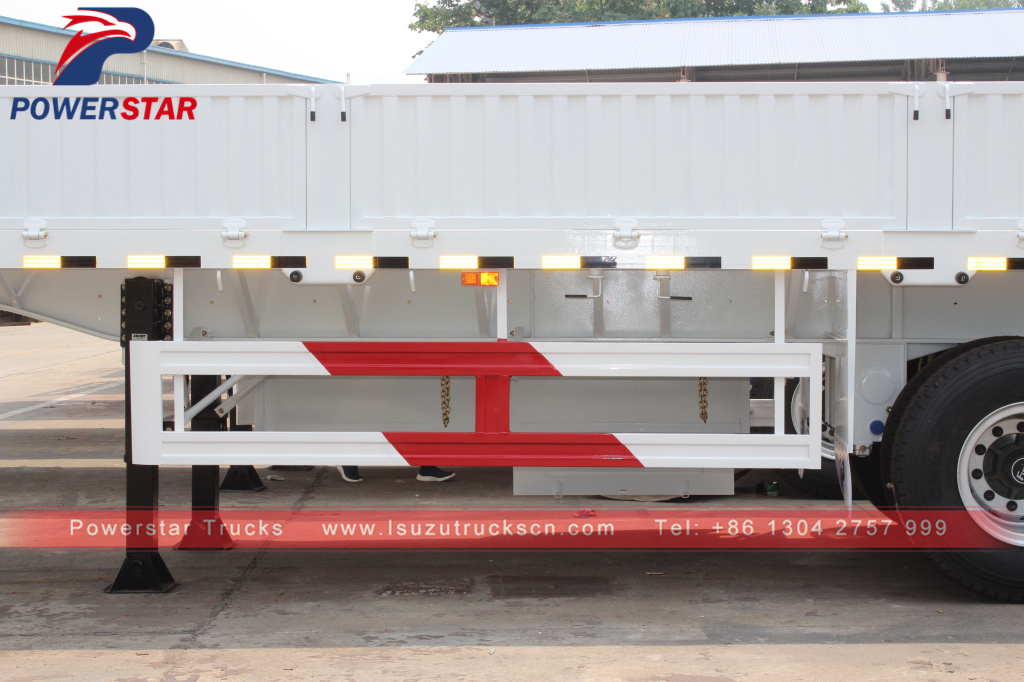

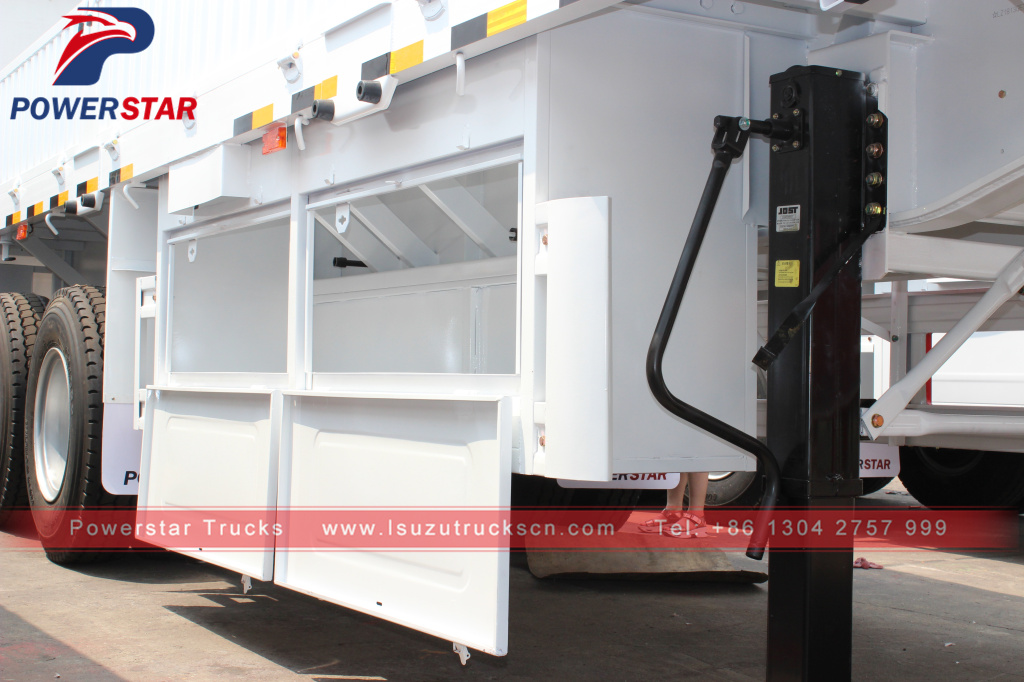

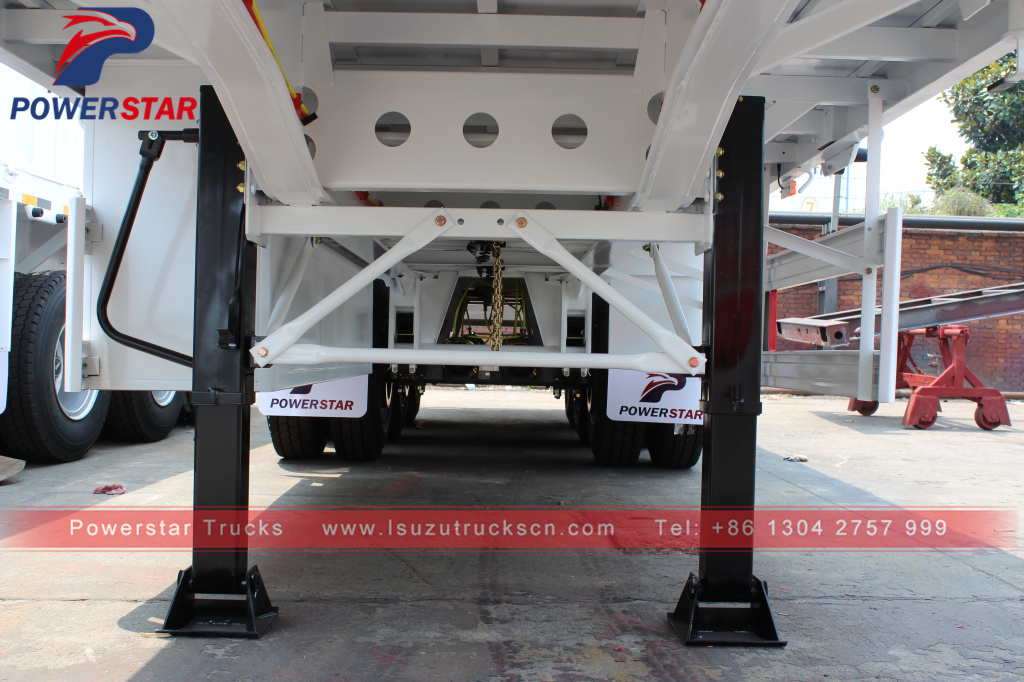

Landing gear: |
JOST C200 two speed telescopic manual landing gear |
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
 |
 |
|
 |
 |
|
 |
 |
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
Watch ISUZU water tank trucks on YOUTUBE.

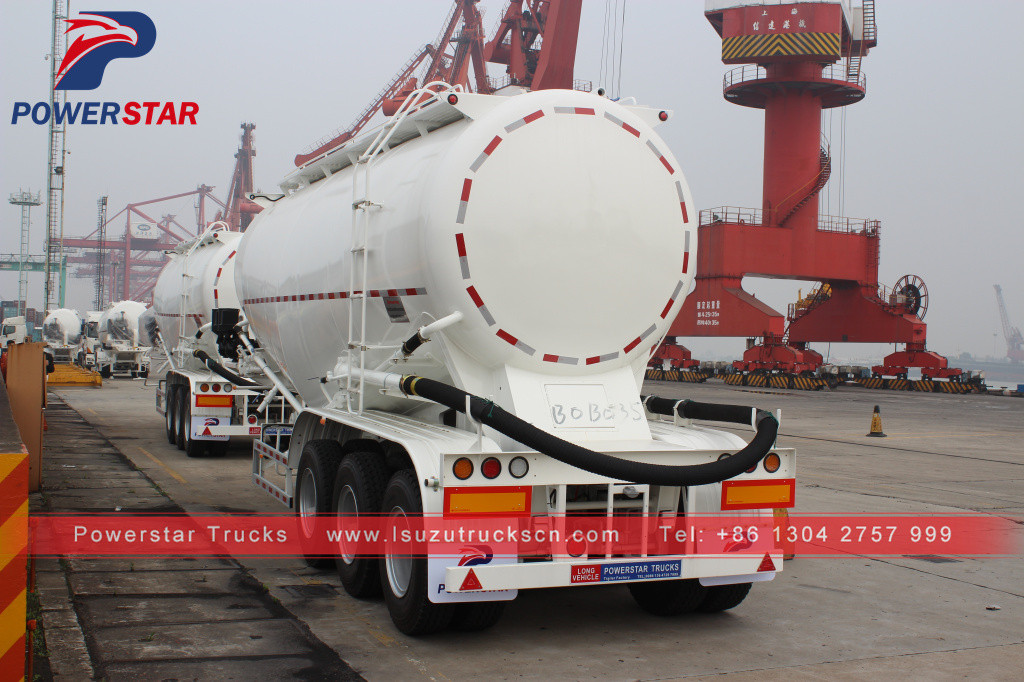

Powerstar Trucks brand Powder Tank Semi Trailer/powder tank trailer/bulk cement tank trailer,China factory direct V or Double V shape dry powder / bulk cement tank semi trailer/ cement bulker
