Order(MOQ):
1
Applications:

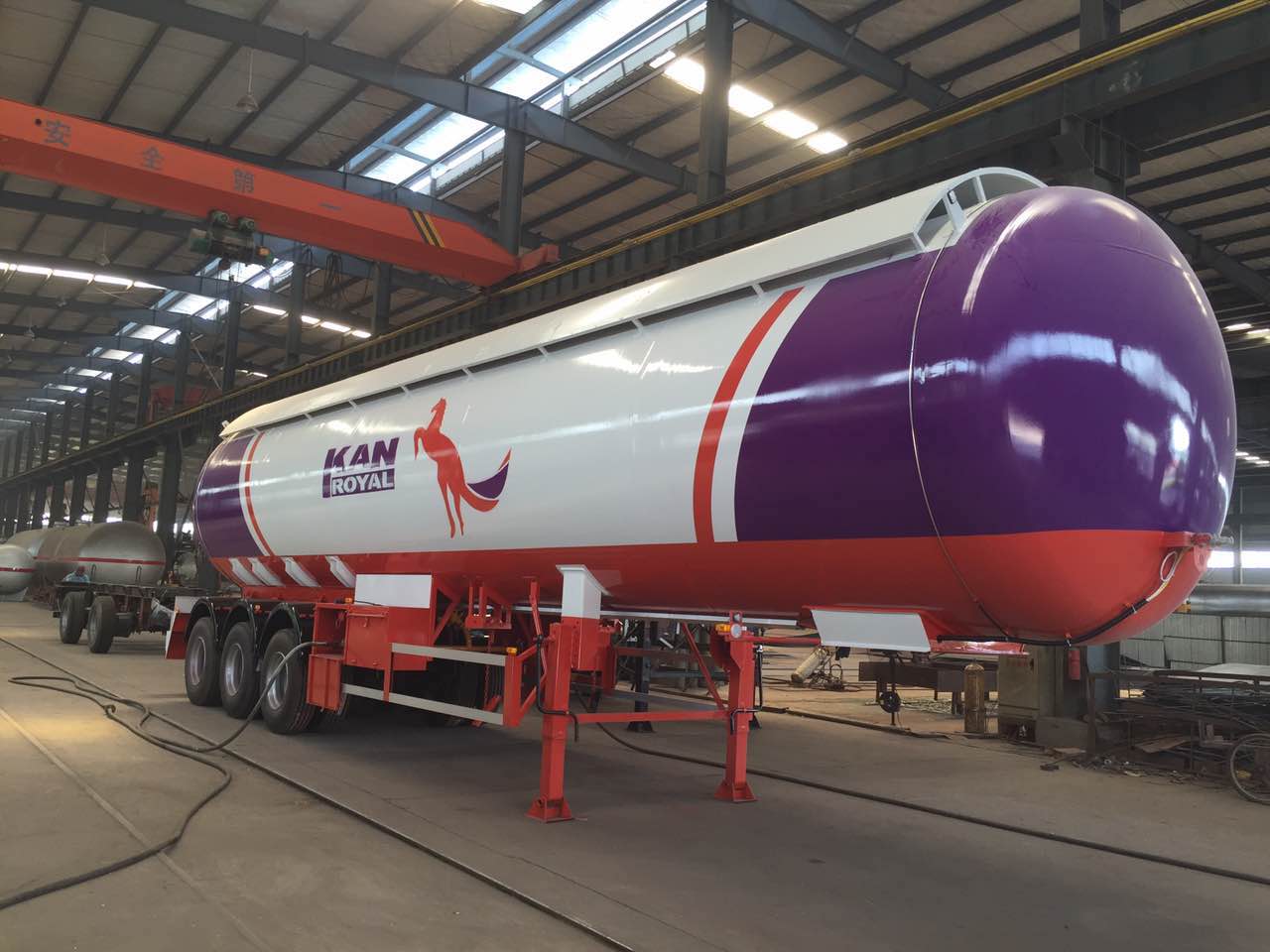

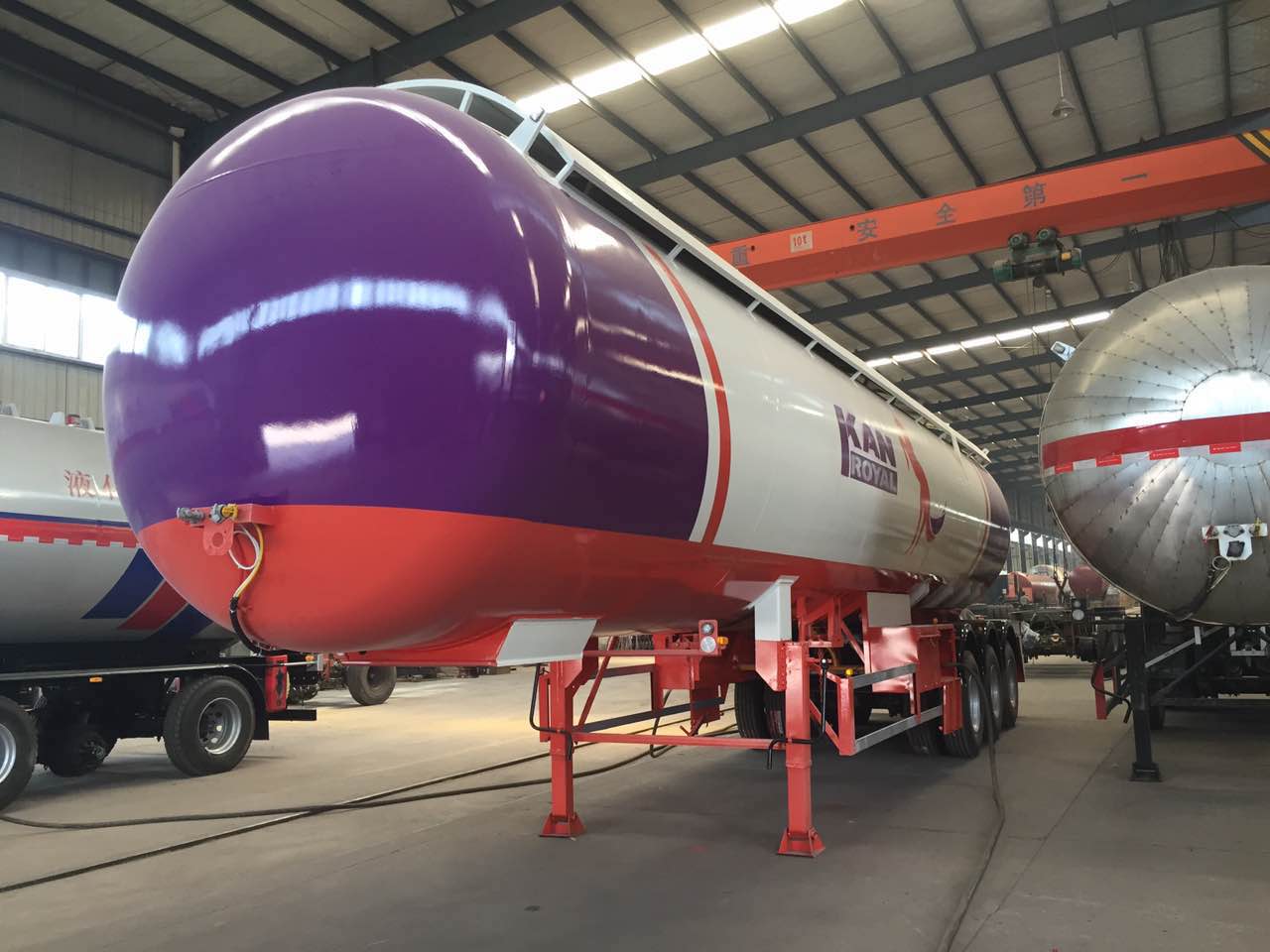

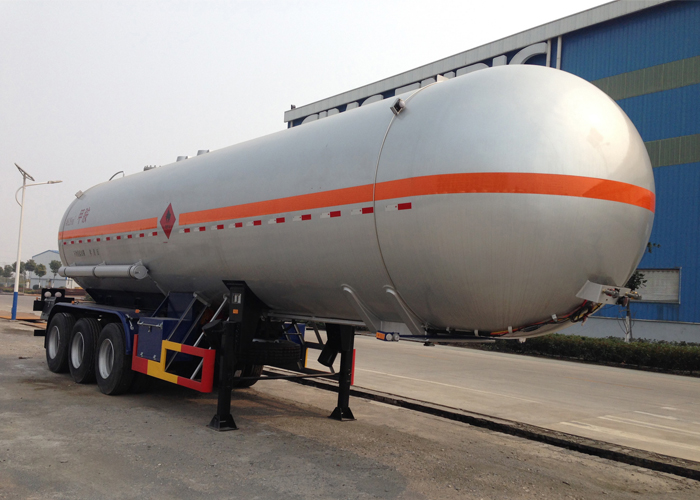

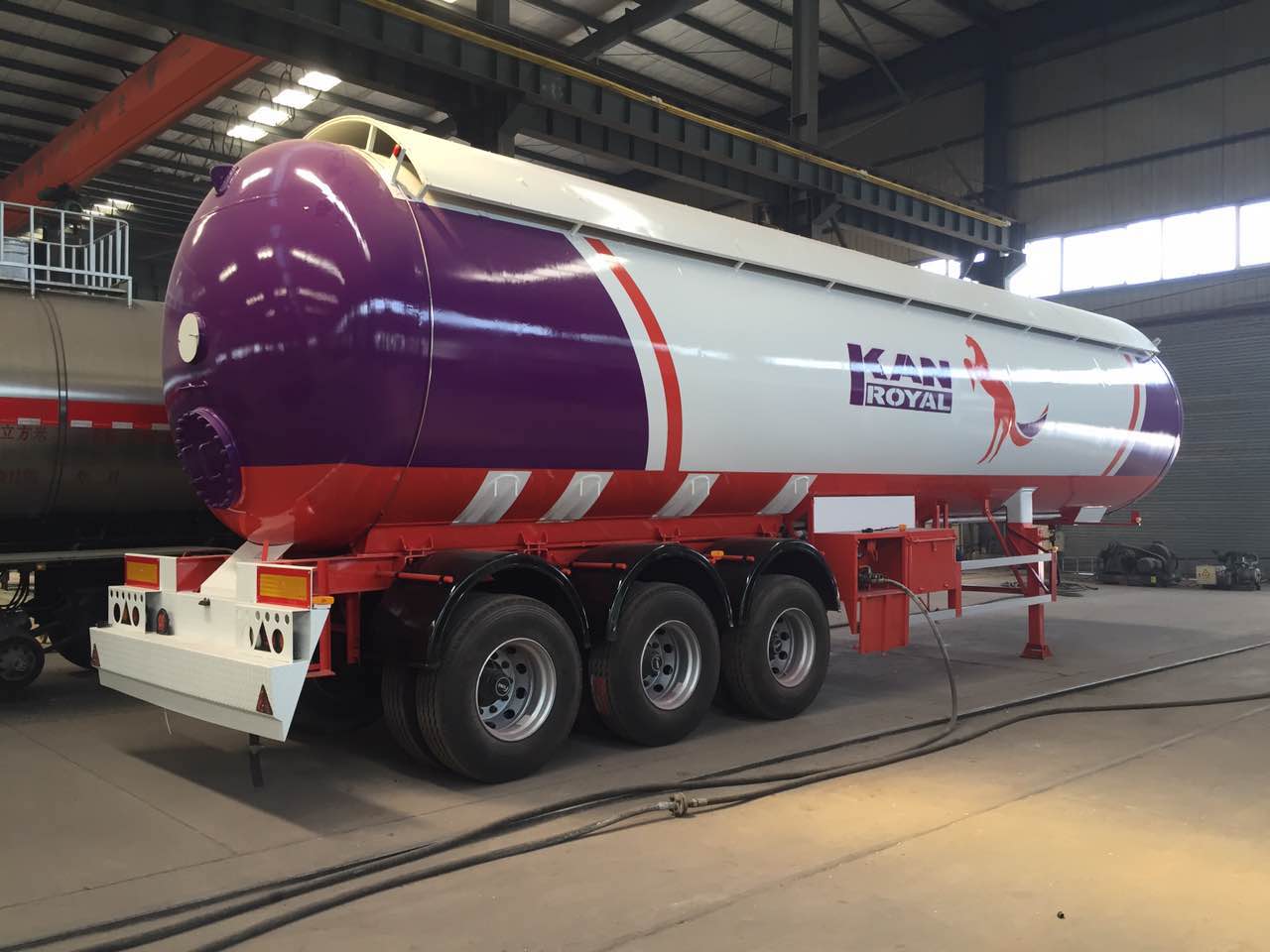

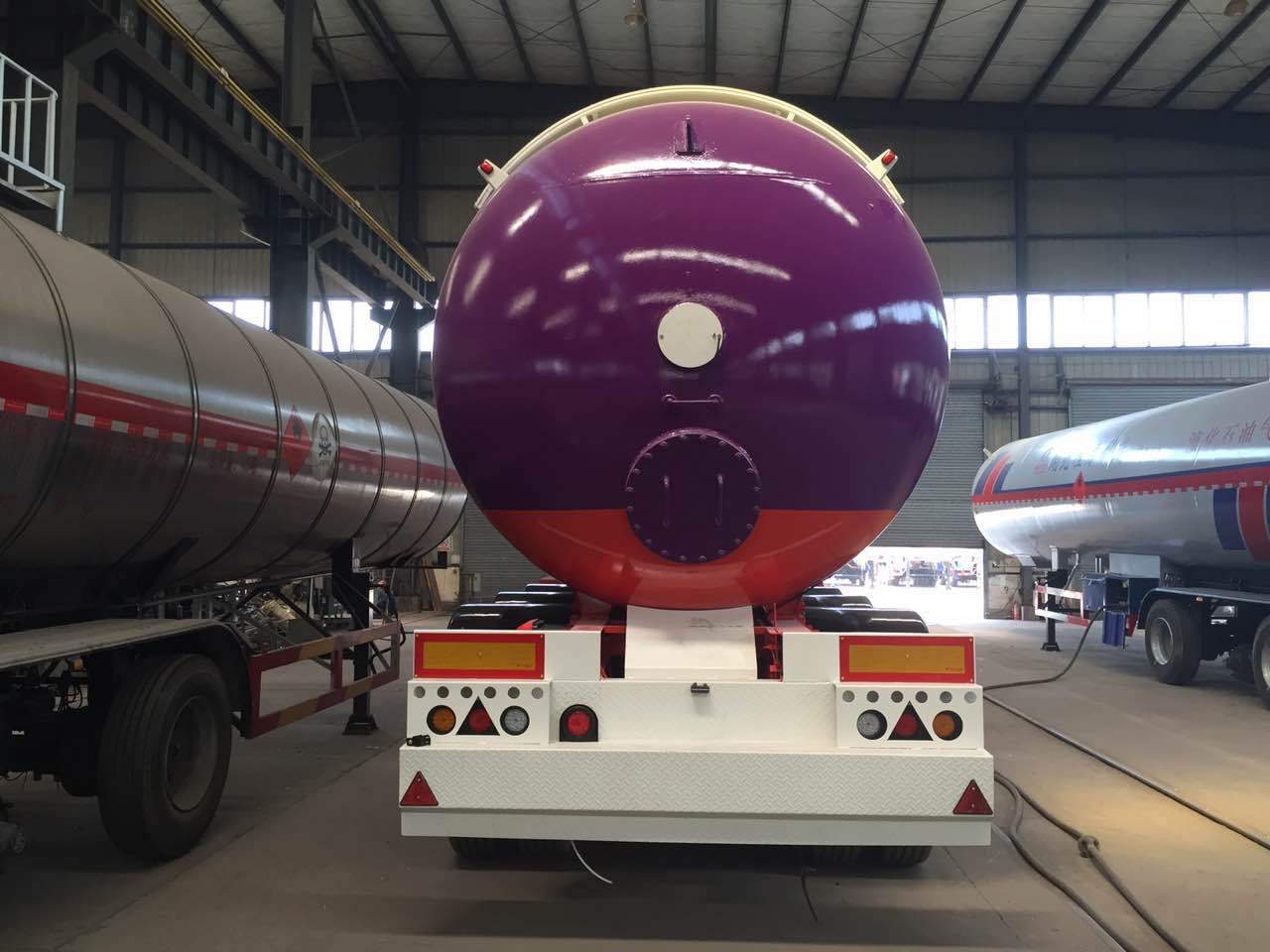

Three axle 12 wheeler LPG tank trailer (also called Liquefied petroleum gas transport tanker trailer, Made in china LPG semi trailer, Isobutene lpg gas trailer) is a Trailer designed to carry Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), which also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles. As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years.
| 38000L LPG Lorry Tank Semi Trailer with 3 axles for Liquid Chloroethylene | 9383GYQ | ||
| overall outside dimensio（mm） | Length | 10800 | |
| Width | 2490 | ||
| Height (unload) | 3700 | ||
| Outside dimension of tank body（mm） | Length | 10386 | |
| Dia Φ | 2216 | ||
| Height | |||
| capacity（L） | 38000 | ||
| GVW（kg） | 40000 | ||
| vehicle total weight（kg） | 10740 | ||
| rated payload（kg） | 29260 | ||
| Wheel base（mm） | 5700+1350+1350 | ||
| Tread（mm） | Tread at front | ||
| Tread at rear | 1840/1840/1840 | ||
| Front/Rear Overhang（mm） | /1055 | ||
| Approach/Departure angle（°） | /27.5 | ||
| Rated payload of Vehicle saddle | 16000 | ||
| Axle | BPW 12T*3 | ||
| Axle Capacity kgs | 8000/8000/8000 | ||
| Tyres | 11R22.5*12 | ||
| Tank Material | Q370R | ||
| Transport Material : | Liquid Chloroethylene | ||
| Insulated Cover | |||
| Suspension | Spring Leaf | ||
| Leaf Spring | /8/8/8 | ||
| remark: | |||
Storage Tank volume:38 m3,Liquid Chloroethylene 770kg/m3, Equip with 6*4 or 6*2 Tractor , WABCO Brake System and ABS, Clerance: 540
OPTIONAL : Spring Air SUSPENSION AND SUPER SINGLE TYRE
|
|||
| Tank facility | |||
| Design pressure | 1.72MPa
(see technical proposals)
|
||
| MAWP | 1.72 MPa
(see technical proposals)
|
||
| Capacity | |||
| Code & Material | Q370R | ||
| Heads | Spherical heads at both ends
|
||
| Filling & Discharge System | Control method | Mechanical | |
| Liquid discharge | Single liquid discharge system | Side of the trailer | |
| Valve box | Single valve boxes | Side of the trailer | |
| Vales | Brand | Model | Qty (per Semitrailer) |
| Emergency Valve (Liquid Phase) | Rego | A3213D300 | 2 |
| Emergency Valve(Gas Phase) | Rego | A3212R175 | 1 |
| PRV | Rego | A 8436G | 2 |
| Vent Valve | Rego | TSS3169 | 4 |
| Liquid Adaptor | Rego | 5769K (3”, 3-1/4ACME) | 2 |
| Gas Adaptor | Rego | 5767H (2”, 2-1/4ACME) | 1 |
| Liquid Adapter Cap | Rego | 3194-90 (3-1/4ACME) | 2 |
| Gas Adapter Cap | Rego | 3184-90 (2-1/4ACME) | 1 |
| Pressure Gauge | Rego | A 8400 | 1 |
| Angle Valve | Fisher | J415 | 1 |
| Thermometer | WIKA | 1 | |
| Liquid Level Gauge | Rego | 9094TSM60 | 1 |
| Ball valves (Liquid Phase) | Modentic valve | MD-51FS-300 DN 80 | 2 |
| Ball valves (Gas Phase) | Modentic valve | MD-51FS-300 DN 50 | 1 |
