How to use Isuzu truck

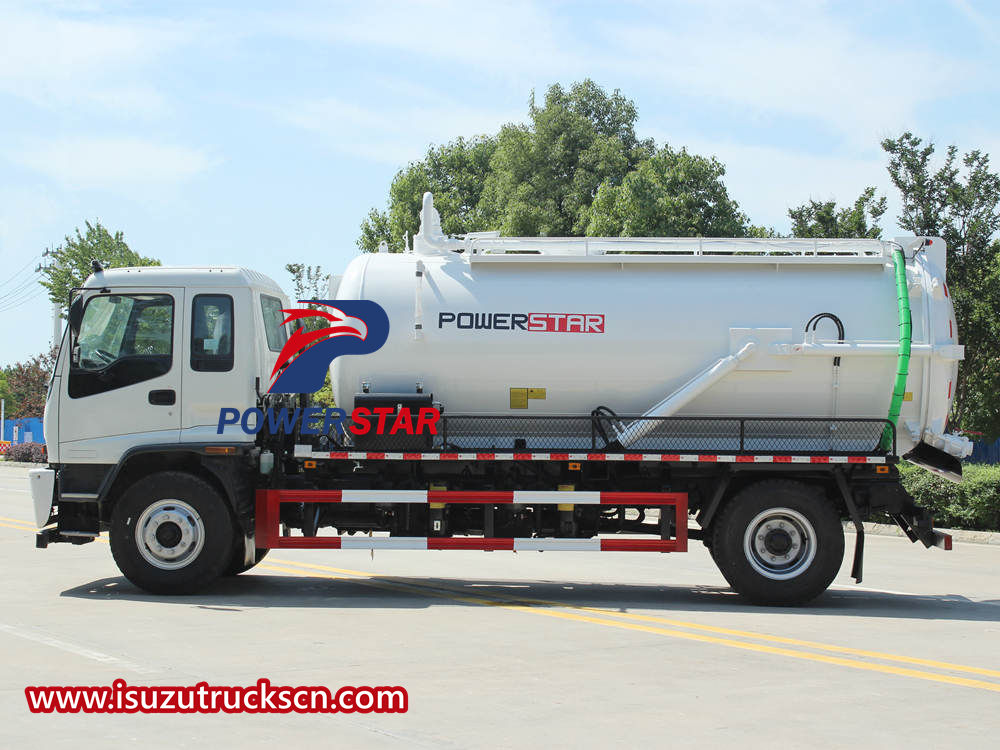

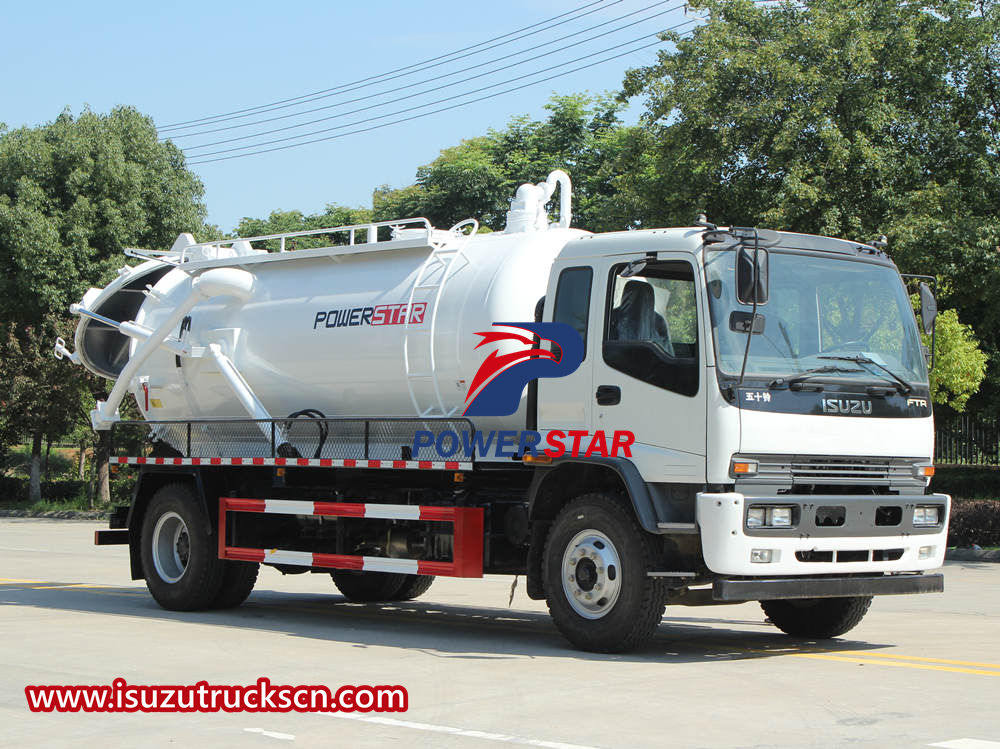

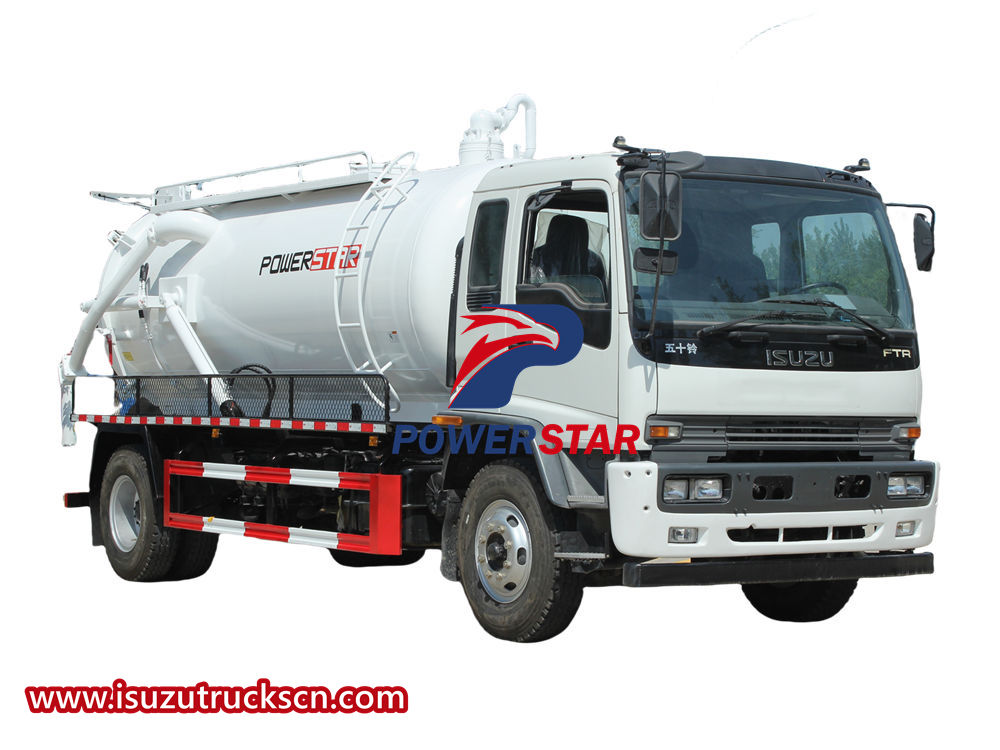

Isuzu vacuum suction truck also known as fecal suction truck and cleaning truck, is a special vehicle specially used to clean sewage, sludge and other liquids containing solid particles. Isuzu vacuum suction truck is used in the fields of urban cleaning, environmental protection and sewage treatment. plays an important role.

Isuzu vacuum suction truck is mainly composed of vehicle body, vacuum pump, high-pressure water pump, sewage tank, sewage suction pipeline, hydraulic system and other components. The working principle of Isuzu vacuum suction truck is to generate negative pressure through a vacuum pump, suck the dirt into the sewage tank, and then use the high-pressure water pump and water spray pipeline to perform high-pressure flushing of the cleaning object, and finally realize the cleaning and treatment of the dirt.

Isuzu vacuum suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

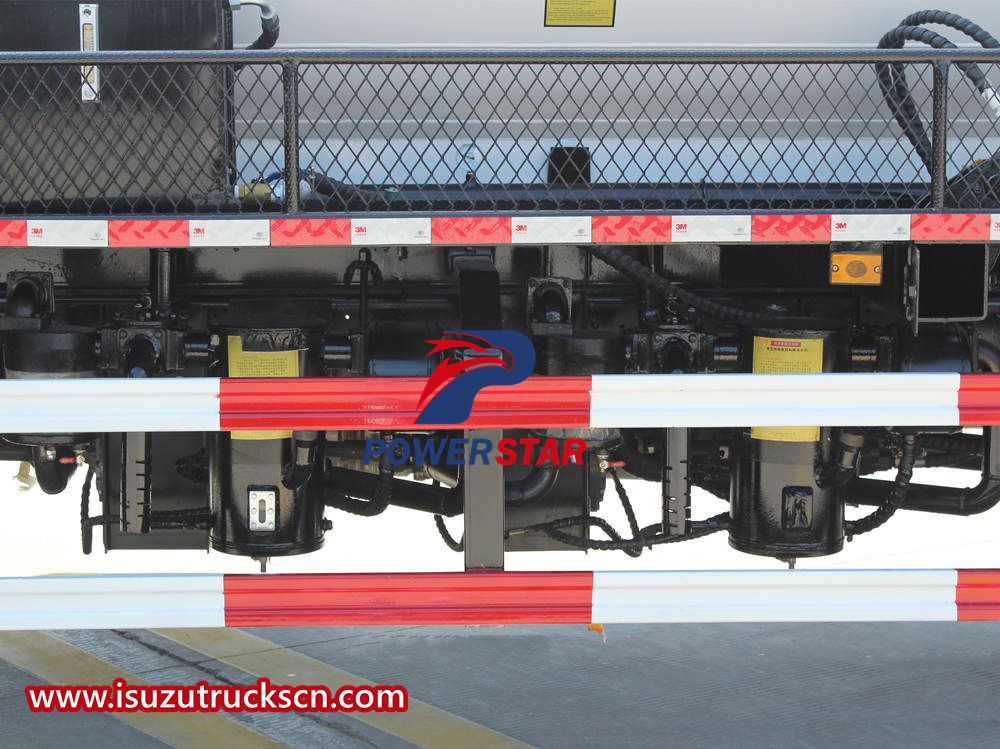

Accessory of sewage suction function:Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters

Features:

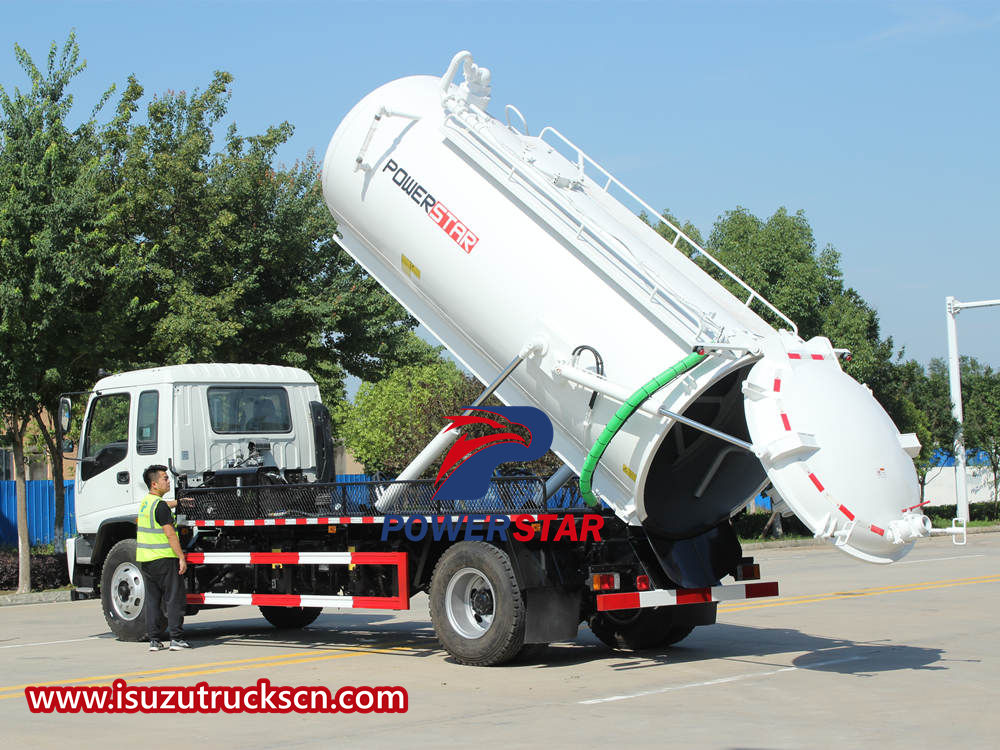

1.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.



2.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.



3.Pump can be operated by a hydraulic motor or by an auxiliary engine.



4.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.



5.Nice shape ,rational structure,durable and long service life.



Working principle of Isuzu vacuum suction truck：

1. Inhalation

The first step in the work of the Isuzu vacuum suction truck is to suck in sewage or sludge. The suction work mainly relies on vacuum pumps and suction tubes. The vacuum pump generates negative pressure in the airtight container and evacuates the air in the tank to form a vacuum state. The suction pipe is connected to the working tank through a foam seal and placed in the sewage or sludge. The sewage or sludge is sucked into the tank through the action of the vacuum pump.



2. Transport

After inhaling sewage or sludge, the Isuzu septic suction truck will transport the liquid material in the tank to centralized treatment or treatment equipment through the clutch, drive shaft and hydraulic system. The drive shaft transports the liquid material in the tank to the centralized processing equipment through the power generated by the engine. The liquid material in the tank will be assisted by a stirring device during transportation to ensure the uniformity and consistency of the liquid material.



3. Filtering

In the process of transporting liquid materials, Isuzu sewer vacuum truck will filter out the solid particles and impurities through the filtration system to ensure that the transported liquid materials are clean and pure. Filtration systems generally include components such as filters, filters, and filter pumps. The filter can effectively filter out larger particles of solid matter through the design of the mesh size and structure; the filter can further filter out tiny particles through the characteristics of the filter material and the setting of the penetration pore size; the filter pump uses power The filtered solid matter is removed from the filtration system by means of transfer.





4. Emissions

The filtered liquid material will be sent to downstream processing equipment for further processing. Treatment equipment can select appropriate treatment methods according to the properties and uses of liquid substances, including precipitation, filtration, dehydration, regeneration, etc. At the same time, after the treatment is completed, the Isuzu industrial vacuum truck will discharge the processed cleaning liquid through the discharge device to complete the entire sewage suction process.
