How to customize Isuzu truck

The ISUZU 100P garbage compactor truck is a heavy-duty vehicle designed for the purpose of transporting and compacting municipal solid waste. This vehicle is equipped with a powerful engine and a hydraulically operated compactor which can compress and reduce the volume of garbage, thereby increasing its storage capacity and making it easier to transport.

The compactor body of the ISUZU 100P garbage truck is made of high-quality steel and comes with an anti-leakage system to prevent waste leakage during transportation. The vehicle's sturdy chassis and suspension system allow it to navigate rough terrains and roads, ensuring that the waste is securely transported to the designated landfill.

ISUZU 100P garbage compactor truck is ideal for waste management companies, municipalities, and other organizations involved in collecting and disposing of solid waste. It is commonly used in urban areas, parks, and commercial establishments where large amounts of waste are generated.

The truck has a capacity of between 3 and 5 cubic meters and is equipped with an automatic lifting system that can easily load the waste into the compactor. The compactor then compresses the waste, reducing its volume by up to 80%, thereby creating more space for additional waste.

Model    PT5070ZYS
Driving Type    QL1070A1HAY 4×2 QL1070A1HAY 600P chassis with Left hand drive
Wheel Base (mm)    3365
Overall Dimension (OL x OW x OH mm)    6350*2000*2560
Vehicle curb Mass (kg)    4920
Engine      Model    ISUZU 4KH1-TCG40
Type
Diesel, 4 Cylinder, Direct injection, turbo, intercooled,
Max. output    120HP (88/3400 kw/rpm)
Max. torque    280/1700  (N.m/r/min)
Piston Displacement    2,999 cc
Transmission     ISUZU MSB-5 shift
Cab     Cab with air conditioner
Oil Tank (L)    100
Tire    7.00-16
Steering System     Power steering wheel
Brake System     Hydraulic dual circuit
Battery    12V

Isuzu 100P cabin with 4HK1 engine

Compartment’s capacity (Liters)    3000L~6000L
Body material    Weather resisting steel  (Side 4.5mm, bottom 5mm)
Fill Hopper volume    1.2 cbm
Sewage tanker    200 L
Loading time (one cycle) (sec)    13
Discharge time (sec)    15
Discharge model     Horizontal ejection
Emergency stop    YES
Garbage compressing ration    ≥ 1:3.4

Isuzu 100P garbage compactor trucks for Philippine customer.

Performance Isuzu NKR/600P chassis, the structure is advanced, simple operation, easy maintenance.

Advanced electric control system adopts imported PLC (programmable controller) integrated control, mechanical and Electrical liquid integration control, a high degree of automation

Compression body volume from 4 to 20 Cubic Meter

Sealed transportation avoid the second time pollution

Various type of refuse container lifter are available

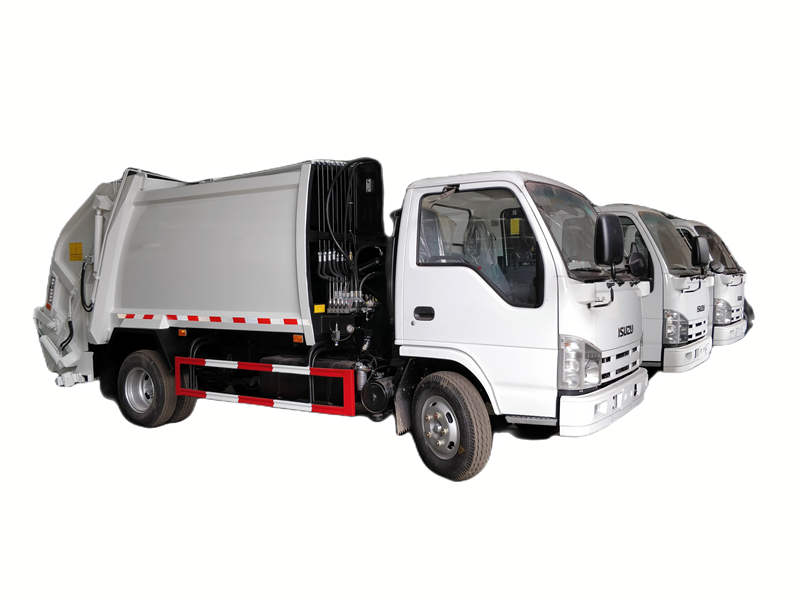

Isuzu 100P refuse compactor truck with 4 cbm garbage upper body.

In addition to improving waste management efficiency, the ISUZU 100P garbage compactor truck also has the benefit of reducing the amount of waste that ends up in landfills, making it an environmentally friendly option. Its ability to compress waste reduces the need for multiple trips to the landfill, thereby saving time, fuel, and labor costs.

In summary, the ISUZU 100P garbage compactor truck is a reliable and efficient vehicle for the transportation and disposal of municipal solid waste. With its powerful engine, hydraulically operated compactor, and sturdy build, the truck can handle large volumes of waste easily and help to improve waste management practices.
