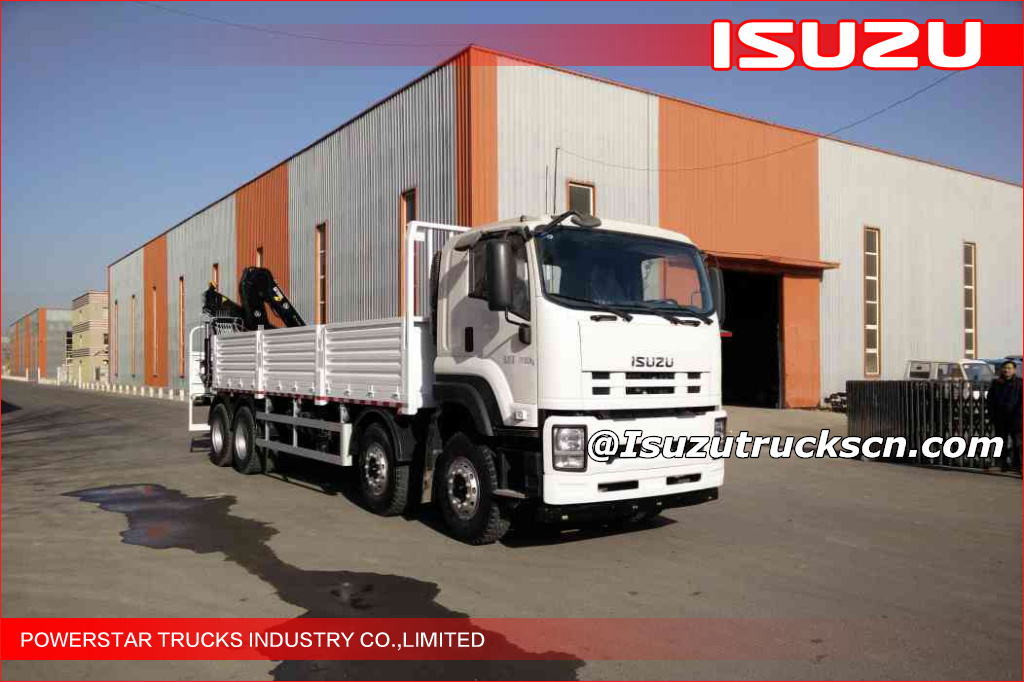

VC46 6UZ1-TCG40 ISUZU 16 Ton Heavy Truck with Crane, Crane Truck
| Technical parameter of chassis | |||
| Chassis Model | VC46 |
Color | Optional |
| Engine | 6UZ1 | Engine Brand | ISUZU |
| Horse power | 350HPS | Emission | Euro 4 |
| Wheel Base(mm) | 1850+4615+1300mm | Driving type | 8*4 |
| Suspension | Standard Leaf Spring | Minimum turning circle | 18.6m |
| Power Steering | ISUZU | Fuel consumption | 26L/km |
| Tire | 295/80R22.5 | Overall Dimension | 11200×2500×3200mm |
| Technical parameter of cran 16 T XCMG folding arm | |||
| Crane model | SQ16SK4Q | Crane weight (KG) | 6455KG |
| Max. lifting weight(KG) | 16,000 | Max. working height (m) | 18.8M |
| Max oil plow of hydroulic systm(L/MIN) | 43.2 | Rated pressure of hydroulic system(mpa) | 28 |
| Oil tank capacity (L) | 260 | Installation space(mm) | 1.4 |
| Lifting capacity/working radius | Lifting Capacity | working radius | |
| 16000 | 2.7 | ||
| 14000 | 3 | ||
| 12000 | 3.5 | ||
| 7000 | 5.5 | ||
