The Isuzu Giga truck with Palfinger crane is a powerful and efficient commercial vehicle that combines a robust Isuzu chassis with a reliable Palfinger crane. With a load capacity of up to 20 tons, Isuzu giga truck mounted crane is an ideal choice for heavy-duty transportation and construction projects.

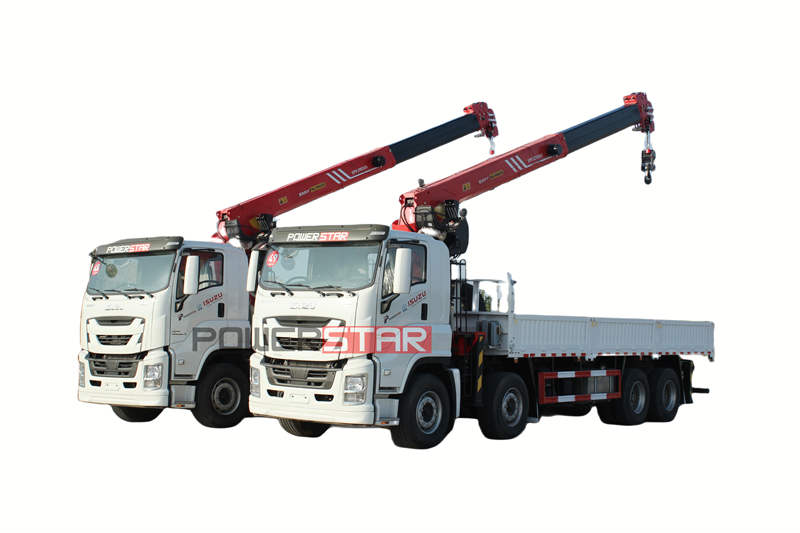

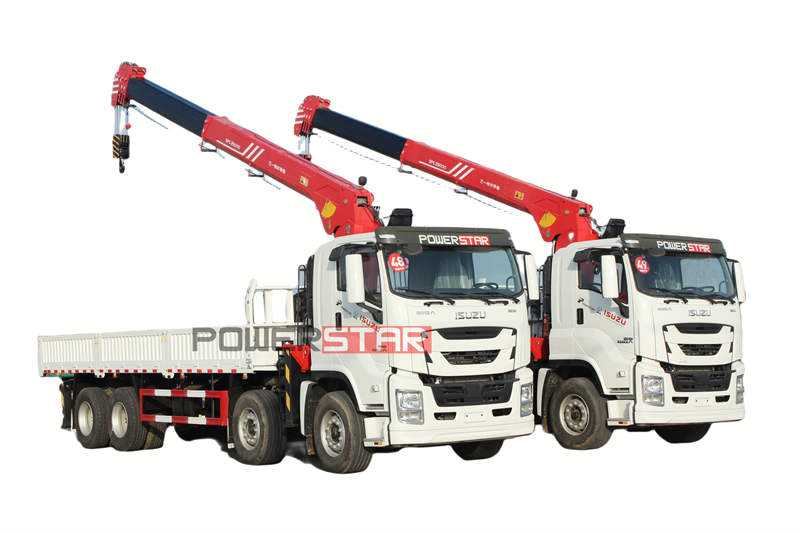

Isuzu giga 12 wheeler truck mounted crane

This truck is equipped with a state-of-the-art Palfinger crane, which provides precise and efficient lifting capabilities. The crane can reach heights of up to 20 meters and has a maximum lifting capacity of 10 tons, making it suitable for various loading and unloading tasks. It also features advanced safety features, such as overload protection and stability control, ensuring the safety of both the operator and the cargo.

The Isuzu Giga truck with Palfinger crane is known for its exceptional durability and reliability. The Isuzu chassis is designed to withstand harsh operating conditions and has a reputation for low maintenance costs. Additionally, the Palfinger crane has a long-standing reputation for quality and performance, ensuring that this truck will deliver consistent and reliable operation for years to come.

The operator should fully understand Whole Structure and Working Principle for ISUZU Truck with Palfinger Crane before any operation. Only trained person can operate this vehicle properly and to prevent unnecessary accidents and equipment damage.

ⅰ,How are the crane trucks working?
The ISUZU Truck Mounted Crane makes use of the special power take off (PTO) to get power from the engine, and then transfer the power to the Gear Pump and via hydraulic pipelines to make hydraulic cylinder moving, then can make the crane working. Turn on / off valves and operate the joysticks through the regulated program, the boom crane can working as wanted and then come to all function.

ⅱ,What is the main component for truck?
The truck mounted crane is refitted based on the ISUZU 6x4 LHD chassis. The refit part includes Telescopic boom crane assembly, actuator device, pipeline system and operation system.

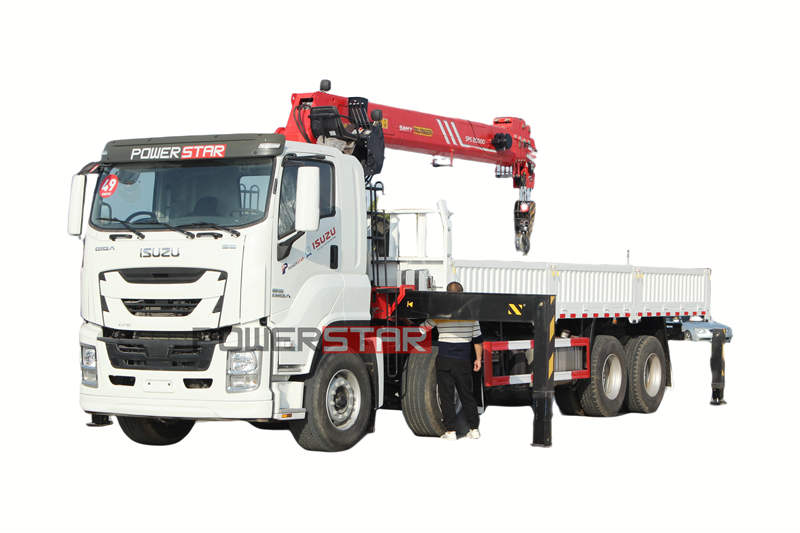

Isuzu GIGA cabin 420 hp engine heavy duty crane.

Telescopic boom crane assembly: Austria brand SPS40000 Palfinger 16Tons crane, which is used to goods loading and transportation.

Actuator device: includes power take off, gear pump, etc., which can pass the power from the chassis to the pump.

Pipeline system helps come to all special functions.

Operation system: Hydraulic joysticks to control the front and rear hydraulic legs working
ⅲ, How to operate Boom Crane Truck? (Very Important)
Bellow 1~9 teaches you how to operate the crane truck step by step, please strictly follow them!

1、    Keep Three-Way ball valve vertical to the pipeline, the Front and Rear hydraulic legs working
2、    Start the truck engine; keep the air pressure over 8Mpa, then pull out the PTO switch button to make Gear Pump working.
3、    After step 1 and step 2, then can operate hydraulic joysticks to front and rear make hydraulic legs working

1)    Joystick 1 & 2: control front hydraulic legs working
DOWN---- Front hydraulic legs horizontal direction extend out
UP----Front hydraulic legs vertical direction extend out

2)    Joystick 3 & 4: control rear hydraulic legs working
DOWN---- Rear hydraulic legs horizontal direction extend out
UP----Rear hydraulic legs vertical direction extend out

3)    Joystick 5: control the Joysticks 1,2,3,4 working
DOWN----Extend out working
UP----Retract back working

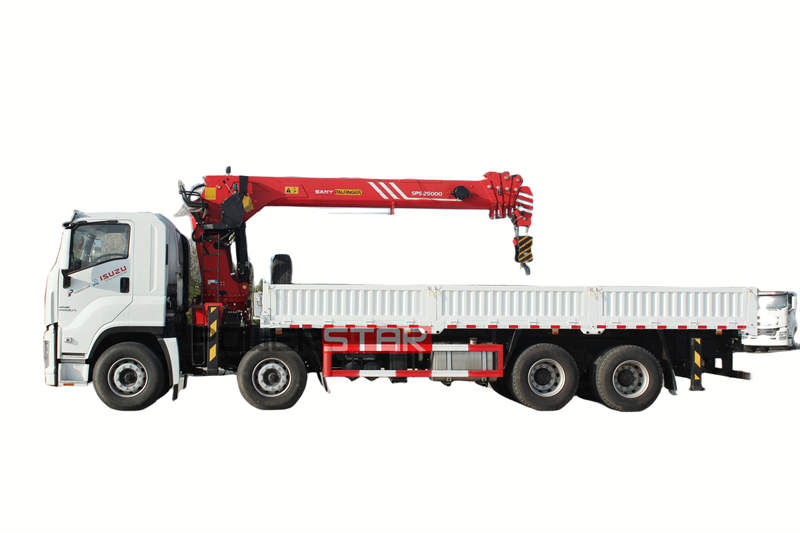

Isuzu 14 T giga truck mounted palfinger crane.

Joystick 1 and 2 give guidance to make front hydraulic legs horizontal and vertical direction ;
Joystick 3 and 4 give guidance to make rear hydraulic legs horizontal and vertical direction;
Joystick 5 make guidance working.

4、    After front and rear hydraulic legs all extend out to working position
a)    Push in the PTO button to turn off the PTO, change the three-way ball valve vertical to the ground
b)    Pull out the PTO button to make telescopic boom crane working
Press the clutch pedal and push in the PTO button, hydraulic systems stop working
Make three-way ball valve vertical to the ground
Press the clutch pedal again and pull out the PTO button, then telescopic boom crane can working

Make sure turn off the PTO button firstly, then you can adjust the three-way ball valve!

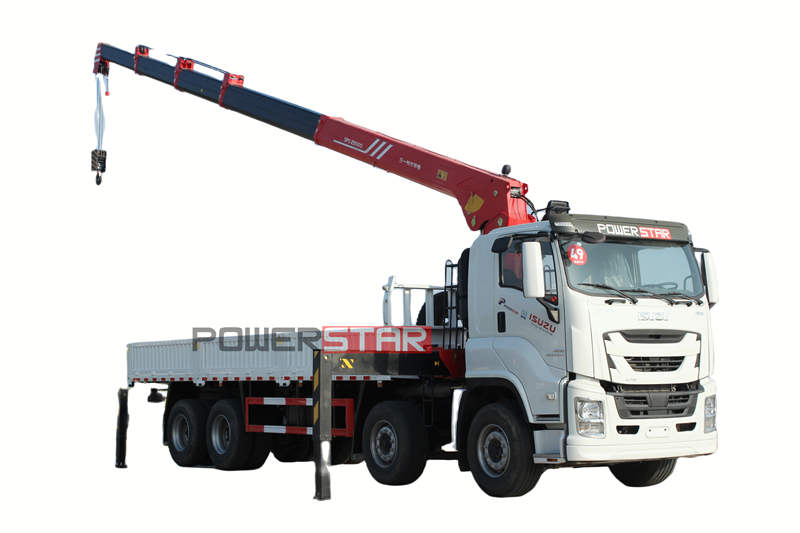

Isuzu giga 14 t heavy duty 12 wheeler truck mounted crane.

5、    Seat on the chair and operate the telescopic boom crane. Kindly follow the SPS40000 manual.

6、    After telescopic boom crane reposition.
c)    Push in the PTO button to turn off the PTO, change the three-way ball valve vertical to the pipeline
d)    Pull out the PTO button to make hydraulic legs working
Press the clutch pedal and push in the PTO button, hydraulic systems stop working
Make three-way ball valve parallel to the ground

Press the clutch pedal again and pull out the PTO button, then front and rear hydraulic legs start working

7、    After changed the three-way ball valve parallel to the ground, use hydraulic joysticks to operate the front and rear hydraulic legs.
