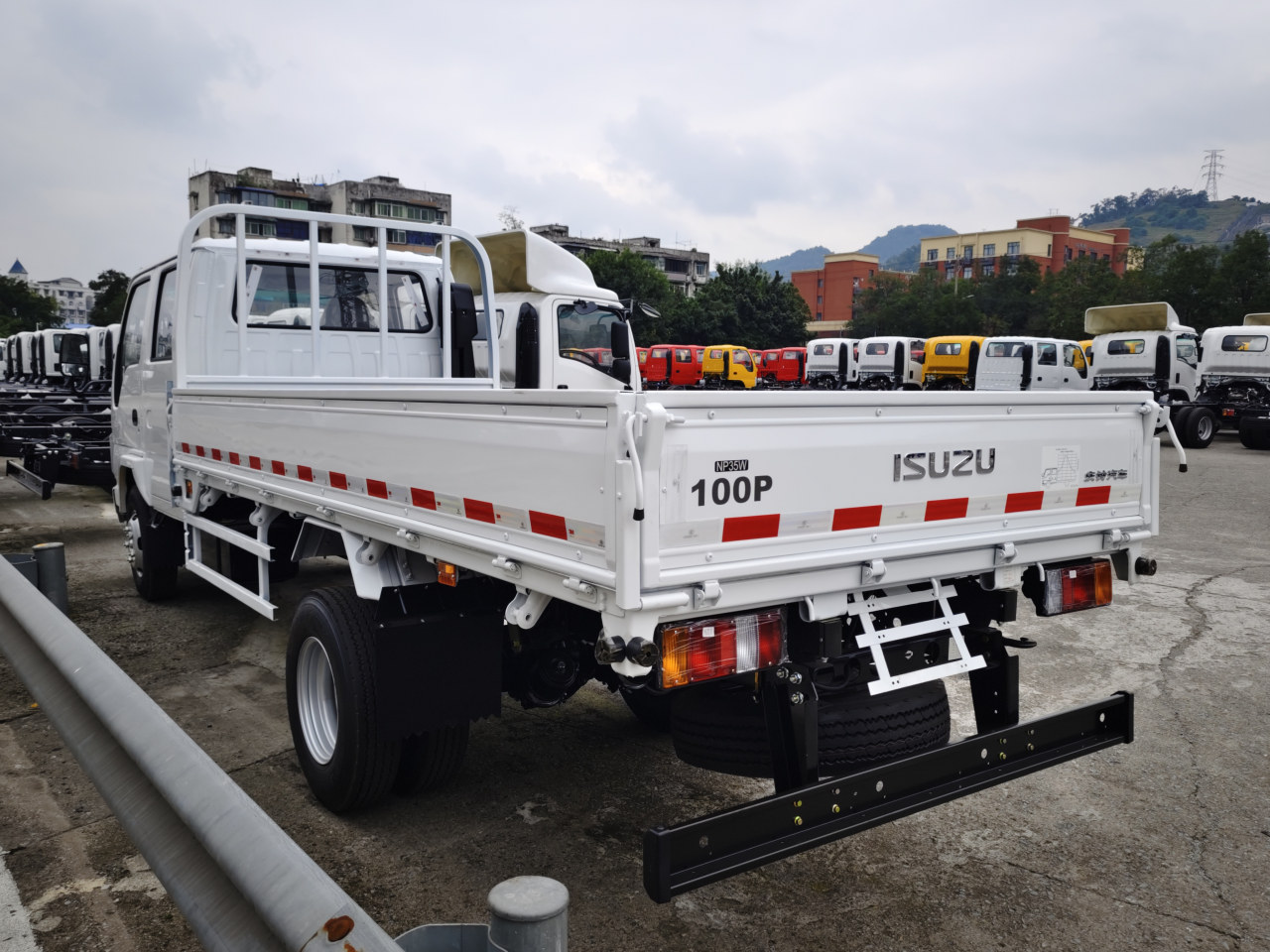

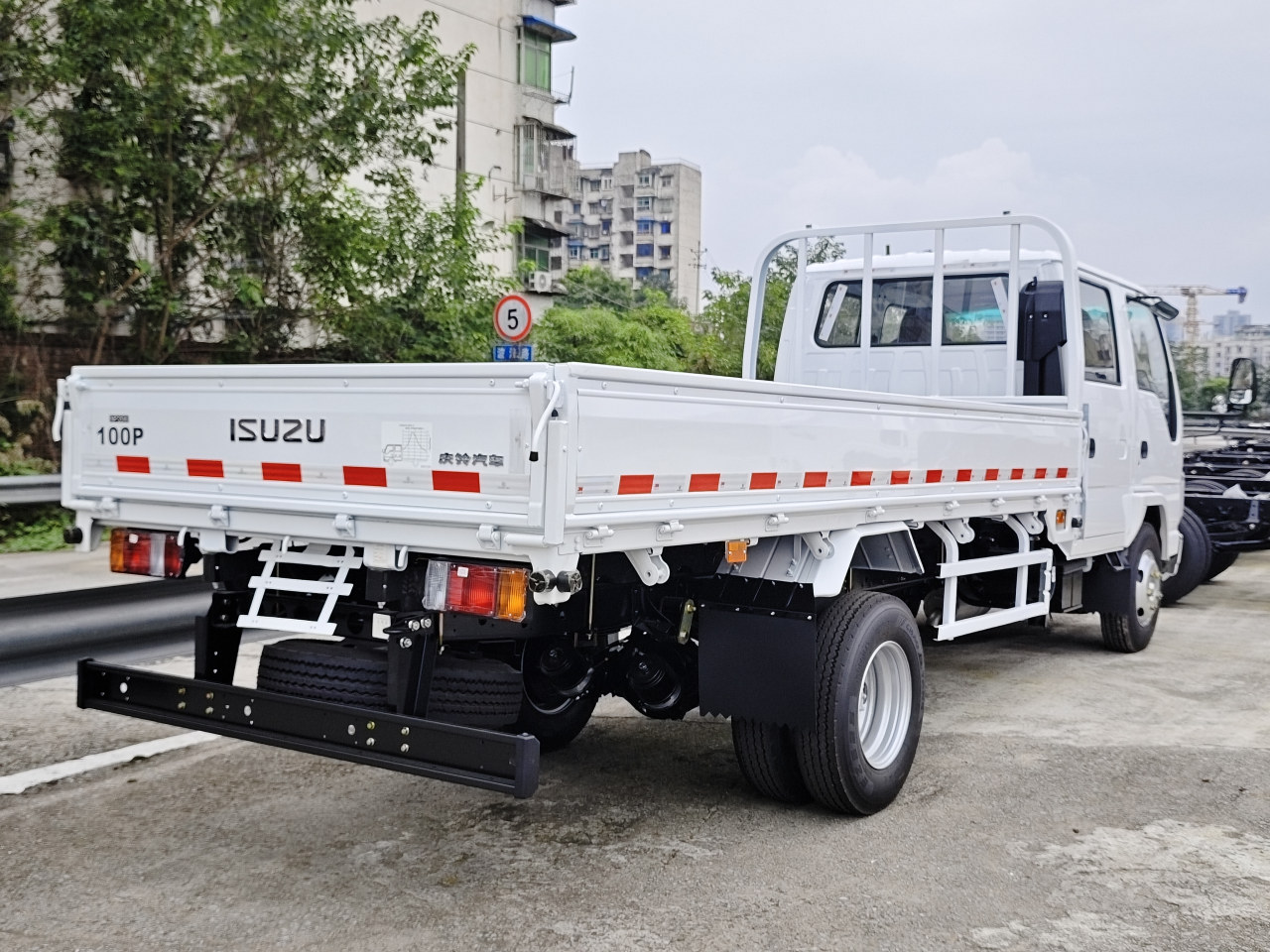

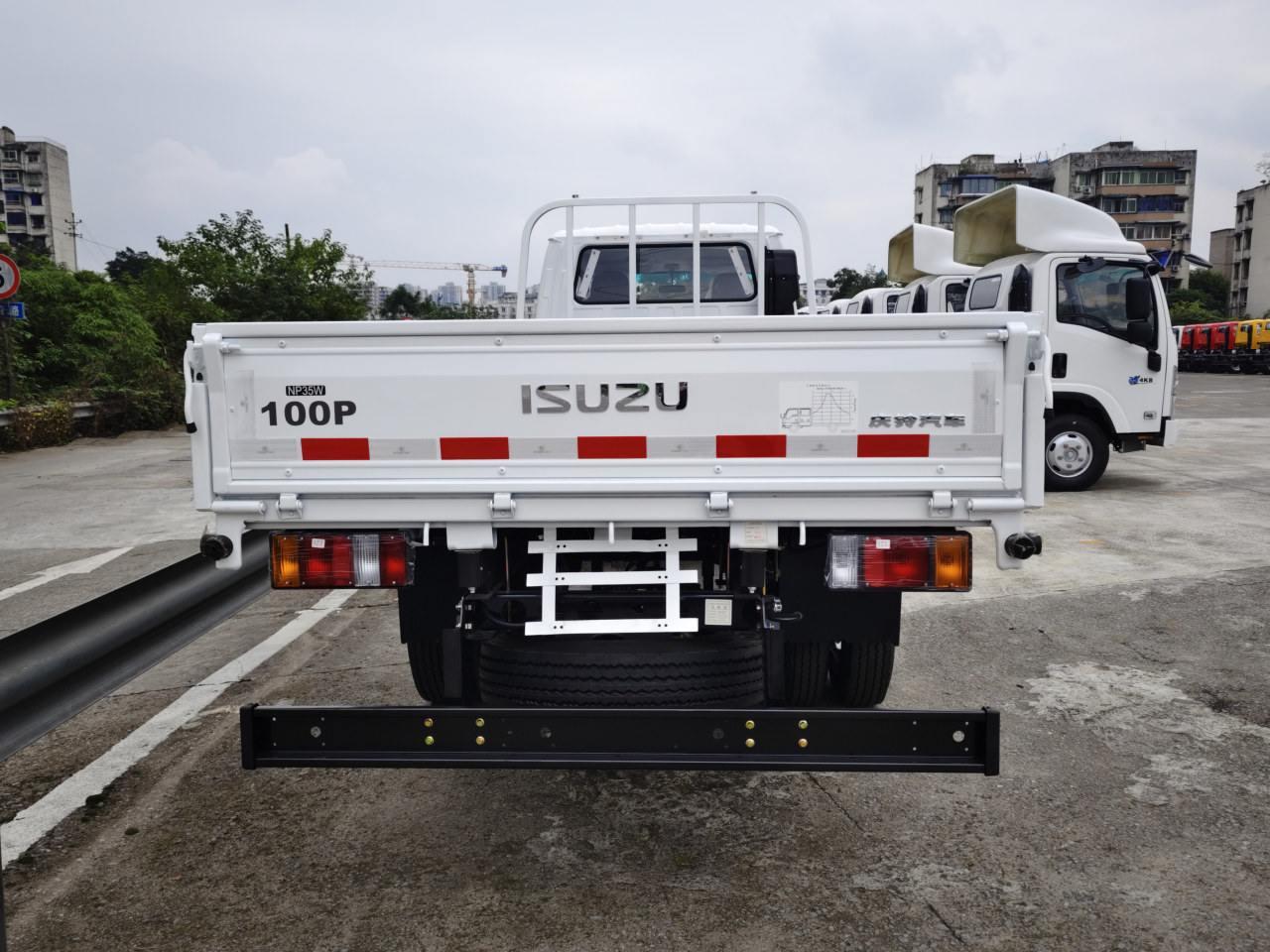

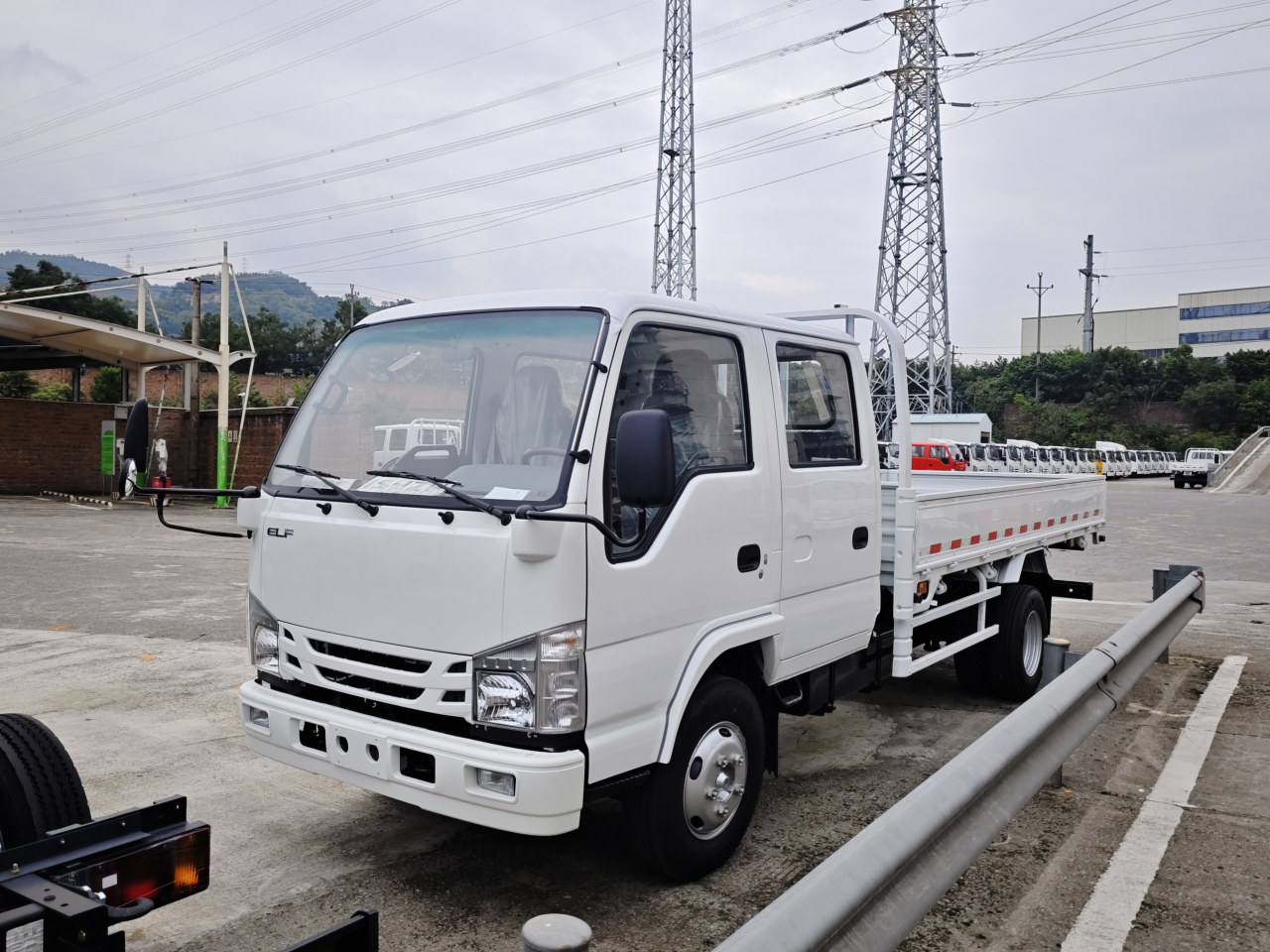

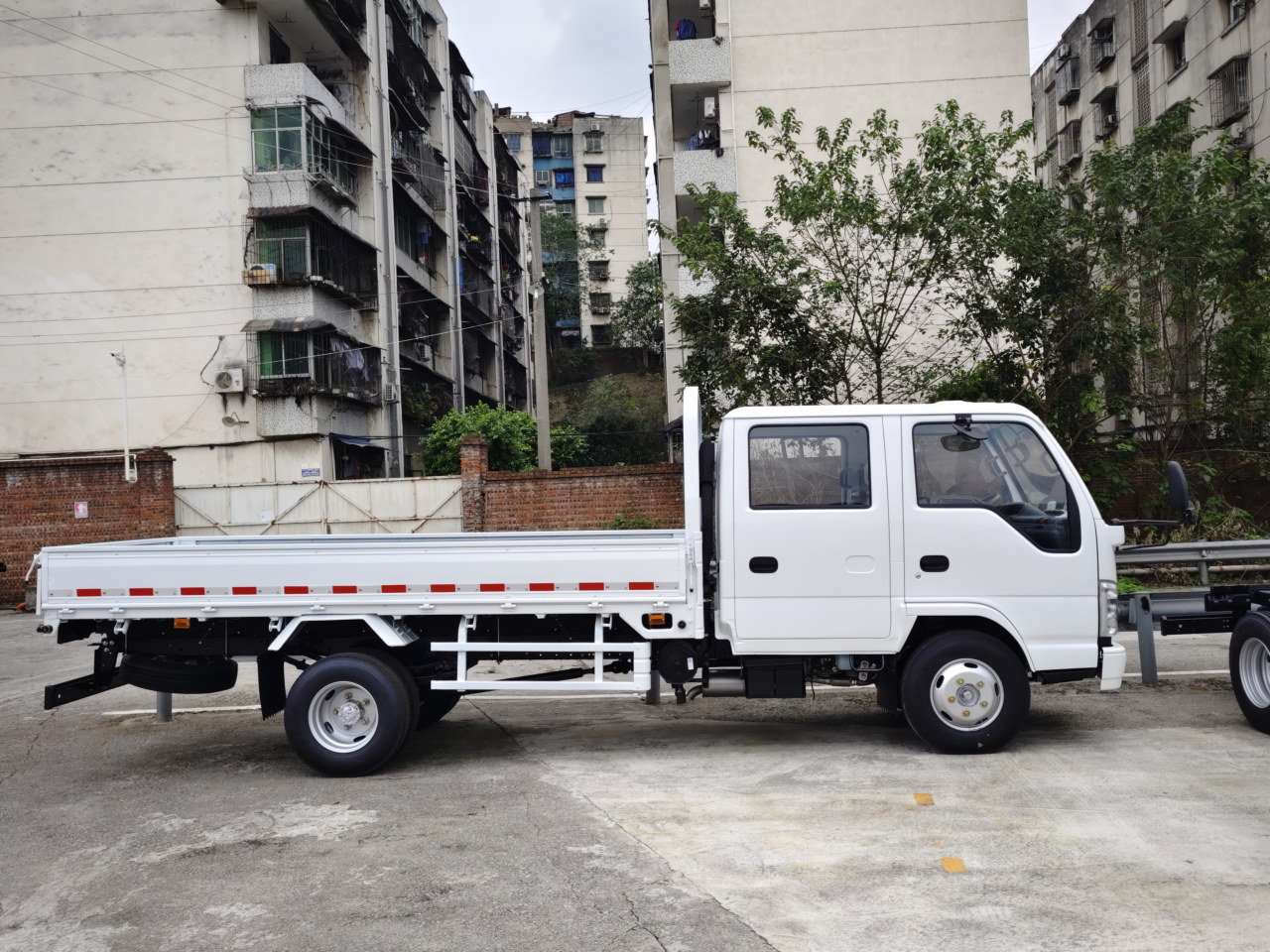

New Isuzu Elf 100p 4X2 6 Wheeler Double Cabin Lorry Cargo Dorpside Truck in stock
CHINA ISUZU NHR NKR DOUBLE ROW CABIN SERIES DROPSIDE CARGO TRUCK IS EQUAL TO JAPAN ISUZU SAME SERIES LIGHT TRUCK AND TOTALLY COMPATIBLE WITH JANPAN ISUZU SERIES IN BOTH SPARE PARTS AND AFTER SALES SERVICE, MORE COMPETITIVE PRICE AND EXCELLENT PERFORMANCE;
KEY PARAMETERS FOR ISUZU 100P MODE
| Model | QL10403EAR Driving type: 4*2 left hand driving | ||
| Engine | Make: ISUZU | ||
| Engine model:4JB1-CN, Euro IV emission standard | |||
| 4-cylinder in-line with water cooled, turbo-charging and intercooler,high pressure common rail BOSCH 1600 Bar | |||
| Maximum output: 98 hp (72 Kw) | |||
| Maximum torque: 220 Nm | |||
| Displacement: 2.771 L | |||
| Transmission | ISUZU MSB-5MT, 5 forwards and 1 reverse,manual | ||
| Front Axle | Steering with double T-cross section beam, 1.85 Ton loading Capacity | ||
| Rear Axle | 2.25 Ton loading capacity | ||
| Chassis | Frame: U-profile parallel ladder frame and reinforced subframe,all cold riveted cross members, Manganese steel | ||
| Front suspension: leaf spring | |||
| Rear suspension:leaf spring | |||
| Aluminium fuel tank: 100 L capacity with locking fuel cap, fitted to the off side of the chassis | |||
| Wheels & Tyres | Tire:6.50R15, radial | ||
| Driver's Cab | ISUZU double row cab,5 seats,A/C | ||
| Dimensions mm | Wheel base | 2490 | |
| Overall length | 4800 | ||
| Overall width | 1695 | ||
| Overall height | 2160 | ||
| Dimension of the rear cargo box | 2100*1600*415 | ||
| Weight kg | Dead weight | 2000 | |
| Rated Loading Capacity | 2100 | ||
| Gross vehicle weight(GVW) | 4100 | ||
| Front axle loading capacity | 1850 | ||
| Rear axle loading capacity | 2250 | ||
