Kazakhstan 15unit Isuzu NPR dump truck with XCMG boom crane
Oct 15,2024, Kazakhstan's Shymkent International Airport order 15unit Isuzu NPR dump truck with 2ton XCMG boom crane to further enhance the airport's logistics and transportation capacity and efficiency. Delivery site in Powerstar trucks factory.
Shymkent International Airport is located in the northwest suburbs of Shymkent, Kazakhstan, about 9 kilometers from the city center. It is a 4E-level international airport. Since its completion and opening to traffic in 1933, Shymkent International Airport has been a joint military and civil airport, and has been continuously expanded and upgraded in recent years. According to the airport's official website in June 2020, the airport terminal has 2 boarding gates, the civil aviation apron has 22 parking spaces, and the runway is 3,300 meters long and 45 meters wide, which can meet the annual passenger throughput of 500,000 and 10,000 aircraft takeoffs and landings.

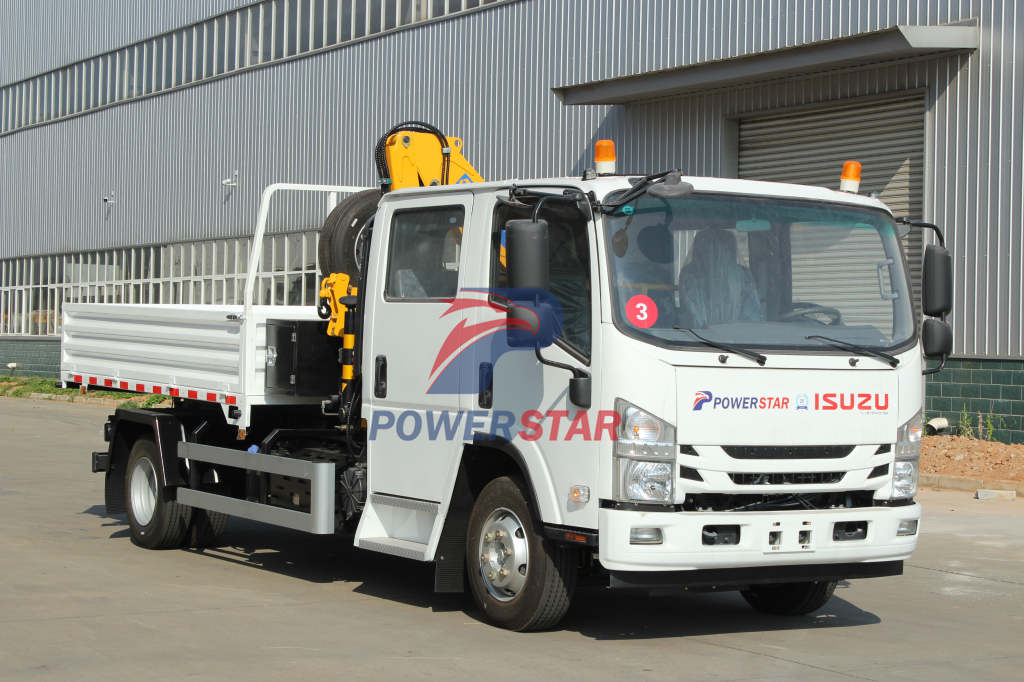

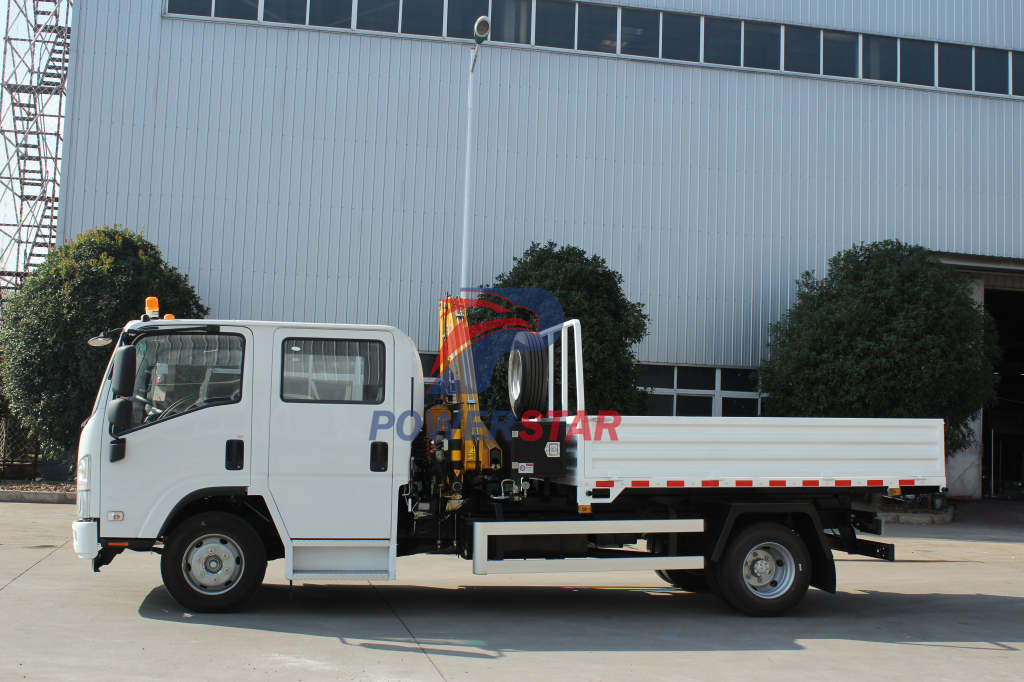

Kazakhstan Airport Isuzu 4X2 NPR 700p Tipper Truck with 2 Ton Boom Crane front view
Kazakhstan Airport Isuzu 4X2 NPR 700p Tipper Truck with 2 Ton Boom Crane front view

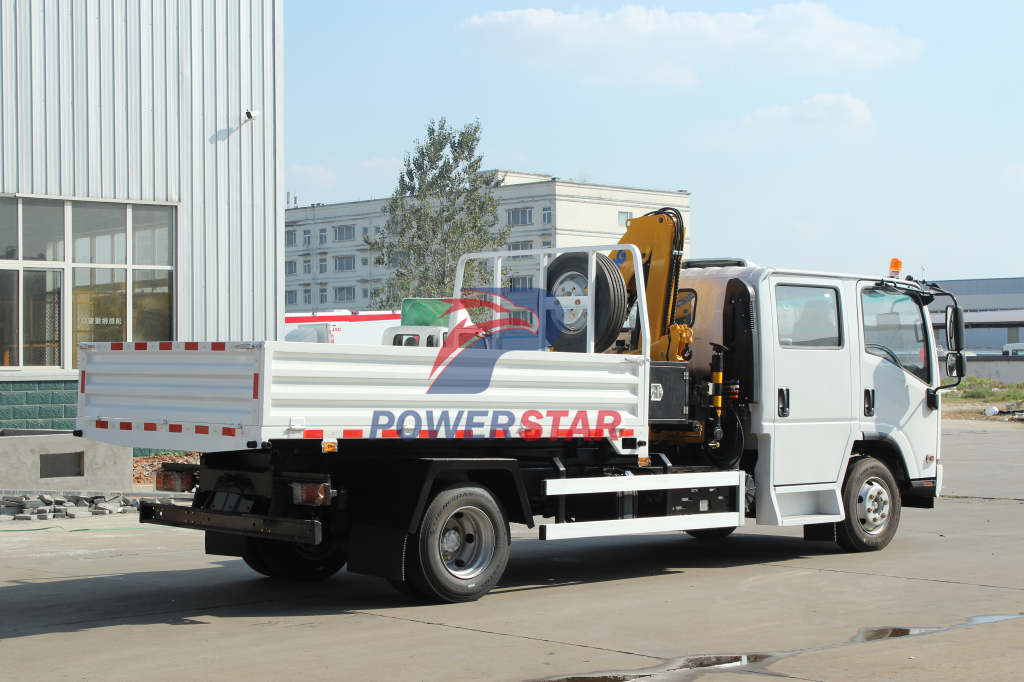

Kazakhstan Airport Isuzu 4X2 NPR 700p Tipper Truck with 2 Ton Boom Crane rear view
This batch purchase of 15unit Isuzu NPR dump truck with XCMG boom crane is of great significance to Shymkent International Airport. With the continuous growth of airport cargo volume, the original logistics and transportation equipment has been unable to meet the needs of efficient and safe transportation. With its powerful lifting capacity and flexible transportation methods, Isuzu truck-mounted crane transporters will greatly improve the airport's cargo loading and unloading and transportation efficiency, shorten cargo turnover time, and provide better services for passengers and airlines.

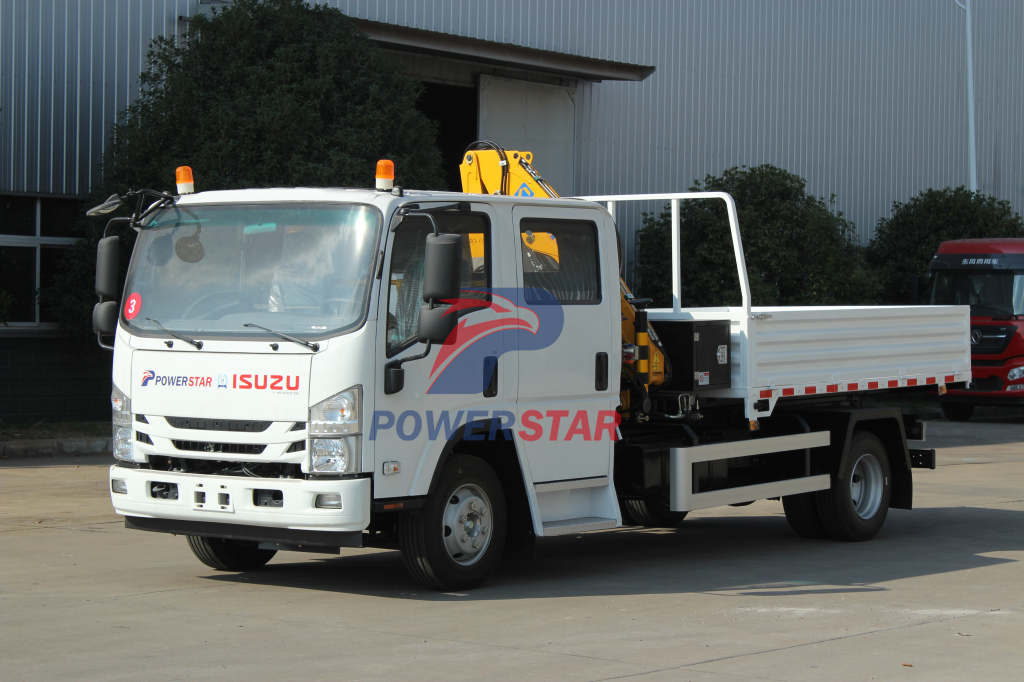

Kazakhstan Isuzu 700p cargo dump truck mounted 2tons XCMG Folding boom crane front view
Kazakhstan Isuzu 700p cargo dump truck mounted 2tons XCMG Folding boom crane front view
Main Specifications
| Product name | Kazakhstan 15unit Isuzu NPR dump truck with 2tons XCMG boom crane | |
| Vehicle Dimensions, Weights & Capacities | Chassis brand | ISUZU |
| Overall dimension (L*W*H) | 7800*2480*3170mm | |
| Wheelbase | 4175mm | |
| Curb weight | 5,650 Kgs | |
| Gross weight | 11,000 Kgs | |
| Axle loads | 3850/7150Kgs | |
| Chassis | Drive mode | 4x2 |
| Cabin type | double cab | |
| Seats | 2 seats+ 4 seats | |
| Steering | LHD | |
| Tyres | 6+1 spare tyre | |
| A/C | Air conditioning | |
| Engine | Enging model | 4HK |
| Fuel and engine type | Diesel, 4 cylinders in-line | |
| Horse power | 190-192HP | |
| Displacement | 5.193 L | |
| Other Standard Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS for option, Automatically Air-cut Brake/Oil cut for option | |
| 4 | Tubeless tyres for option | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | USB, Radio | |
| 10 | Widened Bumper | |
| 11 | For New Face Front Chrome Kit for option | |
| Tops Parameters | Mouned Crane Brand | XCMG original 2ton folding arm crane |
| Cargo Box Dimension ( L×W×H ) | 3100*2280*450mm | |
| Truck Colour | According to wish | |

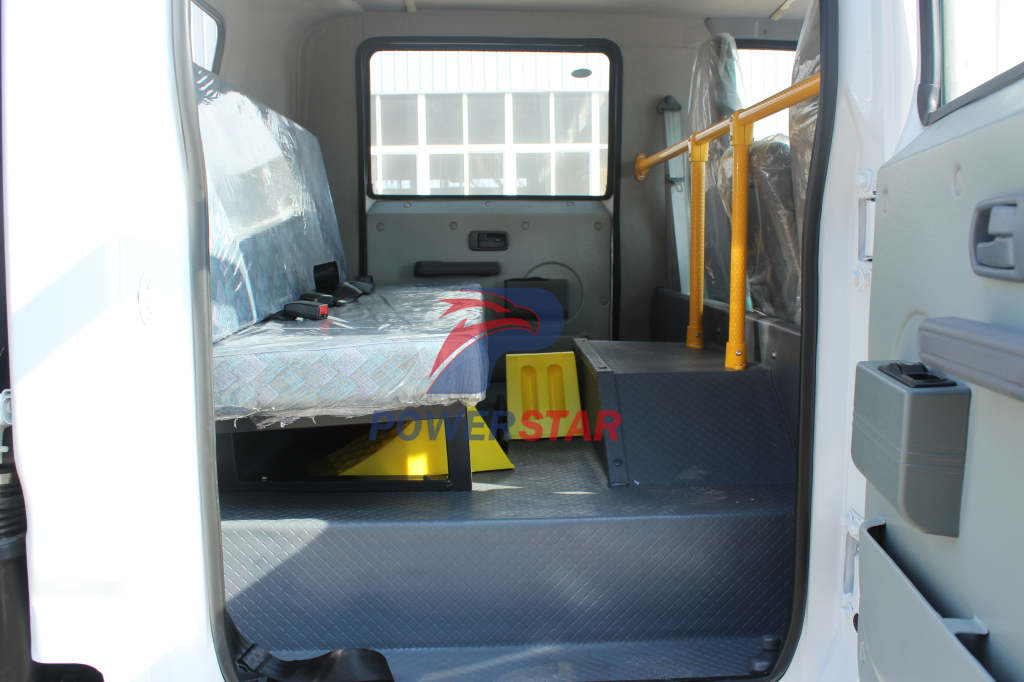

Double cabin available for 6 persons inside
XCMG 2ton Folding Arm Truck Crane Sq2zk1 Truck Mounted Crane Features:
Safety
• Have multiple job safety protection measures
• Complies with CE, GOST and other safety requirements
Reliable
• High-strength materials are widely used
• Multiple protection of the control system
• Strict factory test
| SQ2ZA1 Truck Mounted Crane Main specification | ||
|
Max Lifting Capacity
|
Kg
|
2000
|
|
Max Lifting Moment
|
Ton.m
|
4.2
|
|
Recommend Power
|
Kw
|
9
|
|
Hydraulic System Flow
|
L/min
|
20
|
|
Hydraulic System Pressure
|
Mpa
|
20
|
|
Oil Tank Capacity
|
L
|
25
|
|
Installation Space
|
mm
|
680
|
|
Self Weight
|
Kg
|
About 620
|
|
Rotation Angle
|
.
|
370
|

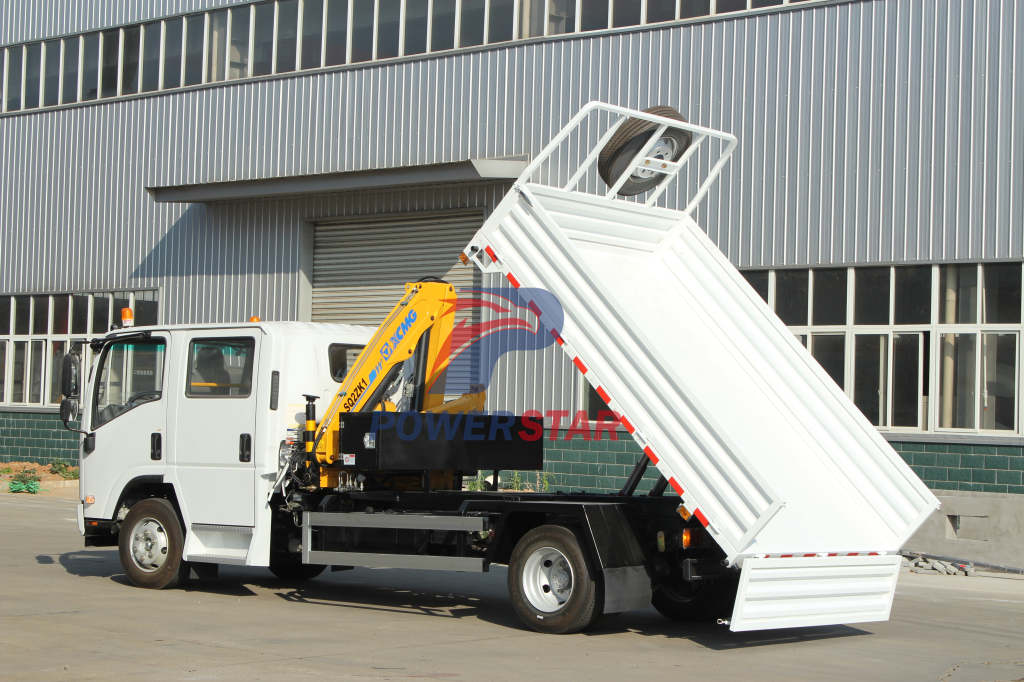

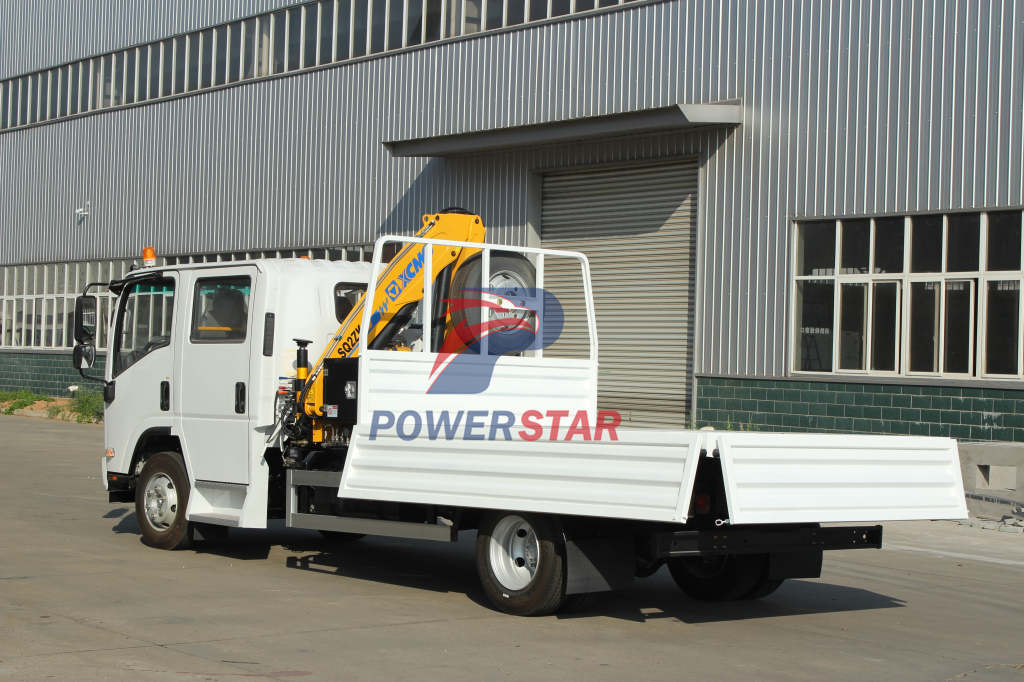

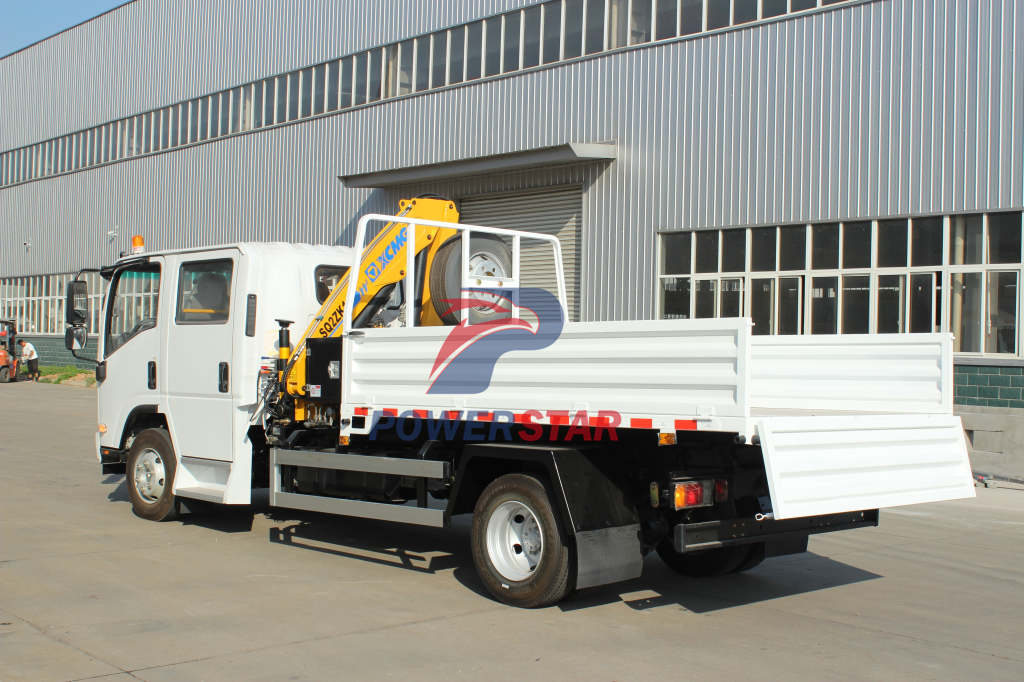

Kazakhstan Isuzu 700p cargo dump truck mounted 2tons XCMG Folding boom crane cargo body woking view
Kazakhstan Isuzu 700p cargo dump truck mounted 2tons XCMG Folding boom crane cargo body woking view
Kazakhstan Isuzu 700p cargo dump truck mounted 2tons XCMG Folding boom crane cargo body woking view
In addition, this purchase is also an important step in the modernization process of Kazakhstan International Airport. By introducing advanced logistics and transportation equipment, the airport will further enhance its comprehensive competitiveness and provide strong support for Kazakhstan's international trade and economic development.
