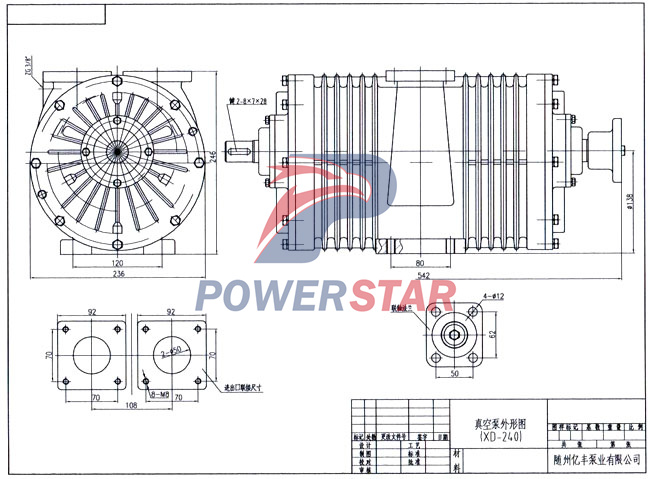

The vacuum pump XD 240 is a rotary vane vacuum pump that is commonly used in various vacuum applications. Here are the specifications:
1. Type: The XD 240 is a single-stage rotary vane vacuum pump.
2. Technology: The pump uses rotary vane technology to compress air and trap it in a chamber.
3. Power: The pump requires a power supply of 220 volts and 50 Hertz.
4. Motor: The pump is equipped with a 1-phase AC electric motor with a power rating of 0.55 kilowatts (kW).
5. Performance: The maximum vacuum pressure of the pump is 0.1 millibar (mbar), and the pumping speed is 240 cubic meters per hour (m³/h).
6. Construction: The pump is made of high-quality, durable cast iron metal, ensuring a long life-span.
7. Cooling: The XD 240 vacuum pump includes an air-cooling system that keeps the pump cool during operation.
8. Lubrication: The pump is lubricated with oil and requires regular oil changes.
9. Noise Level: The XD 240 has a low noise level, with a sound pressure of approximately 65 decibels (dB).
10. Applications: The XD 240 vacuum pump can be used in a variety of vacuum applications, including vacuum packaging, vacuum furnaces, freeze drying, filtration, and more. Note: These specifications can vary based on the manufacturer and supplier of the product. It is suggested to check with the manufacturer's specification or contact a supplier for more information.
