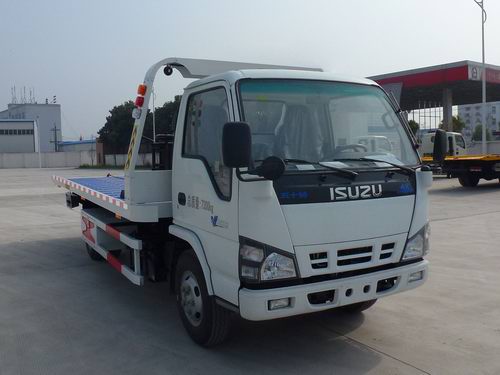

ISUZU TOW TRUCK (WRECKER / RECOVERY VEHICLE) FOR SALE flatbed wrecker tow truck
flatbed wrecker tow truck
Product Advantages:
1) ISUZU chassis
2) Absorbed advanced technology from America MILLER wrecker company and AATAC wrecker company and Britain TRUK wrecker company
3) Atopted CAE technology for key parts
4) Using HG70 high strength welding steel for the important parts
5) The hydraulic system using two-level filtering technology to make sure it cleaner
6) Folded platform
7) Rolling wheel can be mounted for recovering the car with wheels braked. This invention had obtained national patent
8) Automantic fixture can be mounted
Main technical specifications:
Specifications of Isuzu Chassis Wrecker |
||
Wrecker Model |
ST5090TQZHP |
|
Chassis Model |
QL1090MAR1Y |
|
Outline Dimension (L×W×H) mm |
9295/8750*2450*2535/2775 |
|
Cab(with air conditioner) |
Left hand drive |
|
Engine power(ps) |
175 |
|
Engine model |
4HK1-TCG40 |
|
Emission standard |
Euro 4 |
|
Wheel Base (mm) |
4475 |
|
Platform |
Dimension(L×W) (mm) |
6400×2450 |
Working Stroke (mm) |
3600 |
|
Max. Loading Mass (kg) |
5000 |
|
Underlift |
Max.Lifting Mass(kg) |
2500 |
Max. towing mass(kg) |
8000 |
|
Max. Effective Length(mm) |
2150 |
|
Extension Stroke(mm) |
1500 |
|
Rating Pulling Force of winch (KN) |
50 |
|
Length of Cable Rope(m) |
30 |
|
