Isuzu sewer truck user manual

As world famous sewage trucks manufacturer, we POWERSTAR will teach you how to build an Isuzu cesspool suction truck, which requires several steps and considerations to ensure the safe and efficient operation of the vehicle. Here are the general steps involved in building an Isuzu cesspool suction truck:

Determine the specifications and features of the truck: The first step is to determine the size and capacity of the tank, the type and size of the vacuum pump, and any additional features required for the truck’s operation. Original Japanese ISUZU truck chassis can meet the requirement and used to build Isuzu sewage trucks.
Acquire the necessary components: The next step is to purchase the parts and components for the truck, such as the Isuzu chassis, tank, vacuum pump, hoses, and valves, and any additional accessories required.
Install the vacuum pump: We can have different brand pumps for optional: Import brand MORO, JUROP, BP brand, or Domestic brand WEILONG brand. The vacuum pump is typically installed at the rear of the truck and connected to the tank via a suction hose. The pump should be securely mounted and equipped with an intake filter to prevent debris from entering the pump.
Install the vacuum tank: The tank is mounted onto the chassis and securely attached using bolts and brackets. The tank should be positioned in such a way that it does not interfere with the truck’s balance or stability.
Install the hoses and valves: The suction hoses and valves are connected to the vacuum pump and the tank using clamps or couplers. The valves should be located in a convenient location for the operator to access and operate when emptying the tank.
Install any additional features: Additional features such as a rearview camera system, hydraulic power steering, and air brakes may be installed as required.
Test the Isuzu sewage tanker truck: The completed truck should be tested to ensure that all components are functioning correctly, including the vacuum system, hoses, and valves. Any necessary adjustments should be made before the truck is put into operation.

Building an Isuzu cesspool suction truck requires specialized knowledge and expertise in the field of sanitary engineering. It is recommended to seek guidance from experienced professionals to ensure that the truck is built to the required standards and regulations.

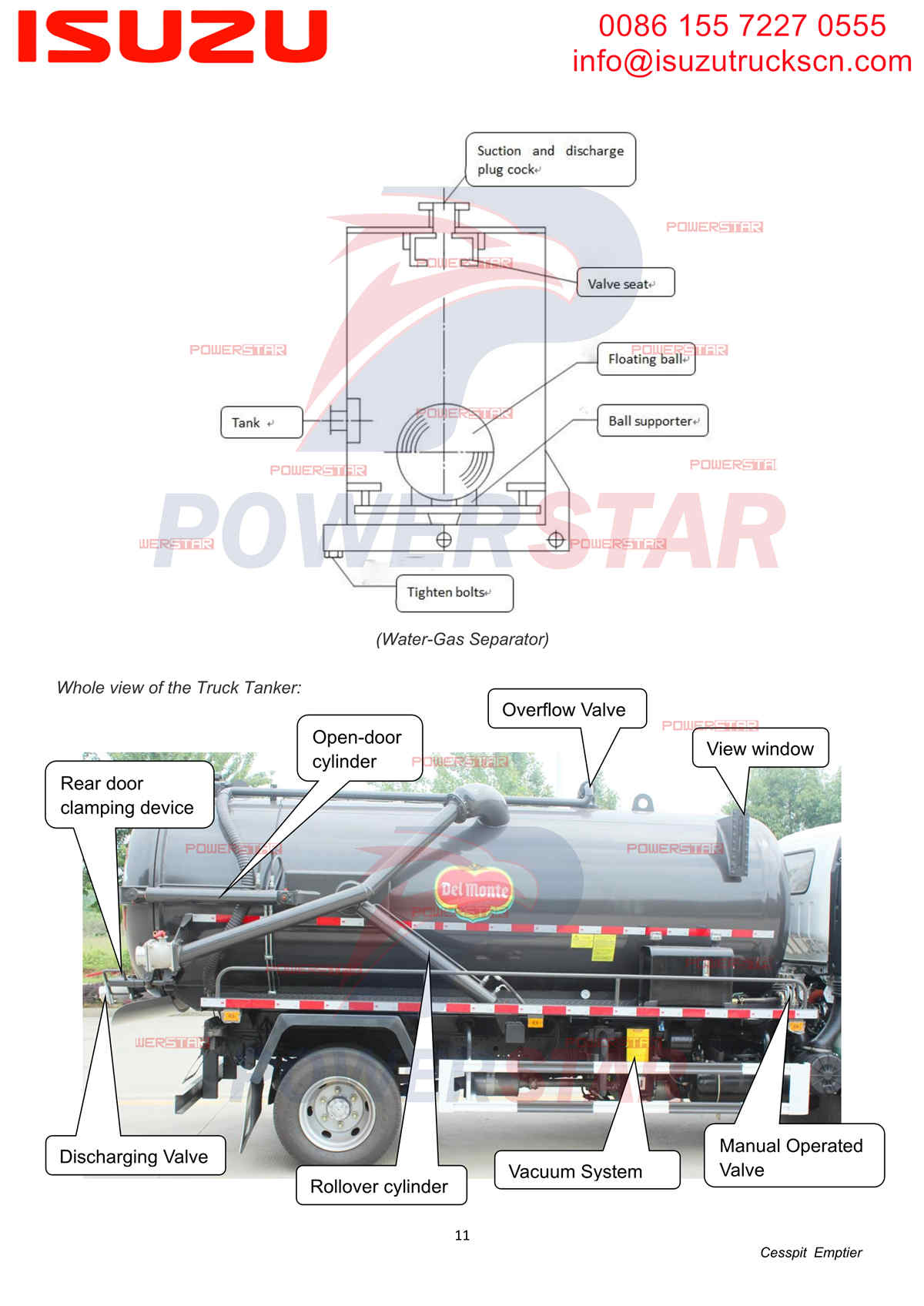

How to operate the 8cbm vacuum sewage truck as below:

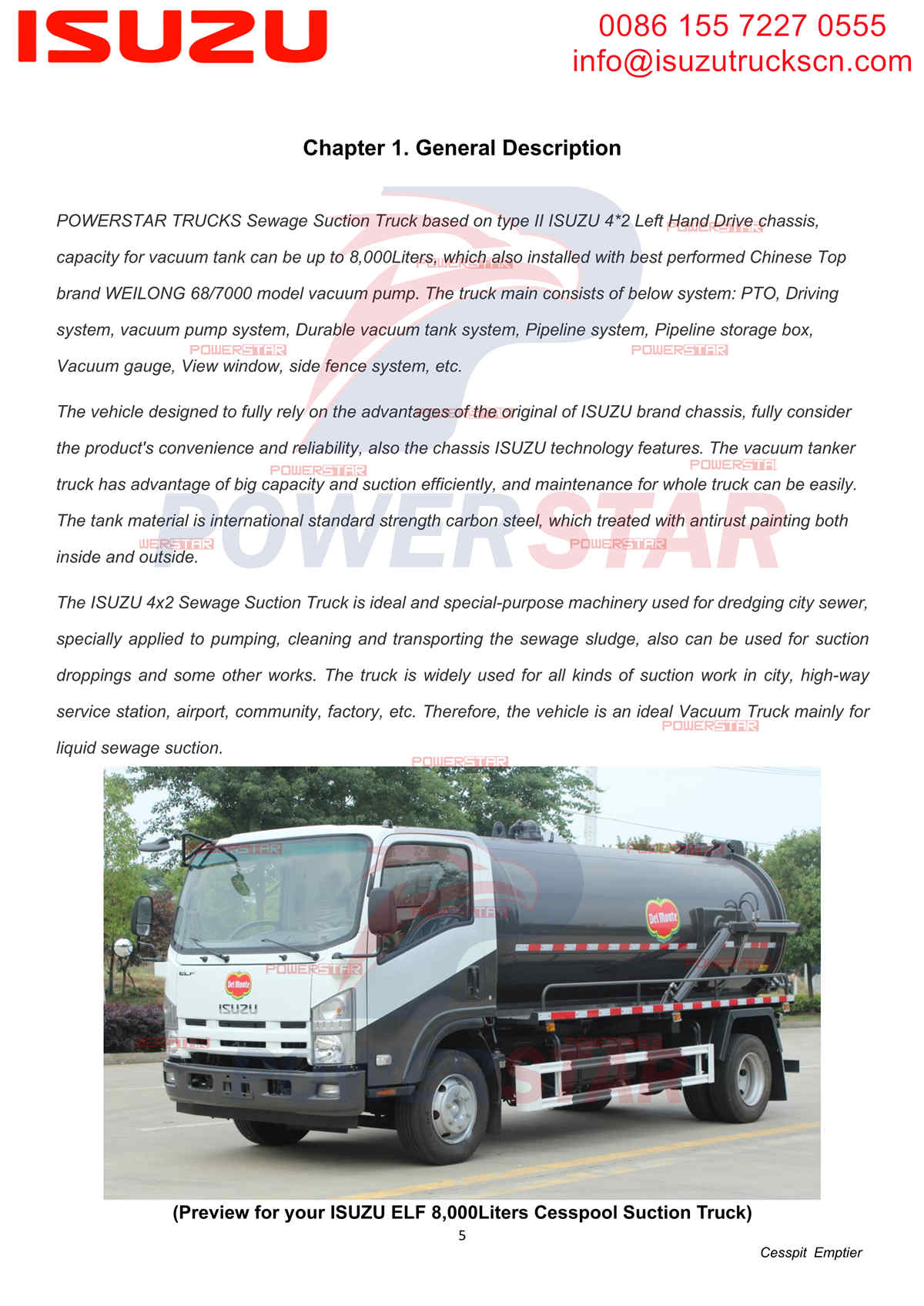

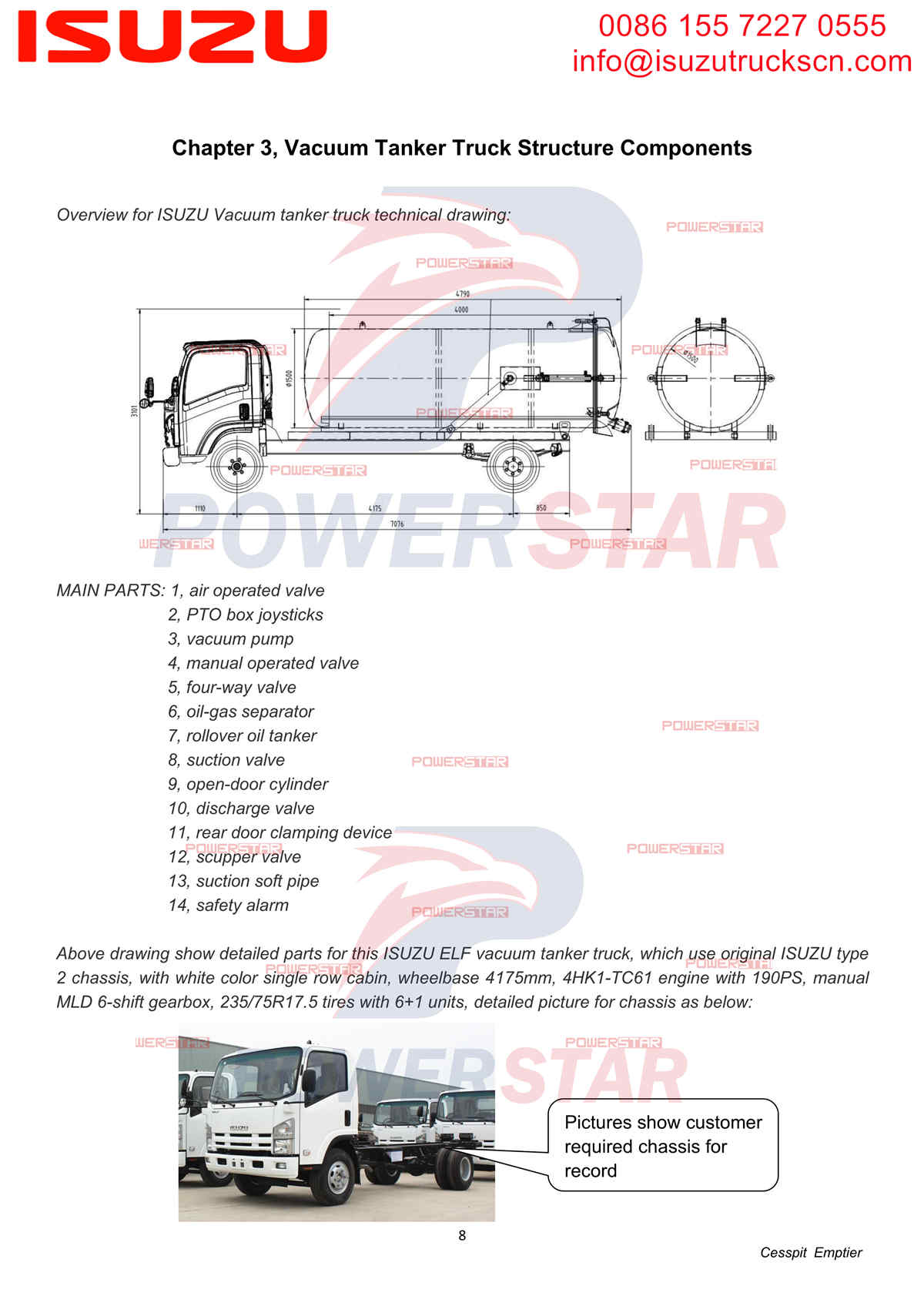

Gabon ISUZU NPR 6 wheeler 8cbm cesspool suction truck manual

As best of Isuzu vacuum sewage suction vehicle Manufacturer in China, Powerstar Trucks can customize Isuzu cesspit emptier truck based on your any project. Including Isuzu Vacuum Truck, Isuzu 100P/600P/700P septic pump truck, Isuzu FTR/FVR vacuum sewage suction truck, Isuzu GIGA sewer tanker truck and so on.

Key Point:

ISUZU Cesspit Emptier Manufacturer

ISUZU Vacuum Tanker Truck with MORO pump

ISUZU GIGA 20cbm vacuum sewage suction truck
