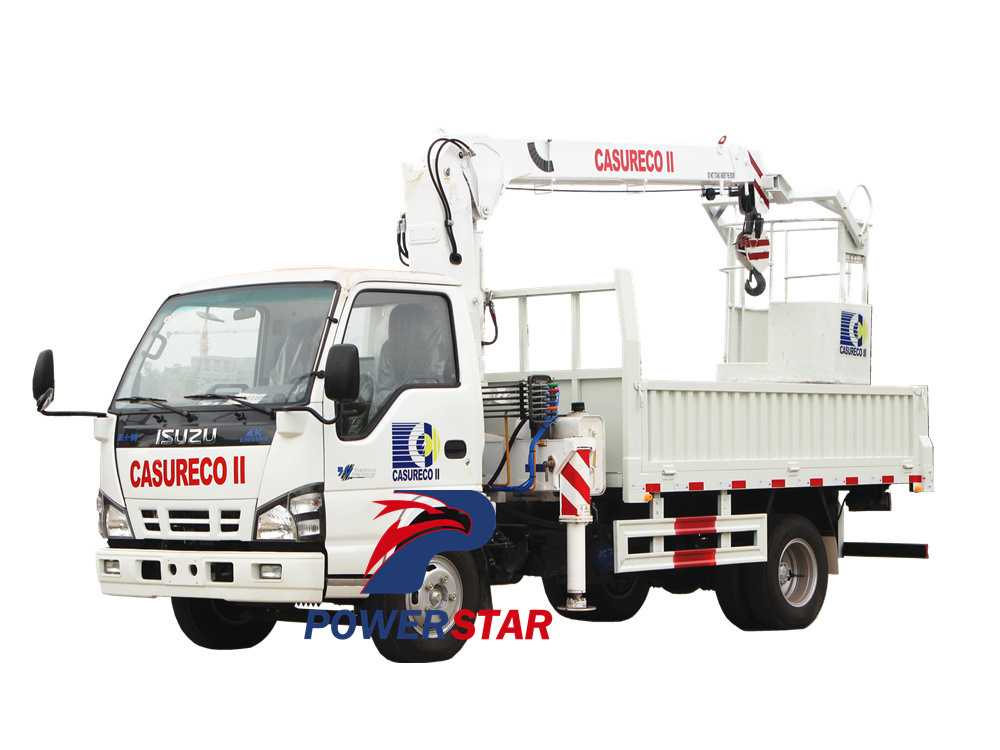

Isuzu man lifter truck with basket mounted based on type II ISUZU chassis, multifunctional with arms could reach 10.6 meters height of air operations and 3.2Tons lifting capacity, The truck combines the lifting capacity of an aerial work vehicle with the hoisting function of a truck-mounted crane, making operations more flexible and efficient.The Isuzu man lifter truck with basket is widely used in street maintenance, landscaping works, television video, communications engineering, airport, decoration, aerial advertising and other areas of need.

The design of this vehicle fully relies on the advantages of the original chassis and fully considers the convenience and reliability of the product.

1. a:The aerial work part has excellent lifting capacity, and the working height can reach 10.6 meters.

    b:The lifting arm adopts a three-section telescopic arm design, which can achieve a wider operating range.

    c:The lifting system is stable and reliable, equipped with advanced functions such as two-way balancing valve and electronic control operation to ensure smooth and safe lifting.

    d:The power system adopts hydraulic transmission, installed on the slewing saddle and the hanging basket, each with an independent operating system, and the operating system takes precedence over the bucket operation.

2. a:The vehicle crane is equipped with powerful lifting equipment, such as a telescopic hook, and the lifting mass can reach 3.2 tons.

    b:During the lifting process, safety protection measures such as automatic overload protection and automatic static hydraulic adjustment of the hanging basket are set to ensure safe operation.

3. a:The vehicle is flexible to operate, the outriggers are stable, and can be operated simultaneously or separately to adapt to various working conditions.

    b:Equipped with advanced electronic control systems, such as double-position operation of the turntable and the hanging basket, imported electro-hydraulic proportional speed regulation, etc., making the operation more convenient and efficient.

    c:The interlocking of getting off and getting on the vehicle, safe and reliable operation, avoid safety accidents caused by misoperation.

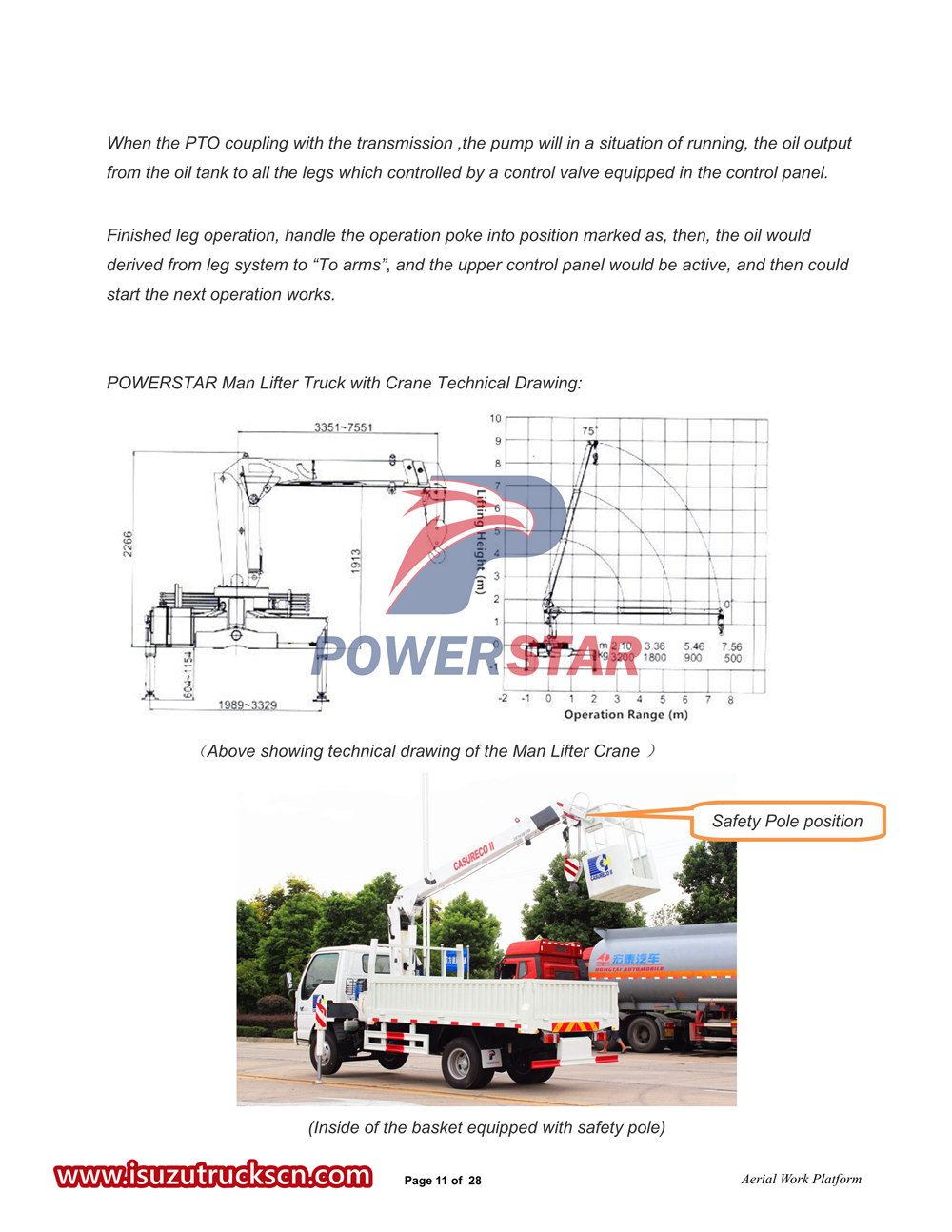

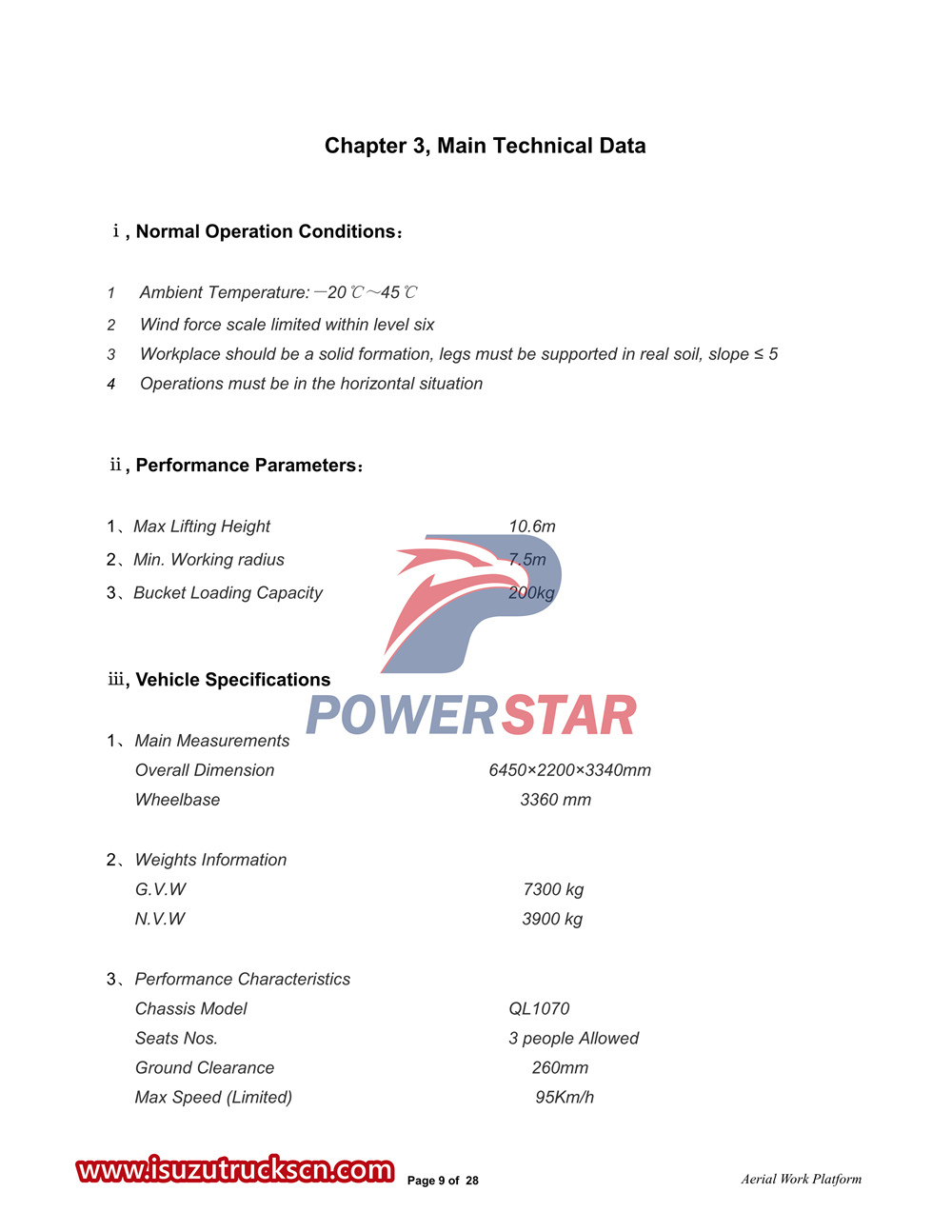

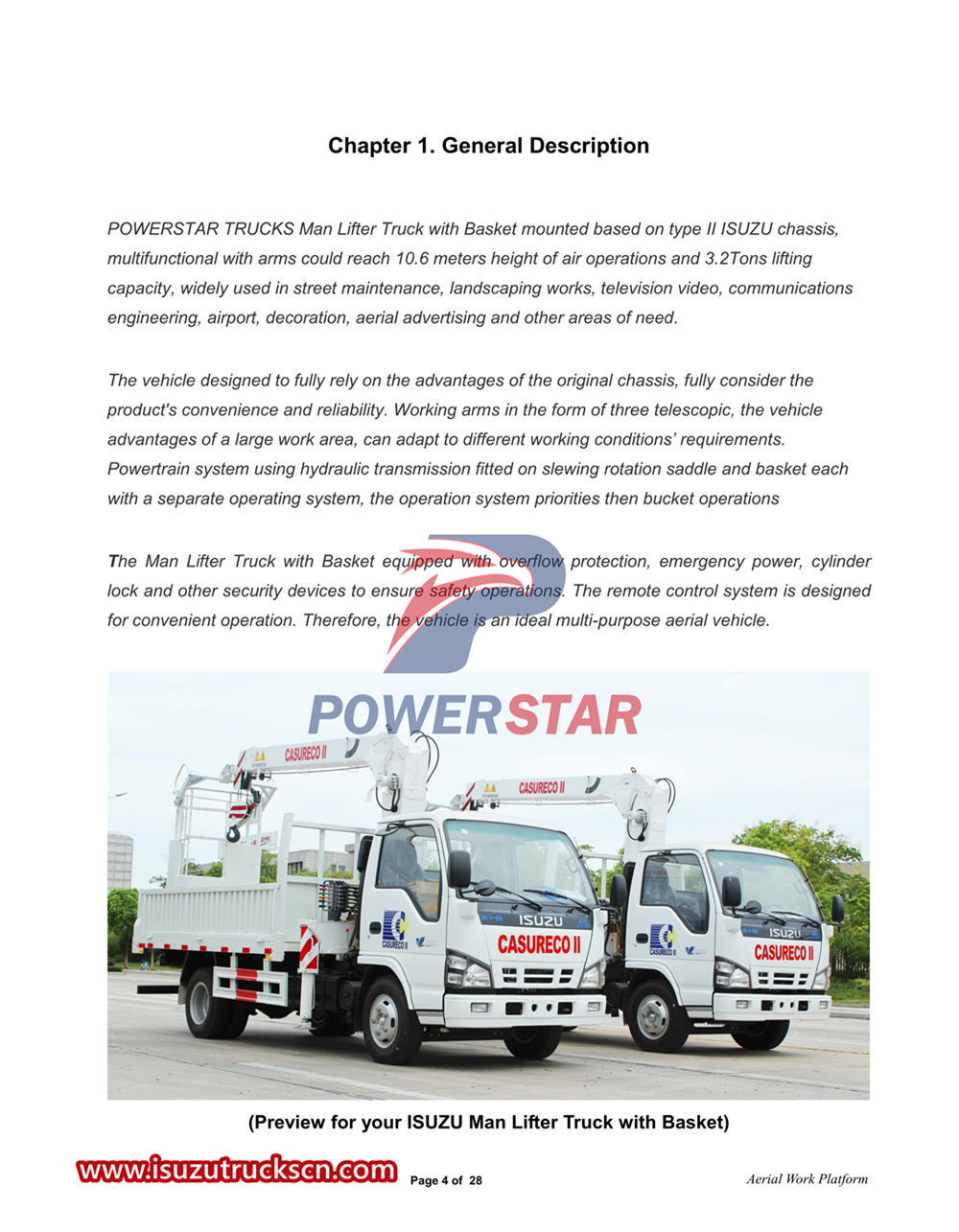

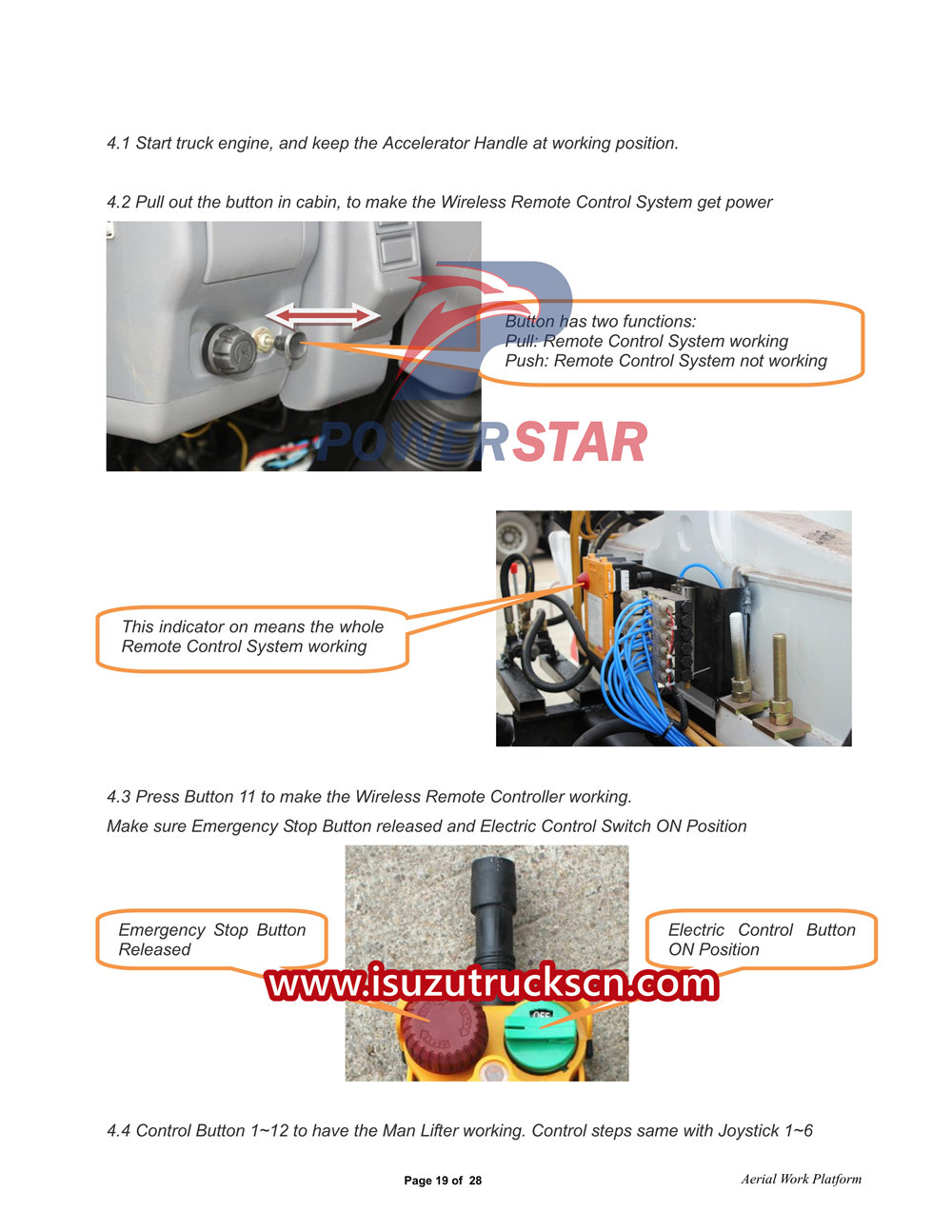

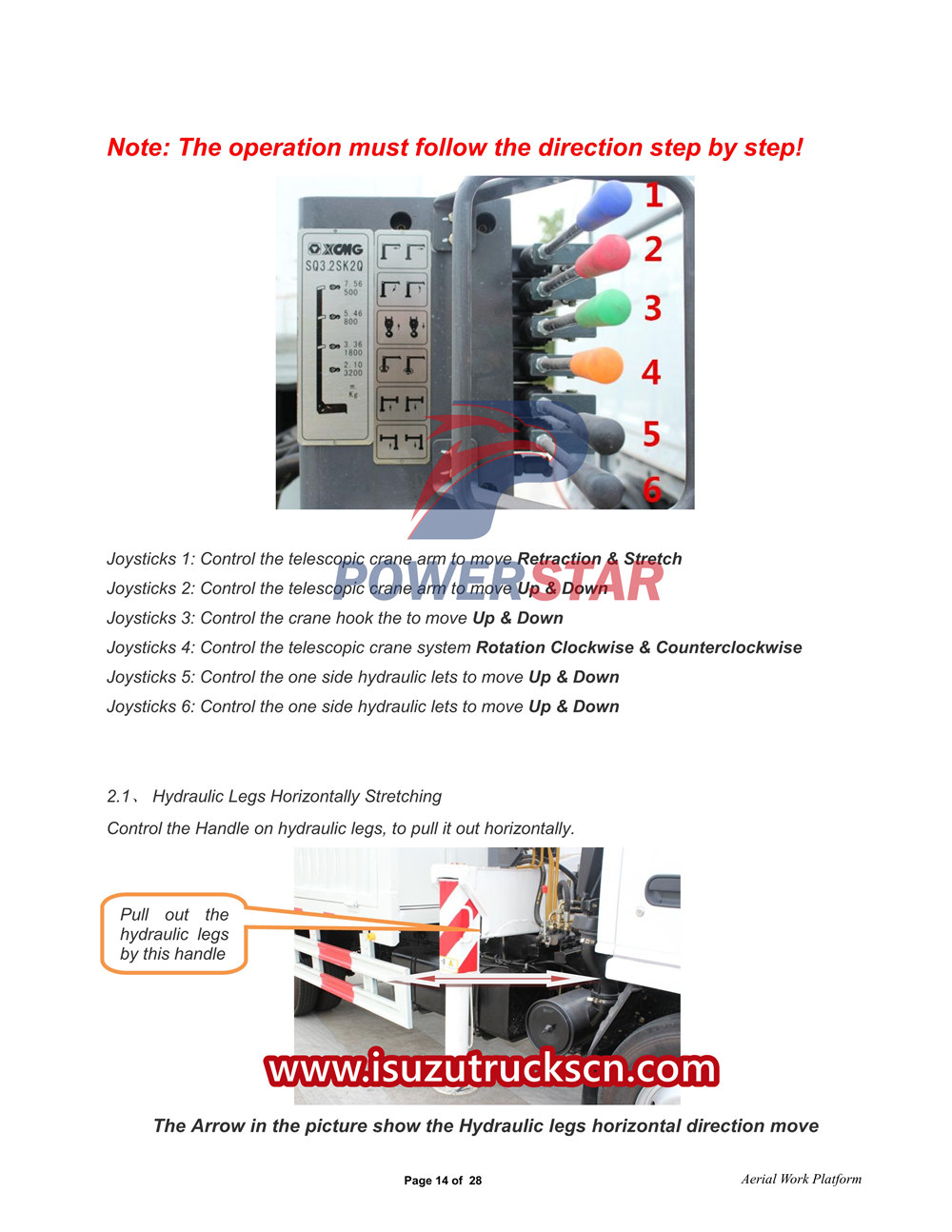

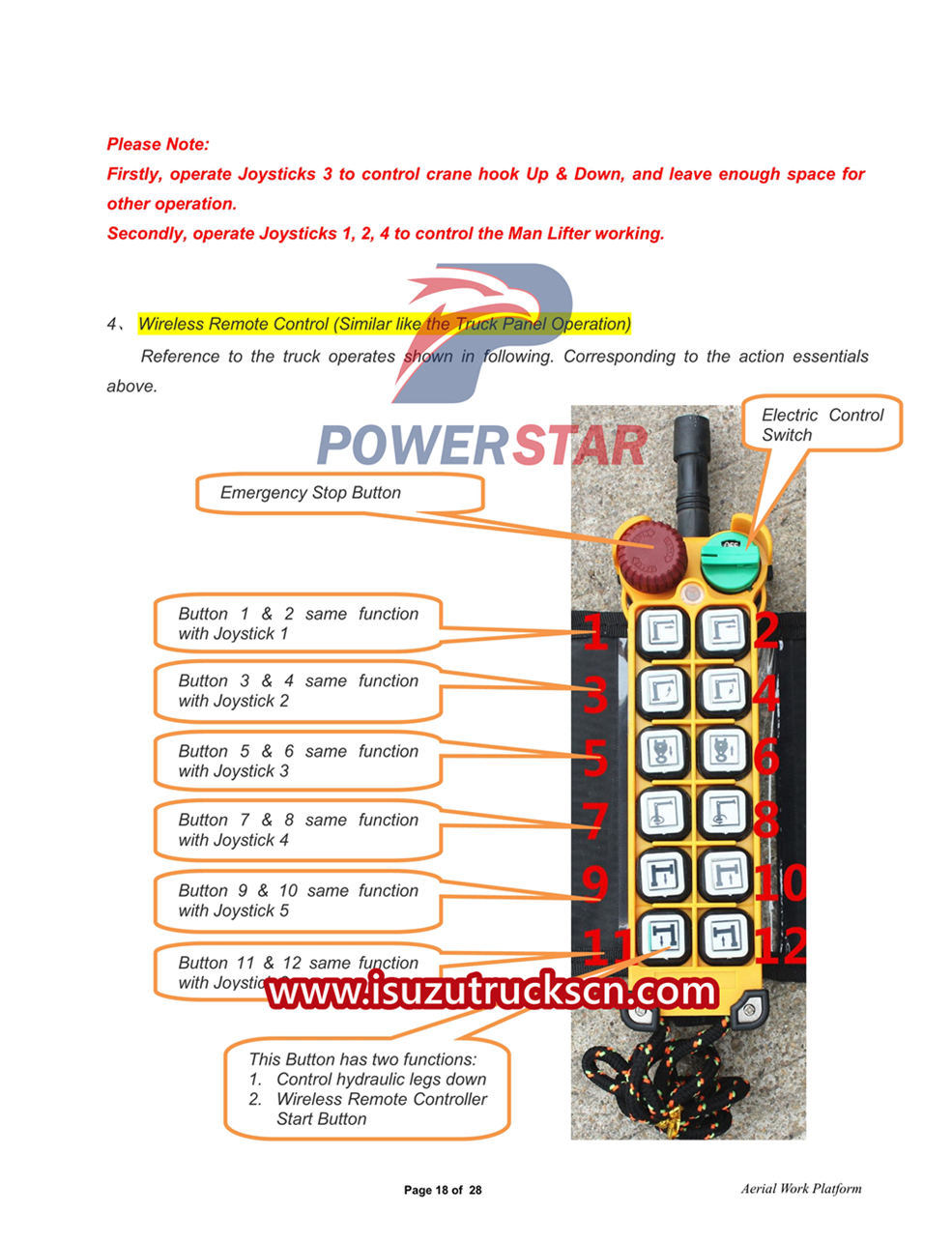

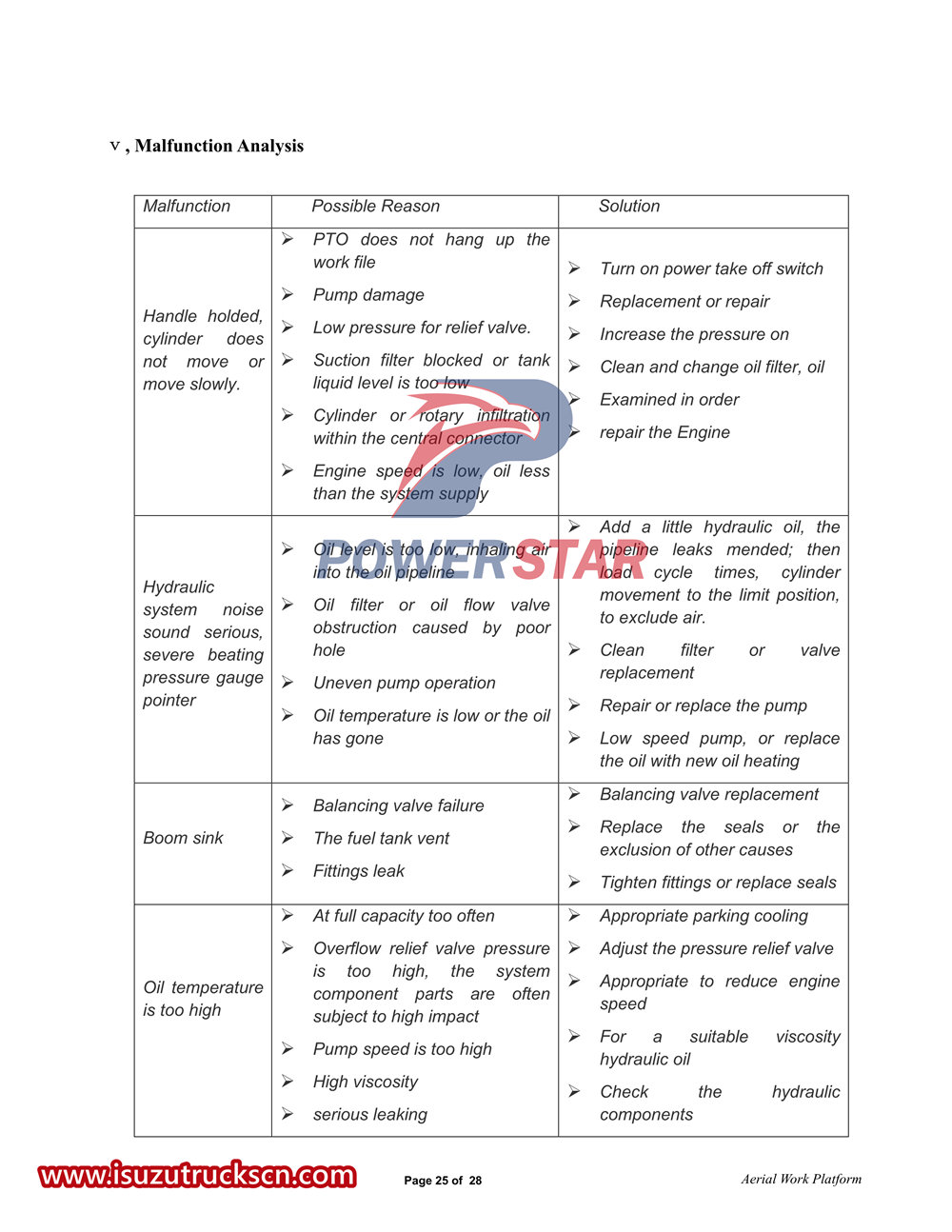

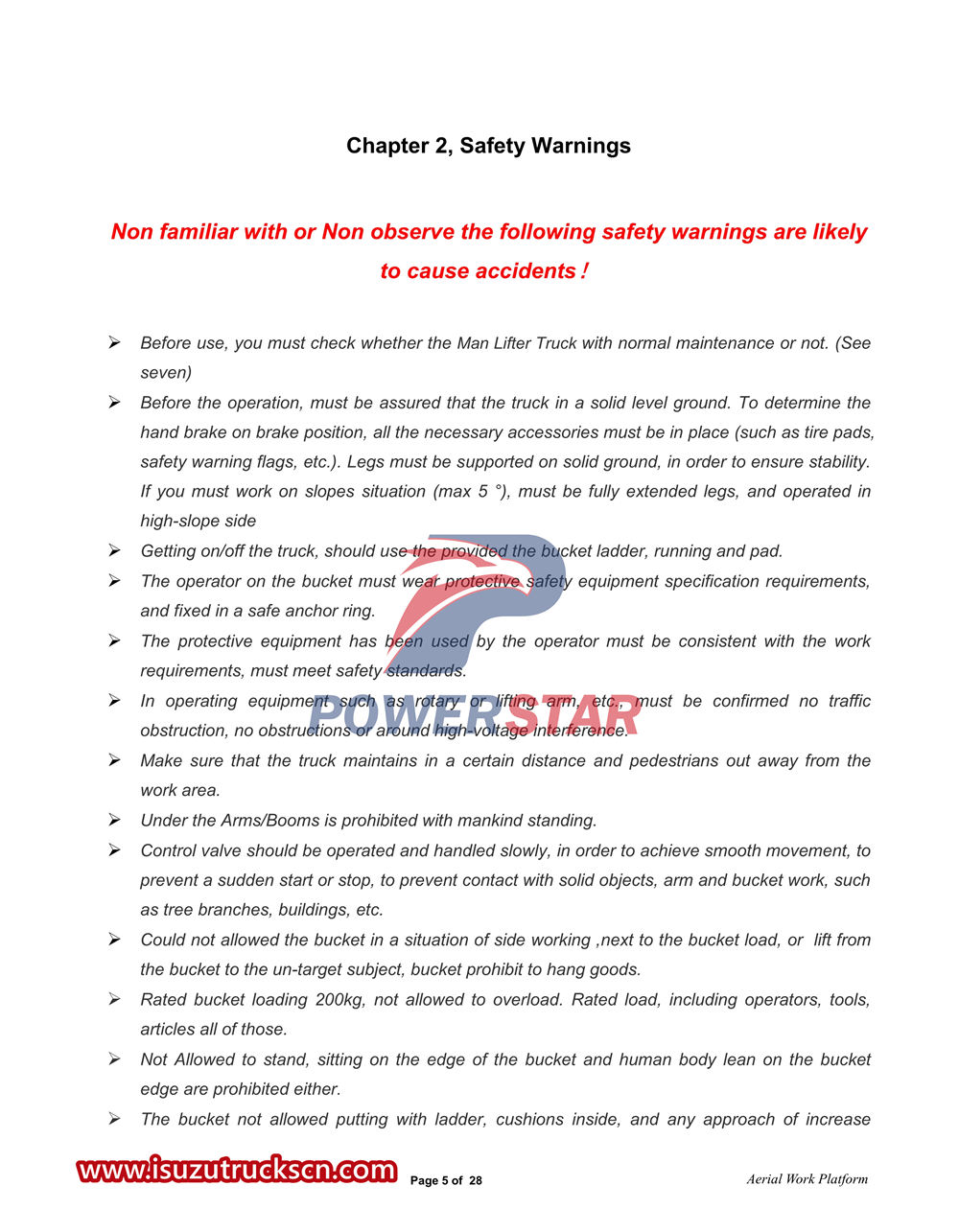

Below is the Isuzu Man Lifter Truck with Basket User's Manual, you can download the full version at the beginning of the article
