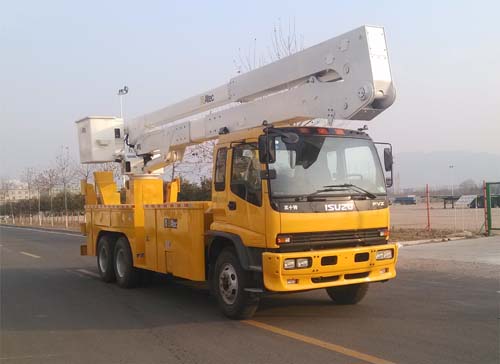

Isuzu hydraulic platform truck, Isuzu truck mounted aerial work platform 20m
Isuzu hydraulic platform truck, Isuzu truck mounted aerial work platform 20m
Isuzu brand 18m to 20m aerial work platform truck
1>Max operation height:18-20 m
2>Many kinds of aerial work platform trucks for choose
18m to 20m aerial work platform truck
1. Max operation height:18-20 meters.
2. The High-altitude Operation Truck is 360° turning(left or right),installed 4 H-shape legs.
3. The hydraulic parts of High-altitude Operation Truck are made in China.
Item |
unit |
parameter |
||
Vehicle model |
|
PT5110JGK aerial work platform truck |
||
Chassis model |
|
ISUZU FVZ |
||
Overall dimensions |
mm |
10100×2500×3800 |
||
|
Fact loading |
kg |
200 |
|
Mass in working order |
kg |
Appro×10825 |
||
Body internal dimensions |
mm |
/ |
||
Wheel base |
5000,4700 |
|||
F/R track base |
1880/1800 |
|||
Approach/departure angle |
° |
20/10 |
||
Exhaust/kw |
ml/kw |
5900/207 |
||
Max speed |
km/h |
90 |
||
Tire specification |
10.00-20 |
Engine type |
6KH1 |
|
Traction system |
4×2 |
transmission |
6-speed with over drive |
|
Number of axles |
2 |
Electric system |
24v |
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
|
Equipment |
max operation height=20m,max operation radius=5.7m,max working platform height=11.5m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm,360°turning(left or right),4 H-shape legs. clients can choose hydraulic parts made in China or Italy,to be mentioned. |
|||
Engine |
ISUZU diesel engine |
|||
Production cycle |
15-20 days |
|||
Warranty |
12 month,from the date of supply |
|||
FOB Shanghai |
USD |
|||
