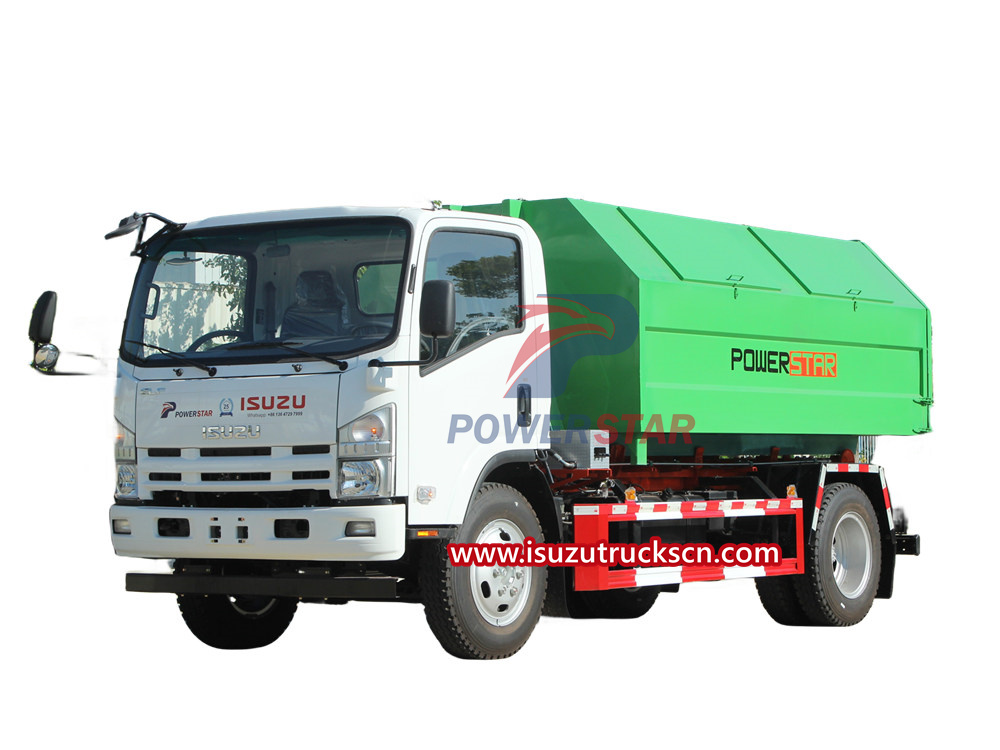

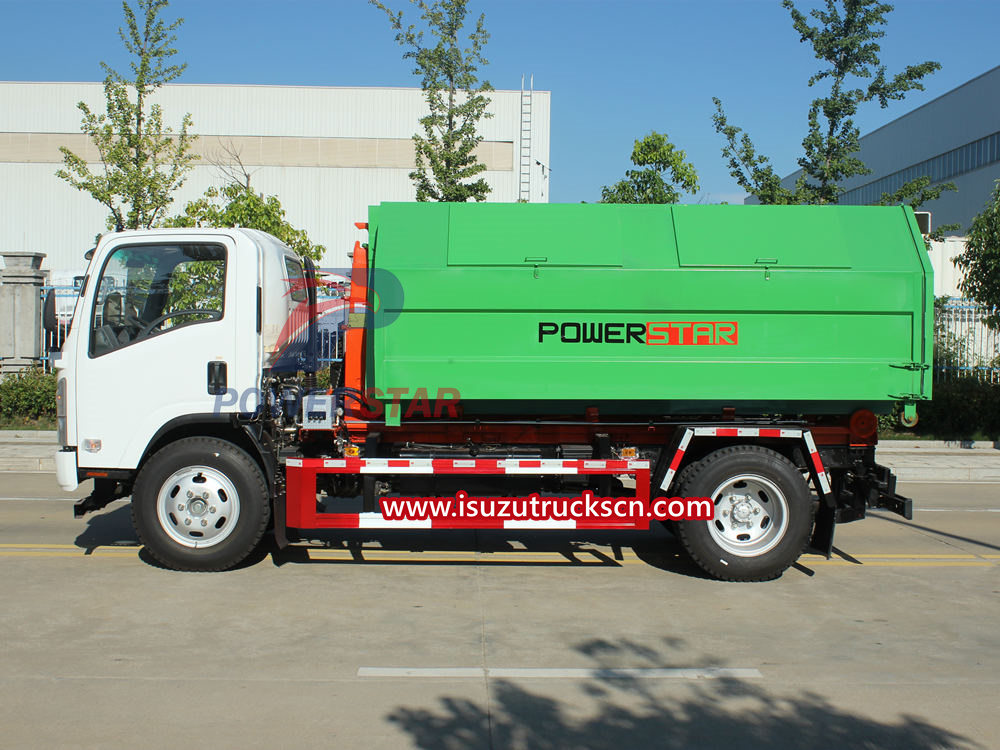

The Isuzu Hook Lift Garbage Truck also known as a detachable garbage truck, is a special vehicle used for the collection, transportation, and unloading of urban garbage bins, bags, and bulk household waste.

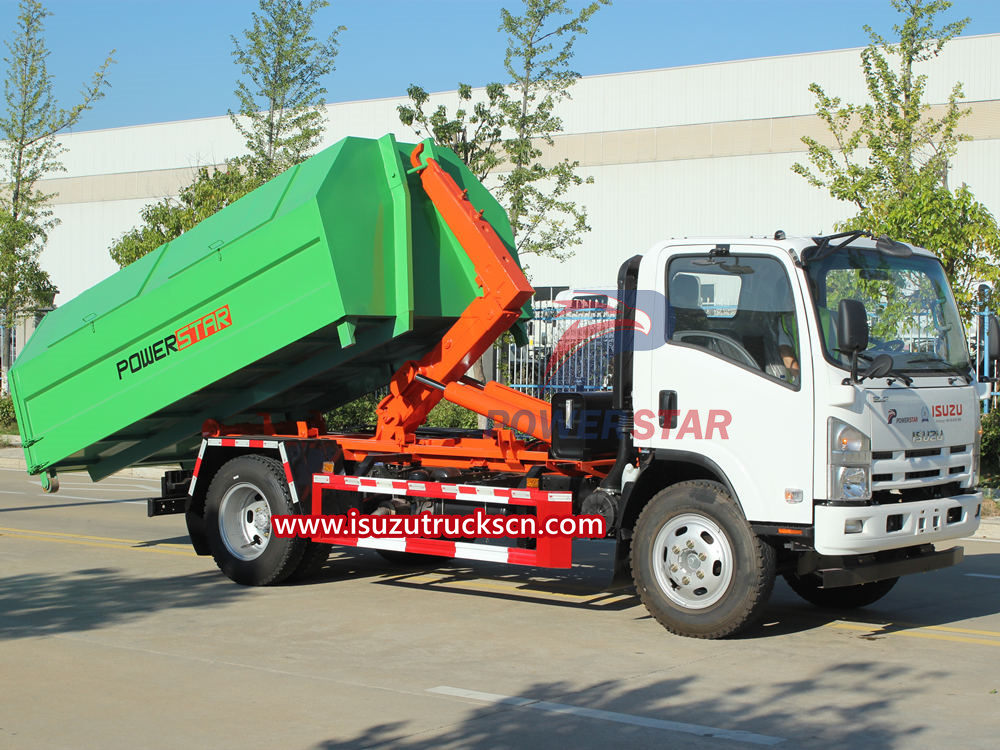

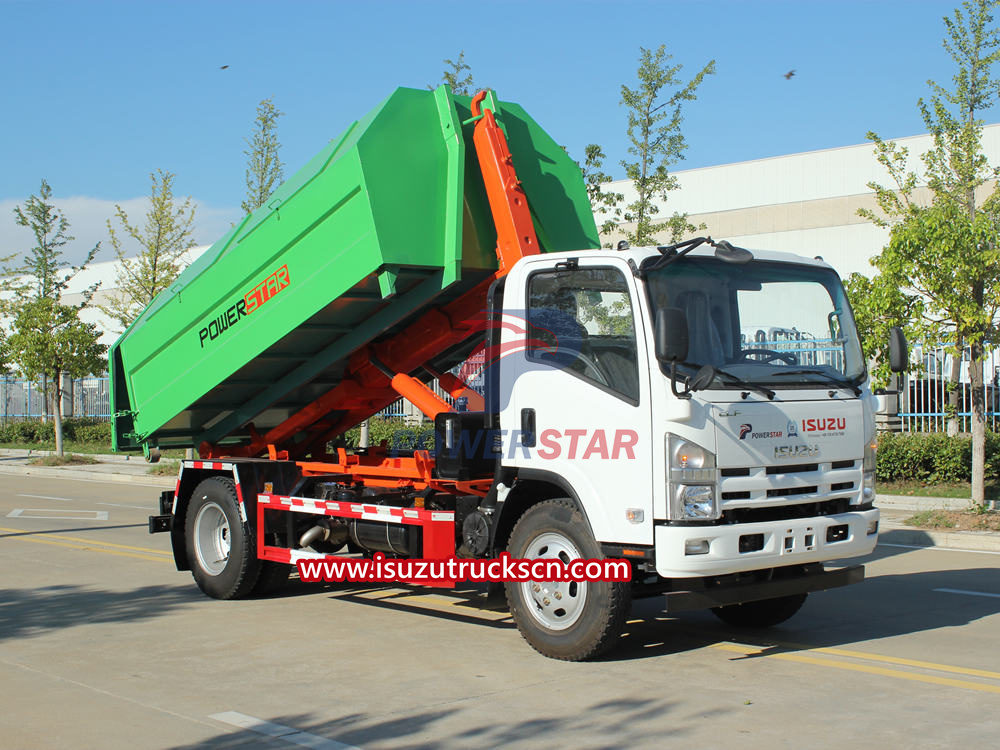

The car is composed of a car chassis, a pull arm main cylinder, a subframe, a flip frame, a supporting leg (optional), a locking frame, a locking cylinder and a multi-way reversing valve. One end of the flip frame is connected to the attached frame, and the other end is equipped with a movable pull arm, with a locking system installed in the middle; one end of the movable arm cylinder is connected to the movable arm, and the other end is connected to the attached frame; the locking mechanism passes through the lock The action of the tightening cylinder can integrate the box on the attached frame with the flip frame and the pulling arm when the box is self-unloading, forming a self-unloading angle when the main oil cylinder is extended. It can also be turned over by retracting the locking oil cylinder. The frame and the attached frame are locked as one, and the retraction or extension of the main oil cylinder is used to make the movable pulling arm drag the underground garbage bin to the attached frame or put it back to the ground from the attached frame.

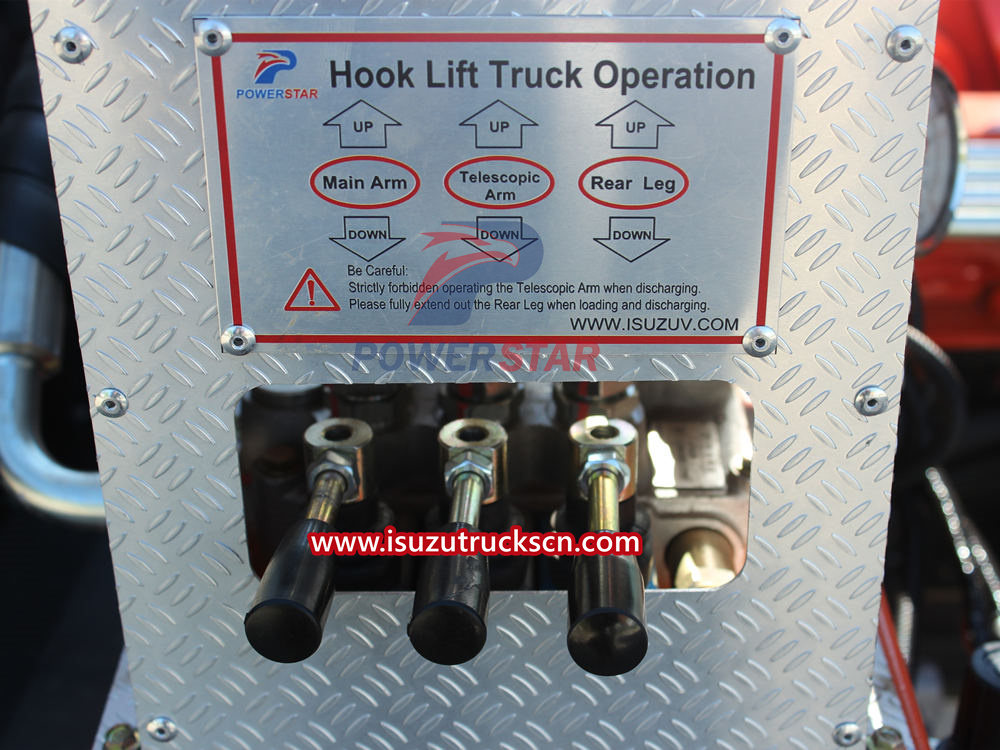

The vehicle can pull the garbage and garbage bins in the underground garbage bin to the vehicle for transportation and can also self-unload, reducing the labor intensity of workers. The garbage collection and transportation method of this garbage truck is currently widely used in the world. It can realize multiple boxes in one vehicle, greatly reducing equipment costs and space, etc.; the functions of its special devices are all powered by car engines and hydraulically operated. The mechanism is realized by manual or electronic control. The vehicle box adopts a fully sealed and welded structure of high-quality carbon steel plates, which has the advantages of high strength, light weight, and no secondary pollution.

The Isuzu Hook Arm Garbage Truck is a versatile and efficient waste management solution designed to streamline the collection and disposal of solid waste. This innovative truck is equipped with a hydraulic hook arm system that allows for quick and easy loading, unloading, and transportation of garbage containers.
The Isuzu Hook Arm Garbage Truck features a durable and robust chassis that can withstand heavy loads and withstand the rigors of daily use. The truck is powered by a reliable and fuel-efficient diesel engine that provides optimal performance and reduced emissions.

The hook arm system of the Isuzu Garbage Truck is specifically designed to accommodate various sizes and types of garbage containers. The hook arm can easily lift, empty, and place the containers onto the truck's compacting unit, allowing for efficient and organized waste collection.

Additionally, the Isuzu Hook Arm Garbage Truck comes equipped with advanced safety features to ensure the well-being of the operator and pedestrians. These include rearview cameras, reverse warning systems, and emergency stop buttons.
Overall, the Isuzu Hook Arm Garbage Truck is a reliable and efficient solution for waste management needs. With its advanced features, robust construction, and user-friendly design, it greatly improves the efficiency and effectiveness of waste collection and disposal processes.
