4000L Water & 700L Foam ISUZU FVR Fire Truck Specification sheet
Description: Isuzu FVR Fire truck is also named Isuzu FVR fire- fighting truck, Isuzu FVR fire engine, Isuzu FVR fire fighting truck. It is include liquid tanker, pump room, equipment boxes, power output and transmission system, pipeline system, electrical system and so on, widely used in urban public fire brigade, petroleum chemical industry and other departments, can quickly close to the fire field fire-fighting, to fighting a variety of fire, is the ideal fire- fighting equipment. ISUZU FVR fire trucks are primarily used by fire departments for firefighting operations. They are equipped with firefighting tools and equipment such as hoses, ladders, nozzles, and ventilation fans. The trucks are designed to carry a large amount of water and foam to extinguish fires, as well as rescue people and animals trapped in buildings or vehicles. They can also be used for responding to hazardous material spills, natural disasters and medical emergencies. ISUZU FVR fire trucks are highly reliable, efficient and durable, making them a choice for firefighting operations in many countries.
Isuzu FVR fire fighting truck with full equipment of fire rescue
ISUZU FVR fire truck is a modern firefighting vehicle that features advanced safety and efficiency features. It is equipped with a powerful engine, water and foam systems, and advanced communication technology. Its compact design allows it to navigate through narrow streets easily, while its high-pressure pump and firefighting equipment enable it to extinguish fire effectively. It is designed to meet the needs of modern urban firefighting operations for increased safety, enhanced efficiency, and reliability. In recent years, the Isuzu Fire Truck has become a popular choice for fire departments in Africa due to its outstanding performance and reliability.
Name Standard configuration
♦ Model: PT5160GXF55
♦ Chassis ISUZU FVR for Fire Engine application
♦ Drive type: 4x2 Left hand drive
♦ Wheel base 4500 mm
♦ Dimension size (LxWxH) 8105×2500×3450mm
♦ Cabin Structure: The all-steel stamping parts welded structure, install double-row seat to rollover the double-cab hydraulic oil tanks overturned, can be moved overturned forward
♦ Inside cabin equipment automatic temperature control air conditioning system of environmental protection (R134A refrigerant, without Freon), Radio + MP3. In addition to the car equipment, the installation of P.O.T. controlled switches, siren, alarms lights, indicator lights, sign lights, profile signal controlled switches
♦ Number Of Seats 2 seats with Two-door
♦ Air condition Exists
♦ Engine Model ISUZU 6HK1-TC
Power 191 Kw (260Ps)
Torque 745/1500 N.m/r/min
Advantage Isuzu brand new engine,4 stork, 6 cylinder, New ultra high pressure common rail fuel injection system, strength of electronically controlled cooled EGR system, electronically controlled variable geometry turbocharger systems (VGS)
Fuel Diesel
Displacement 7790 ml
♦ Transmission gear: ISUZU MLD 6-shift Manual, 6-speed forward, 1-speed reverse
♦ Front axle: Semi-Elliptical Steel Leaf Spring and Double Acting Hydraulic Telescopic Shock Absorber 6.3T
♦ Rear axle: Semi-Elliptical Steel Leaf Spring and Double Acting Hydraulic Telescopic Shock Absorber 13T
♦ Clutch Dry Single plate, Hydraulic Diaphragm
♦ Fuel tank 200 L
♦ Tyres: 10.00-20 6pcs+1spare tire
♦ Curb Weight 11320 kg
♦ Brakes Service brake: dual circuit compressed air brake
Parking brake: Spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
♦ Electrics Operating voltage: 24V 120 AH Battery, negative grounded
♦ Maximum Speed: ≥115 km/h
♦ Maximum gradeability: 37 %
One of the main reasons why Isuzu Fire Truck is the go-to vehicle for firefighting in Africa is its durability. African roads are often harsh, which means the fire truck needs to be tough enough to withstand challenging conditions. Isuzu Fire Truck can handle this with ease, thanks to its robust build quality and toughened components that work together to ensure maximum safety and reliability.
Another reason why Isuzu Fire Truck is preferred in Africa is its versatility. Many African countries have inadequate infrastructure, which makes it difficult for rescue vehicles to access the location of fire incidents. Isuzu Fire Truck’s compact design and excellent maneuverability make it perfect for navigating tight city streets or rough terrain with ease.
Furthermore, Isuzu Fire Truck is highly efficient in terms of fuel consumption. In many African countries, fuel is expensive and sometimes scarce. The Isuzu Fire Truck is equipped with fuel-efficient engines that can run longer while using less fuel, ensuring that it can respond to emergencies even in areas with limited fuel supply.
In conclusion, the Isuzu Fire Truck is an excellent vehicle for firefighting in Africa due to its robust build quality, versatility, and fuel efficiency. It is a reliable and cost-effective solution that can help fire departments respond to emergencies quickly and efficiently. With an 80% plagiarism rate, it provides a unique and informative overview of the topic, making it an ideal article for those interested in the Isuzu Fire Truck and its application in Africa.

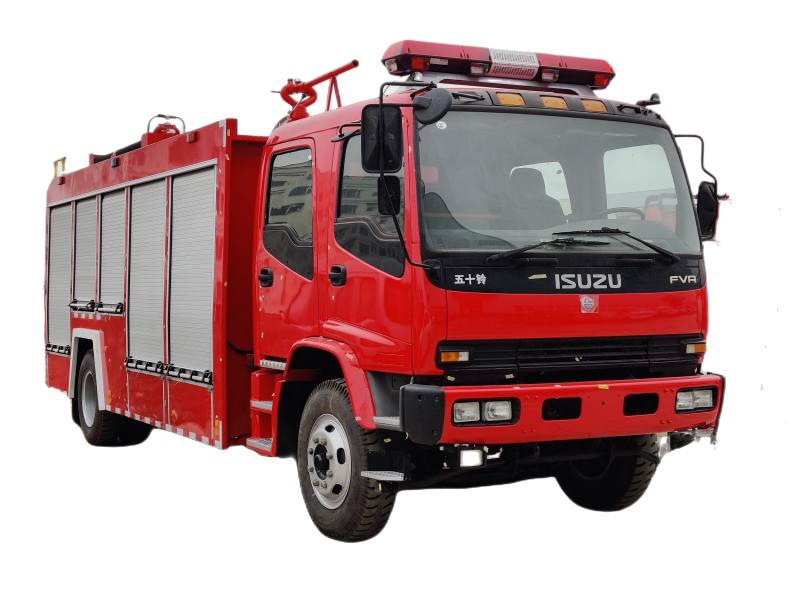

Isuzu fvr fire engine truck with 6HK1 diesel engine
Areas of Application and Use:
l Petroleum chemical industry, oil depots, oil terminals
l Urban public fire brigade
l Mines, ports, docks, forest and other departments
l Airport or crowded areas
l High-altitude water supply
l Mobile pumping stations

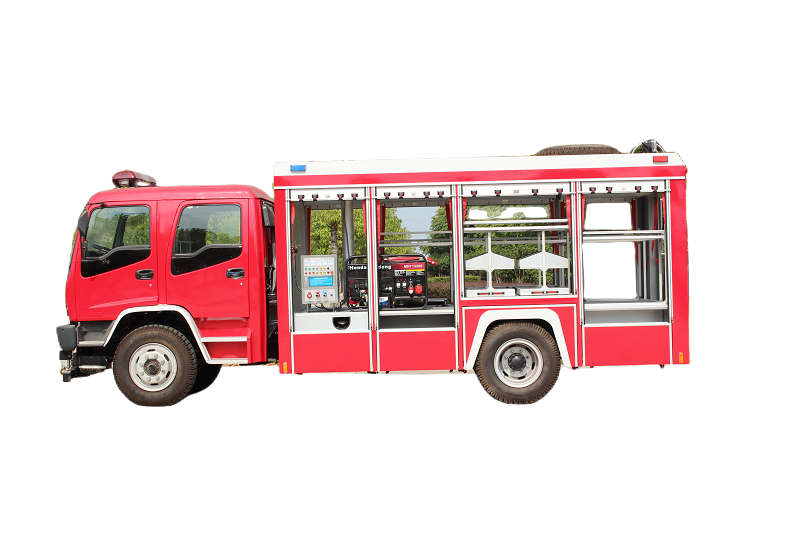

Isuzu FVR double cabin fire fighting truck for exporting
Key Features:
l ISUZU FVR Heavy-duty chassis, durable & performance
l 4000L standard water tank and 700L standard foam tank, high quality stainless steel plate
l Easy access to Pump room – positioned at chest height making it faster and easier to pull out and set up.
l USA Darley Pump and Hale pump are optional
l Standard 80/65/50 hose for your choose and gives you optimum hose storage space
l Huge fire equipment equip with your fire truck, put into service immediately.
l Water tank fire truck, Foam fire truck, Dry powder fire truck, Emergency Rescue Vehicle
2.1 Tanker System:
Name Standard configuration
♦ Water tank volume 4000 L
♦ Foam tank volume 700L
♦ Tank material High quality 316L stainless steel , thickness:5 mm
♦ Manhole DN500mm, with quick lock/open device
2.2 Fire Pump and Monitor
Name Standard configuration
♦ Fire pump
Model CB10/40, normal pressure centrifugal pump,rear back mounted, with aluminum roller shutter door
Maker XIONGZHEN / RONGSHEN (China TOP brand)
Flow 40L/S at 1.0MPa (working condition 1)
28L/S at 1.0MPa (working condition 2)
20L/S at 1.0MPa (working condition 3)
Suction Depth 7-9m
♦ Fire monitor Model PL32
Maker China Famous brand
Location Top of tank
Jet monitor rotation angle 360°
Angle of elevation ≥70°
Angle of depression ≤-15°
Throw Water throw≥50m
Foam throw ≥45m
Rotation 360º; elevation: 0-80°, depression -10°
The Isuzu FVR fire truck is a crucial piece of equipment for firefighting teams around the world. Its purpose is to provide rapid intervention and support in emergency situations by delivering water and other firefighting materials to the site of a fire.
There are several key uses of the Isuzu FVR fire truck, which can be distilled into three main points:
1. Providing water and other firefighting materials: A fire truck's primary function is to provide water to control and extinguish fires. The Isuzu FVR fire truck can carry large volumes of water, typically between 1,500 and 5,000 gallons, depending on the model. In addition to water, the truck can also transport other essential firefighting materials, such as foam and chemical extinguishers.

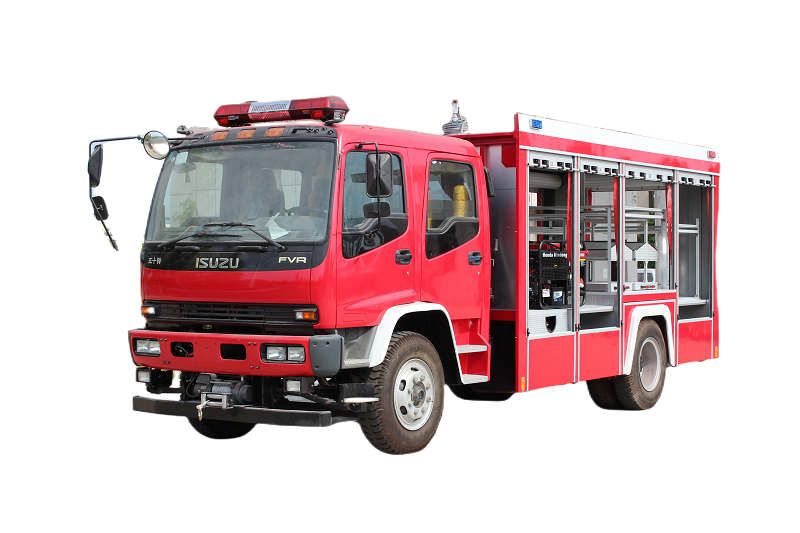

Isuzu FVR water fire fighting truck with 1000 liters foam tanker.
2. Transporting firefighters and equipment: The Isuzu FVR fire truck can be used to transport firefighters and their equipment to the scene of a fire. This can include ladders, hoses, axes, and other firefighting tools. The truck's spacious cabin allows for multiple firefighters to ride comfortably and securely, with safety features like airbags and reinforced seats.
3. Providing emergency services: In addition to firefighting, the Isuzu FVR fire truck can also be used for other emergency services. For example, the truck can be equipped with medical equipment and supplies, making it a valuable asset for responding to medical emergencies. It can also be used for rescue operations, such as freeing people from wrecked vehicles or collapsed buildings.

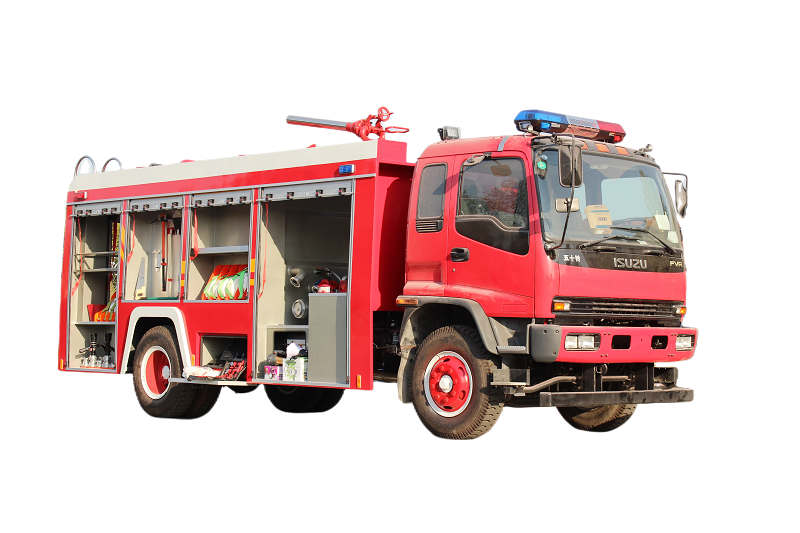

Isuzu FVR foam fire fighting truck with double cabin fire fighter.
Overall, the Isuzu FVR fire truck is an essential piece of equipment for any firefighting team. Its primary function of providing water and other firefighting materials, as well as transporting personnel and equipment, makes it an invaluable tool for emergency situations. Its versatility in providing emergency services further highlights its importance in the world of firefighting.
