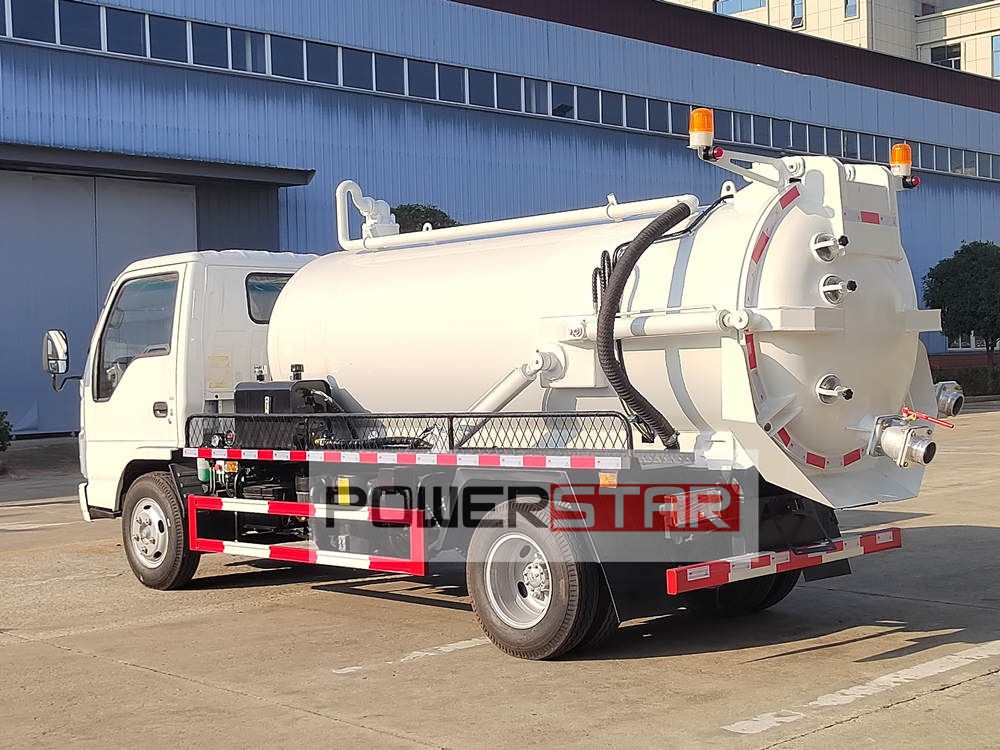

Isuzu ELF NKR vacuum sewage suction truck is a special cleaning equipment specially used for cleaning sewage, sludge and solid waste. It is equipped with a powerful vacuum pump, which extracts the air inside the tank to form a negative pressure environment, sucks sewage, sludge, etc. into the tank, and transports them to the designated location for treatment, avoiding secondary pollution of these pollutants to the environment.
Isuzu vacuum sewage suction truck (also called vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
|
Isuzu ELF NKR vacuum sewage suction truck |
|
|
Vehicle |
Isuzu vacuum sewage suction truck |
|
Overall dimension (mm) |
7850×2470×3200 |
|
Sewage tank (m3) |
4 |
|
Gross vehicle weight (kg) |
7300 |
|
Wheel base (mm) |
3360 |
|
Chassis Parameter |
|
|
Cabin |
ISUZU 3D cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt, Mechanical suspension |
|
Drive form |
4×2 Left-hand drive |
|
Engine |
Brand: ISUZU |
|
Model: 4KH1,120hp |
|
|
Displacement: 2999ml |
|
|
Emission standard: Euro 6 |
|
|
Gearbox |
Isuzu MSB, 5 forward,1 reverse, manual operated |
|
Tire model |
700R16 |
|
No.of tires |
6pcs, with 1pc spare tire |
|
Superstructure Parameter |
|
|
Characteristic |
1. Sewage tank volume 4000 liter. |
|
2. Sewage tank material is carbon steel,thickness 5mm. |
|
|
3. Sewage suction pipe 1pcs, length 6m. |
|
|

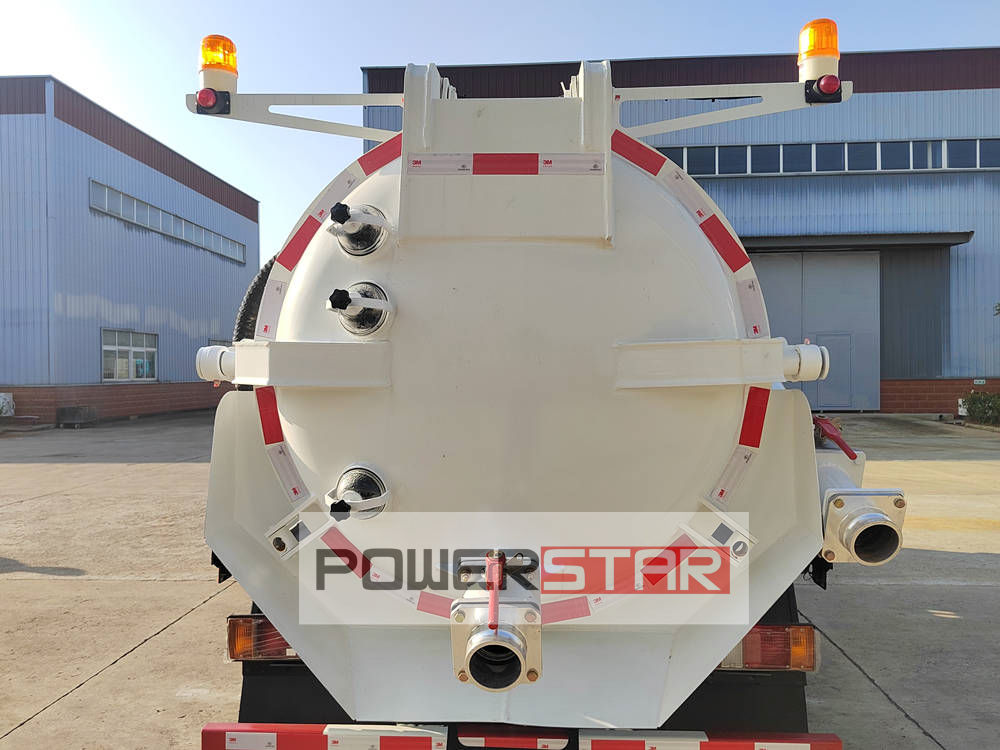

4. Hydraulic lifting sewage tank,rear cover can open. |
|
|

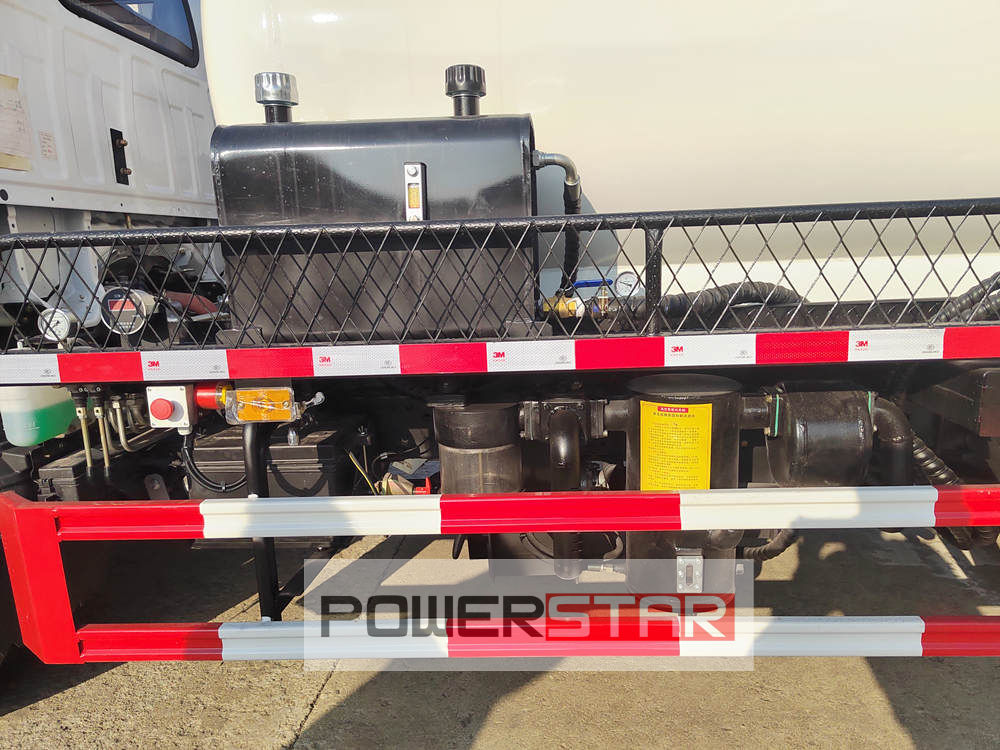

5. Equipped with PTO. |
|
|
6. Equipped with vacuum pump. |
|
|
7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit. |
|
1.Isuzu ELF sewer jetting tanker truck has strong suction and sewage discharge capabilities.
The vehicle is equipped with an efficient vacuum pump and vacuum cleaner, which can quickly absorb various dirt and debris, including dust, waste, road drain sludge, etc. At the same time, the vehicle also has a flexible sewage discharge function, and can choose different unloading methods, such as rear unloading or self-unloading, which is convenient for users to choose the most appropriate operation method according to actual conditions, and improve work efficiency and cleaning effect.
2.Isuzu vacuum sewage suction truck adopts advanced control system and operation platform.
The vehicle is equipped with an integrated operation control system, and users can easily complete various function settings and operation instructions, including starting the vacuum pump, adjusting the suction force, and controlling the unloading operation. In addition, the vehicle can also be customized according to user needs. Additional functional modules, such as cleaning function, high-pressure washing system, etc., enhance the versatility and scope of application of the vehicle.
3.Isuzu vacuum suction truck has stable performance and reliable quality assurance.
This model adopts the original chassis of the Isuzu brand, with excellent load-bearing capacity and stability, ensuring the safety and reliability of the vehicle in a high-intensity working environment. At the same time, the vehicle adopts high-quality sewage suction equipment and piping system, which has been carefully designed and inspected through production process, ensuring the characteristics of strong suction, clean sewage discharge and long service life. Users can choose it with confidence.
Features of Isuzu vacuum suction truck:

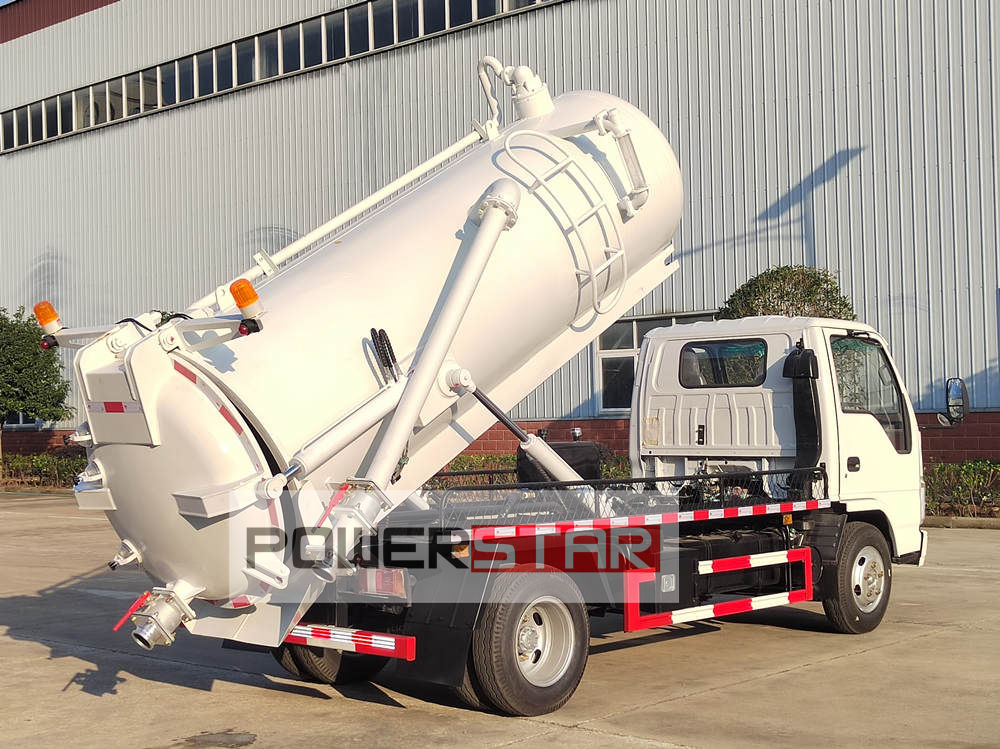

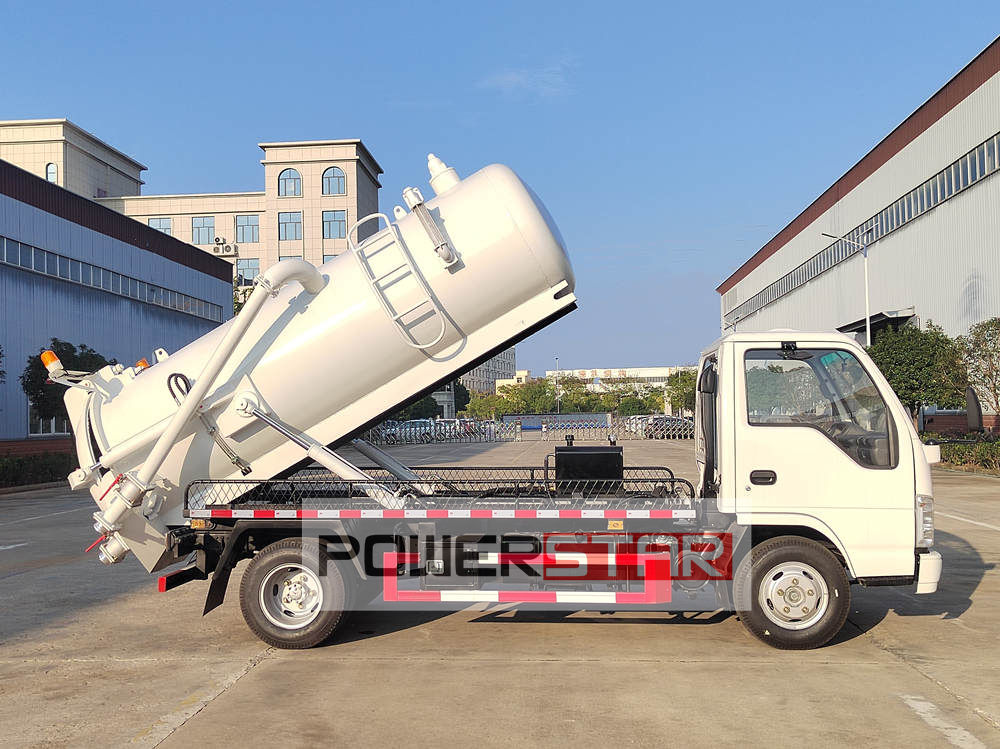

a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life.
