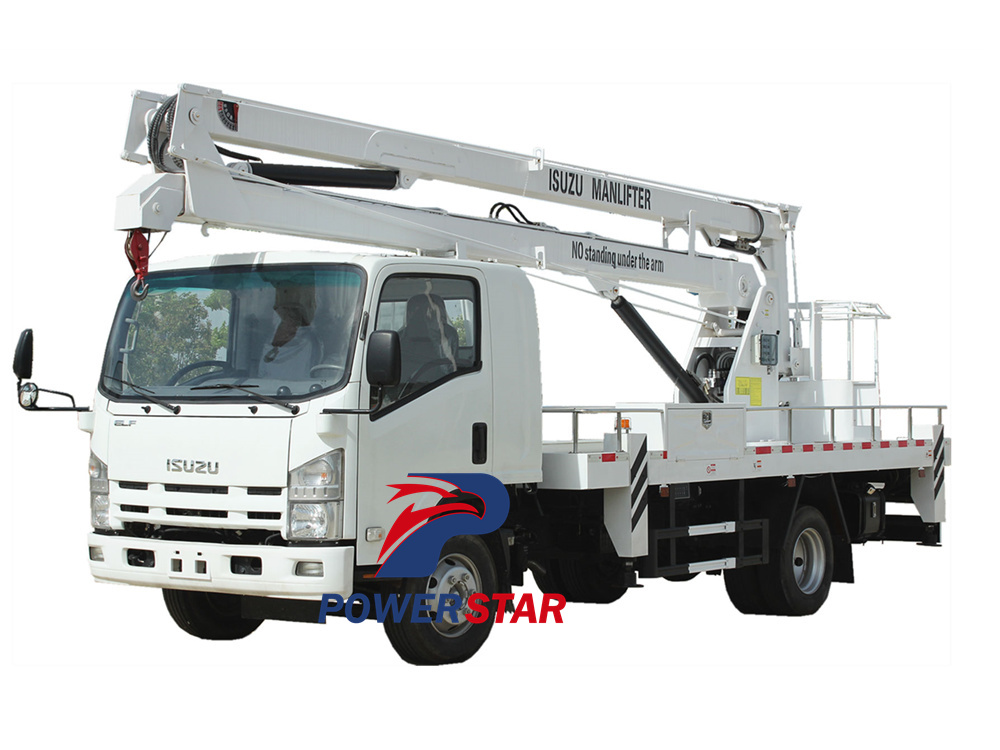

ISUZU 700P Aerial Platform truck, also called Isuzu 700P bucket truck, is a professional equipment that integrates leading technology and rich experience. It adopts Isuzu's municipal special chassis, and achieves efficient and stable working performance through technologies such as electromechanical and hydraulic integration, reliability design and computer-aided design.The Isuzu 700P aerial platform truck is suitable for various aerial work scenarios. Whether it is urban building maintenance, power facility installation or other aerial work tasks, it can provide stable and efficient work support, bringing more convenient and safe working experience to operators.

First of all, the Isuzu 700P aerial vehicle is famous for its powerful power performance. It is equipped with a world-leading 4H high-pressure common rail diesel engine with excellent power and torque output, which can meet the needs of various aerial operations. At the same time, the engine adopts high-pressure common rail and high-precision fuel electronic injection technology to achieve good oil and gas mixing, full combustion, and high output, which not only improves combustion efficiency but also reduces fuel consumption, thus achieving efficient and environmentally friendly operation results.

Secondly, the design of the aerial lift bucket truck fully considers the safety and comfort of the operators. It is equipped with a number of active and passive safety configurations, such as ABS, EBD, etc., which effectively improves driving safety. At the same time, the interior space is spacious, the seats are comfortable, and the ergonomic design provides a good driving experience for the operators. In addition, the vehicle is also equipped with comfortable facilities such as audio and air conditioning, which further enhances the comfort of the operators.

In terms of operating capacity, the Isuzu 700P aerial ladder truck has excellent lifting performance and stability. It adopts a reasonable counterweight module design, which effectively balances the working torque and ensures the stability of the vehicle during driving and operation. At the same time, the operating specifications of the aerial work part, the adaptability of the working height and wind force, and the safety distance and protection have all been strictly designed and tested to ensure the safety and efficiency of the operation.

In addition, the Isuzu 700P manlift aerial work truck also has excellent hydraulic system maintenance and fault emergency handling capabilities. The hydraulic system is easy to maintain, and problems can be discovered and solved in a timely manner, extending the service life of the equipment. At the same time, the vehicle is equipped with a complete fault emergency handling plan, which can quickly take measures in the event of an accident to ensure the safety of the operators.

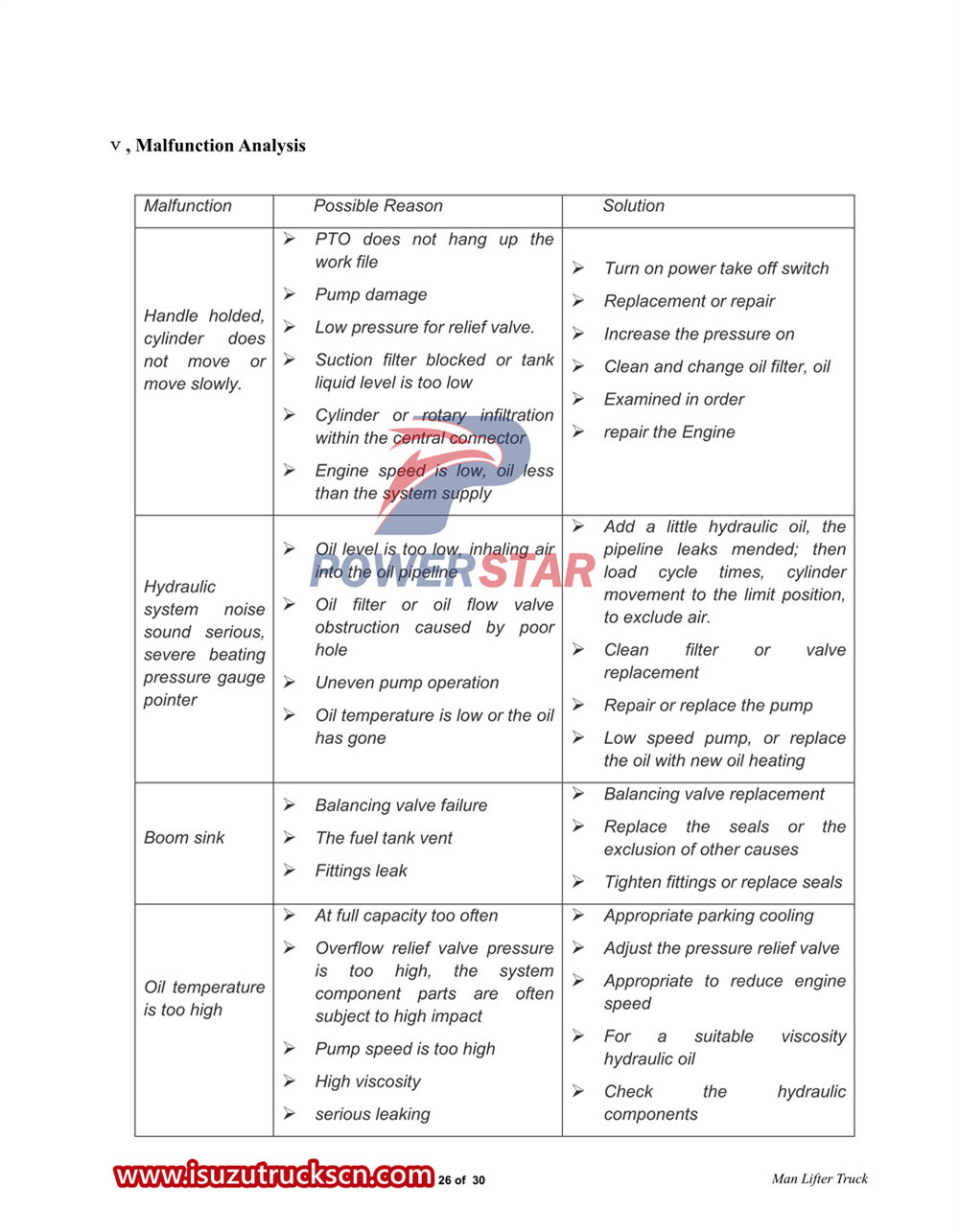

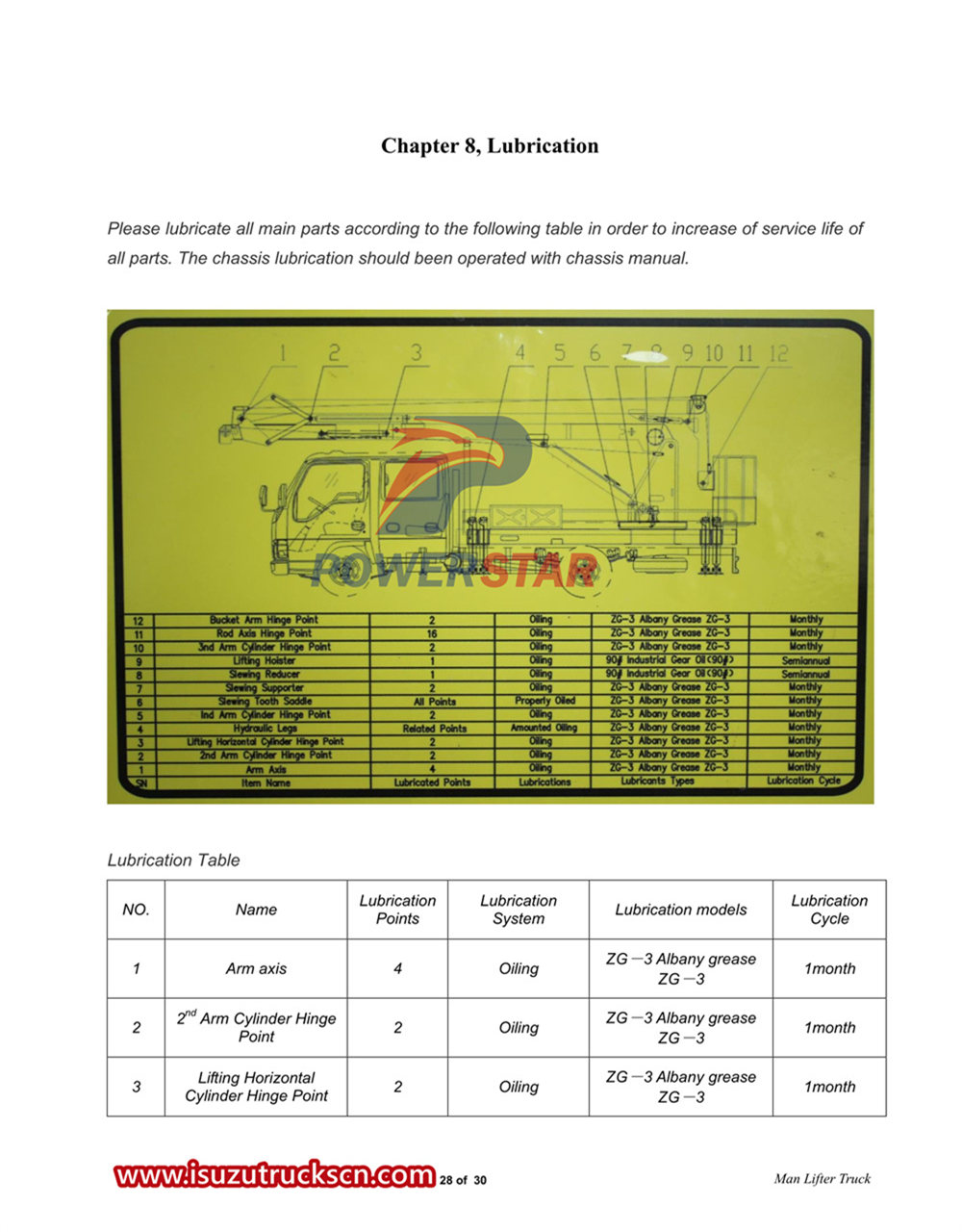

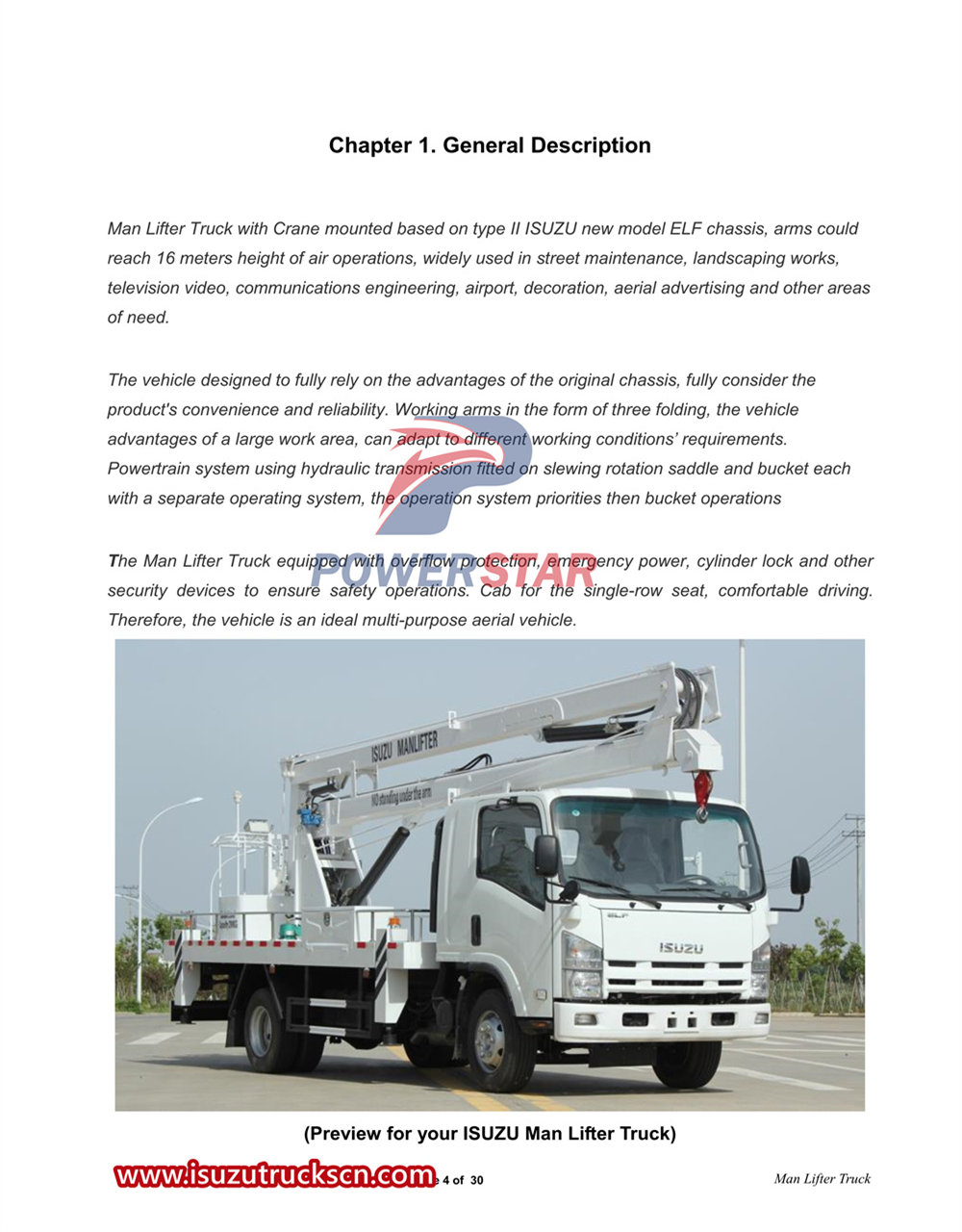

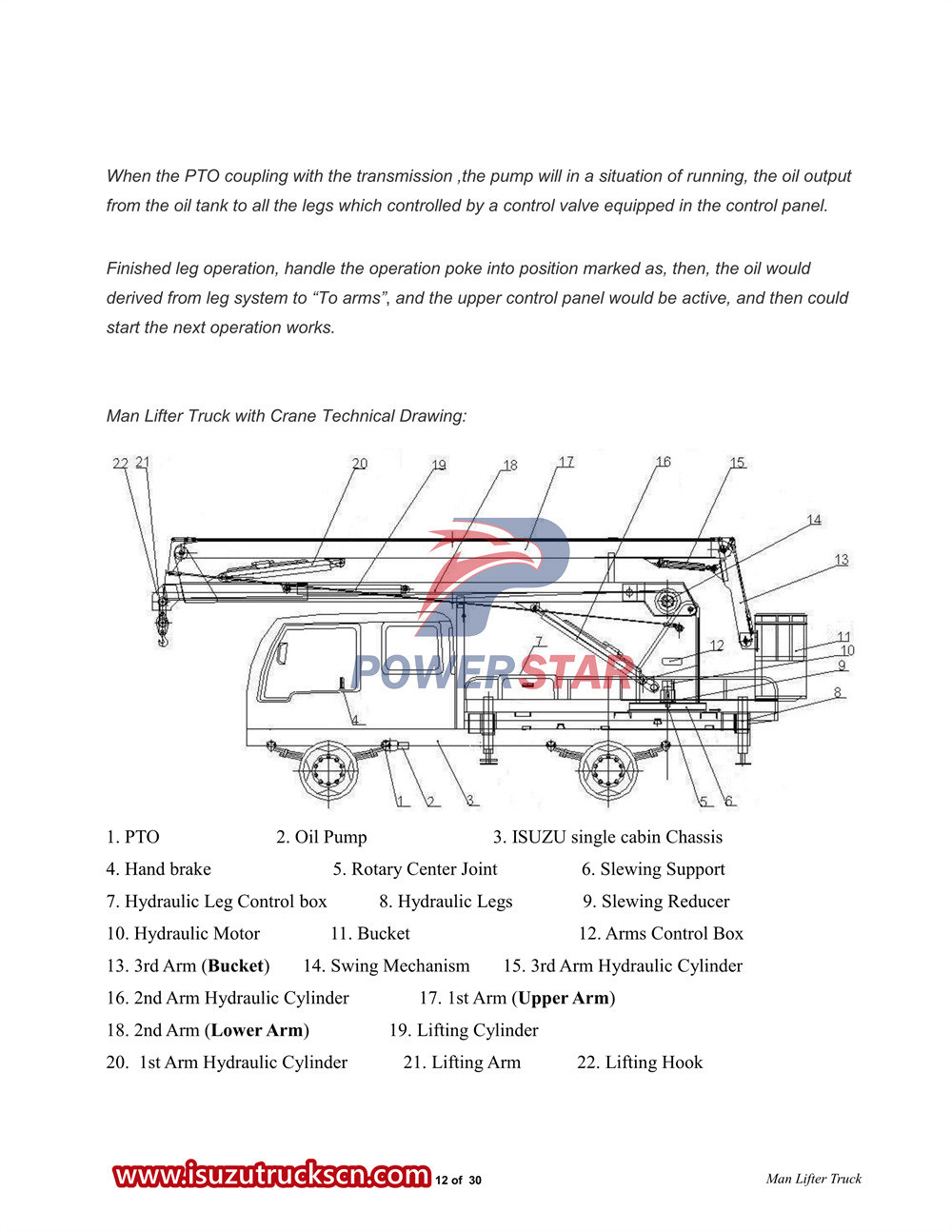

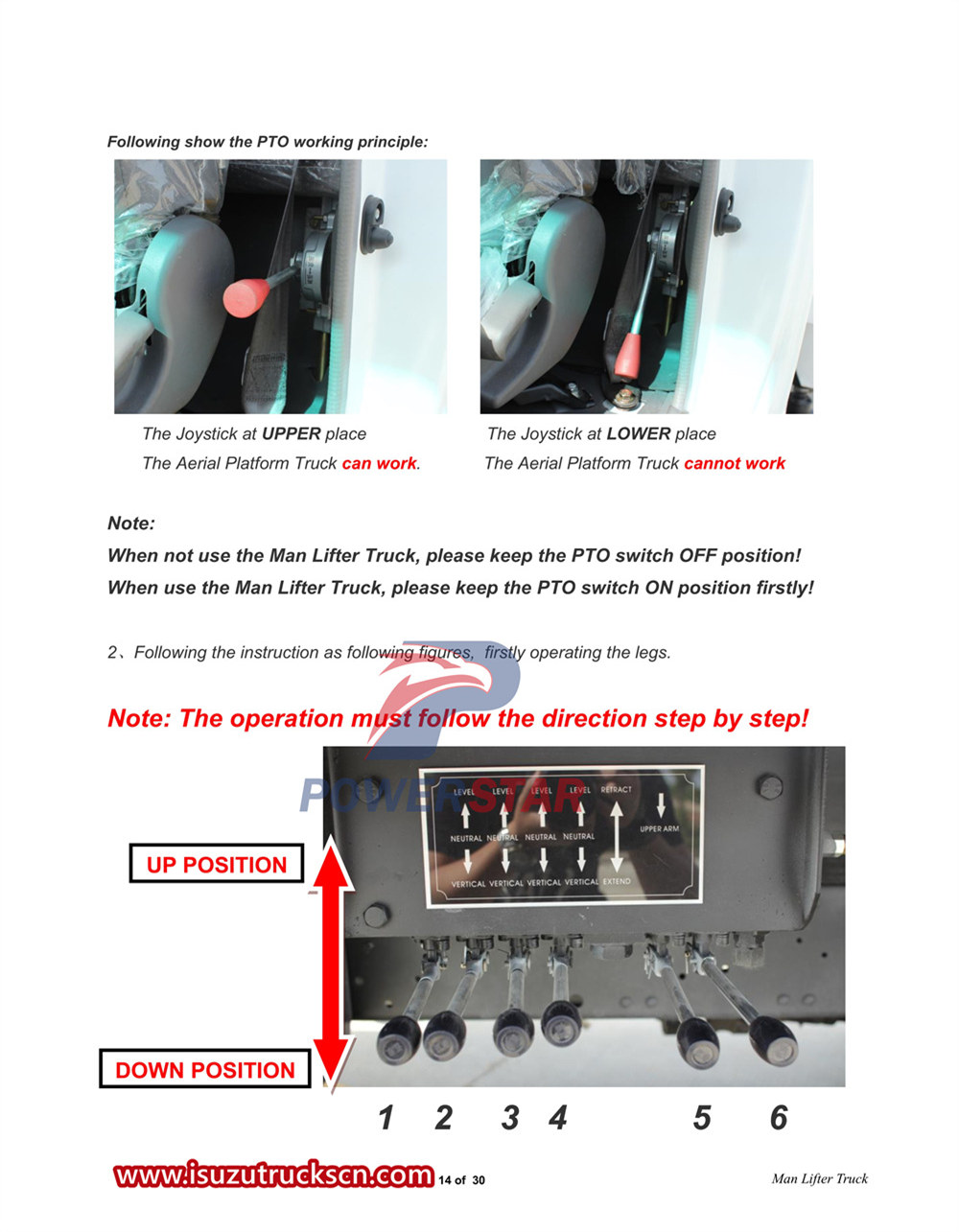

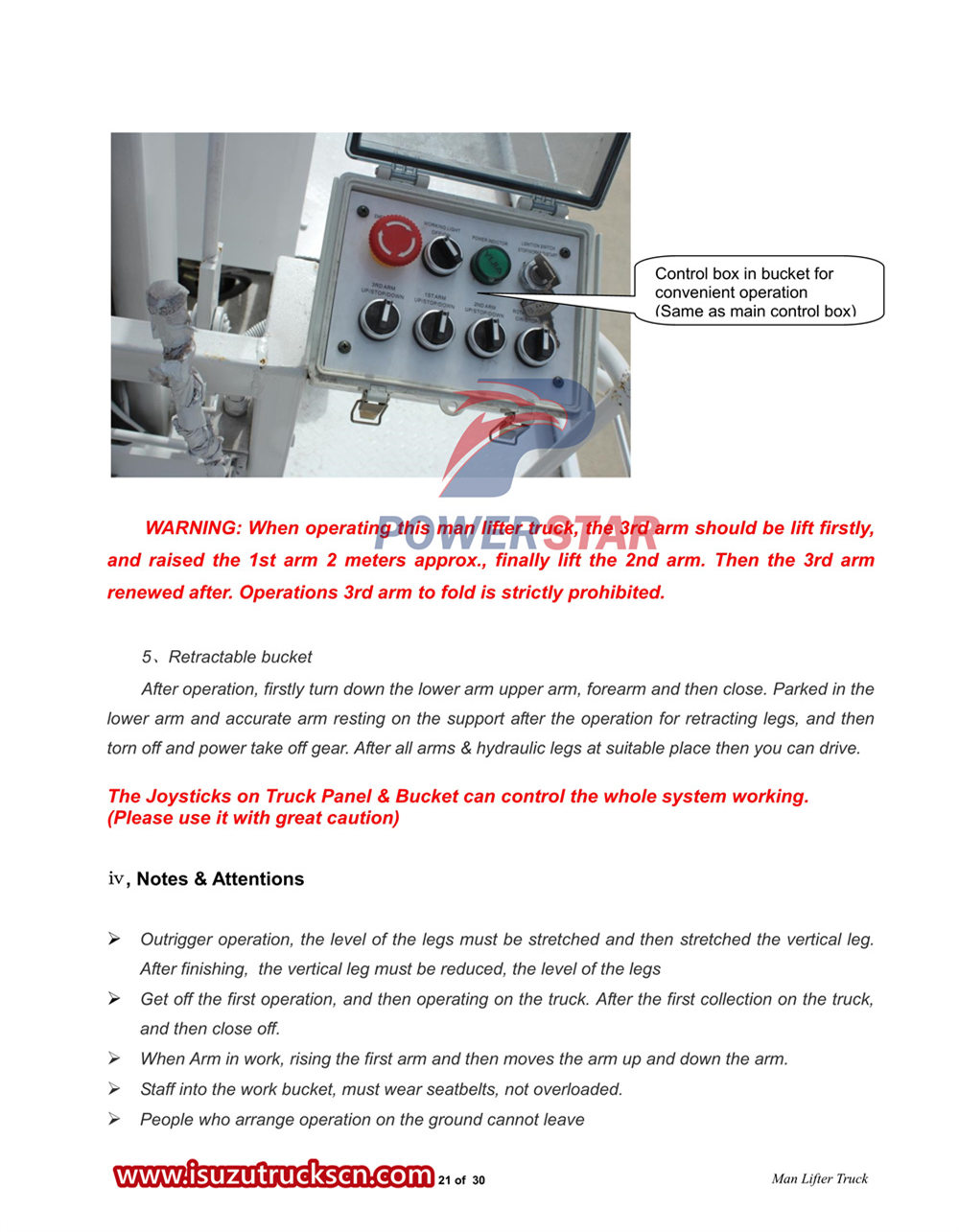

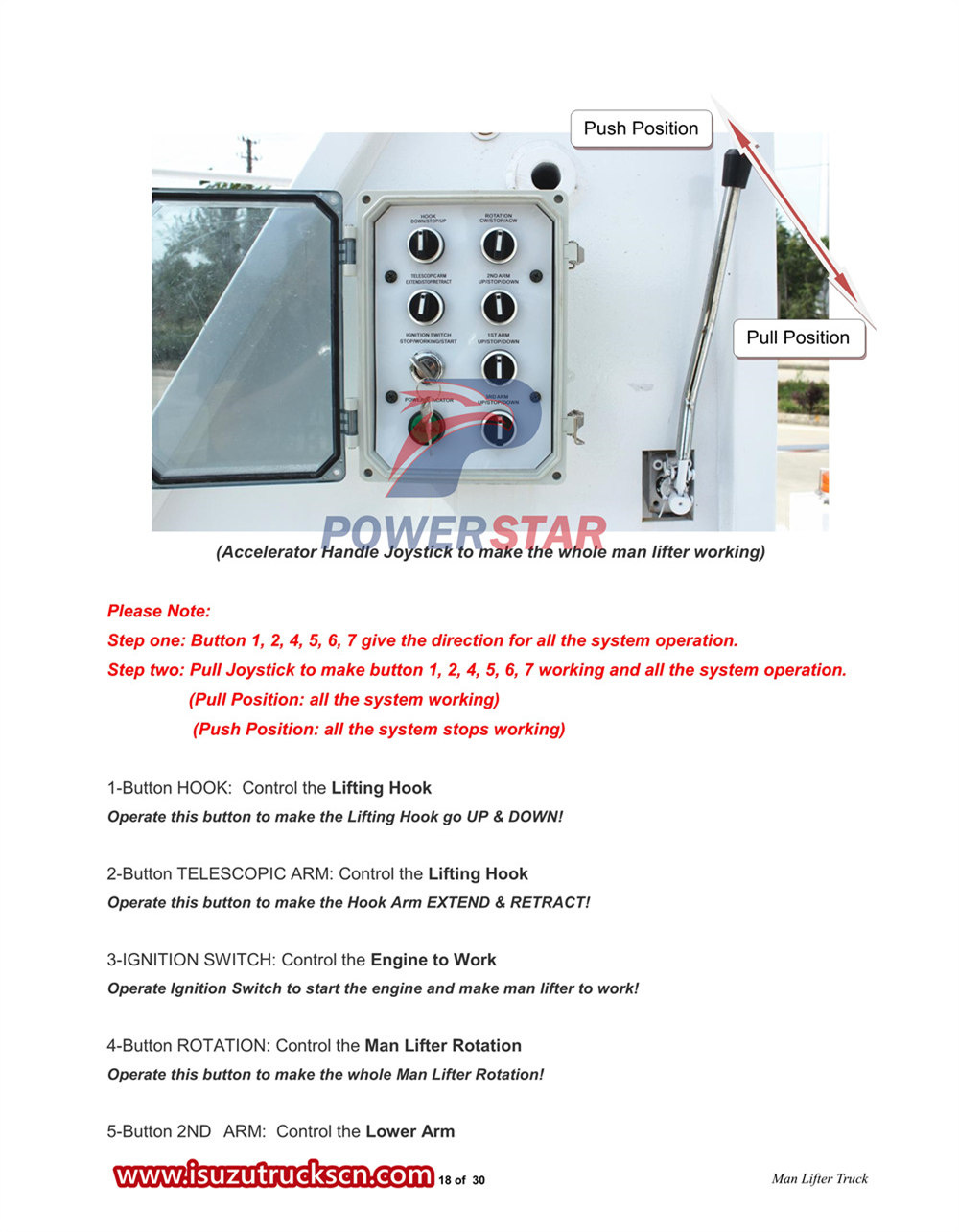

The following is the manual of the Isuzu 700P aerial work vehicle. You can download the full version at the beginning of the article.
