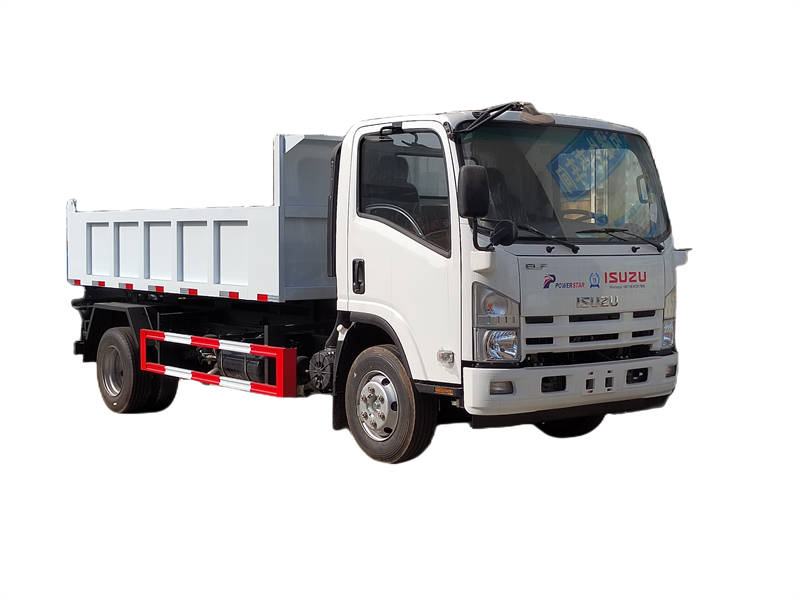

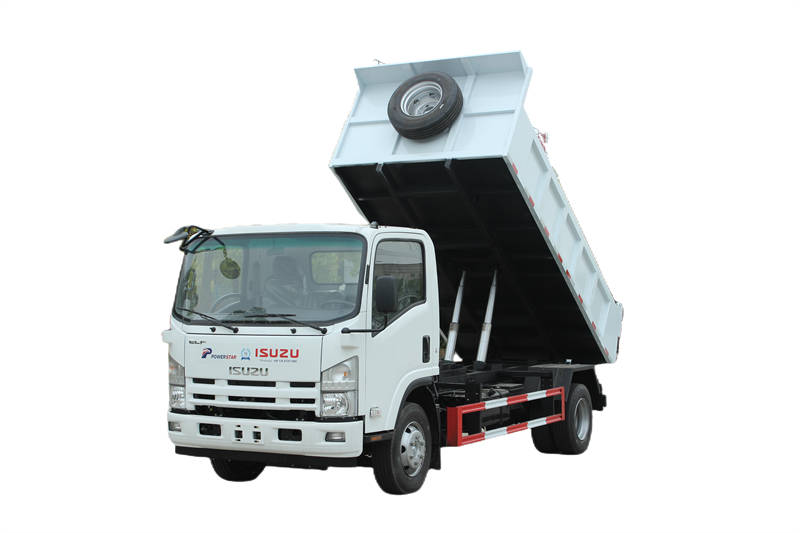

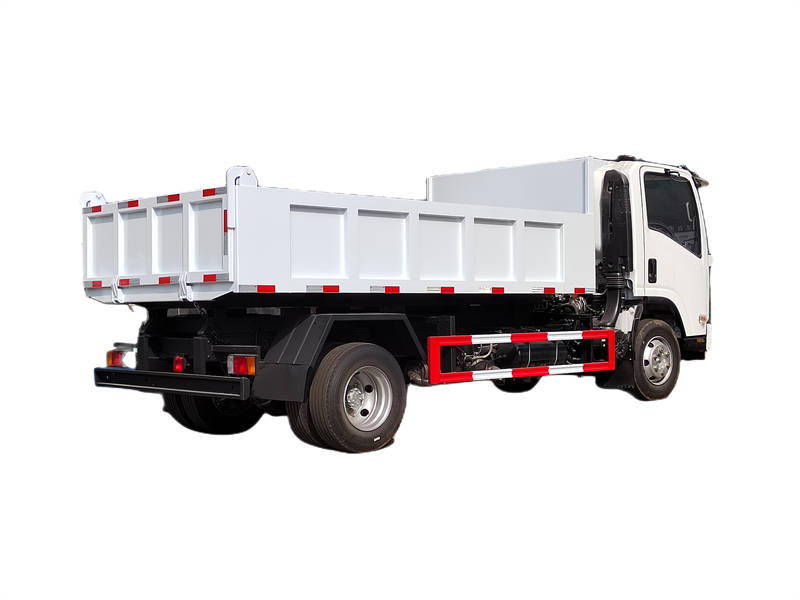

The Isuzu 100P dump truck features a modern and powerful design, making it a reliable choice for various transportation needs. With a load capacity of up to 3-5 tons, this Isuzu 100P dump truck offers high performance and efficiency.
Equipped with a durable engine, the Isuzu 100P dump truck ensures smooth and consistent power delivery, enabling it to handle heavy loads and challenging terrains effortlessly. The truck's advanced braking system enhances safety and provides precise control during operation.
The Isuzu 100P dump truck boasts a spacious and comfortable cabin, designed with ergonomics in mind. The driver's seat can be adjusted to suit individual preferences, reducing fatigue during long hours of operation. The dashboard is equipped with user-friendly controls, allowing for easy access to essential functions.
In terms of environmental consciousness, the Isuzu 100P dump truck complies with stringent emission standards and incorporates fuel-efficient technology. This not only reduces carbon footprint but also lowers operational costs, making it an economical choice for fleet owners.
ISUZU 3Tons Mini Dump Truck Technical Specification
Vehicle Brand CEEC Chassis brand: ISUZU
Vehicle Main Dimensions Overall dimensions (L x W x H) mm 5800x2100x2310
Wheelbase (mm) 3360
Weight in KGS Gross Weight 7300
Payload Weight 3 Tons
Front /Rear axles loading capacity 3000 / 4300
Cab ISUZU 3D cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt, Mechanical suspension
Driving type 4X2 left hand drive, 6 wheels
Engine Brand ISUZU
Model 4JB1CN
Type 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling,
Horse Power（HP) 98 HP
Emission standard Euro 4
Gearbox ISUZU MSB, Manual, 5-speed forward, 1 reverse gears
Clutch Reinforced diaphragm clutch,
Steering Gear Power steering, hydraulic steering with power assistance
Fuel tank (L) 70
Tire 7.00-16 tire 6 pcs including one spare tire
Brakes Oil brake
Tipper body 3200*2000*500 mm, Side thickness is 3 mm, Bottom thickness 4 mm.
Height from body carriage to ground: 1500 mm
Material High performance carbon steel
Lifting system Heavy-duty cylinder, Middle lift
Color & LOGO According to wish
