How to use Isuzu truck

Isuzu fire truck, also known as Isuzu fire extinguishing  truck, Isuzu fire fighting  truck, Isuzu fire rescue  truck, Isuzu fire tender,and Isuzu fire engine. It is a vehicle specifically designed for firefighting or other emergency rescue purposes.



To use the Isuzu fire truck, it is necessary to follow the relevant fire rescue procedures and technical requirements. The following are the steps for using the Isuzu fire truck:

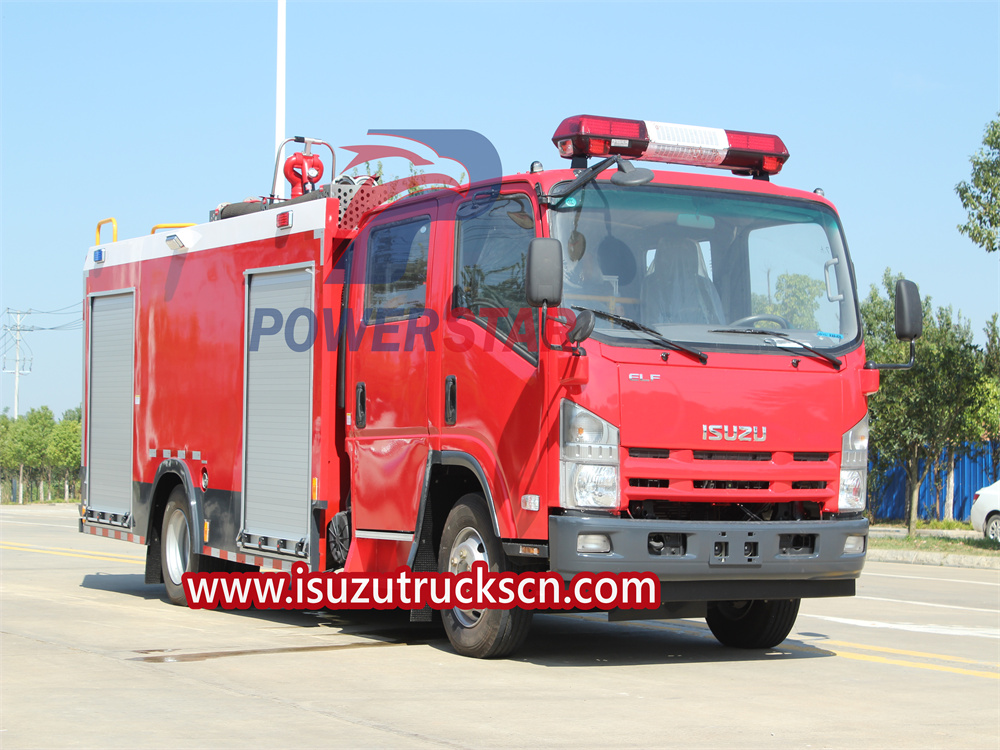

Isuzu fire truck is conducting a spraying drill

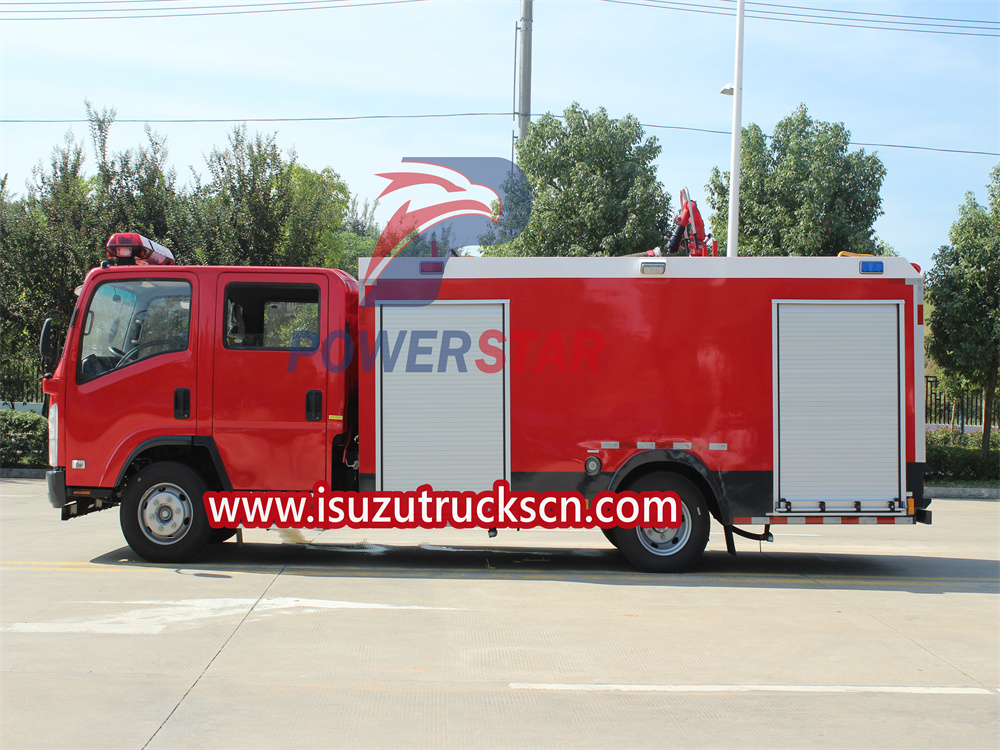

Isuzu fire truck in our plant.



1.After receiving a fire alarm or other fire rescue request, firefighters quickly dispatch firefighting vehicles.

2. After entering the fire scene, firefighting trucks should stop at the designated location by the fire scene commander. The parking posture of the vehicle can meet the needs of attacking and retreating from the fire scene, and must ensure flexible and flexible withdrawal from dangerous positions at any time. The engine of the vehicle must be kept running and must not be blindly turned off, which may cause damage to the aircraft.

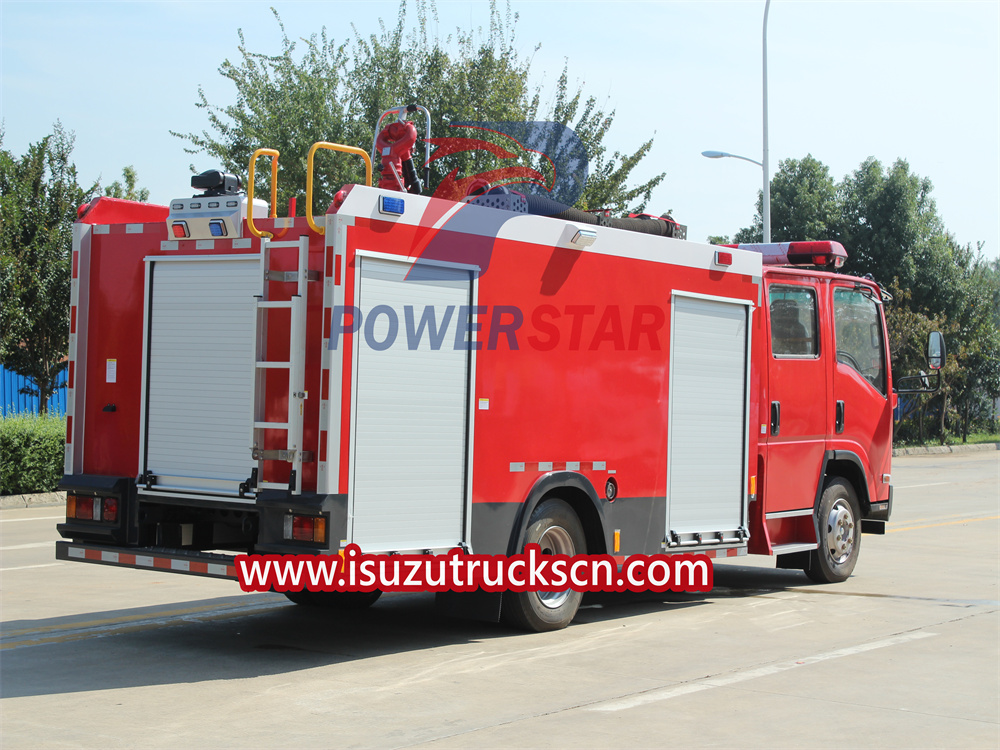

Isuzu fire fighting truck in our plant.

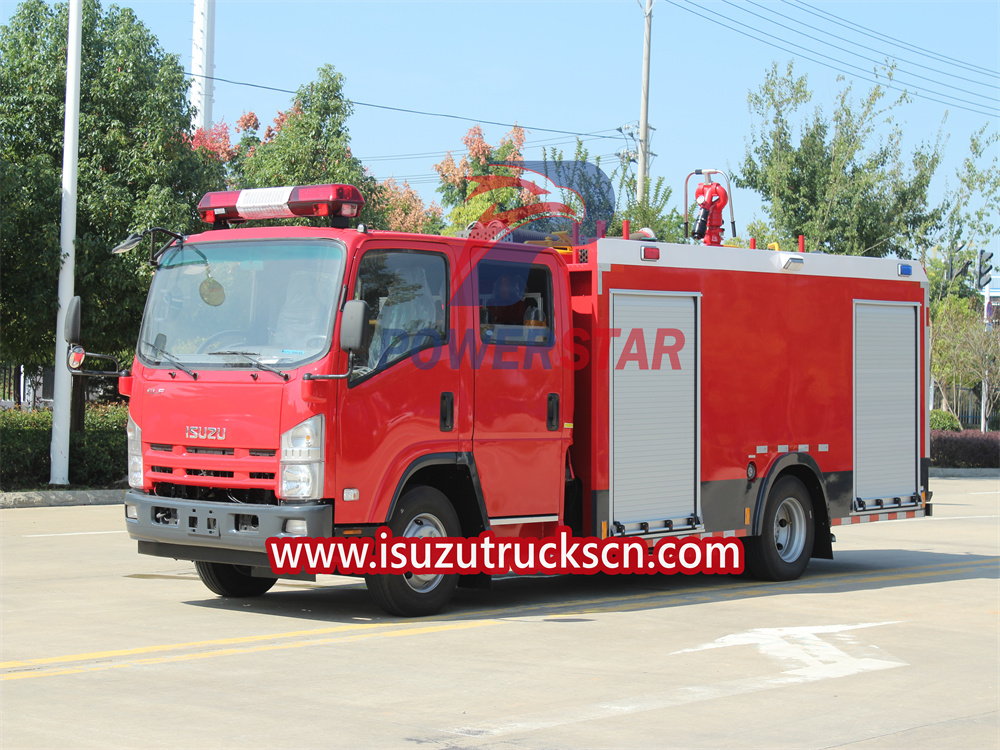

Isuzu 4x2 fire truck for exporting.



3.Deploy isuzu fire trucks, select suitable water spraying methods based on the severity of the fire and the fire environment, turn on the water pump, and use the water spraying system on the fire truck for firefighting operations.

Specifically, as follows:

When using the water in the fire truck water tank (box), the handle of the water outlet butterfly valve can be pushed towards the direction of the fire pump shaft to pull the pin out of the pin hole, pull the handle to the horizontal position, open the butterfly valve, and water flows into the pump from the water tank (box).

When using water from the fire hydrant, connect the suction pipe to the fire hydrant, and the water flows into the pump from the fire hydrant.

When using water from ponds, rivers, or deep wells, connect each suction pipe (note: sealing gasket for each connection pipe) and connect the water filter to sink into the water (note: the distance to sink into the water source is about 0.5 meters from the upper end face of the water filter to the water surface. If it is too shallow, it will generate vortices during suction, affecting the flow rate. At the same time, it should not touch the bottom of the water to prevent suction of sludge and debris, which may cause blockage of the suction pipeline and damage to the fire pump). Start the fire pump, press the water diverter button to start the water diverter, and adjust the manual oil valve to rotate at a speed of around 2200r/min-2500r/min. Within 30 seconds, water will be introduced into the fire pump. When the water is introduced, the water diverter will automatically stop working. At this time, the water diverter button should be immediately reset to avoid burning the water diverter due to prolonged operation.

Low pressure working condition usage

When it is necessary to use medium pressure working condition water outlet, the transfer switch on the medium and low pressure pipeline should be turned to the medium pressure indication position, and the medium pressure water outlet valve can be opened.

Use of medium and low pressure combined working conditions

When the combination of medium and low pressure is required, turn the transfer switch on the medium and low pressure pipeline to the medium pressure indication position, and open the medium pressure and low pressure water outlet valves at the same time.

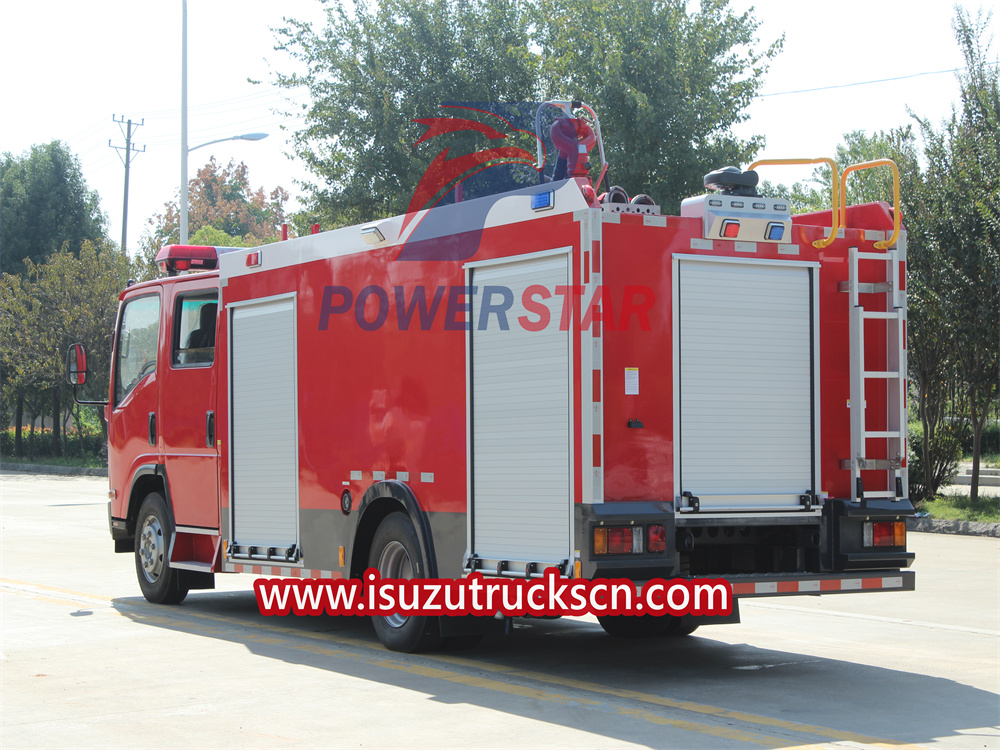

Isuzu fire fighting engine in our plant.

Isuzu fire truck is used for firefighting.



4. Command the direction and amount of water sprayed by the isuzu fire truck to ensure effective firefighting and prevent the spread of the fire.

5.During the firefighting process, firefighters should constantly observe changes in the fire situation and adjust the spraying method and amount as needed.

6.After the fire is under control, firefighters need to clean up and cool down the fire to prevent it from reigniting.

7.After ensuring on-site safety, firefighters can conduct verification work to confirm that the fire has been completely extinguished.

8.After confirming that the fire has been effectively controlled, firefighters clean and maintain the isuzu fire truck and carry out subsequent related work.

In summary, firefighters need to strictly follow the operating procedures and technical requirements for fire rescue while using Isuzu fire trucks, maintain communication and coordination, ensure efficient and safe completion of fire rescue tasks, and maximize the protection of people's lives and property safety.

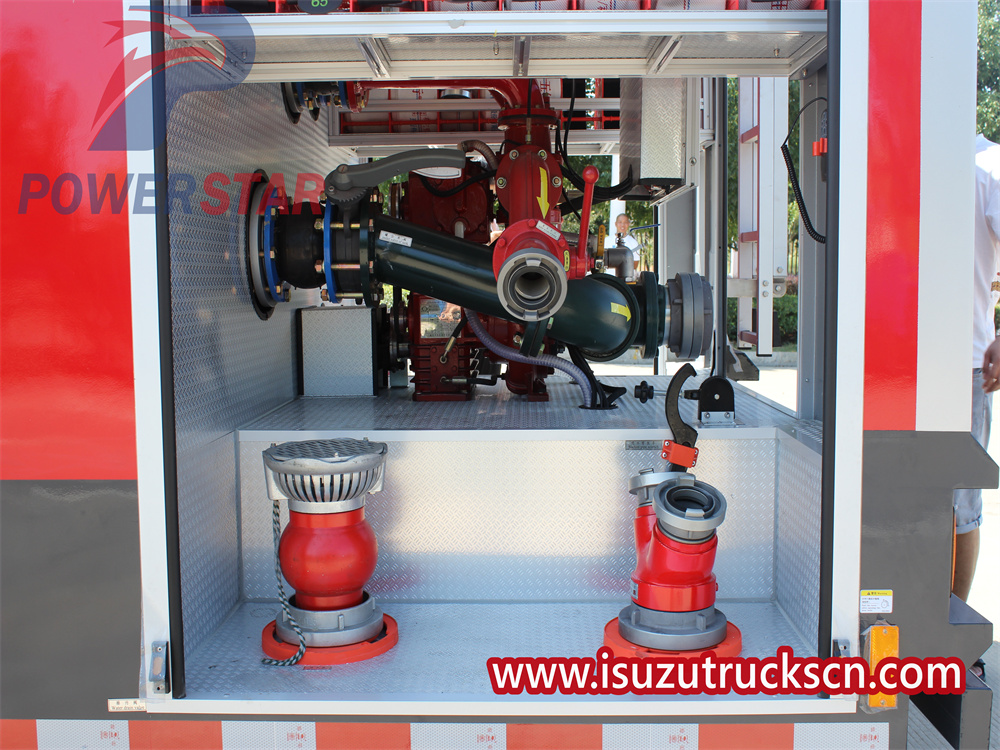

Internal components of Isuzu fire truck enclosure

Isuzu fire truck identification plate
