How to choose vacuum pump for isuzu vacuum tanker truck?
Isuzu sewage vacuum suction truck ,also named as isuzu sewage tanker truck, isuzu sewage pump truck, isuzu septic suction truck. It is a special cleaning equipment specially used to clean sewage, sludge and solid waste. Isuzu sewage vacuum suction truck uses a vacuum pump to extract the air inside the tank, thereby forming a negative pressure environment and removing sewage and sludge. Wait until it is sucked into the tank and transported to a designated location for processing. This article will introduce in detail the advantages of Isuzu sewage vacuum suction truck.

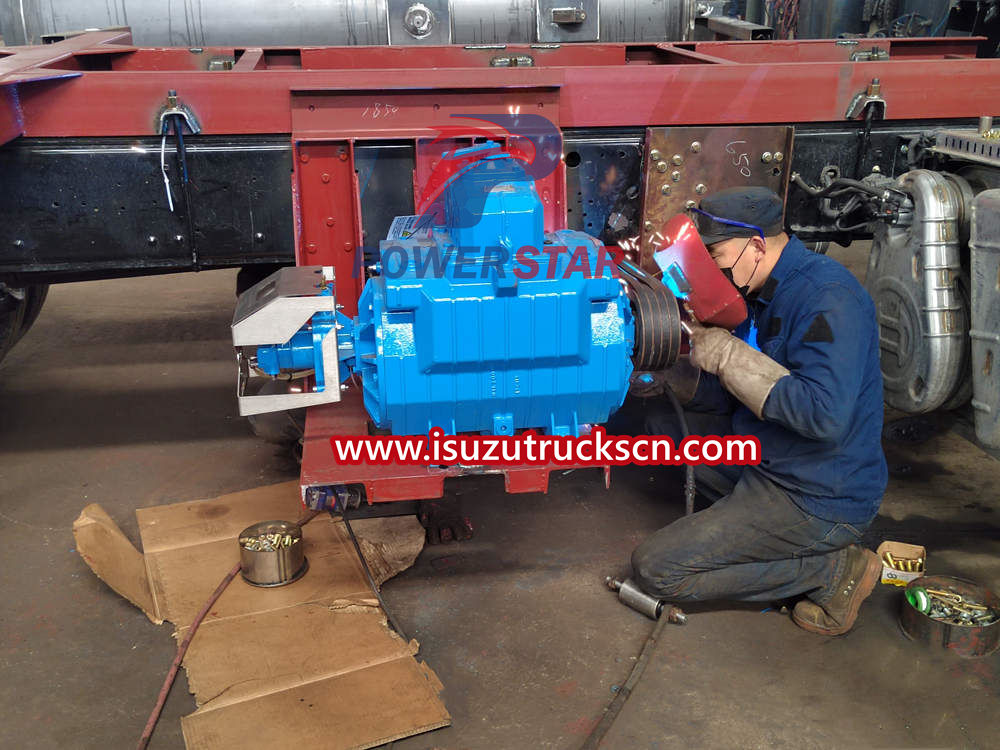

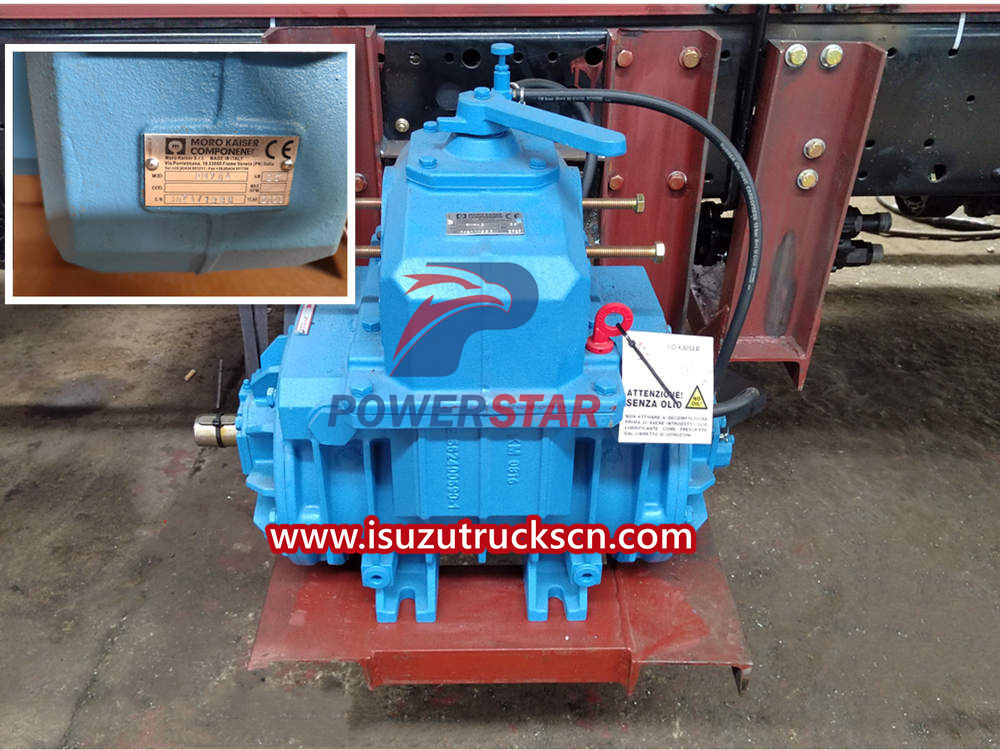

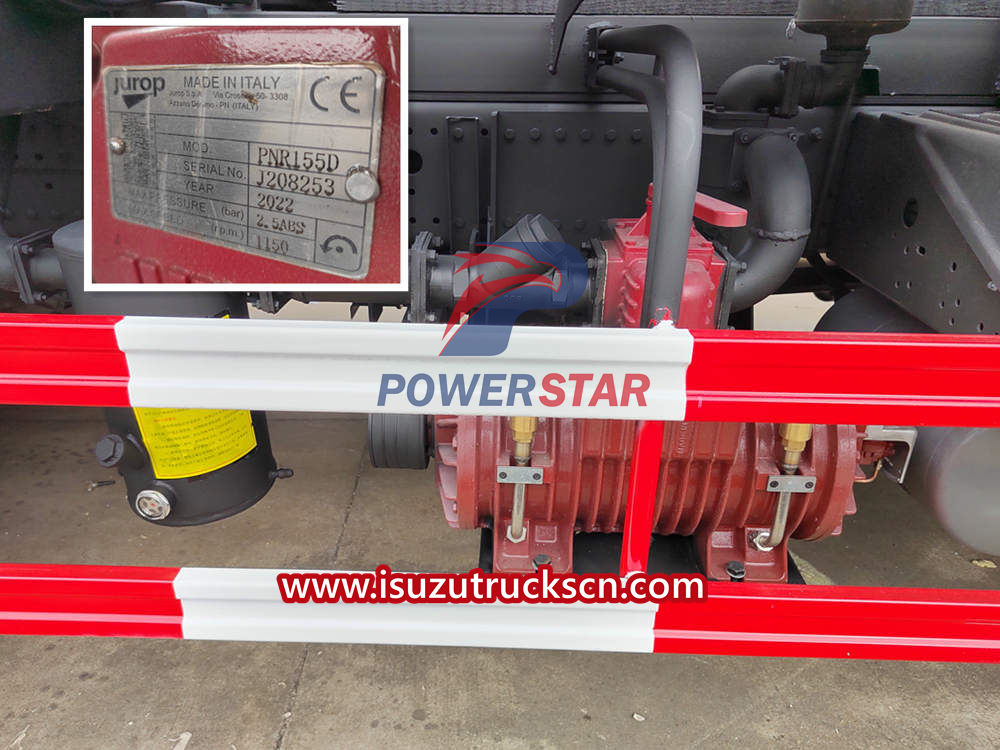

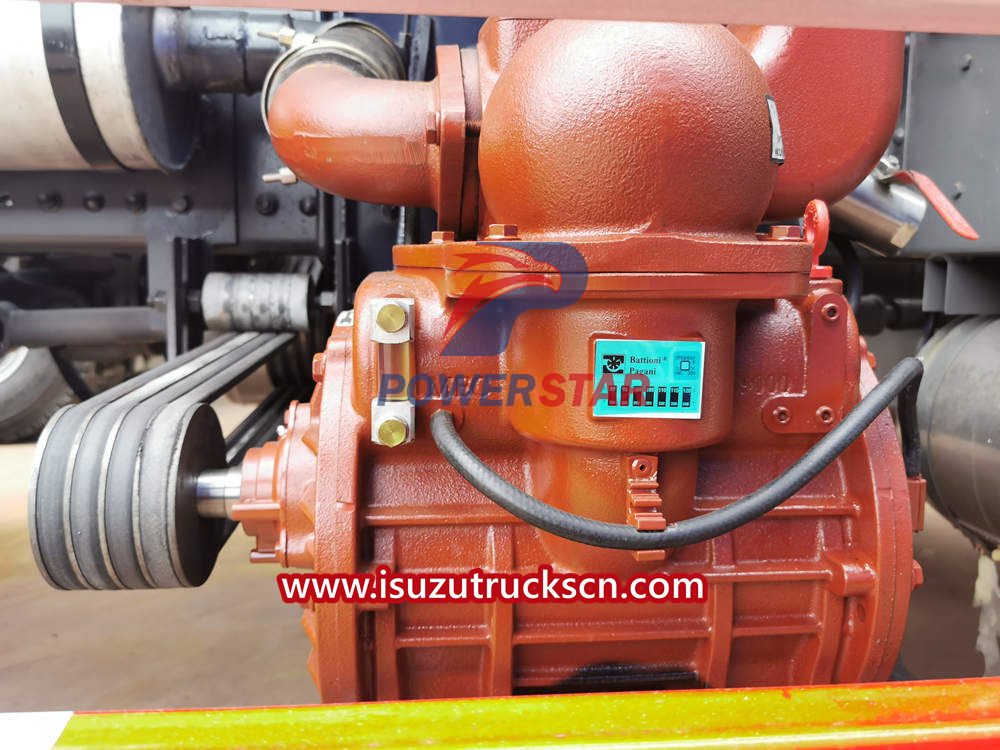

Common vacuum pumps used in sewage suction trucks include: Battioni Pagani/Moro/Jurop Brand
Isuzu sewage vacuum suction truck Product Description：

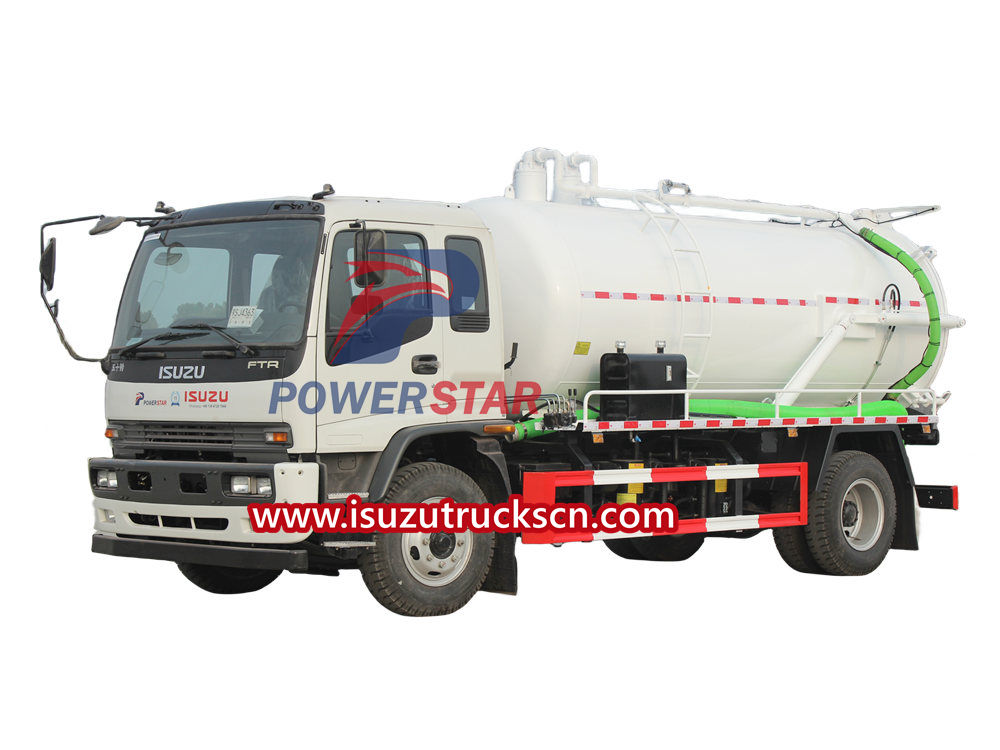

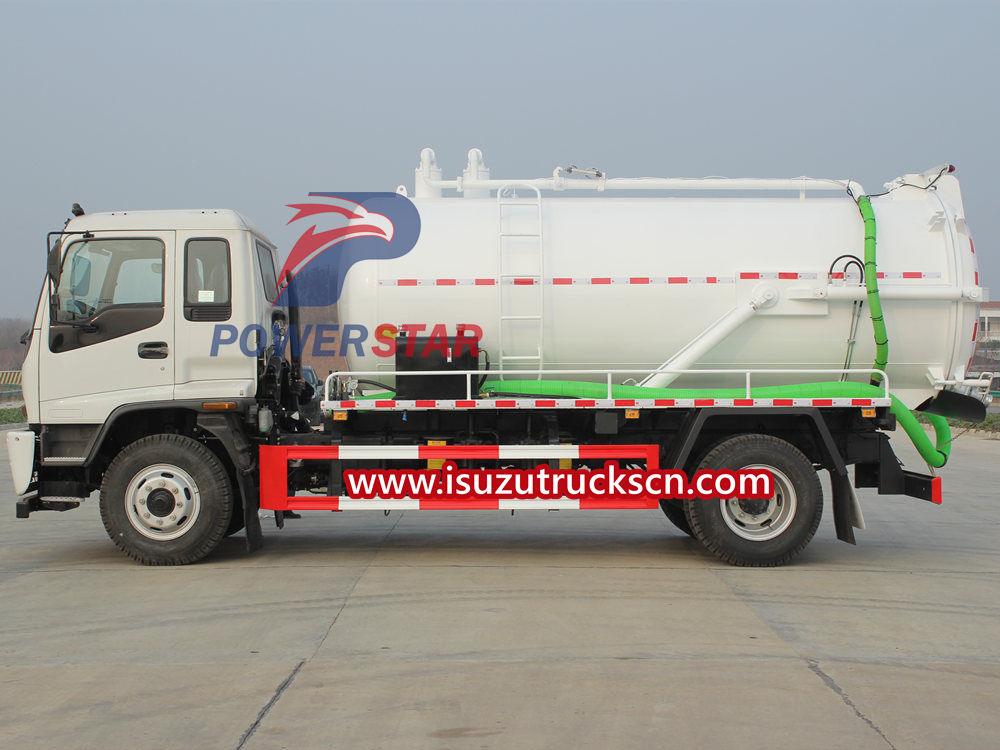

1. Description of ISUZU 10,000 Liter Sewage Vacuum Suction Truck For City Sewage Cleaning
Function:
(1) Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
(3) Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters
Features:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.

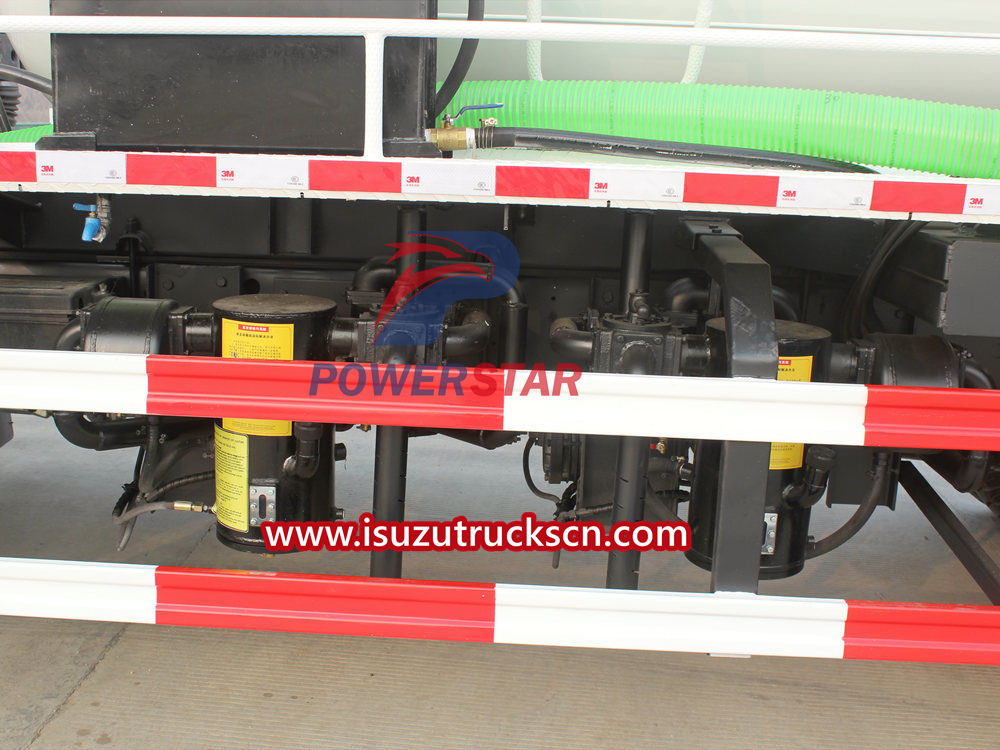

b.Adopt Moro vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life.
2.Technical of ISUZU 10,000 Liter Sewage Vacuum Suction Truck For City Sewage Cleaning
|
Complete Vehicle Parameter |
|
|
Vehicle |
ISUZU vacuum sewage truck |
|
Overall dimension (mm) |
7850×2470×3200 |
|
Sewage tank (m3) |
10 |
|
Gross vehicle weight (kg) |
Appro×18000 |
|
Curb weight (kg) |
Appro×8048 |
|
Payload (kg) |
Appro×9757 |
|
Wheel base (mm) |
4500 |
|
Max speed (km/h) |
95 |
|
Chassis Parameter |
|
|
Cabin |
Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive |
|
Drive form |
4×2 |
|
Engine |
Brand: ISUZU |
|
Model: 4HK1-TC50, 205hp |
|
|
Type: diesel, turbocharged, 6 cylinder. |
|
|
Displacement: 5193ml |
|
|
Emission standard: Euro 5 |
|
|
Gearbox |
Isuzu MLD, 6 forward,1 reverse, manual operated |
|
Tire model |
1000R20 |
|
No.of tires |
6pcs, with 1pc spare tire |
|
Superstructure Parameter |
|
|
Characteristic |
1. Sewage tank volume 10000 liter. |
|
2. Sewage tank material is carbon steel,thickness 6mm. |
|
|
3. Sewage suction pipe 1pcs, length 7m. |
|
|
4. Hydraulic lifting sewage tank,rear cover can open. |
|
|
5. Equipped with PTO. |
|
|
6. Equipped with vacuum pump. |
|
|
7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
|
|
Performance |
(1) Vertical suction ≥ 7m. |
|
(2) Pumping speed : 45L/s. |
|
|
(3) Intake and exhaust diameter: 50mm. |
|
|
(4) Full tank pumping time ≤ 5min. |
|
|
(5) Sewage tank emptying time ≤ 4min. |
|

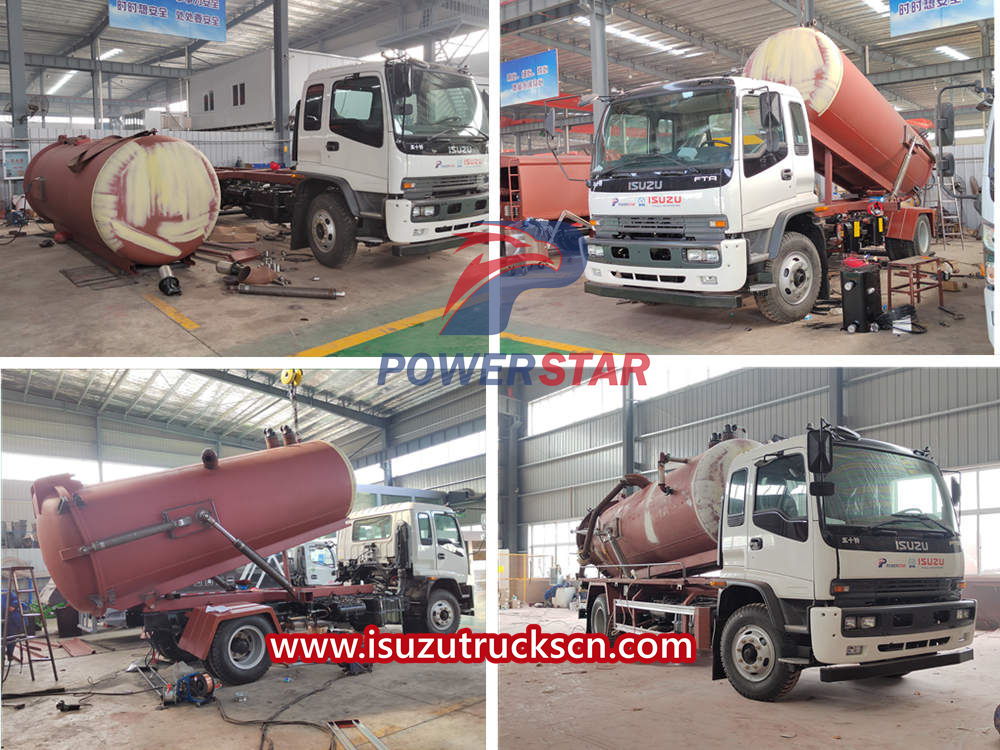

3.Vacuum sewage suction truck workshop

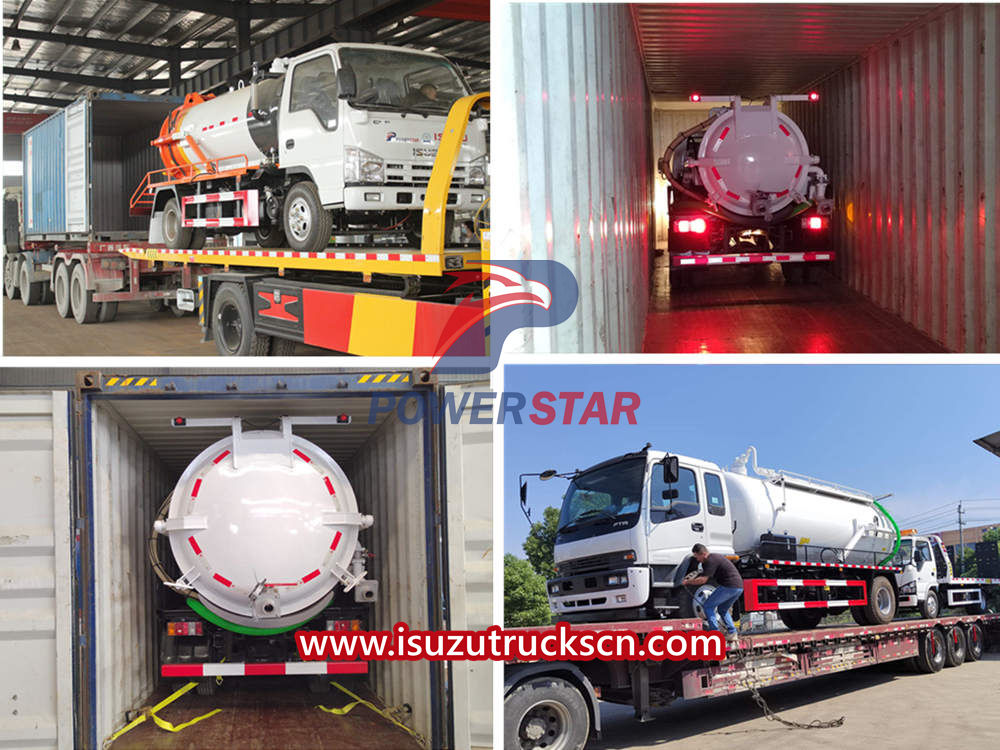

4. Transport to port
Isuzu sewage vacuum suction truck is widely used in urban sanitation, industrial sewage treatment, construction site cleaning and other fields. It plays an important role in cleaning sewage, clearing pipelines, cleaning sludge and other tasks. The Isuzu sewage vacuum suction truck is highly praised by users for its efficient cleaning, easy operation and flexible movement, and has become an indispensable product in the current cleaning equipment market.
