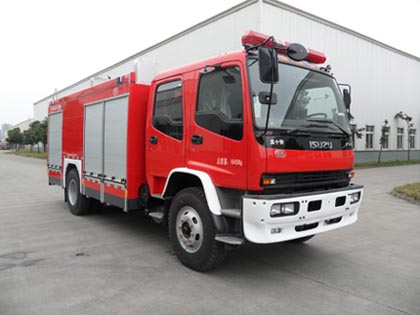

FVR ISUZU Intelligent-control tank fire truck with PL24-48(adjustable foam-water cannon)
FVR ISUZU Intelligent-control tank fire truck with PL24-48(adjustable foam-water cannon)
| Name | Foam Fire Vehicle | Water Tank Fire Vehicle | |
| Model | PM40W | SG40W | |
| Chassis Model | Isuzu FVR34J2 | ||
| Engine Type and Power | 6HK1-TC, 191KW | ||
| Max. Speed(km/h) | 90km/h | ||
| Overall Size(mm) | 8050×2500×3470 | ||
| Number Of Seats | Original cab 2; independent crew compartment 7 | ||
| Max Weight(kg) | ≤ 15000 | ||
| Fire-extinguishing Agents |
Total Weight(kg) | 4000 | |
| Water(kg) | 2000 | 4000 | |
| Foam(L) | 2000 | ||
| Fire Pump | Model | Rosenbauer NH30 high and normal pressure fire pump | |
| Pressure:Low voltage/High | 1.0/4.0 | ||
| Flow Rate:Low voltage/High | 3000/400 | ||
| Fire Monitor | Type | PL24-48(adjustable foam-water cannon) | |
| Rate(L/s) | 48L/S | ||
| Throw Range(m) | Water≥55，Foam≥50 | ||
