ELF Isuzu Aircraft Ambulift for Disabled Passenger Transporter
ELF Isuzu Aircraft Ambulift for Disabled Passenger Transporter
May 18, 2017
ELF Isuzu Aircraft Ambulift for Disabled Passenger Transporter
Model: PT5080JCR
Chassis Type and Engine: ISUZU 700P; 4HK1-TC, 129KW
Overall Dimension(LxWxH): 8900x2430x3880mm
Compartment Size(LxWxH): 6500x2330x2330mm
Platform height: 2600-5800mm
Platform Capacity: 1000kg
Van body capacity: 1500kg
Rear vertical elevator capacity: 500kg
Shipping weight: 11000kg

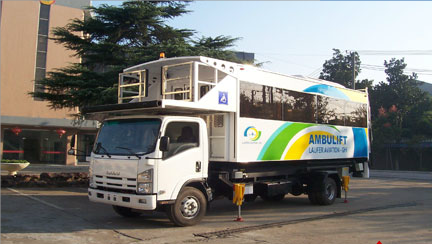

PT5080JCR Aircraft Ambulift The PT5080JCR Ambulift (Disabled Passenger
Transporter) is designed and built to lift disabled passengers from ground level
to the main cabin of narrow body and wide body aircraft. This model is available
with many options to meet your specific operational requirements. This equipment
is designed to withstand the airport complex environment, simply to operated and
easy to maintain.
This equipment is able to serve all types of aircrafts: A300, A310, A318, A319,
A320, A321, A330, A340,A380, B737, B747, B757, B767, B777, B787.
