Dubai customize Isuzu FVR water and foam firefighting vehicle?

December 11, 2023

AJADA-FZCO Company is one leading company in oil and gas develop fields and we are going to purchase Isuzu FVR water foam firefighting truck and ambulance car for our staff.

The WORK shall cover the provision of all necessary Requirements, in the Isuzu FVR Fire Fighting Truck & Support water trucker & Ambulance

The SUPPLIER should PROVIDE required Isuzu Fire fighting Vehicles & truck as per Internationally Recognized Standers, Specifications.

Training on the Fire Vehicle Isuzu for (4 persons at least) required by the contractor. CONTRACTORS should provide with Catalogs & Origin Certificates on the Vehicles & truck GENERAL Specifications OF Fire Fighting Truck & Support water trucker & Ambulance: Our Requirement is for a mixed fire fighting vehicle (water -foam).

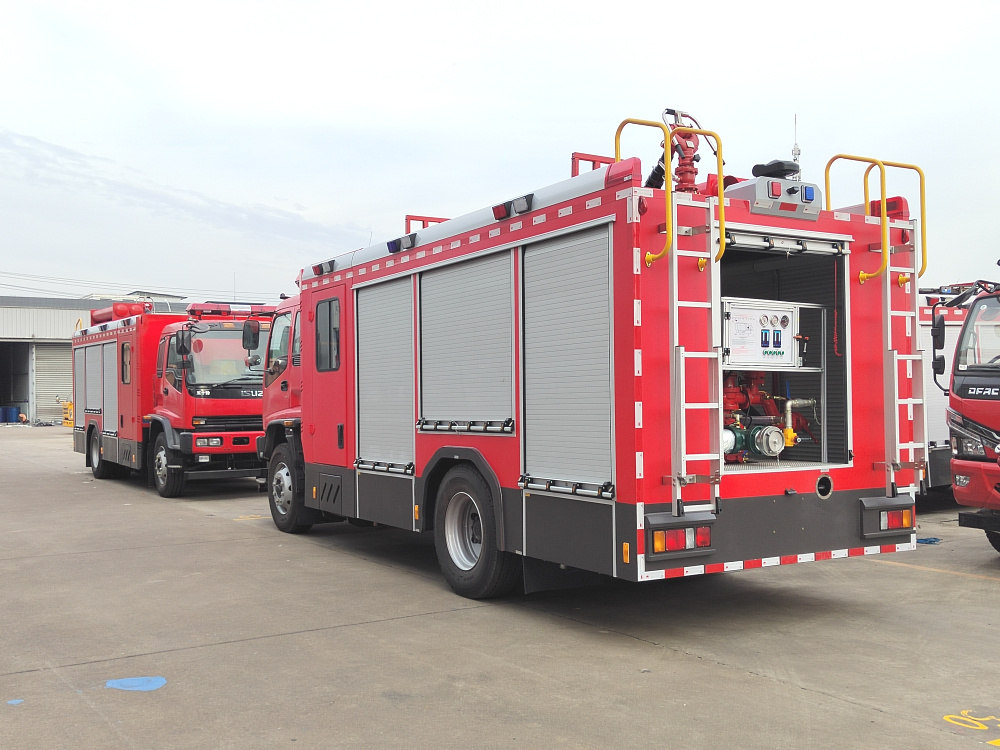

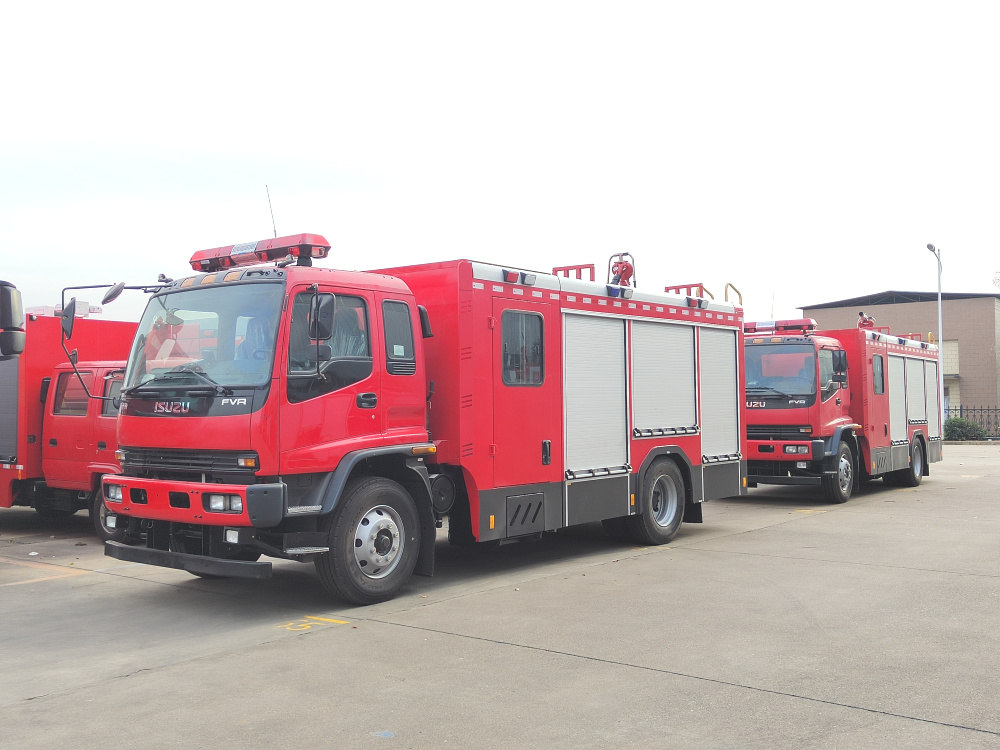

multipurpose firefighting vehicle (water + foam)
Country of origin: High Quality – Class N0.1
Project 2023-2024(completely new)
Type of vehicle mission	Heavy Duty Fire Fighting Pumper Municipality & Rural / Industrial Areas
Chassis	Left Hand Drive- All-Wheel-Drive 4x4
Engine	Diesel Engine, turbocharged, intercooler 6 cylinders in line - Displacement 12,8L - 380HP
Gearbox	Manual (16 forward speeds + reverse gears)
Cabin (original of vehicle not modified)	Double Wide Cabin: 1+5 seats / 4 doors (2 on each side)

Bodywork	Completely made in aluminum, corrosion proof type. Nr.4 side storage lockers + Nr.1 rear compartment All lockers are closed by light alloy roller shutters with automatic internal illumination LED type.
Water / Foam Tanks	6000 L Water (Stainless Steel AISI 316L)-with Sight glass 500 L Foam (Stainless Steel AISI 316L )- with Sight glass
Water / Foam Tanks thicknesses	4 mm for sides, top, and for the fixing longerons and bottom; 2 mm for the internal baffles
Water/foam piping	(Stainless Steel AISI 316L)
Delivery hoses points	John morris type- BS standard
Fire Pump	Centrifugal pump multi-stage for high & medium pressure driven via P.T.O. easy to be maintained, Centrifugal type, four-stage, combined for medium and high pressure with a single common shaft, suitable for use even with salty water. The material used for the water-bearing components is seawater resistant Bronze; the medium and high pressure impellers are made of Bronze. The pump shaft: made from stainless. with foam proportioned around-the- pump type: The pump is equipped with a foam admixing regulator, “Around the pump” type, adjustable for the production of water/foam compound mixture. Useful for all types of foam compounds, it allows the water/foam mixing ratio from 0 to 8% by manual control.
Fire Pump Performances	3.000L/min. at 10 bar in medium pressure 400L/min. at 40 bar in high pressure
Roof Monitor	3.000L/min. manually operated from vehicle’s roof Monitor throw range 55M approx.
Hose Reel- Qty (1)	High Pressure type - 40M long - ending with water/foam nozzle and fitted with electric rewinding system
Fire Fighting Equipment supplied with the vehicle as standard configuration	- Qty 4 Suction Hoses 4” x 2M long each - Qty 1 Suction strainer with basket - Qty 2 Suction hoses wrench - Qty 8 Delivery Hoses 2,5” x 20M long each. John morris type-BS standard
	- Qty 2 Hose Bridges 2 of 5 - Qty 4 Water Gun 2,5” with capacity 450L/min.

- Qty 2 Foam branch pipe with capacity 400L/min

- Qty 2 Dry Powder Fire Extinguisher ABC 6kg each

- Qty 2 Fire Axes with wooden handle

- Qty 1 Bolt Cutter heavy duty type

- Qty 1 Wire Cutter insulated type

- Qty 1 Light Alloy Ladder 10M long (on the roof)

- Qty 1 Tool Box (professional type)

- Qty 1 first aid kit

Additional equipment to be available

telescopic mast:

• Elevation pneumatic operated, 6M from ground

• Nr.2 Halogen lamps 1000W each fed by generator

• Nr.1 Petrol Engine Generator, with electric starter

electric winch:

• Fixed on the front vehicle’s bumper

• Electric Type, fed by vehicle’s batteries

• Capacity of 5,4 Ton

breathing apparatus:

• Nr.4 Breathing Apparatus (harness & full face mask)

• Nr.4 Air Cylinders made of composite 6L capacity

hydraulic rescue tools:

• Nr.1 Hydraulic Power Unit with petrol engine

• Nr.1 Spreader Weber

• Nr.1 Cutter Weber

Bore (mm):135 Stroke (mm): 150

Capacity (liters): 12,88

Max power (HP/kW): 380/280 @ rpm: 1440-1900 Max torque (Nm/m Kg): 1800/183 @ rpm: 1000-1515 R.Q.V: All speeds

Cooling fan: 2 speed electro-magnetic Fuel system: Unit pump injector

engine

	Cruise control: Standard Air admission / Filter type: Rear cab snorkel / dry – Horizontal Speed limiter: 120 kmh
clutch	Type: Single plate, diaphragm spring, pull type Diameter (mm): (17”) 430 mm
brakes	Type: 2 independent pneumatic circuits Service: A.B.S. + E.B.L. on rear
	Front axle: Duo-duplex drums. Dia.:410x180mm Friction area: 2884 cm2 Rear axle: Duo-duplex drums. Dia.:410x200mm Friction area: 3220 cm2 Parking: Mechanical with spring cylinder, rear. Emergency: Combined with parking brake. Air reservoirs: 4 x 20 liters, steel Engine Turbo Brake: Decompression. Power: 295kW @ 2400 rpm Air compressor: 352cc – single cylinder Heated air dryer: Air Processing Unit
electrics	Tension: 24v negative earth return Alternator: 28v, 90A Starter :24v, 5.5kW Batteries: 2 x 12v, 170Ah Circuits protected: by fuse System: Multiplex - CAN line data bus
suspensions	Front Parabolic: leaf Rear: Semi elliptic leaf Anti-roll bar: Front and rear Shock absorbers: 2 on front
steering	Type: Power assisted Steering wheel diameter: 510 mm
fuel tank	Type and capacity : 300lt., steel with lockable fuel cap
chassis	Type: Ladder construction. Pressed steel side members and riveted and bolted cross members

cabin interior	Interior incorporating, air suspended 3-way adjustable driver's seat, inertia reel belt. Passenger seat 2 way adjustable with inertia reel belt. Soft feel dashboard with multifunctional steering wheel incorporating touch button menu controls for the real time digital dash display. Dual scale speedometer. All gauge functions monitored using international symbols. A/C with heater Left and right hand entry assist handles. Pneumatic adjustable steering column, 2 column mounted control stalks, left stalk operating the indicators, main beam, windscreen wash wipe, right stalk operating 2 gear change, engine brake, cruise control and variable speed limiter. left of the steering column is the dash mounted gearbox controls for automatic and semi-automatic
	modes, neutral, reverse and low speed maneuvering mode (forward and reverse). Overhead console for CB radio. Courtesy and map reading lights. Electronic PTO switch and in cab preparation. Fabric trim cab interior. Single low level bunk with under bunk storage, bottle holder & storage and control panel
cabin exterior	Forward control cab. Galvanized pressed steel construction, with SMC for vulnerable parts. Helical spring suspension and dampers. Hydraulic cab tilt to 60 deg. Tinted electric door windows and tinted laminated screen. Manual rear-view mirrors plus kern and wide angle mirrors, according to 2003/97/EC. Blind rear cab panel. External stowage for tools. Steel front bumper.
Tires	(6+1)
