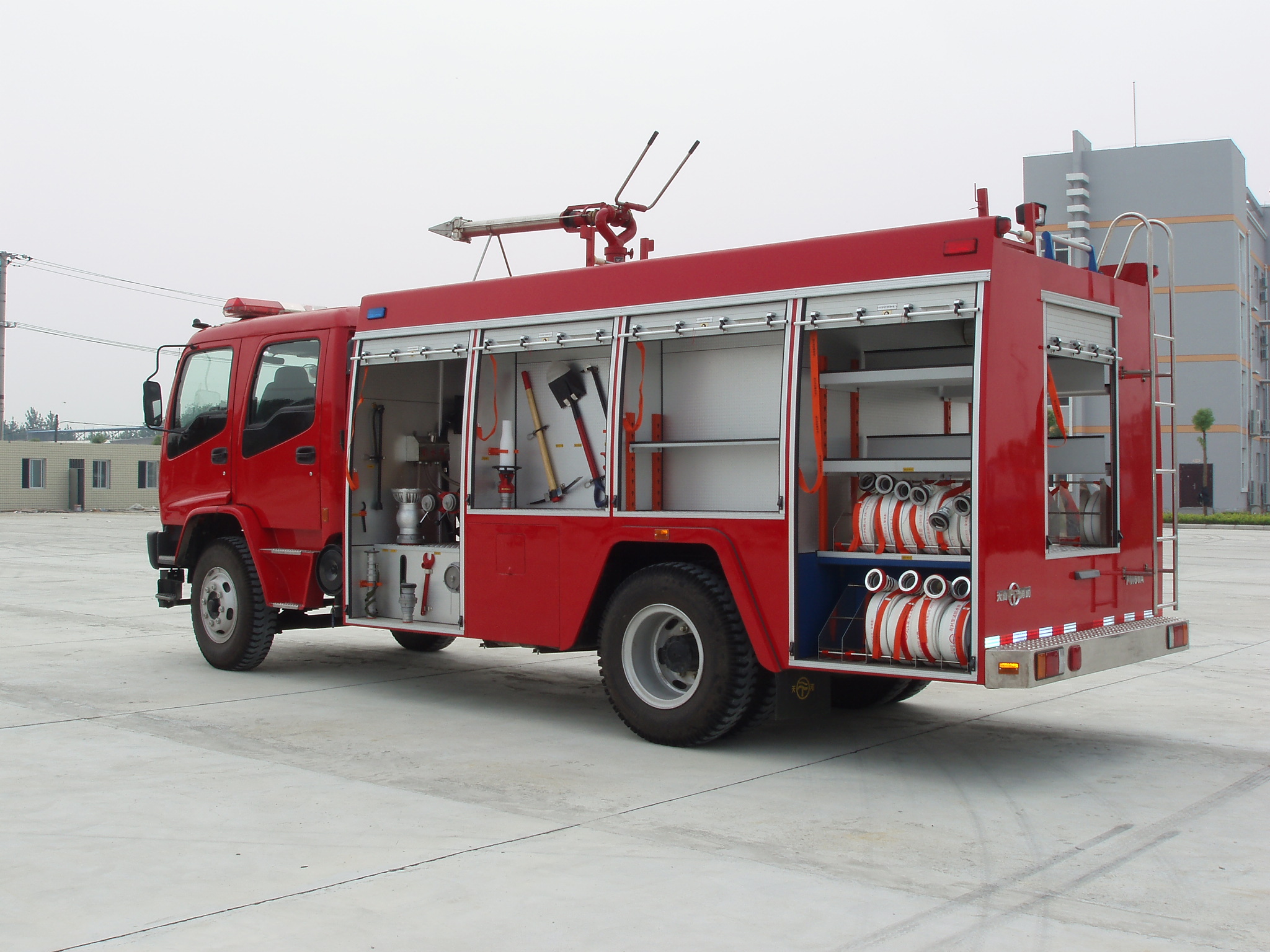

5500L ISUZU Foam Fire Vehicle/ISUZU Water Tank Fire Truck
5500L ISUZU Foam Fire Vehicle/ISUZU Water Tank Fire Truck
| Item | ISUZU Foam Fire Vehicle/ISUZU Water Tank Fire Truck |
| Type | PT5160GXFP |
| Overall dimension(L x W x H)(mm) | 8100×2500×3460 |
| Gross weight(kg) | 15640/15620 |
| Driver's cab | Twin-row integrated welding with special hydraulic tilting structure |
| Crewmen(person) | 2+4 |
| Max speed(km/h) | 90 |
| Wheel base(mm) | 4500 |
| Tank capacity(L) | Water:4000,Foam:1500/Water:5500 |
| Type of fire pump | CB20.10/30.60(Imported Fire Pump Optional) |
| Flow rate(L/s) | 1.0MPa(Normal Pressure) 80L/s,2.0MPa(Middle Pressure)40L/S |
| Mount method | Rear Installation |
| Type of fire monitor | PP48/PS50 |
| Shot range(m) | Water:≥60Foam:≥50/Water:≥60 |
| Type of chassis | FVR34J2 |
| Type of engine/ Max Power | 6HK1-TC/191 |
| Driver manner | 6×4 |
| Max torque(N.m/rpm) | 745/1500 |
| Other | Fitted with general equipment |
