20 unit Isuzu NPR garbage rear loader are successfully shipped to Latin America
20 unit Isuzu NPR garbage rear loader are successfully shipped to Latin America
July 18, 2024

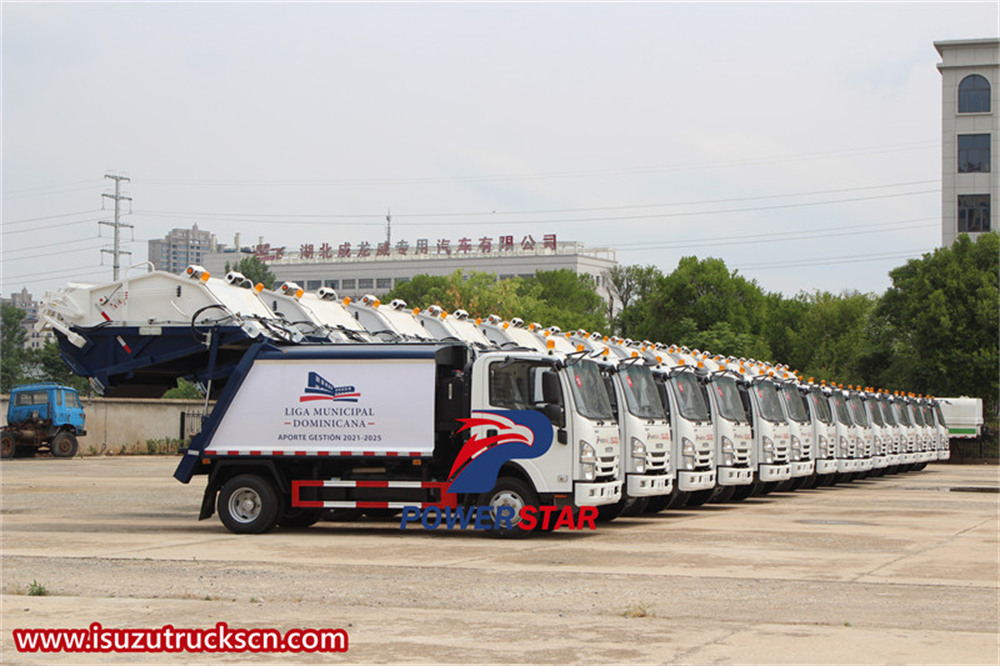

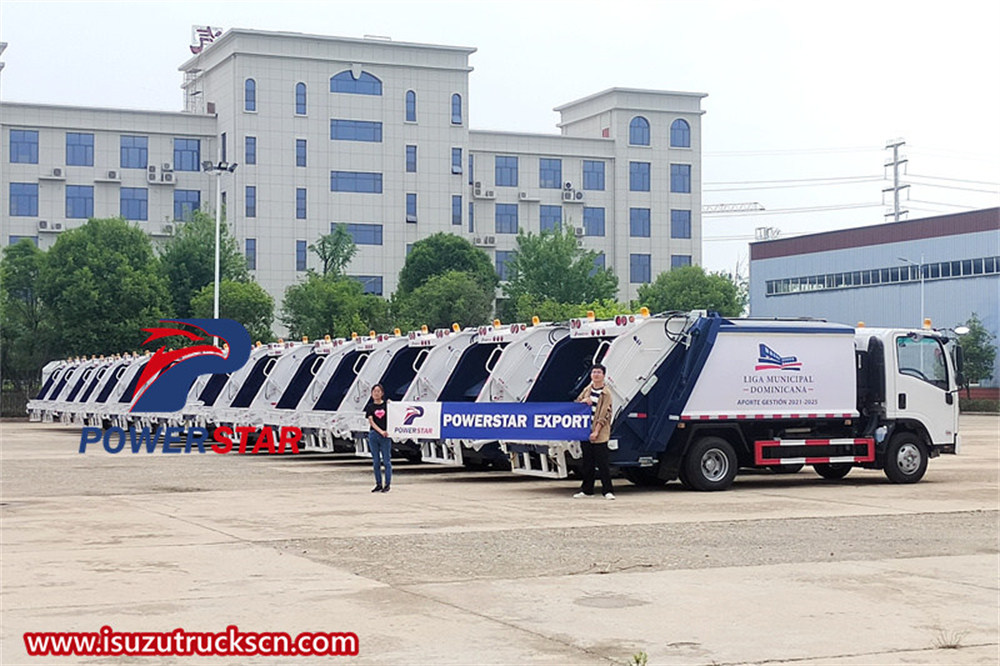

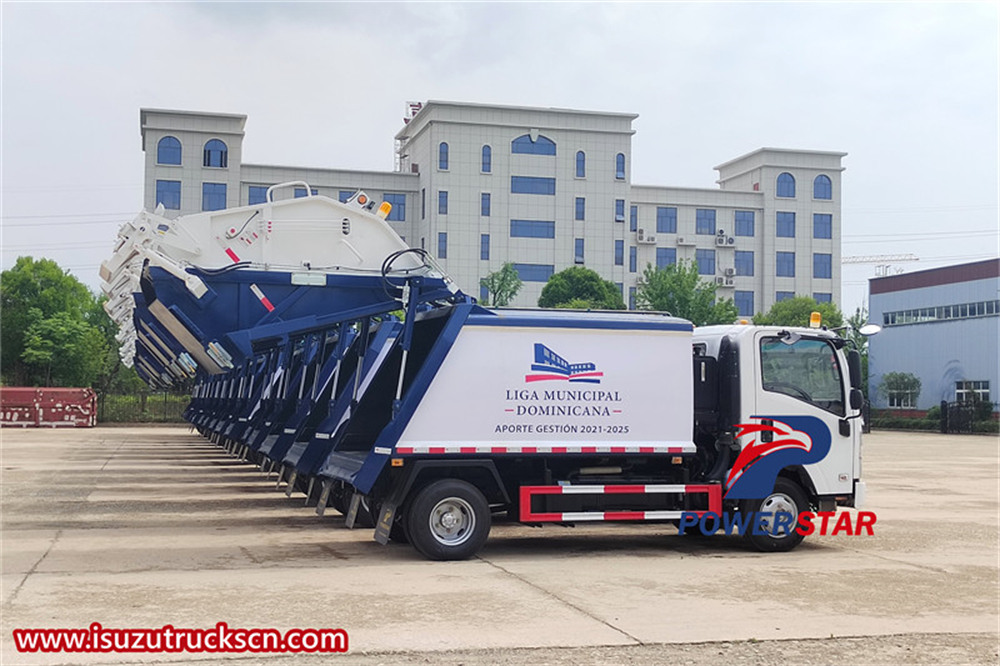

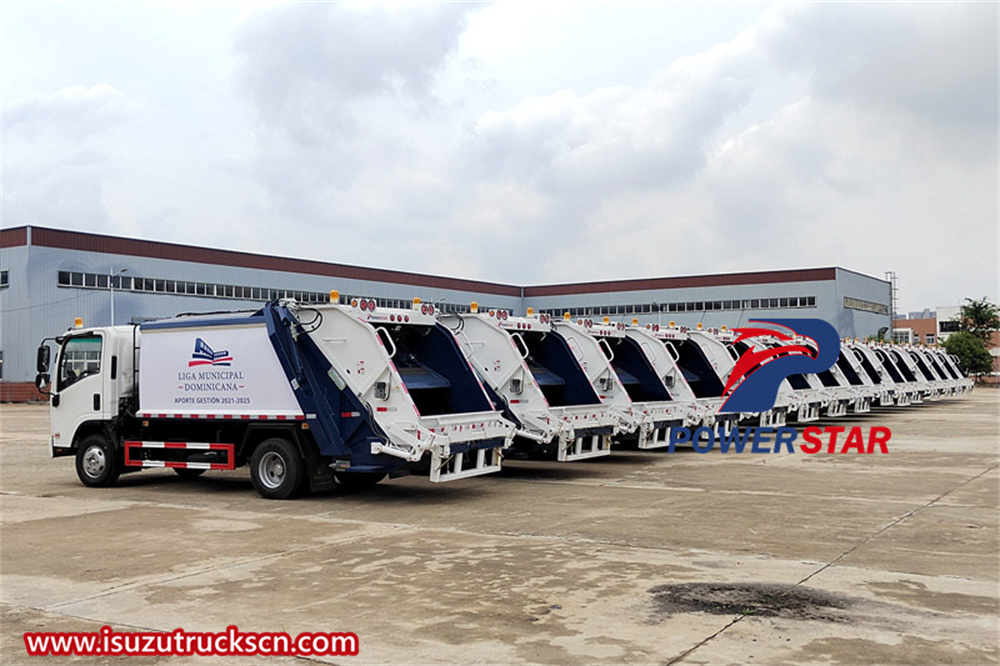

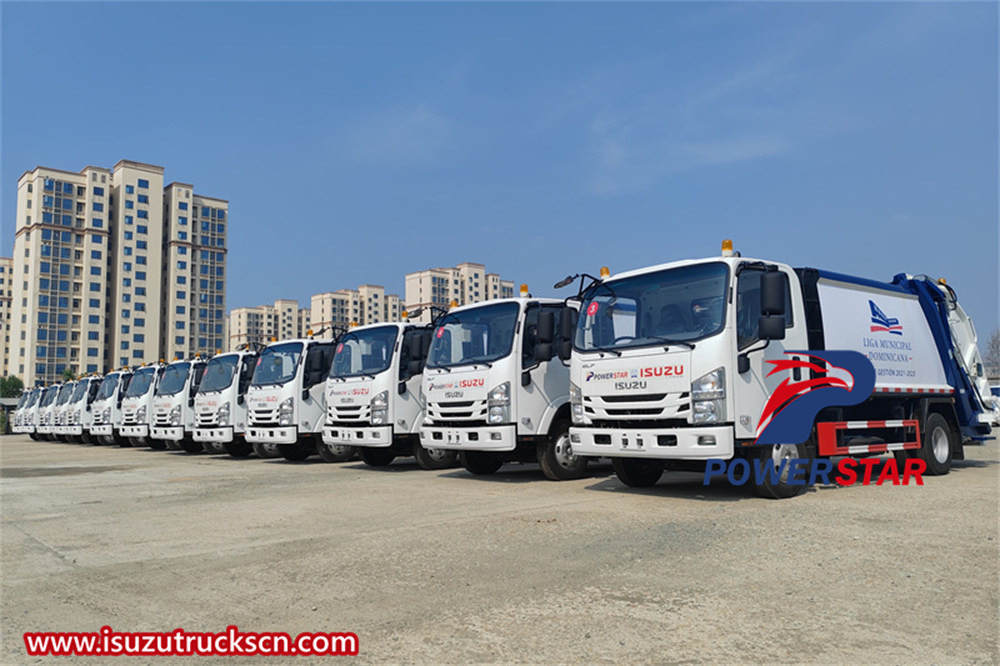

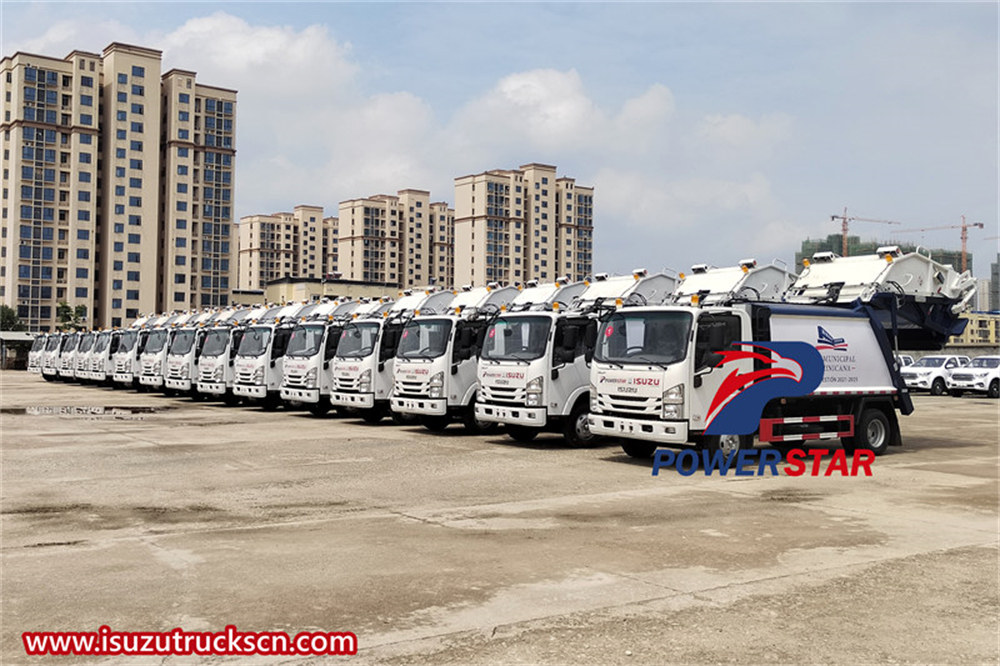

After the last inspection test on June 5, 2024, 20 units of Isuzu NPR garbage rear loader produced by POWERSTAR were successfully shipped to Latin America via Shanghai Port on June 11, 2024. This is another batch of special vehicles purchased by old customers in the Dominican Republic from our company.
These 20 unit Isuzu NPR garbage rear loader are modified on the basis of the Isuzu 700P chassis. They have a large capacity of 10 cubic meters, which fully meets the customer's demand for construction site waste disposal. After receiving the order from thecustomer, we communicated in detail about the order details, and then designed the drawings and put them into production according to his requirements. During this period, we kept in touch with the customer at any time to make sure the details were met, and strived to achieve perfection. After our methodical and meticulous production was completed, we inspected and tested it. After it was qualified, we arranged for the dispatch of the vehicle as soon as possible, and finally delivered the vehicle to the customer in good condition. Of course, the customer was still as satisfied with our final product as before.
The 20 unit ISUZU NPR garbage compactor truck are based on ISUZU 700P light chassis, equipped with ISUZU 190HP 4HK1-TCG61 engine Euro 6 diesel engine, MLD6-speed manual transmission. The compactor body is made of high-quality wear-resistant steel, with a capacity of up to 10CBM. The garbage compactor truck is equipped with China's well-known hydraulic cylinders and CAN bus control system.
Here is the parameter of those Isuzu 700P NPR rear loader:
Manufacturer
PowerStar Trucks Industry Co.,Limited
Product Name
Isuzu ELF 700P rear loader compactor truck
Main Technology Parameter
Product Model
PT5120GXW
Driving Type
4×2,left hand drive
Color
White,blue,or your choose
Weights
Rated payload weight(kg)
10000
GVW(KG)
12555
Curb weight(kg)
7500
Dimensions
Wheelbase(mm)
4475
Overall Dimension(mm)
7500×2150×2500
Box dimension
10 m3
Max speed(km/h)
95
Engine
Engine model
4HK1-TCG61(190HP)
Engine type
4 stroke water-cooled,inter-cooling
No. of cylinders
straight-4 cylinders
Displacement(L)
5193ml
Max. output (kw)
140kw
Emissions standard
Euro 6
Drive Line
Transmission
MLD 6 speeds,manual operation
Steering
Power steering
Brake
Oil brake with vacuum pump
Cab
Passengers in cab
3
Air container
Have
Standard configuration
Sound,,parking sensors
Axle
Front axle
4 tons
Rear axle
7 tons
Tire specification
Tire specification
7.00-16 standard tire,6 tires+1 spare tire
6m3 garbage compactor truck
Box volume
10m3
Box material
Side 4mm,bottom 5mm
Sewage tanker
200L
Compression ration
≥1:3.4
Loading time
8-10S
The cycle time of the loading
50-60S/per turn
Unloading model
Dump
Unloading time
30-40S
Hydraulic system pressure
16Mpa
The Isuzu 700P NPR compactor garbage truck has the following advantages:
1. **Efficient garbage compression system**:The vehicle is equipped with an advanced garbage compression system, which can effectively reduce the volume of garbage, improve transportation efficiency, reduce the number of transports, save time and cost.
2. **Reliable power system**: With strong power output and stable performance, it can cope with various roads and working conditions, and ensure the smooth progress of the garbage disposal process.
3. **Large-capacity garbage compression box**: The vehicle is equipped with a large-capacity garbage compression box, which can effectively store a large amount of garbage, improve work efficiency and carrying capacity.
4. **Intelligent control system**: Equipped with an intelligent control system, it can automatically control the garbage compression process, improve the convenience and accuracy of operation, and reduce human errors.
5. **Stable chassis structure**: The sturdy and durable chassis structure and excellent carrying capacity ensure the stability and safety of the garbage compression and transportation process.
6. **Cost and resource saving**: Through garbage compression technology, the volume of garbage is effectively reduced, the transportation cost and resource waste are reduced, which is environmentally friendly and meets the requirements of sustainable development.
7. **Professional design**: Designed specifically for waste treatment and transportation, taking into account user needs, providing efficient and reliable waste treatment solutions that meet industry requirements and improve work efficiency.
As a professional garbage truck manufacturer in China, POWERSTAR has been exporting ISUZU garbage compactors for many years and enjoys a good reputation. We produce high-quality garbage compactor trucks based on ISUZU chassis. We also customize garbage compactor bodies to fit customer chassis. Looking forward to your consultation.
