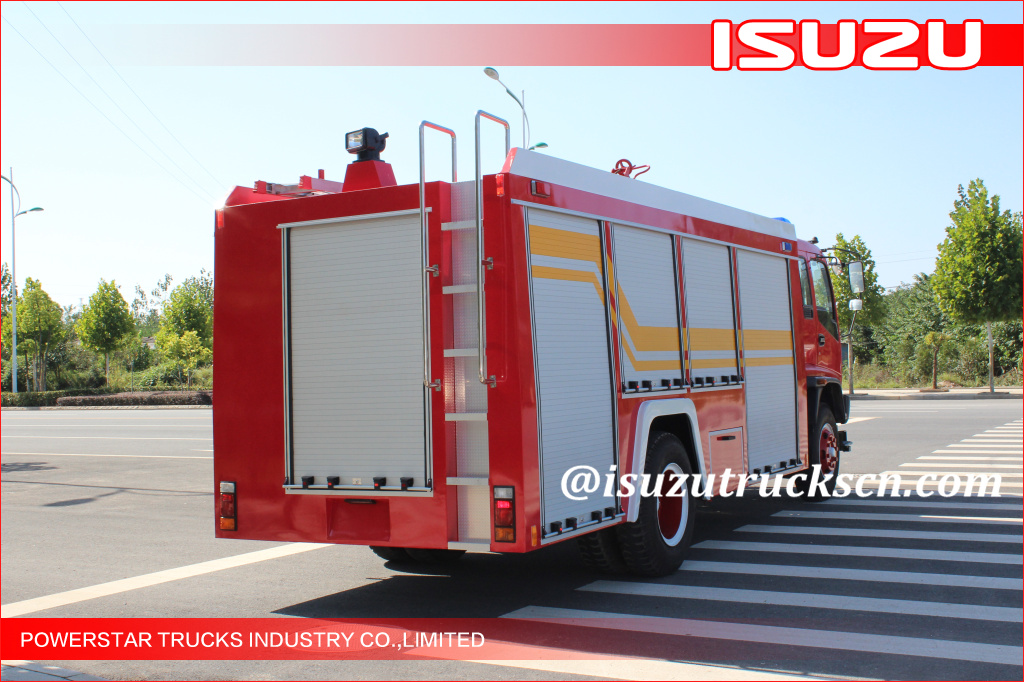

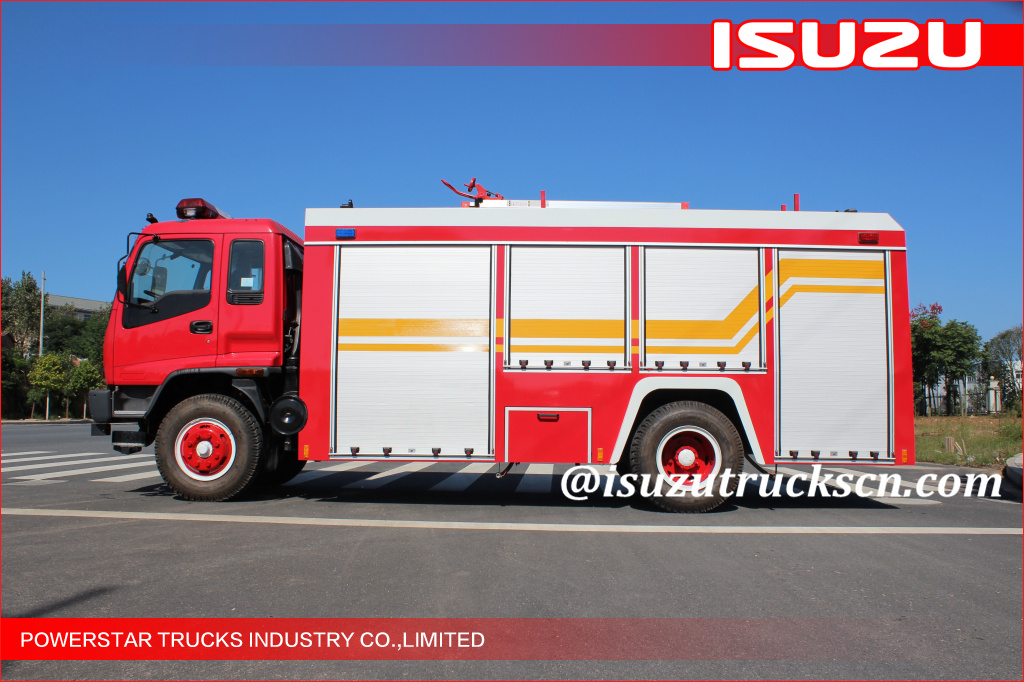

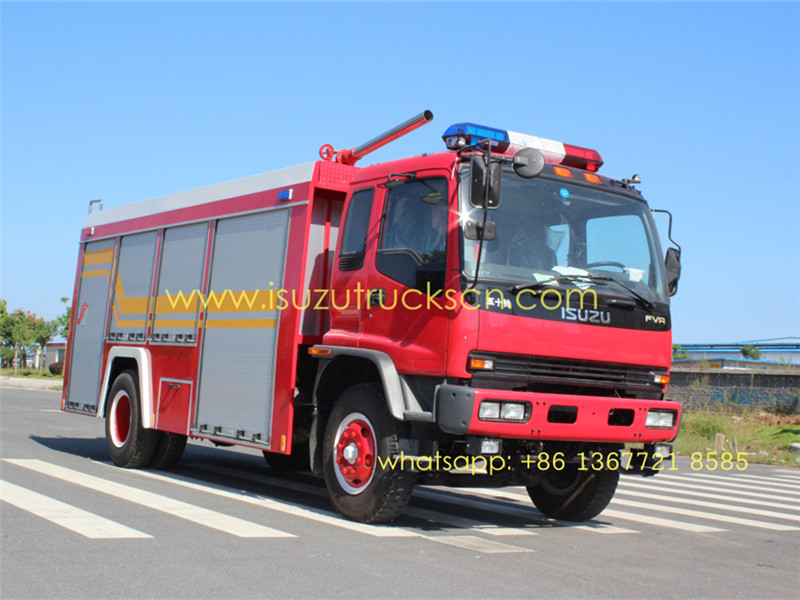

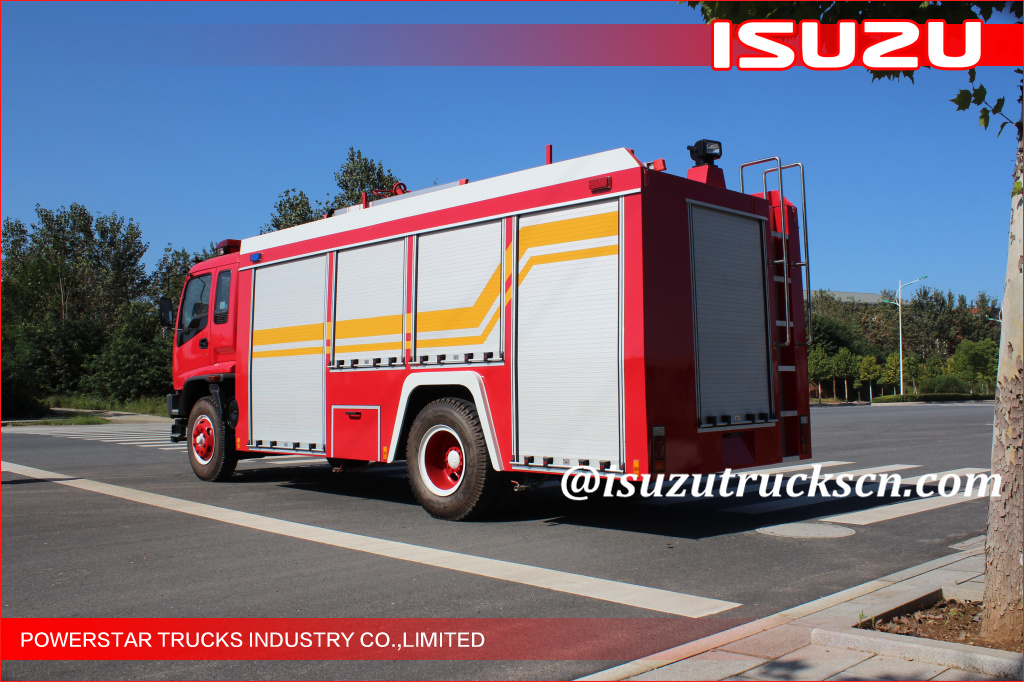

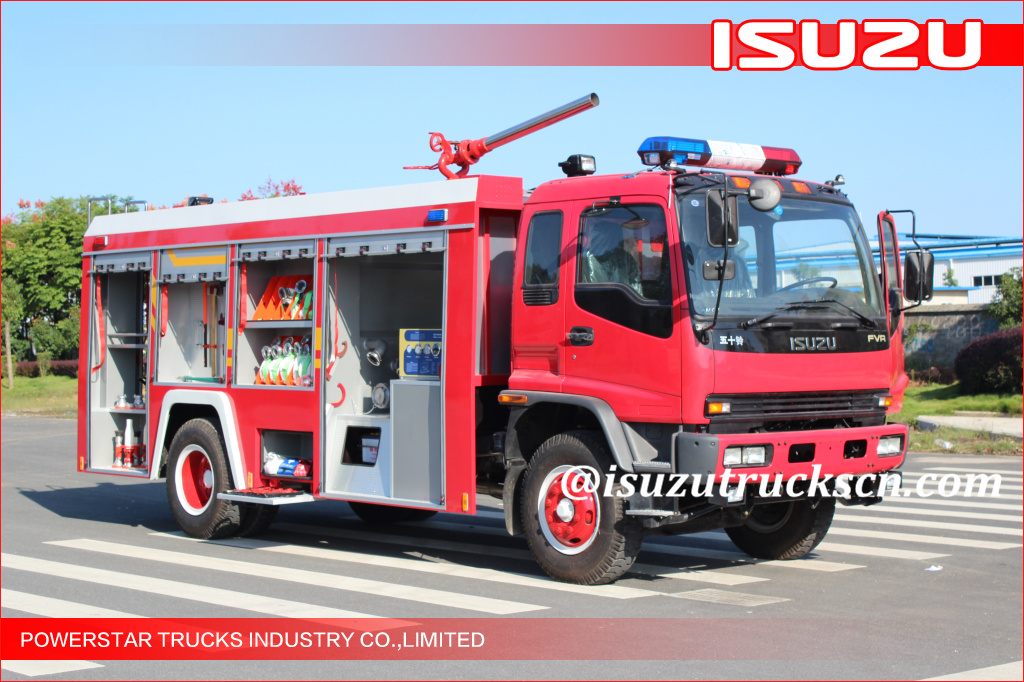

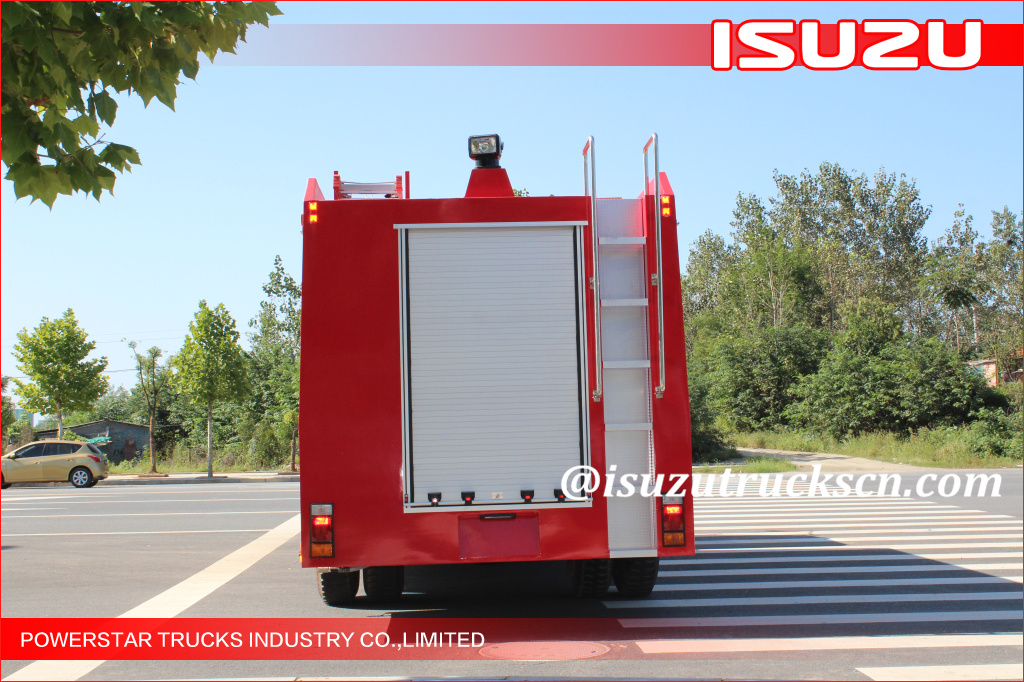

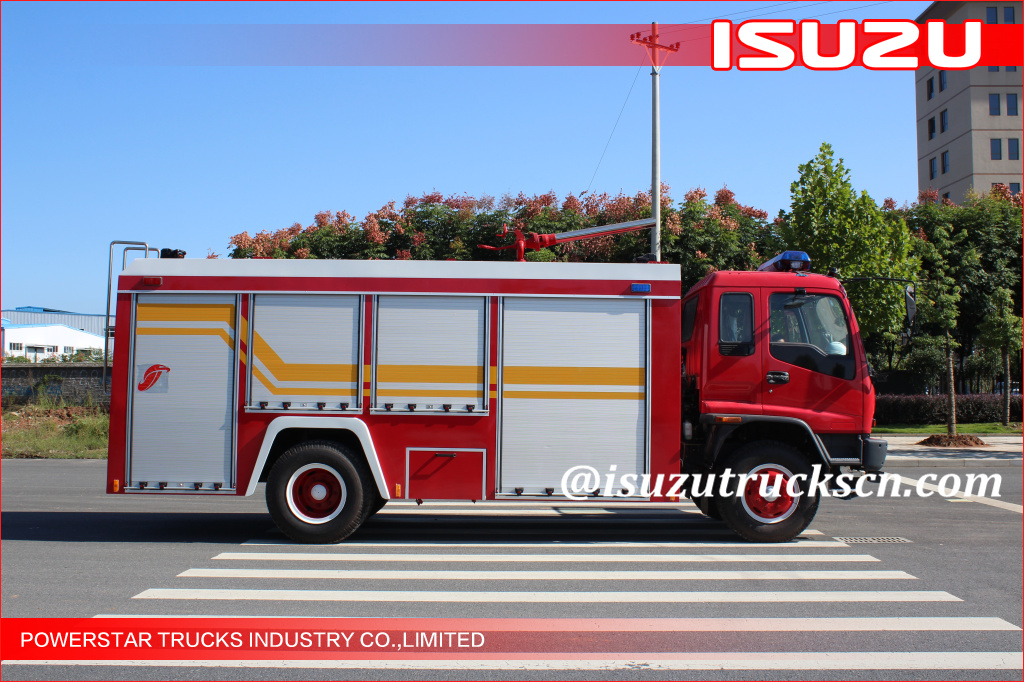

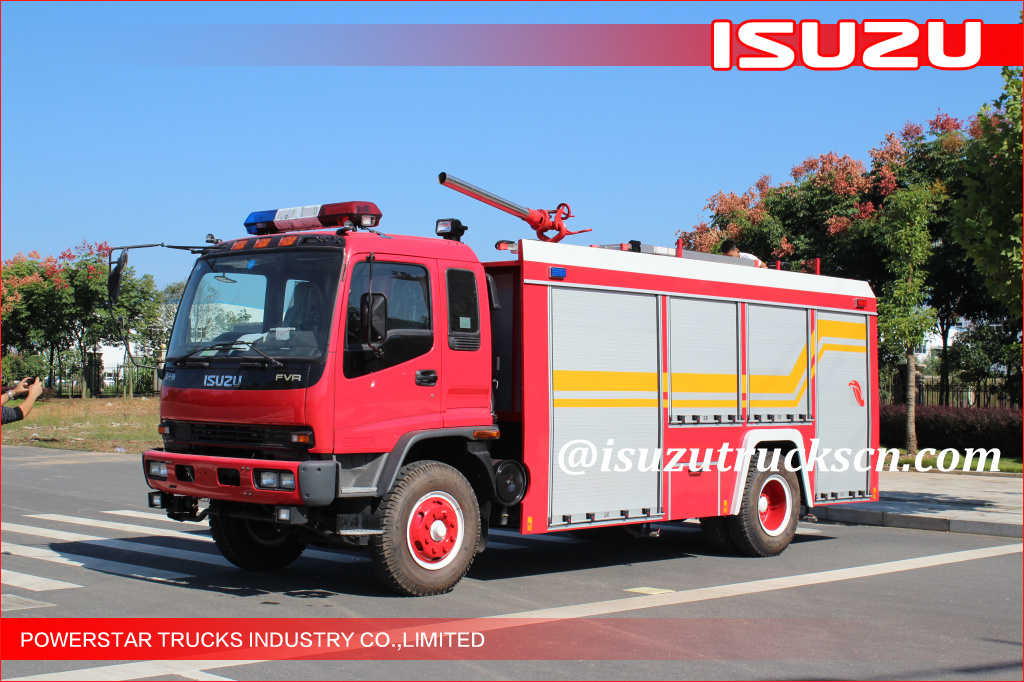

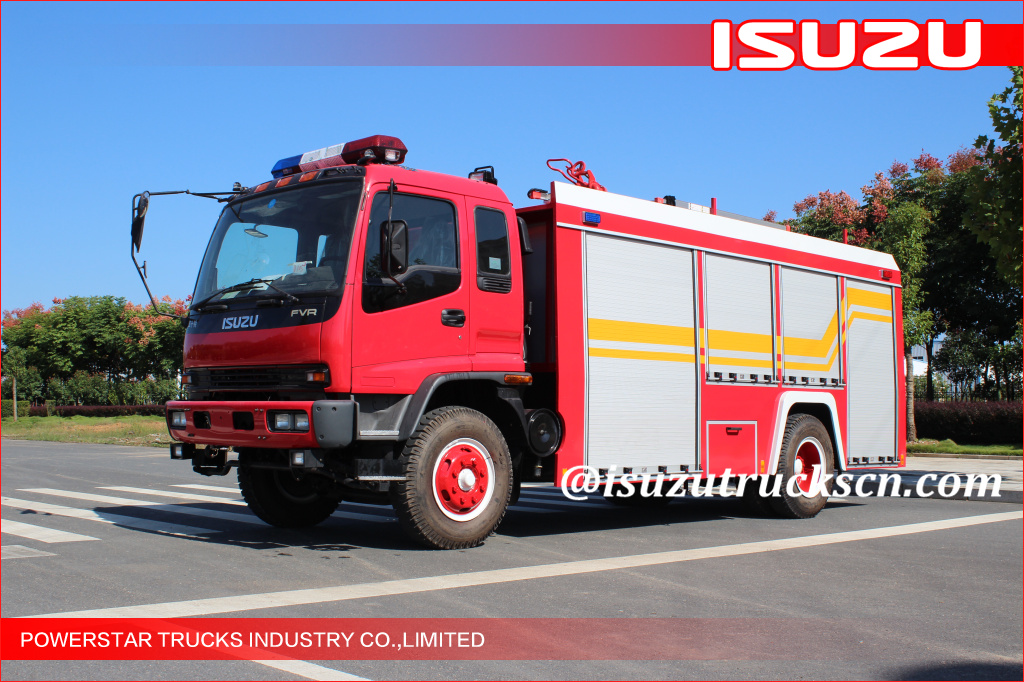

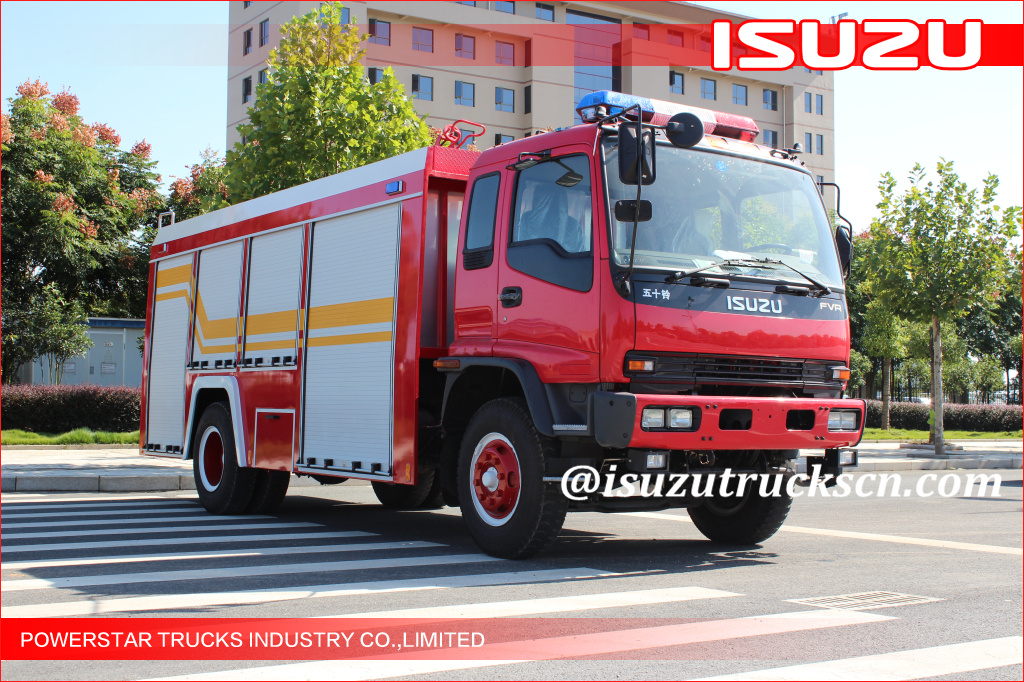

15000L ISUZU Fire Truck with Single Cabin
Main
specifications:
|
FVR
Heavy-duty chassis for Fire-fighting application |
||
|
Model |
PT5160GXF |
|
|
Driving Type |
4x2
(Left hand drive) |
|
|
Wheelbase |
4500
mm |
|
|
Overall Dimension |
8105mm×2500mm×3450mm mm |
|
|
Tank capacity |
4000L water + 1000L foam |
|
|
Fire Pump |
Rated low
pressure:1.0MPa, Flow rate:40L/S. Rear-mounted，Water delivery time：≤35s |
|
|
Fire Cannon |
Rated
pressure≤1.0MPa,Rated Flow rate:30L/s, Throw
range≥50m, Rotation angle：360°, |
|
|
Cab |
Single cab with Two
doors, 3 seats with safe belts. |
|
|
Engine |
Model: |
6HK1-TCNG40 |
|
Type: |
Diesel,
turbo charged inter-cooled, 6 cylinder |
|
|
Max.
Power: |
177
KW (240HP) |
|
|
Gearbox |
MLD
6-shift, mechanical type, 6 forward and 1 reverse with |
|
|
Tire |
10.00-20 |
|
|
Color |
Red (Any color & logos up to wish) |
|
|
Max Speed |
90
km/h |
|

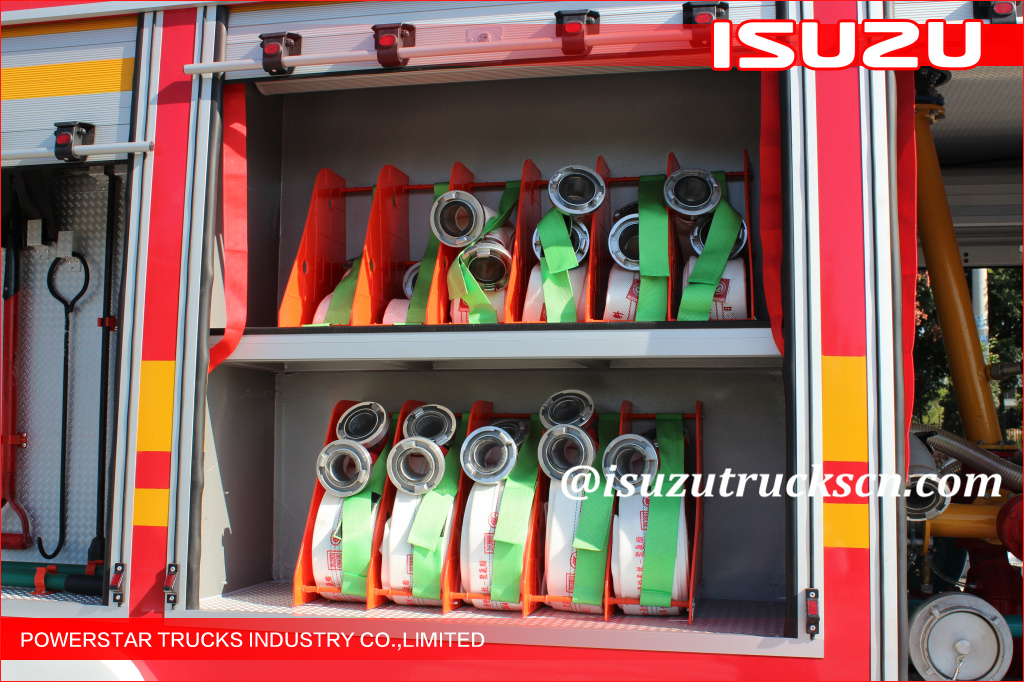

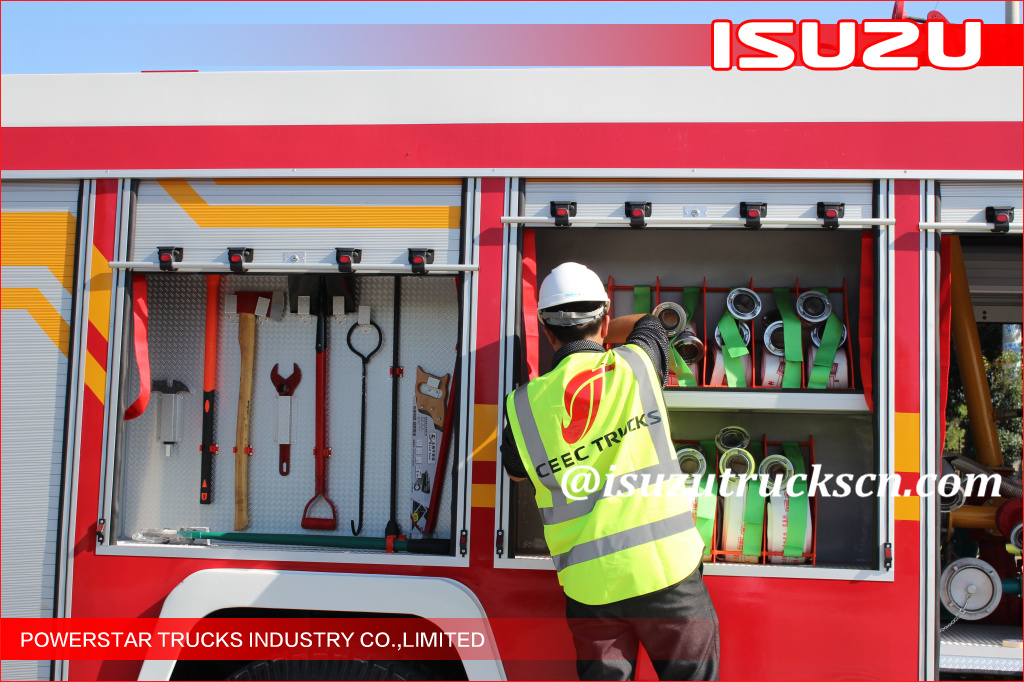

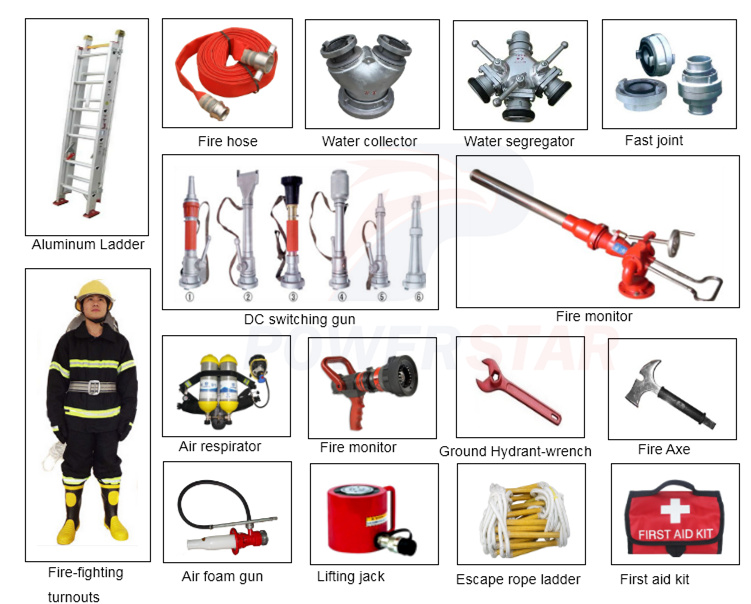

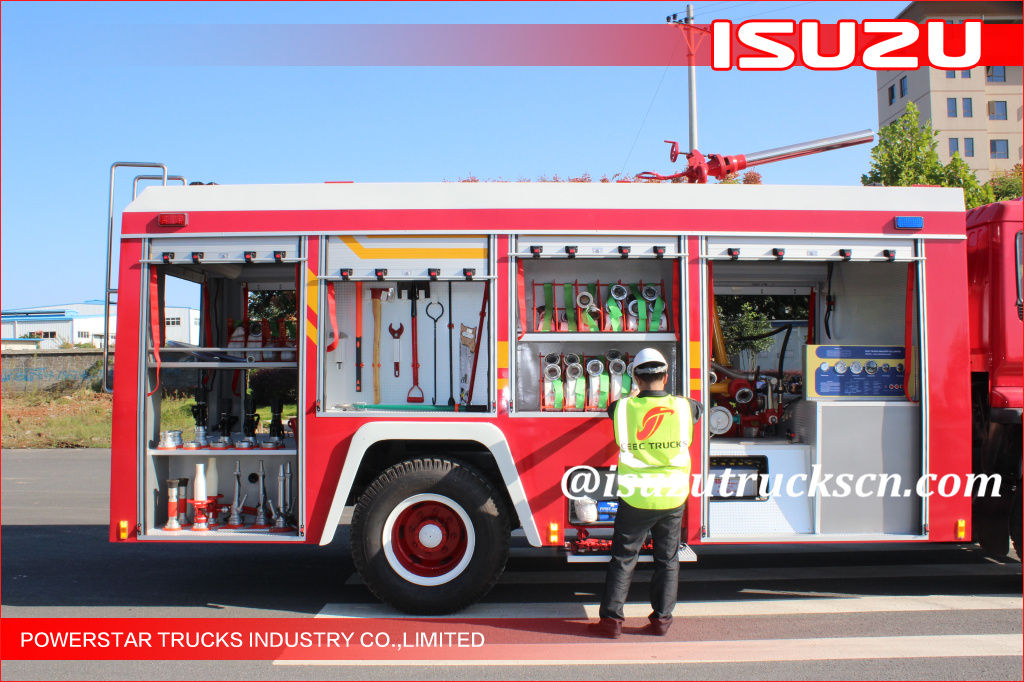

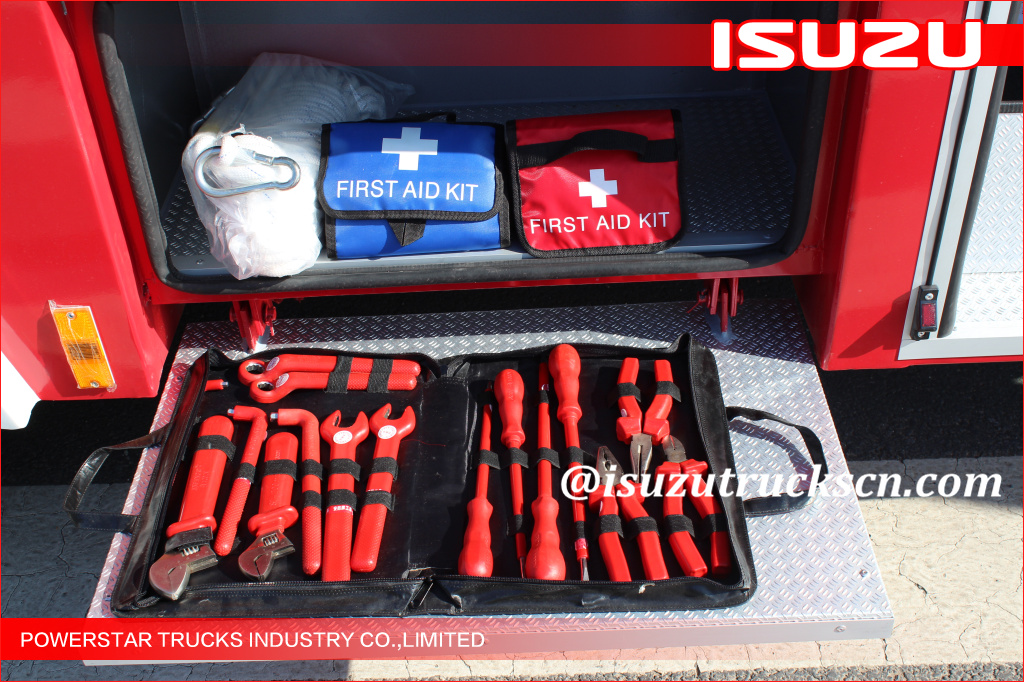

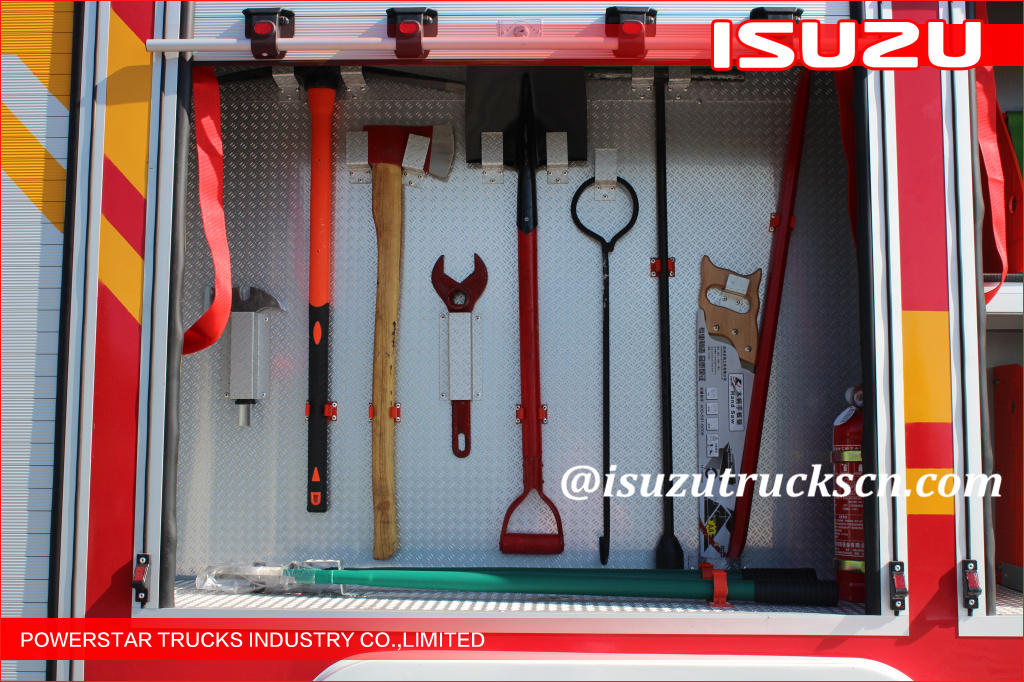

Accessories List:
(With below equipment, you can put into fire-fighting immediately)
Recently Customer
Build Examples:
|
