12016 New FTR ISUZU 190hp Foam fire truck for sale

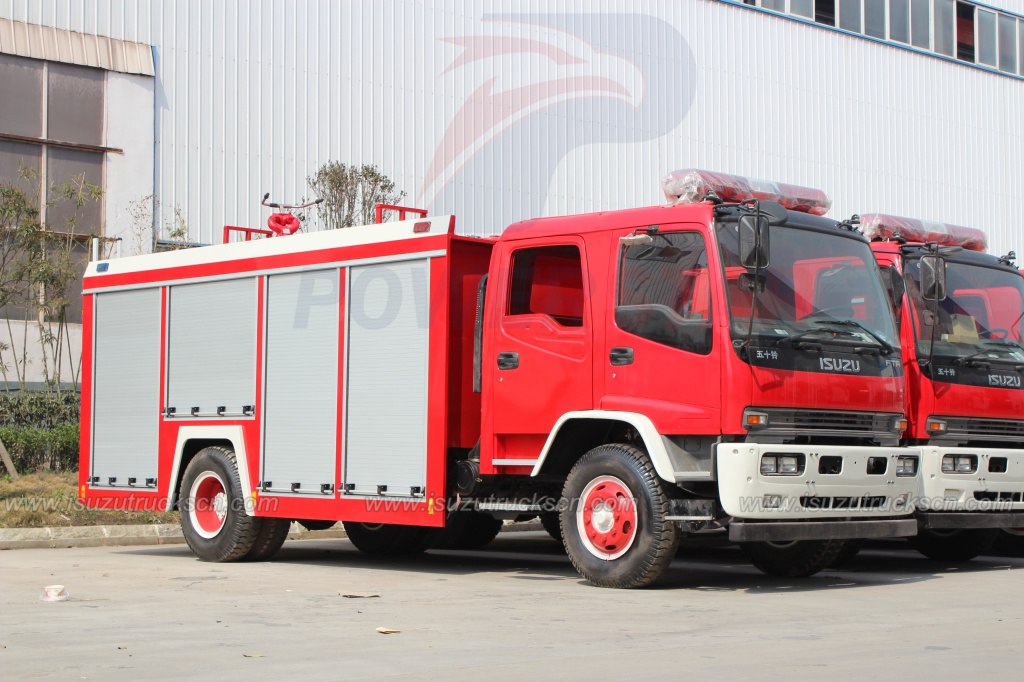

Front right view

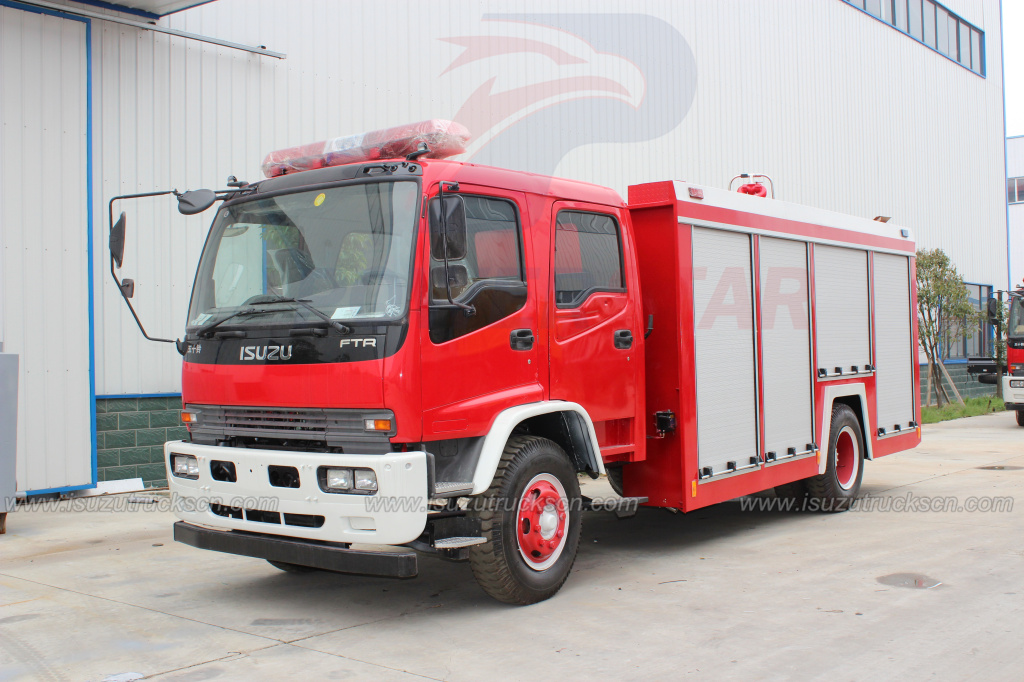

Front left view

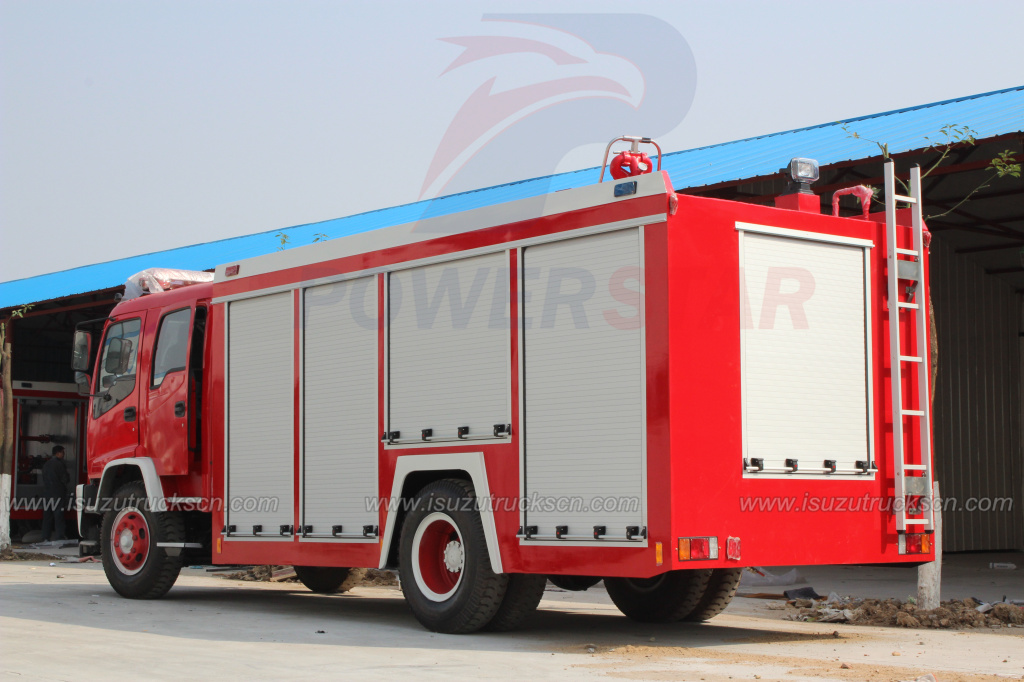

Rear left view

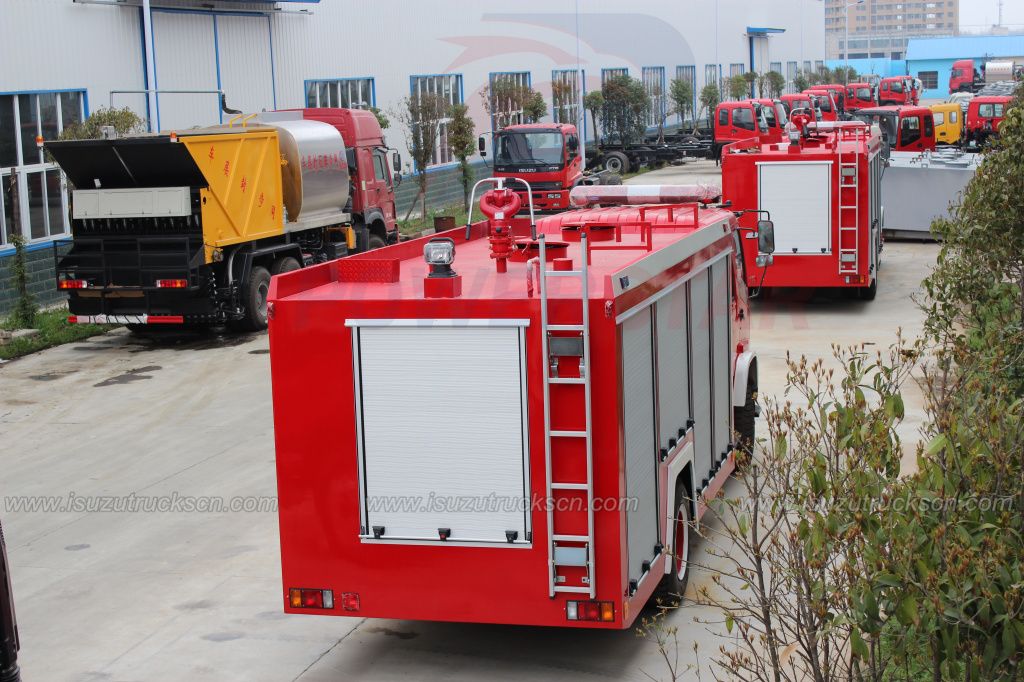

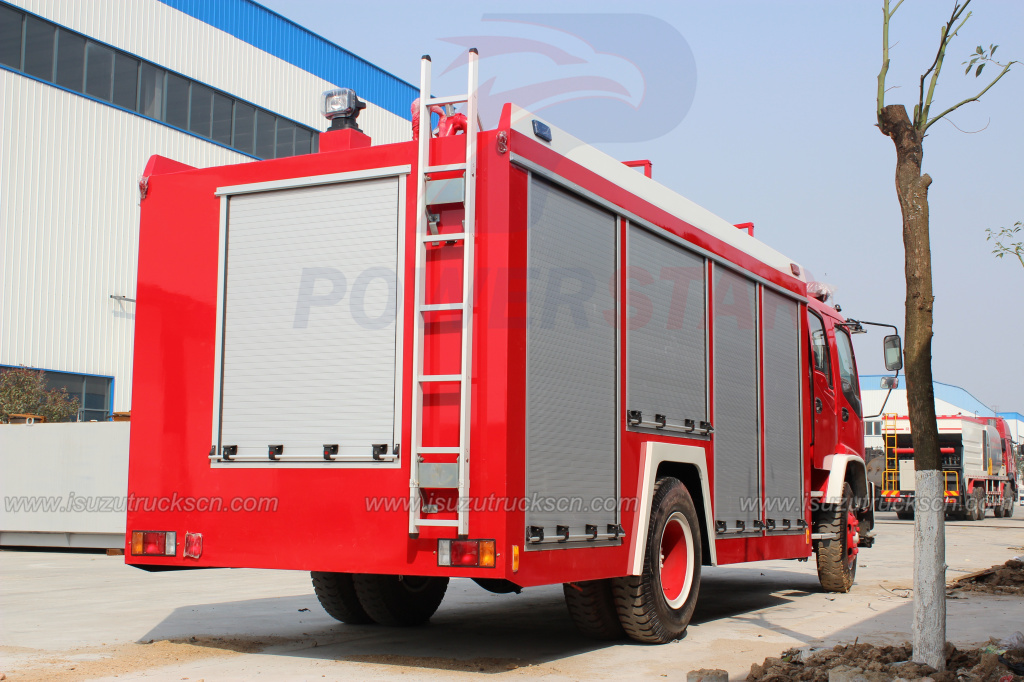

Rear right view

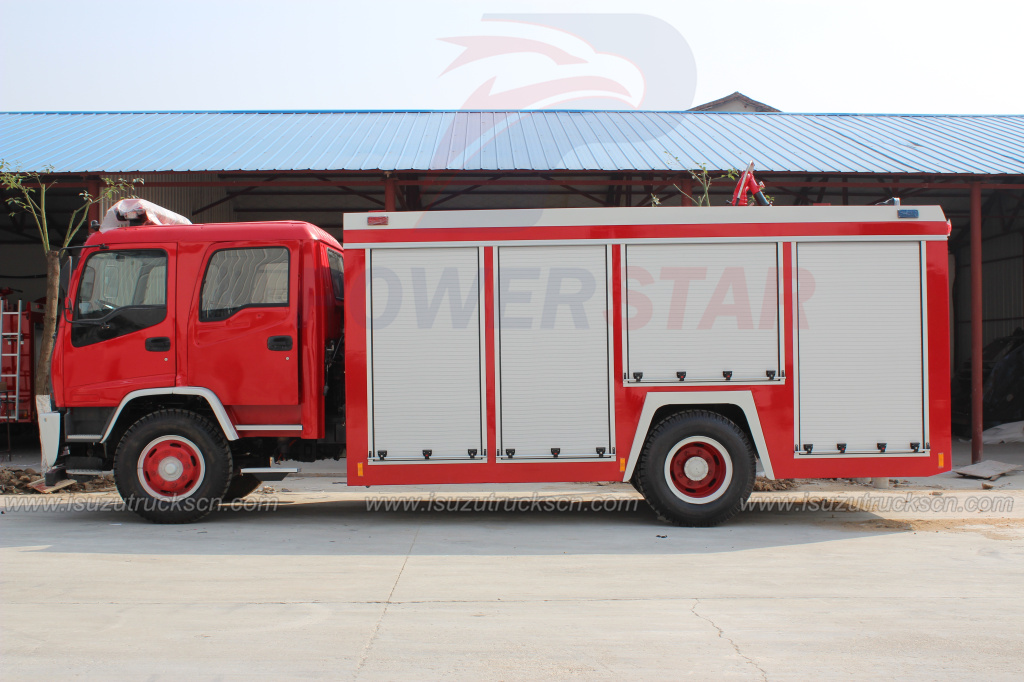

Left side view

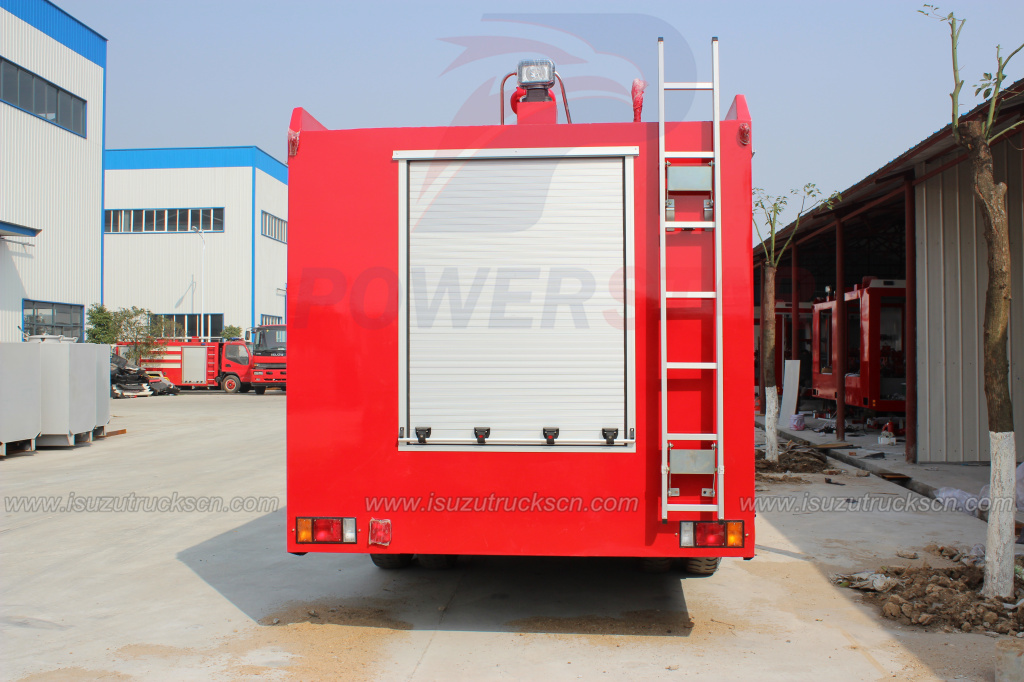

Rear view

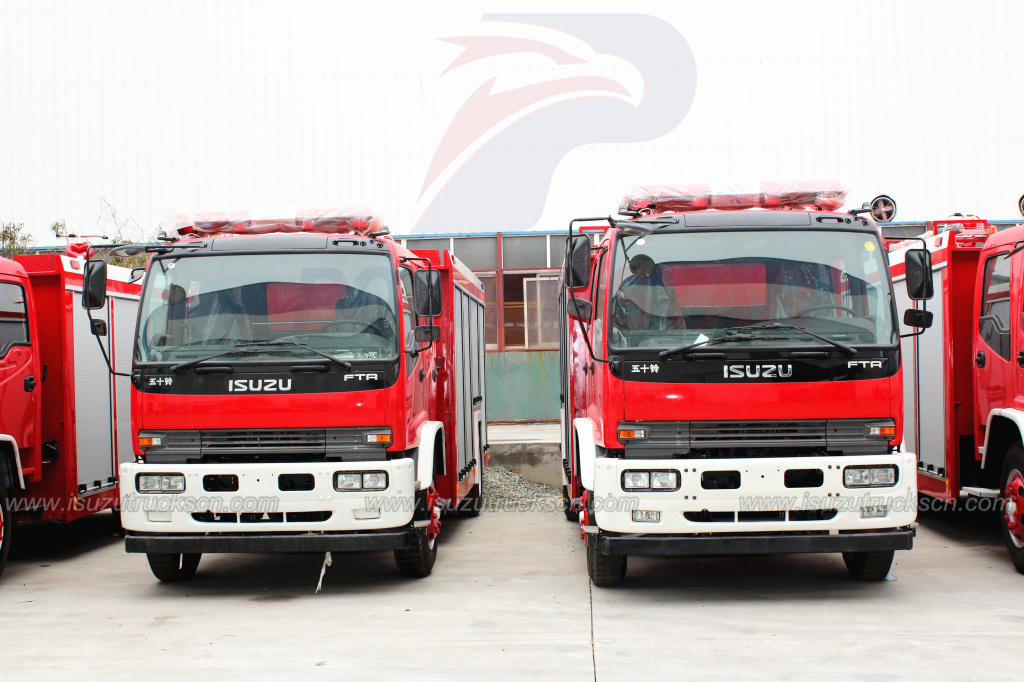

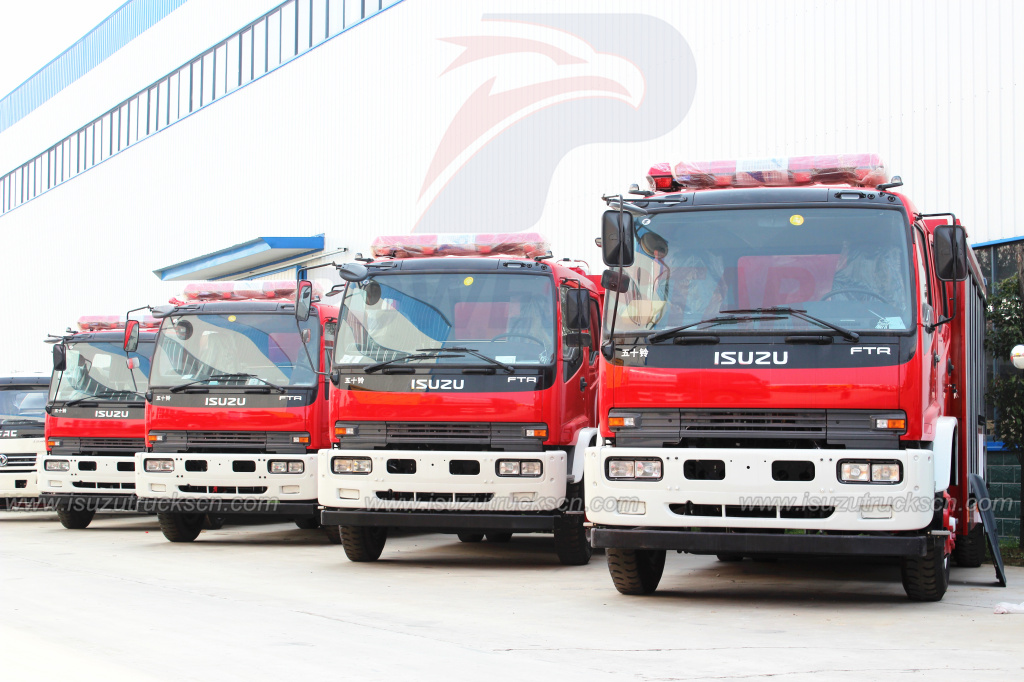

Front view

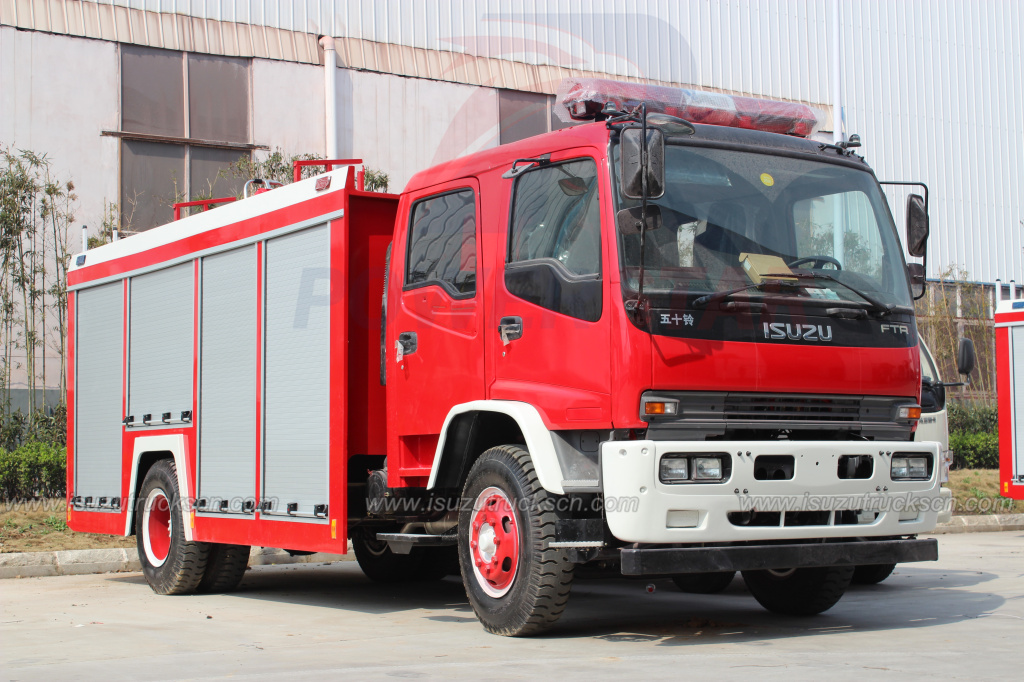

Front right view
Main specifications:
FTR Heavy-duty chassis for Fire-fighting application |
||
Model |
PT5150GXF |
|
Driving Type |
4x2 (Left hand drive) |
|
Wheelbase |
4500 mm |
|
Overall Dimension |
8105mm×2500mm×3450mm mm |
|
Tank capacity |
4000L water + 1000L foam |
|

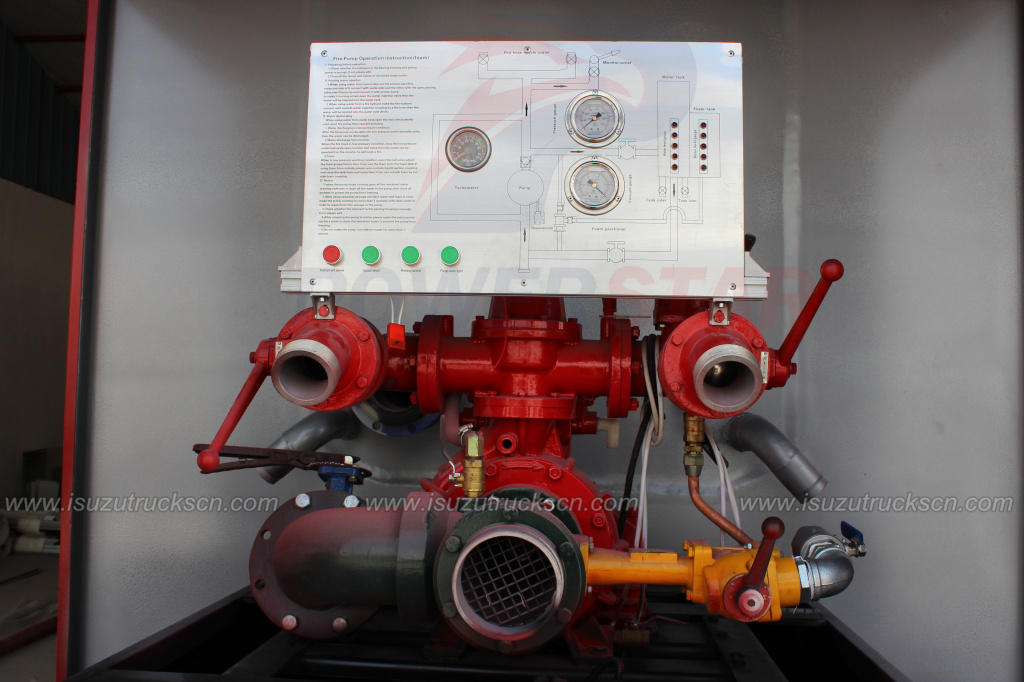

Fire Pump |
Rated low pressure:1.0MPa, Flow rate:40L/S. Rear-mounted，Water delivery time：≤35s |
|
Fire Cannon |
Rated pressure≤1.0MPa,Rated Flow rate:30L/s, Throw range≥50m, Rotation angle：360°, |
|
Cab |
Single cab with Two doors, 3 seats with safe belts. |
|
Engine |
Model: |
4HK1-TCG40 |
Type: |
Diesel, turbo charged inter-cooled, 6 cylinder |
|
Max. Power: |
139 KW (190HP) |
|
Gearbox |
MLD 6-shift, mechanical type, 6 forward and 1 reverse with |
|
Tire |
10.00-20 |
|
Color |
Red (Any color & logos up to wish) |
|
Max Speed |
90 km/h |
|
Accessories List:
(With below equipment, you can put into fire-fighting immediately)

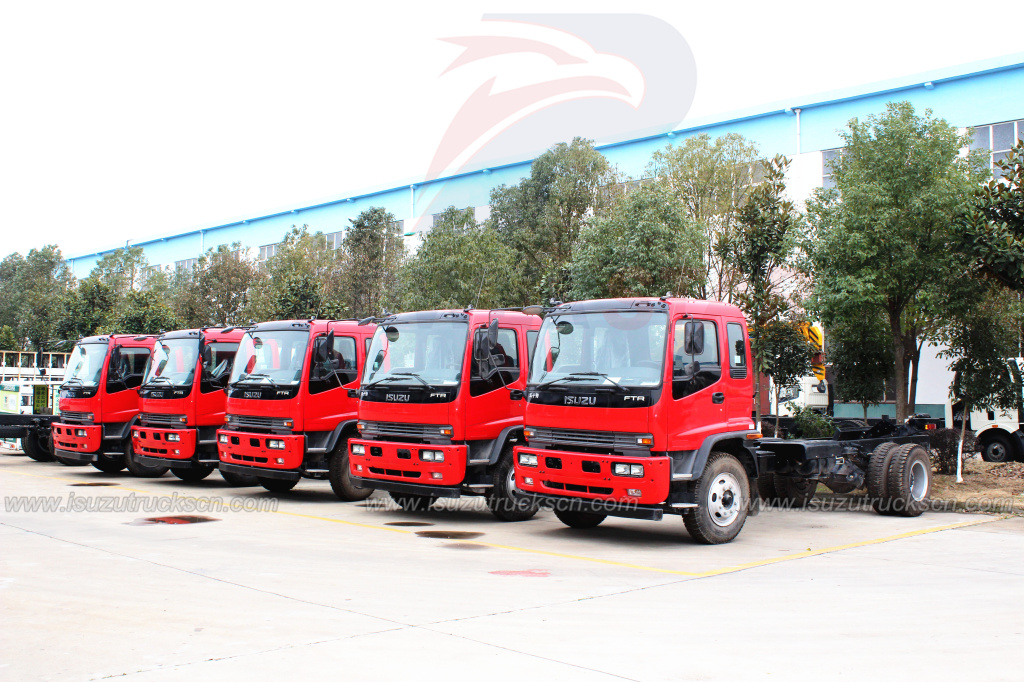

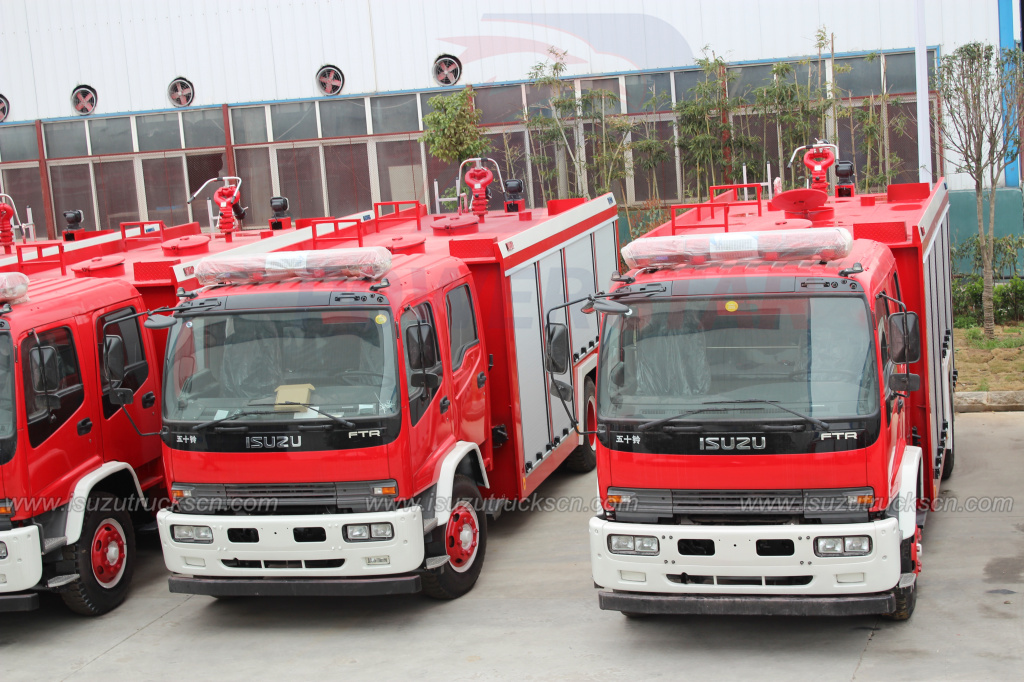

Recently Customer Build Examples:
|
