December 05, 2024

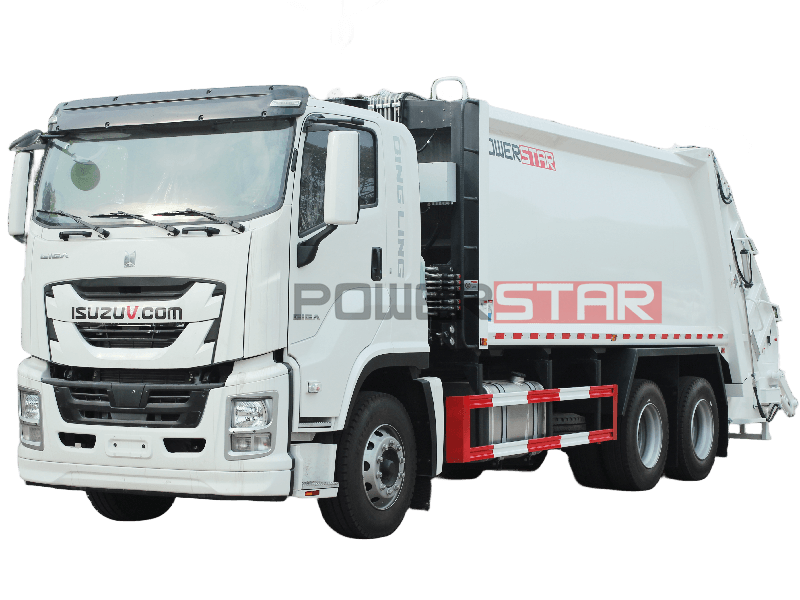

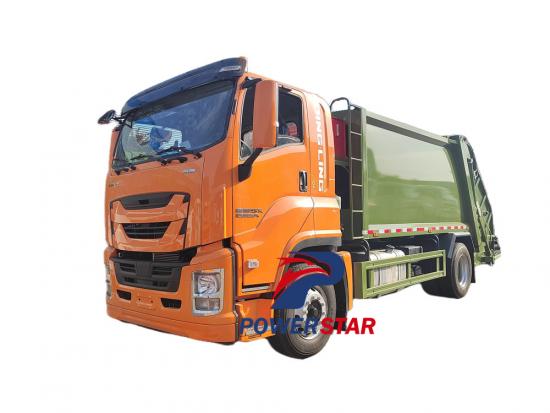

Isuzu GIGA 20 cbm 6UZ1 engine mobile garbage compactor truck
Isuzu GIGA mobile garbage compactor truck is a sanitation vehicle specially used for collecting urban residents' domestic garbage and other compressible garbage. It consists of a sealed garbage compartment, a hydraulic system, and an operating system. The whole vehicle is fully sealed, and it compresses and dumps by itself. All sewage in the compression process enters the sewage tank, which thoroughly solves the problem of secondary pollution in the process of garbage transportation. It has the advantages of high pressure, good sealing, easy operation, and safety.
Isuzu rear loader compactor truck (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, waste collection vehicle) is designed to collect and transport municipal solid waste. Its main function is to effectively compress and load garbage, thereby reducing the volume of garbage and increasing transportation efficiency. Isuzu rear loader garbage truck is widely used in urban garbage collection, domestic garbage treatment centers, factories and large commercial complexes, and is one of the indispensable facilities in modern cities.
Isuzu 20cbm mobile garbage compactor truck
Chassis
Chassis model number
Isuzu GIGA chassis
Cabin
Brand: ISUZU
GIGA row half cab, 6x4 left hand drive
3 seats, with air conditioner, USB connector radio
Vehicle Main Dimensions
Overall dimensions (L x W x H) mm:10500×2550×3400mm
Wheel base:4600+1370(mm)
Overhang (front/rear): 1370/2405 (mm)
Approach angle: 17°
Departure angle: 20°
Weight in KGS
Curb Weight:15530kg
Engine
Brand
ISUZU
Model
6UZ1 , EURO 6
Emission
9.839L
Horse Power(HP)
380HP
Gearbox
FAST 12-shift transmission, Manual, 12-speed forward, 2 reverse gears
Tire
295/80R22.5, 10 pcs+1 spare tire
Garbage box parameters
Volume
20 m3
Material
Carbon steel and high tensile steel
Standard equipment
1. Dustbin volume: 20m³
2. hydraulic control device
The main working principle of Isuzu mobile garbage compactor truck
1. Power transmission and hydraulic system drive
The Isuzu GIGA 6UZ1 engine is the core power source of the garbage truck. Its inline six-cylinder, supercharged and intercooled design provides strong and stable power output. The power generated by the engine is efficiently transmitted to the oil pump through the power take-off and the transmission shaft. After receiving the power, the oil pump generates high-pressure oil, which drives the relevant oil cylinders to work by controlling the switch on the multi-way reversing valve. This process realizes the perfect conversion from engine power to hydraulic system drive, providing a solid power foundation for subsequent garbage loading, compression and unloading.
2. Garbage loading and compactor process
Isuzu garbage trucks achieve garbage loading and compression through their unique hydraulic system. During the loading process, the hydraulic cylinder drives the filler, scraper and other mechanisms to deliver the garbage into the car. As the garbage is continuously added, the scraper is driven by the hydraulic system to crush and compress the garbage to ensure that the garbage can be tightly filled in the car. This process not only improves the loading efficiency of garbage, but also greatly saves space in the car, allowing more garbage to be processed in a single transport.
3. Garbage unloading and emission control
When the Isuzu garbage truck is full of garbage, the garbage can be unloaded by operating the hydraulic system. The hydraulic cylinder drives the unloading push plate to push the garbage out of the car. At the same time, the Isuzu 6UZ1 engine is also equipped with an advanced emission control system to ensure that emissions meet relevant regulatory requirements. During the unloading process, the engine still maintains stable operation, providing continuous power support for the unloading operation.
Isuzu 20 cbm mobile garbage compactor truck main functions:
1. Compactor of garbage: By using the compression device to compress the garbage well, the volume of garbage is reduced and space is saved.
2. Storage of garbage: The compressed garbage is stored in the car to prevent garbage from overflowing and polluting the environment.
3. Transportation of garbage: The stored garbage is transported to the designated treatment site to improve transportation efficiency and save costs.
4. Reduction of pollution: Isuzu rear loader compactor truck can effectively store and transport garbage, which can reduce garbage overflow and reduce environmental pollution.
5. Automated operation: Isuzu garbage compactor truck is also equipped with an automatic control system, which can realize automatic compression, transportation and unloading of garbage, improve work efficiency and save labor costs.
-
December 04, 2024

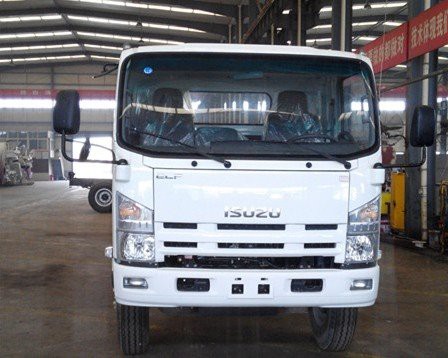

Isuzu ELF NKR 4 cubic vacuum sewage suction truck
Isuzu ELF NKR vacuum sewage suction truck is a special cleaning equipment specially used for cleaning sewage, sludge and solid waste. It is equipped with a powerful vacuum pump, which extracts the air inside the tank to form a negative pressure environment, sucks sewage, sludge, etc. into the tank, and transports them to the designated location for treatment, avoiding secondary pollution of these pollutants to the environment.
Isuzu vacuum sewage suction truck (also called vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
Isuzu ELF NKR vacuum sewage suction truck
Vehicle
Isuzu vacuum sewage suction truck
Overall dimension (mm)
7850×2470×3200
Sewage tank (m3)
4
Gross vehicle weight (kg)
7300
Wheel base (mm)
3360
Chassis Parameter
Cabin
ISUZU 3D cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt, Mechanical suspension
Drive form
4×2 Left-hand drive
Engine
Brand: ISUZU
Model: 4KH1,120hp
Displacement: 2999ml
Emission standard: Euro 6
Gearbox
Isuzu MSB, 5 forward,1 reverse, manual operated
Tire model
700R16
No.of tires
6pcs, with 1pc spare tire
Superstructure Parameter
Characteristic
1. Sewage tank volume 4000 liter.
2. Sewage tank material is carbon steel,thickness 5mm.
3. Sewage suction pipe 1pcs, length 6m.
4. Hydraulic lifting sewage tank,rear cover can open.
5. Equipped with PTO.

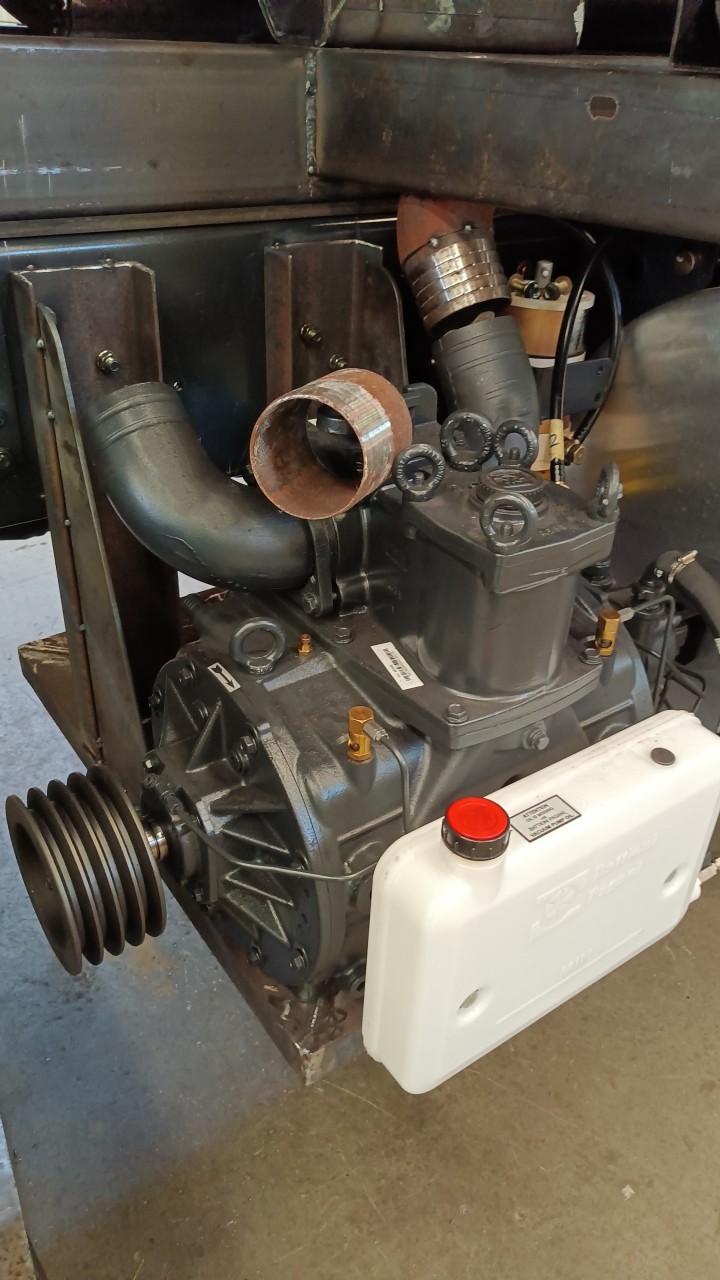

6. Equipped with vacuum pump.
7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit.
1.Isuzu ELF sewer jetting tanker truck has strong suction and sewage discharge capabilities.
The vehicle is equipped with an efficient vacuum pump and vacuum cleaner, which can quickly absorb various dirt and debris, including dust, waste, road drain sludge, etc. At the same time, the vehicle also has a flexible sewage discharge function, and can choose different unloading methods, such as rear unloading or self-unloading, which is convenient for users to choose the most appropriate operation method according to actual conditions, and improve work efficiency and cleaning effect.
2.Isuzu vacuum sewage suction truck adopts advanced control system and operation platform.
The vehicle is equipped with an integrated operation control system, and users can easily complete various function settings and operation instructions, including starting the vacuum pump, adjusting the suction force, and controlling the unloading operation. In addition, the vehicle can also be customized according to user needs. Additional functional modules, such as cleaning function, high-pressure washing system, etc., enhance the versatility and scope of application of the vehicle.
3.Isuzu vacuum suction truck has stable performance and reliable quality assurance.
This model adopts the original chassis of the Isuzu brand, with excellent load-bearing capacity and stability, ensuring the safety and reliability of the vehicle in a high-intensity working environment. At the same time, the vehicle adopts high-quality sewage suction equipment and piping system, which has been carefully designed and inspected through production process, ensuring the characteristics of strong suction, clean sewage discharge and long service life. Users can choose it with confidence.
Features of Isuzu vacuum suction truck:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life.
-
December 03, 2024

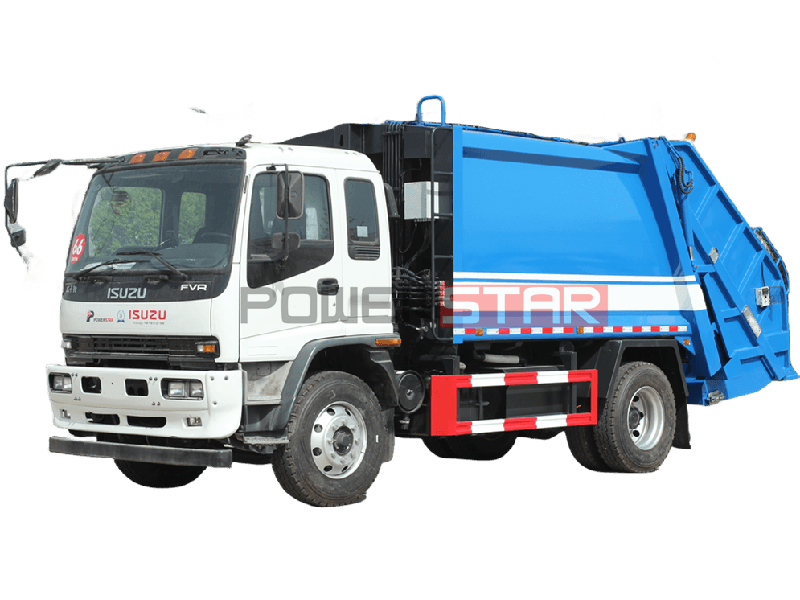

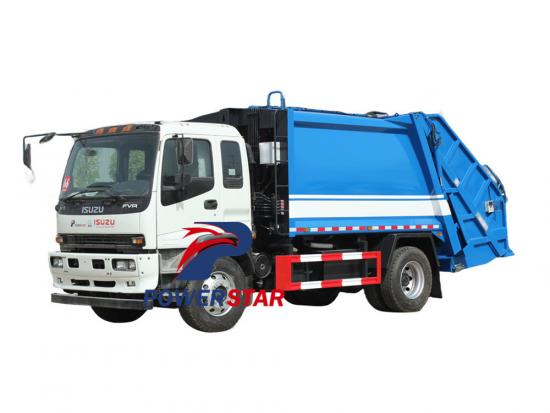

Isuzu 5X GIGA 6HK1 engine 14cbm rear loader garbage truck
Isuzu 5X GIGA 14cbm rear loader garbage truck is an efficient and environmentally friendly equipment designed for urban garbage disposal. It adopts advanced compression technology to effectively collect urban domestic garbage and construction waste. During the collection process, Isuzu rear loader garbage truck can reduce the number of transportation times and space occupation, and improve the efficiency of garbage disposal. It has the characteristics of good sealing, large loading capacity, and easy operation. At the same time, its good environmental performance helps to improve the level of environmental sanitation.
Isuzu rear loader garbage truck (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, waste collection vehicle) is designed to collect and transport municipal solid waste.
Isuzu rear loader garbage truck is a special vehicle used for garbage disposal and transportation. Its main function is to effectively compress and load garbage, thereby reducing the volume of garbage and increasing transportation efficiency. It is widely used in urban garbage collection and transportation, domestic garbage treatment centers, factories and large commercial complexes, and is one of the indispensable facilities in modern cities.
The 14cbm rear loader on the Isuzu 5X GIGA garbage truck offers ample storage space for collecting and transporting waste. The rear loader features a hydraulic lifting mechanism that allows for easy loading and unloading of garbage bins and containers. With a capacity of 14 cubic meters, this rear loader can accommodate a large volume of waste, reducing the need for frequent trips to the disposal site.
Isuzu 5X GIGA 14cbm rear loader garbage truck
Chassis
Chassis model number
Isuzu new FVR chassis
Cabin
Brand: ISUZU
FVR row half cab, 4x2 left hand drive
3 seats, with air conditioner, USB connector radio
Vehicle Main Dimensions
Overall dimensions (L x W x H) mm: 8200X2500X3300mm
Wheel base: 4500 (mm)
Overhang (front/rear): 1335/1735 (mm)
Approach angle: 15°
Departure angle: 17°
Weight in KGS
Curb Weight:9800 kg
Max. driving speed(km/h)
105
Engine
Brand
ISUZU
Model
6HK1 , EURO 6
Emission
7.79L
Horse Power(HP)
240HP
Gearbox
FAST 8-shift transmission, Manual, 8-speed forward, 1 reverse gears
Tire
295/80R22.5, 6 pcs+1 spare tire
Axle
Front axles 6.3t, rear axle13t
Garbage box parameters
Volume
14 m3
Material
Carbon steel and high tensile steel
Standard equipment
1. Dustbin volume: 14m³
2. hydraulic control device
Features of Isuzu 5X GIGA 14cbm rear loader garbage truck
1. High compression ratio: The compression ratio refers to the reduction ratio achieved by the garbage compactor truck after the original garbage volume is compressed by the compression mechanism and other equipment during garbage compression processing. Isuzu garbage compactor trucks have a high compression ratio of up to 4:1. This means that they can accommodate more garbage in a smaller space, thereby reducing the number of transportations and saving transportation costs.
2. Large loading capacity: The loading capacity of Isuzu waste collector truck refers to the amount or weight of garbage that the vehicle can load at one time, which is one of the important indicators for measuring the performance and efficiency of compression garbage trucks. The loading capacity of waste collector trucks is closely related to the design of its compression mechanism. The higher the compression ratio of the compression mechanism, the greater the compression of the garbage, and the greater the loading capacity. Because the garbage is compressed, vehicles of the same specifications can load more garbage, which improves work efficiency.
3. Convenient operation: The operating system plays a vital role in its functionality and intelligence. The operating system refers to the software system that controls and manages various operations and functions of the garbage compactor truck. It directly affects the working efficiency, stability and user experience of the Isuzu garbage compactor truck.
How Isuzu rear loader garbage truck works
1. Garbage collection
When the Isuzu trash compactor truck arrives at the garbage dump, the staff uses various equipment to load the garbage into the compartment. These equipment may include garbage pushing mechanical devices, grabbing devices or suction cup devices. When loading the garbage into the compartment, it is necessary to pay attention to classification and subpackaging for subsequent processing and recycling.
2. Garbage compactor
There is a special compression device in the compartment of the Isuzu garbage collector truck, which can compress the garbage. The compression device is usually controlled by a hydraulic system and powered by a hydraulic cylinder. When the garbage truck is full of garbage, the compression device starts to work. Under the action of the hydraulic cylinder, the garbage is compressed, thereby reducing the volume of the garbage.
3. Garbage transportation
When the garbage is compressed, transportation begins. Isuzu garbage disposal trucks are usually equipped with garbage compressors or garbage bins. During its operation, the system will reasonably arrange the use of the garbage bin through the garbage bin diverter to improve transportation efficiency and garbage capacity. During transportation, as the vehicle moves, the garbage bin is tilted back and forth several times to ensure that the garbage is fully compacted and filled.
4. Waste Disposal
Once arriving at the waste treatment plant or disposal site, the Isuzu rear loader compactor truck will unload the waste. The compactor will lift the truck bed so that the waste can be dumped into the disposal area.
-
November 29, 2024

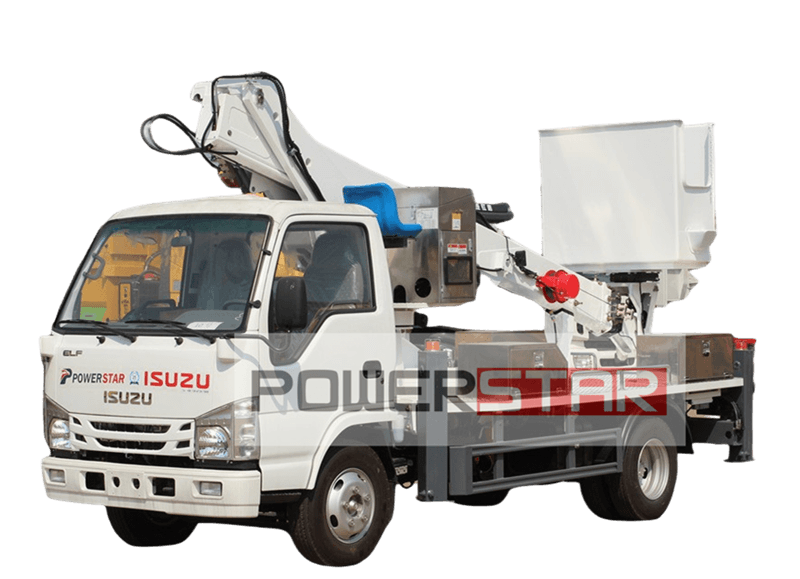

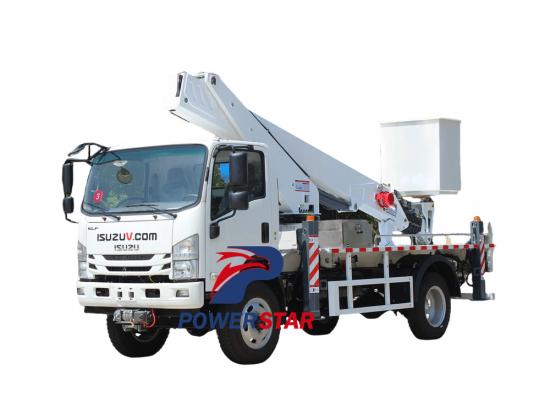

Isuzu ELF NKR double cabin 16 meter aerial manlift truck
The Isuzu ELF aerial manlift truck is a specialized construction machinery equipment, mainly used for aerial work in construction, maintenance, cleaning and other projects. It is equipped with a telescopic arm and platform, which enables workers to easily reach heights without the need to use dangerous ladders or scaffolding to perform various tasks such as repairing building facades, installing billboards or cleaning windows.
The working principle of Isuzu telescopic aerial truck is mainly realized through hydraulic system and electrical control system. The hydraulic system mainly includes hydraulic pump, hydraulic cylinder, hydraulic pipeline and control valve, which work together to complete the lifting, extension and rotation of the aerial work vehicle. The electrical control system controls the operation of the aerial work vehicle through electrical equipment to realize the control and operation of various functions.
Isuzu ELF 16 meter aerial work vehicle
Main specification
Chassis brand
ISUZU
Chassis model
PT1620BUCAY
Overall dimension(L*W*H)
6800X2050X3000mm
Gross / Curb weight
7300kg / 4990kg
Chassis
Drive modle
4X2 left hand drive
Wheel Base
3815 mm
Tyre size & number
700R16, with one spare tyre
Fuel/Engine type:
Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail
Engine model
4KH1
Engine horse power
140HP (103KW)
Emission
Euro 6
Transmission
5 speed forward, 1 reverse
Working condition
Maximum operating height
16 m
Max. bucket bottom height
14 m
Rotation
360°
Boom Type
3Sections telescopic boom
Outrigger type
Outrigger type
Front V Rear H type. Controlled independently
Outrigger span
Vertical
4000mm
horizontal
4350mm
Basket
Rated loading weight
200kg
L*W*H
1500x700x1150mm
Operation system
Operation
4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever.
Control system
Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation
Leveling system
Hydraulic automatic leveling
Security configuration
Automatic interlocking device for up and down
For locking up and down the truck to prevent the risk of misoperation.
Basket
360 degree rotation
Horizontal function
Real time display
Emergency electric emergency pump
When the engine and main pump failure, the operator can be sent back to the ground.
The lifting function of Isuzu aerial work platform truck is to deliver hydraulic oil to the hydraulic cylinder through the hydraulic pump, and the hydraulic cylinder pushes the arm of the aerial work vehicle up or down under the action of the hydraulic oil. The hydraulic pump controls the flow and direction of the hydraulic oil through the control valve, thereby realizing the lifting function of the aerial manlift truck. The telescopic function of Isuzu aerial work platform truck is realized by the telescopic parts of the hydraulic cylinder, which can make the arm of the aerial work vehicle extend and retract in the horizontal direction, thereby realizing the function of crossing obstacles or reaching distant targets.
Isuzu aerial work vehicle superstructure :
1. Aerial working height 14m,16m,18m,20m,20m,22m,24m,26m,28m,30m,32m.
2. the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure.
3. Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket.
4. truck equipped with two rotating amber lights.
5. Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.
Isuzu ELF aerial manlift truck has the following features:
1. Improve work efficiency: Isuzu aerial manlift truck can quickly lift operators to a high place to achieve high-altitude operations, greatly shorten working time and improve work efficiency.
2. Ensure safety: Isuzu telescopic aerial truck has a stable structure and reliable hydraulic system, which can ensure the safety of operators during high-altitude operations and effectively reduce work risks.
3. Versatility: It can be equipped with different working platforms and functions according to specific work needs, and can be applied to various high-altitude work scenes, such as construction, power maintenance, bridge maintenance, etc.
4. Flexibility: The operation is simple and flexible. Operators can easily realize lifting, telescoping and other operations through the control panel or remote control, which is suitable for various high-altitude working environments.
5. Energy saving and environmental protection: It adopts a hydraulic drive system, which has no noise and no exhaust emissions during work, meets environmental protection requirements, and is energy-saving and environmentally friendly.
-
November 20, 2024

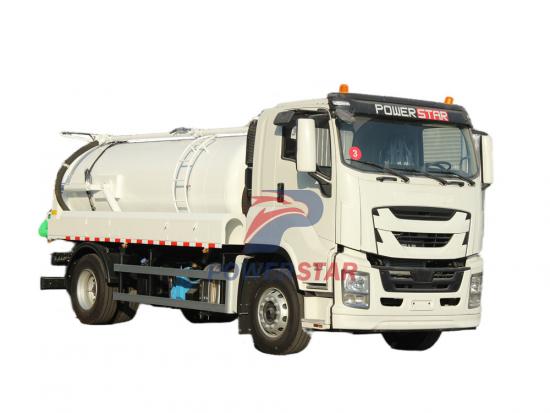

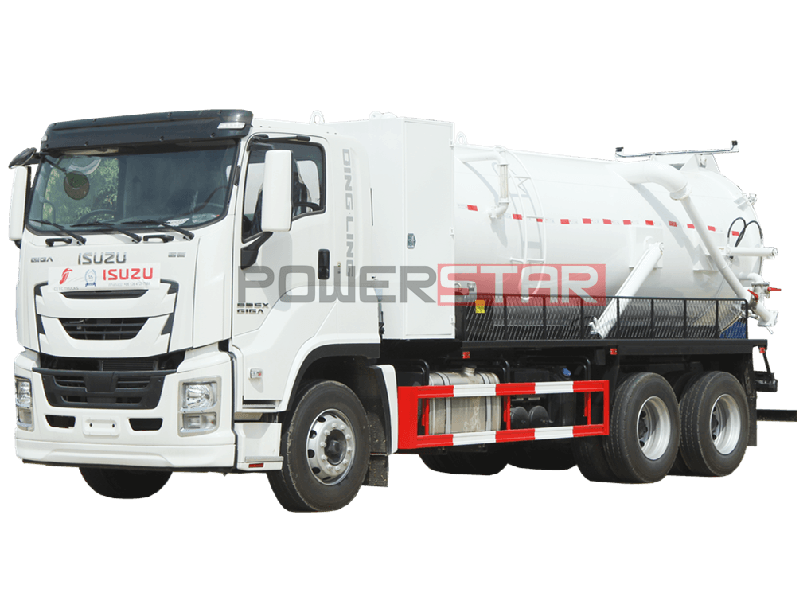

Custom made Isuzu GIGA vacuum sewage suction truck are export to Albania
Isuzu GIGA vacuum sewage suction truck is a special vehicle used for cleaning, discharging and transporting sewage. Its main function is to extract sewage from sewers or sewage pools, and then transport it to designated treatment facilities by pumping. Isuzu vacuum sewage suction truck is usually composed of chassis, pump system, water storage tank, sludge suction device, pipeline system and other components, which can effectively deal with sewage discharge problems in cities, factories, construction sites and other places.
Isuzu vacuum suction truck mainly has the following functions:
1. Cleaning function: It can clean roads, streets, sewers, pipes and other environments, and remove dirt, garbage and mud.
2. Sewage suction function: It can absorb various sewage, wastewater, industrial waste liquid, oily sewage and dirt, etc.
3. Transportation function: It can safely and automatically transport the sucked dirt and wastewater to the designated location to avoid secondary pollution.
4. High-pressure flushing function: Isuzu vacuum suction truck is also equipped with a high-pressure water gun, which can flush pipes, wellheads and other parts with high-pressure water flow for more thorough cleaning.
5. Environmental protection function: Isuzu truck mounted sewage cleaner can effectively treat and recycle the sucked dirt to reduce pollution to the environment.
The custom made Isuzu GIGA vacuum sewage suction trucks are specifically tailored to meet the needs and requirements of Albania. These trucks are designed to efficiently and effectively remove sewage and maintain the cleanliness of the streets and public areas in the country. The trucks are equipped with powerful vacuum suction pumps that can quickly and easily remove large quantities of sewage from drainage systems, septic tanks, and other sources. This ensures that the sewage is properly disposed of and prevents the spread of disease and contamination.
The custom made Isuzu vacuum suction truck are equipped with advanced technology and features that enhance their performance and reliability. These trucks are designed to withstand the challenging conditions of Albania, including rough terrain, extreme weather, and heavy usage. The trucks are made with durable materials and components that are resistant to corrosion, abrasion, and wear, ensuring that they can operate efficiently and effectively for long periods of time.
The custom made Isuzu septic suction truck are designed to be environmentally friendly and sustainable. These trucks are equipped with efficient engines that reduce fuel consumption and emissions, minimizing their impact on the environment. The trucks are also fitted with advanced filtration systems that capture and contain harmful pollutants and contaminants, preventing them from being released into the air or water. This ensures that the trucks comply with environmental regulations and standards, making them a responsible and eco-friendly choice for sewage disposal in Albania.
The custom made Isuzu GIGA vacuum sewage suction trucks are customized to meet the specific needs and preferences of Albania. These trucks can be configured with a variety of features and options, such as different tank capacities, hose lengths, and pumping rates, to accommodate the unique requirements of various projects and applications. The trucks can also be customized with branding, logos, and colors to promote the clients' businesses and enhance their visibility and reputation in the market.
-
November 18, 2024

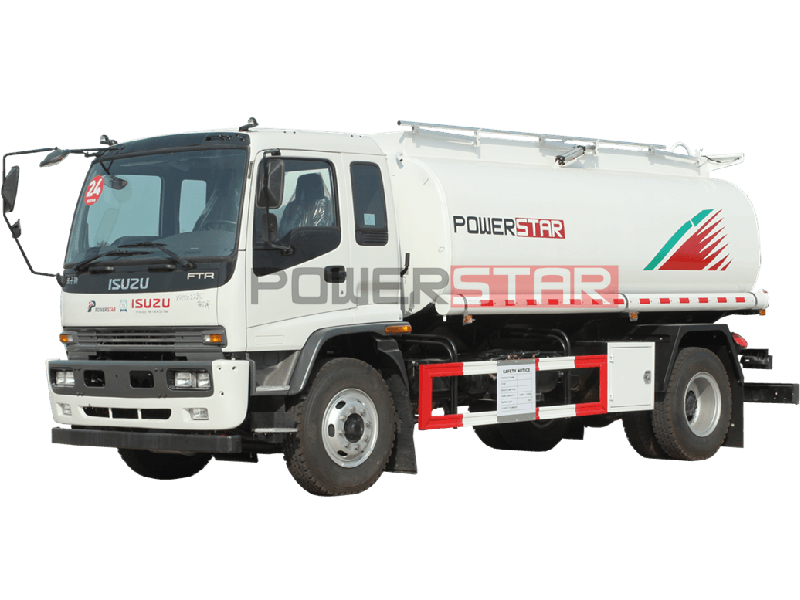

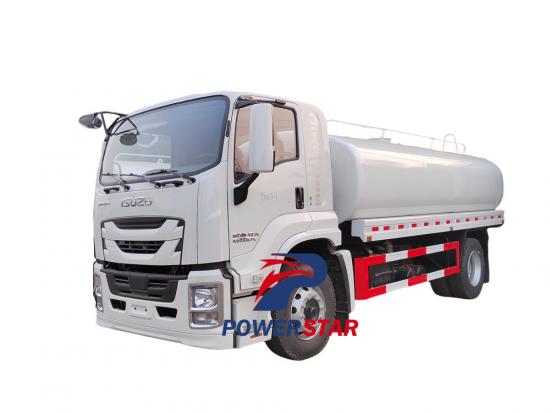

Isuzu fresh potable water tanker are exported to Nigeria
Isuzu fresh potable water tankers have been exported to Nigeria, equipped with a powerful 6WG1-TCG60 engine. These Isuzu potable water tankers feature the Isuzu 5X VC61 cabin, providing a comfortable and spacious environment for the drivers. The fast 9-shift transmission ensures smooth and efficient operation on the roads of Nigeria.
The Isuzu potable water tankers have a capacity of 20,000 liters and are made of Food grade SS316 material, ensuring that the water stored inside remains safe and clean for consumption. This high-quality food grade SS316 material is durable and resistant to corrosion, making it ideal for transporting drinking water.
The Isuzu VC61 water tankers are designed to meet the demands of the Nigerian market, where access to clean drinking water is a critical issue. With the capacity to transport large quantities of water, these tankers play a vital role in ensuring that communities have access to safe and fresh drinking water.
With a focus on quality and reliability, Isuzu water tankers have become a trusted choice for businesses and organizations in Nigeria. The advanced features and components, such as the powerful engine and transmission, make these tankers a dependable choice for water transportation.
Isuzu Fresh potable water tankers are essential for various industries and countries like Nigeria where access to clean drinking water is a major concern. The Isuzu water tanker exported to Nigeria is equipped with top-of-the-line features such as the 6WG1-TCG60 engine, Isuzu 5X VC61 cabin, fast 9 shift transmission, and a 20,000 liters Food grade SS315 material tanker.The main use of the Isuzu water tanker in Nigeria can be categorized into four primary areas:1. Emergency Relief: In times of natural disasters such as droughts, floods, or other emergencies, the Isuzu water tanker can be used to provide immediate and safe drinking water to affected communities. Its large capacity and food-grade material make it ideal for providing potable water quickly and efficiently.2. Water Transportation: The Isuzu water tanker can also be used for transporting potable water from sources such as rivers, lakes, or treatment plants to remote or urban areas where there is a shortage of clean drinking water. The tanker's fast transmission ensures timely delivery of water to areas in need.3. Water Supply for Construction Sites: Construction projects in Nigeria often require a significant amount of water for activities such as concrete mixing, dust suppression, and worker hydration. The Isuzu water tanker can provide a reliable and hygienic source of water for construction sites, improving efficiency and safety on the job.4. Water Distribution: The Isuzu water tanker can also be utilized by local governments or water authorities for routine water distribution to communities without access to a consistent water supply. The tanker's high capacity and durable construction make it a sustainable solution for delivering clean drinking water to underserved areas.
